Definition for chamfer

Types

	`kA3DFRMEnumValue_ChamferType_None`
	`kA3DFRMEnumValue_ChamferType_Distance_Distance`
	`kA3DFRMEnumValue_ChamferType_Distance1_Distance2`
	`kA3DFRMEnumValue_ChamferType_Offset_Offset`
	`kA3DFRMEnumValue_ChamferType_Offset1_Offset2`
	`kA3DFRMEnumValue_ChamferType_Length_Angle`
	`kA3DFRMEnumValue_ChamferType_ChordalLength_Angle`
	`kA3DFRMEnumValue_ChamferType_Height_Angle`
	`kA3DFRMEnumValue_ChamferType_Corner`

group a3d_feature_chamfer_module

enum EA3DFRMEnumValue_ChamferType

Enumerate the possible types of chamfer.

This allow to specify the type of chamfer, and so the Definition you should expect to have under the kA3DFRMFeatureDefinitionType_Chamfer.

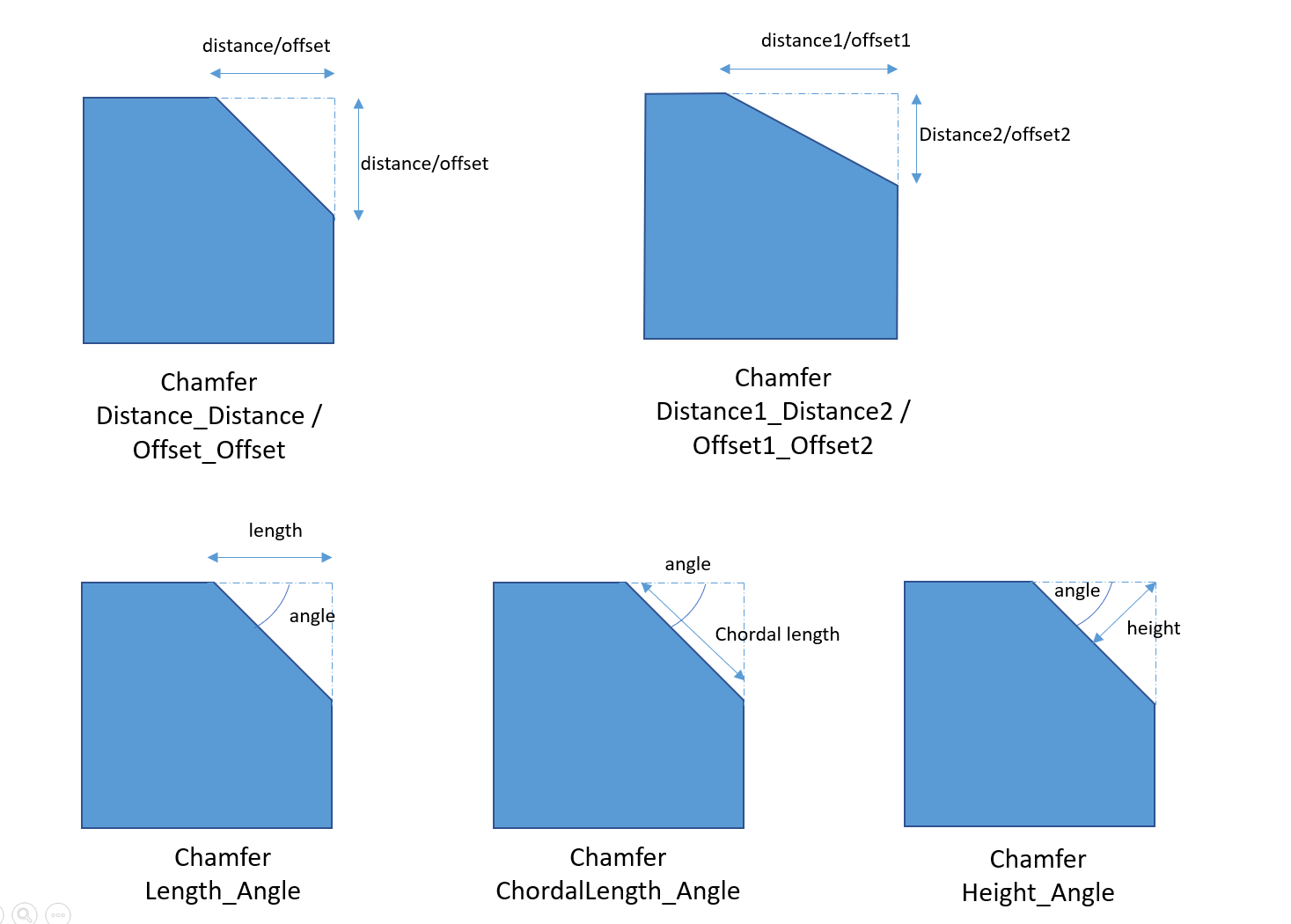

../../_images/frm_chamfer_types.png ../../_images/frm_chamfer_corner_types.png

Values:

enumerator kA3DFRMEnumValue_ChamferType_Distance_Distance

Chamfer symmetric defined with one distance:

enumerator kA3DFRMEnumValue_ChamferType_Distance1_Distance2

Chamfer asymmetric defined with two distance:

Parameter Data:
- Value Length: chamfer first distance
- Value Length: chamfer second distance

enumerator kA3DFRMEnumValue_ChamferType_Offset_Offset

Chamfer symmetric define with one distance:

enumerator kA3DFRMEnumValue_ChamferType_Offset1_Offset2

Chamfer asymmetric defined with two distance:

Parameter Data:
- Value Length: chamfer first offset
- Value Length: chamfer second offset

enumerator kA3DFRMEnumValue_ChamferType_Length_Angle

Chamfer defined with one distance and an angle:

enumerator kA3DFRMEnumValue_ChamferType_ChordalLength_Angle

Chamfer defined with the chordal length and an angle:

Parameter Data:
- Value Length: chamfer chordal length
- Value Angle: chamfer angle

enumerator kA3DFRMEnumValue_ChamferType_Height_Angle

Chamfer defined with the distance between the edge and the new face and an angle:

enumerator kA3DFRMEnumValue_ChamferType_Corner

Chamfer corner.

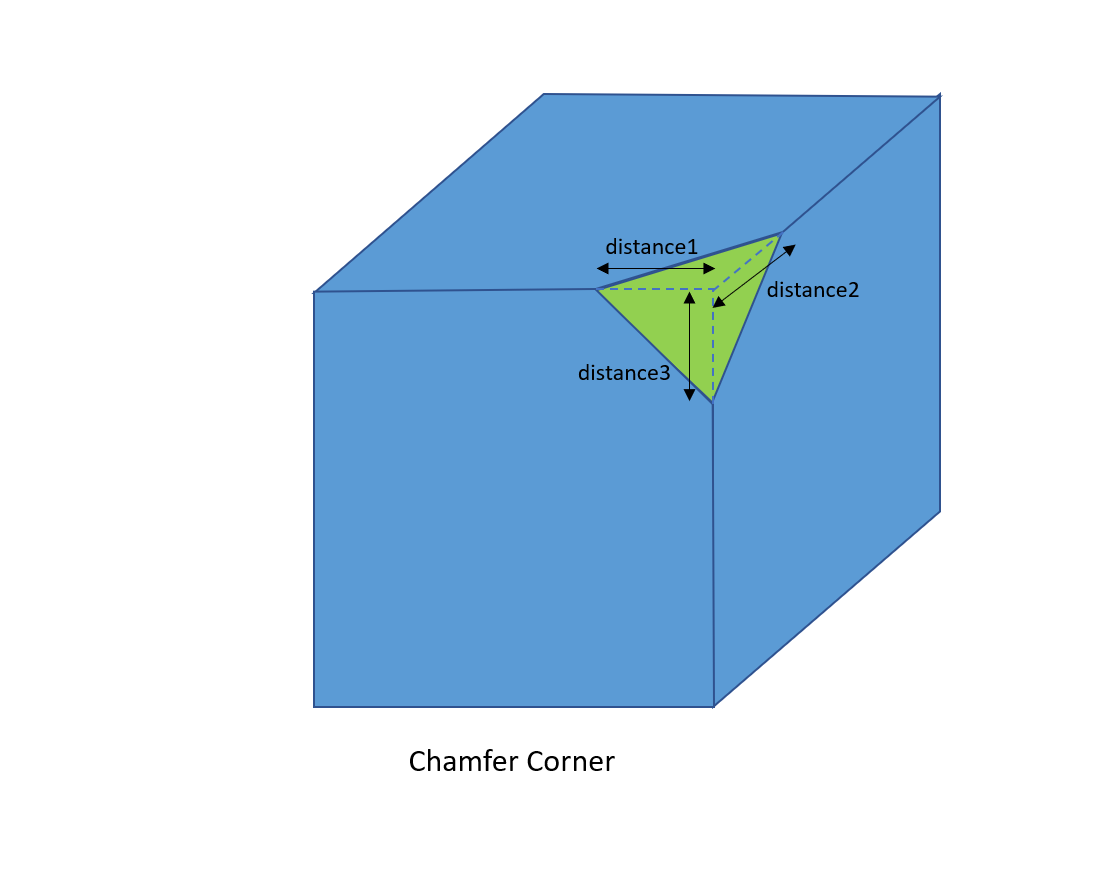

Expect to have three chamfer definition with one length each:

Parameter Definition:
- Definition Chamfer: first chamfer definition
- Definition Chamfer: second chamfer definition
- Definition Chamfer: third chamfer definition
