Drawing row

Types

	A3DMDFCFRowDatumData
	A3DMDFCFDrawingRowData
	`EA3DGDTType`
	`A3DMDGDTValueType`
	`EA3DMDGDTModifierType`

Fields

	`KEA3DGDTTypeNone`
	`KEA3DGDTTypeStraightness`
	`KEA3DGDTTypeFlatness`
	`KEA3DGDTTypeCircularity`
	`KEA3DGDTTypeCylindricity`
	`KEA3DGDTTypeLineProfile`
	`KEA3DGDTTypeSurfaceProfile`
	`KEA3DGDTTypeAngularity`
	`KEA3DGDTTypePerpendicularity`
	`KEA3DGDTTypeParallelism`
	`KEA3DGDTTypePosition`
	`KEA3DGDTTypeConcentricity`
	`KEA3DGDTTypeSymmetry`
	`KEA3DGDTTypeCircularRunout`
	`KEA3DGDTTypeTotalRunout`
	`KEA3DGDTValueNone`
	`KEA3DGDTValueDiameter`
	`KEA3DGDTValueRadius`
	`KEA3DGDTValueSpherical`
	`KEA3DGDTModifierNone`
	`KEA3DGDTModifierMax`
	`KEA3DGDTModifierMin`
	`KEA3DGDTModifierProj`
	`KEA3DGDTModifierFree`
	`KEA3DGDTModifierRfs`
	`KEA3DGDTModifierTangent`
	`KEA3DGDTModifierST`

Functions

`A3DStatus`	`A3DMDFCFSemanticRowGet`
`A3DStatus`	`A3DMDFCFToleranceValueGet`
`A3DStatus`	`A3DMDFCFRowDatumGet`
`A3DStatus`	`A3DMDFCFDrawingRowGet`

Detailed Description

group a3d_markupfcfrow

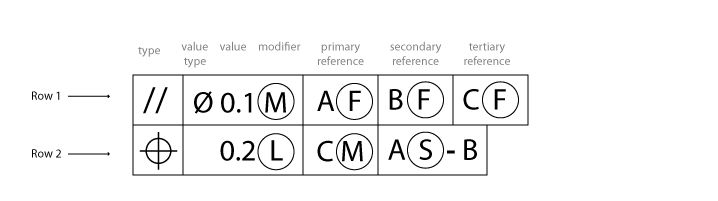

../../_images/pmi_markup_fcf_drawing_row.png

Version: 4.0

Type Documentation

enum EA3DGDTType

Enumerations for row type.

Version: 4.0

Values:

enumerator KEA3DGDTTypeNone: No Type.

enumerator KEA3DGDTTypeStraightness: Straightness.

enumerator KEA3DGDTTypeFlatness: Flatness.

enumerator KEA3DGDTTypeCircularity: Circularity.

enumerator KEA3DGDTTypeCylindricity: Cylindricity.

enumerator KEA3DGDTTypeLineProfile: Profile of a line.

enumerator KEA3DGDTTypeSurfaceProfile: Profile of a surface.

enumerator KEA3DGDTTypeAngularity: Angularity.

enumerator KEA3DGDTTypePerpendicularity: Perpendicularity.

enumerator KEA3DGDTTypeParallelism: Parallel.

enumerator KEA3DGDTTypePosition: Positional.

enumerator KEA3DGDTTypeConcentricity: Concentricity.

enumerator KEA3DGDTTypeSymmetry: Symmetric.

enumerator KEA3DGDTTypeCircularRunout: Circular run out.

enumerator KEA3DGDTTypeTotalRunout: Total run out.

enum A3DMDGDTValueType

Enumerations for modifier type.

Version: 4.0

Values:

enumerator KEA3DGDTValueNone: No modifier defined.

enumerator KEA3DGDTValueDiameter: Diameter value type.

enumerator KEA3DGDTValueRadius: Radial value type.

enumerator KEA3DGDTValueSpherical: Spherical value type.

enum EA3DMDGDTModifierType

Enumerations for modifier type.

../../_images/pmi_gdt_modifiers.png

Version: 4.0

Values:

enumerator KEA3DGDTModifierNone: No modifier defined.

enumerator KEA3DGDTModifierMax: Maximum material condition.

enumerator KEA3DGDTModifierMin: Least material condition.

enumerator KEA3DGDTModifierProj: Projected tolerance zone.

enumerator KEA3DGDTModifierFree: Free State.

enumerator KEA3DGDTModifierRfs: Regardless of feature size.

enumerator KEA3DGDTModifierTangent: Tangent plane.

enumerator KEA3DGDTModifierST: Statistical.

Function Documentation

A3DStatus A3DMDFCFSemanticRowGet(const A3DMDFCFRow *pRow, A3DMDFCFDrawingRowData *pData)

Populates the A3DMDFCFDrawingRowData structure whatever the row type.

Note that if the drawing row is not defined with a tolerance value, the function returns A3D_MARKUP_SEMANTIC_TOL_VALUE_NOT_SET

See also

A3DMDFCFDrawingRowData

Version: 5.2

Return values:	A3D_INITIALIZE_NOT_CALLED – A3D_INVALID_DATA_STRUCT_SIZE – A3D_INVALID_DATA_STRUCT_NULL – A3D_INVALID_ENTITY_NULL – A3D_INVALID_ENTITY_TYPE – A3D_MARKUP_SEMANTIC_DEFINITION_NOT_SET – A3D_MARKUP_SEMANTIC_TOL_VALUE_NOT_SET – A3D_SUCCESS –
Returns:	`A3D_SUCCESS` on success, or an error code on failure

A3DStatus A3DMDFCFToleranceValueGet(const A3DMDFCFToleranceValue *pToleranceValue, A3DMDFCFToleranceValueData *pData)

Populates the A3DMDFCFToleranceValueData structure.

Version: 5.2

Return values:	A3D_INITIALIZE_NOT_CALLED – A3D_INVALID_DATA_STRUCT_SIZE – A3D_INVALID_DATA_STRUCT_NULL – A3D_INVALID_ENTITY_NULL – A3D_INVALID_ENTITY_TYPE – A3D_SUCCESS –
Returns:	`A3D_SUCCESS` on success, or an error code on failure

A3DStatus A3DMDFCFRowDatumGet(const A3DMDFCFRowDatum *pRowDatum, A3DMDFCFRowDatumData *pData)

Populates the A3DMDFCFRowDatumData structure.

Version: 4.0

Return values:	A3D_INITIALIZE_NOT_CALLED – A3D_INVALID_DATA_STRUCT_SIZE – A3D_INVALID_DATA_STRUCT_NULL – A3D_INVALID_ENTITY_NULL – A3D_INVALID_ENTITY_TYPE – A3D_SUCCESS –
Returns:	`A3D_SUCCESS` on success, or an error code on failure

A3DStatus A3DMDFCFDrawingRowGet(const A3DMDFCFDrawingRow *pDrawingRow, A3DMDFCFDrawingRowData *pData)

Populates the A3DMDFCFDrawingRowData structure.

Version: 4.0

Return values:	A3D_INITIALIZE_NOT_CALLED – A3D_INVALID_DATA_STRUCT_SIZE – A3D_INVALID_DATA_STRUCT_NULL – A3D_INVALID_ENTITY_NULL – A3D_INVALID_ENTITY_TYPE – A3D_SUCCESS –
Returns:	`A3D_SUCCESS` on success, or an error code on failure
