Feature control frame

Types

	A3DMDFCFIndicatorData
	A3DMDFCFDraftingIndicatorData
	A3DMDFeatureControlFrameData

Functions

A3DStatus	A3DMDFCFIndicatorGet
A3DStatus	A3DMDFCFDraftingIndicatorGet
A3DStatus	A3DMDFeatureControlFrameGet
A3DStatus	A3DMDSemanticFeatureControlFrameGet

Detailed Description

group a3d_markupfcf

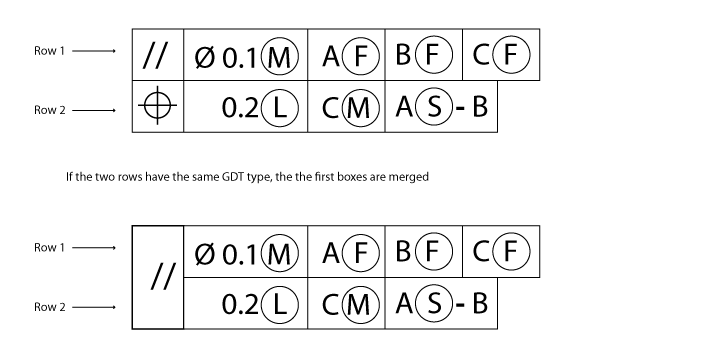

see in the following description of a feature control frame with two rows

Version

4.0

Function Documentation

A3DStatus A3DMDFCFIndicatorGet(const A3DMDFCFIndicator *pIndicator, A3DMDFCFIndicatorData *pData)

Populates the A3DMDFCFIndicatorData structure.

Version

12.2

Return values

• A3D_INITIALIZE_NOT_CALLED –

• A3D_INVALID_DATA_STRUCT_SIZE –

• A3D_INVALID_DATA_STRUCT_NULL –

• A3D_INVALID_ENTITY_NULL –

• A3D_INVALID_ENTITY_TYPE –

• A3D_SUCCESS –

Returns

A3D_SUCCESS in case of success or an error code

A3DStatus A3DMDFCFDraftingIndicatorGet(const A3DMDFCFDraftingIndicator *pIndicator, A3DMDFCFDraftingIndicatorData *pData)

Populates the A3DMDFCFDraftingIndicatorData structure.

Version

14.0

Return values

• A3D_INITIALIZE_NOT_CALLED –

• A3D_INVALID_DATA_STRUCT_SIZE –

• A3D_INVALID_DATA_STRUCT_NULL –

• A3D_INVALID_ENTITY_NULL –

• A3D_INVALID_ENTITY_TYPE –

• A3D_SUCCESS –

Returns

A3D_SUCCESS in case of success or an error code

A3DStatus A3DMDFeatureControlFrameGet(const A3DMDFeatureControlFrame *pFCF, A3DMDFeatureControlFrameData *pData)

Populates the A3DMDFeatureControlFrameData structure.

Version

4.0

Return values

• A3D_INITIALIZE_NOT_CALLED –

• A3D_INVALID_DATA_STRUCT_SIZE –

• A3D_INVALID_DATA_STRUCT_NULL –

• A3D_INVALID_ENTITY_NULL –

• A3D_INVALID_ENTITY_TYPE –

• A3D_SUCCESS –

Returns

A3D_SUCCESS in case of success or an error code

A3DStatus A3DMDSemanticFeatureControlFrameGet(const A3DMDFeatureControlFrame *pFCF, A3DMDFeatureControlFrameData *pData)

Retrieves the semantic definition if set and populates the A3DMDFeatureControlFrameData structure.

Version

5.2

Return values

• A3D_INITIALIZE_NOT_CALLED –

• A3D_INVALID_DATA_STRUCT_SIZE –

• A3D_INVALID_DATA_STRUCT_NULL –

• A3D_INVALID_ENTITY_NULL –

• A3D_INVALID_ENTITY_TYPE –

• A3D_MARKUP_SEMANTIC_DEFINITION_NOT_SET –

• A3D_SUCCESS –

Returns

A3D_SUCCESS in case of success or an error code
