Drawing Model

Types

A3DDrawingModelData

Functions

A3DStatus

A3DDrawingModelGet

A3DStatus

A3DDrawingModelCreate

Detailed Description

group a3d_drawing_model

Entity type is kA3DTypeDrawingModel.

Version

5.0

Drawing model is a set a sheet. If model contains more that one sheet, a default active sheet is defined.

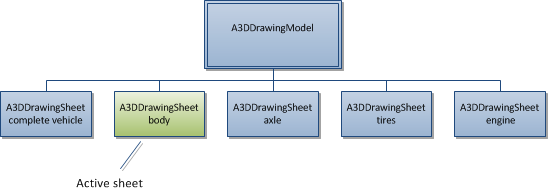

../_images/drawing_model.png

Function Documentation

A3DStatus A3DDrawingModelGet(const A3DDrawingModel *pDrawingModel, A3DDrawingModelData *pData)

Populates the A3DDrawingModelData structure.

Version

5.0

Parameters:

  • pDrawingModel – [in] The input drawing model.

  • pData – [out] Data of the drawing model.

Return values:

  • A3D_INITIALIZE_NOT_CALLED –

  • A3D_INVALID_DATA_STRUCT_SIZE –

  • A3D_INVALID_DATA_STRUCT_NULL –

  • A3D_INVALID_ENTITY_NULL –

  • A3D_INVALID_ENTITY_TYPE –

  • A3D_SUCCESS –

Returns:

A3D_SUCCESS in case of success or an error code

A3DStatus A3DDrawingModelCreate(const A3DDrawingModelData *pData, A3DDrawingModel **ppDrawingModel)

Creates an A3DDrawingModel from A3DDrawingModelData structure.

Version

5.0

Parameters:

  • pData – [in] The input drawing model data.

  • ppDrawingModel – [out] The drawing model entity.

Return values:

  • A3D_DRW_CANNOT_CREATE –

  • A3D_INVALID_DATA_STRUCT_SIZE –

  • A3D_INVALID_DATA_STRUCT_NULL –

  • A3D_INTERVAL_INCONSISTENT_DATA –

  • A3D_SUCCESS –

Returns:

A3D_SUCCESS in case of success or an error code
