Structure
Detailed Description
- group a3d_feature_structure_module
The feature is a structure that allows to store information with various levels of complexity.
The hierarchy structures the data from a simple double/integer storage to a cad feature information. Depending of their Family type what they embed different types of sub-features, group under feature parameters. Also the pair m_eFamily and m_uiType allows to figure out what represents data underneath. The family type specifies the way to interpret the type. The type is an integer that need to be interpreted as a value in an enum specify by the family type.
The following table shows the correspondence between the family type and the associated enum; and the expecetd data defined below a feature with this type of feature.
Family
Corresponding enum
Description
Information

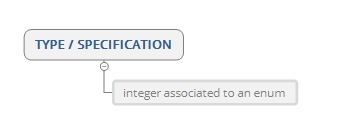

Type
Store a value of an enumeration (cad type, depth type, …)
Double Data ,
Integer Data ,
String DataEA3DFRMDoubleDataType,EA3DFRMIntegerDataType, EA3DFRMStringDataType
Type of double data (unit, offset, diameter, …)

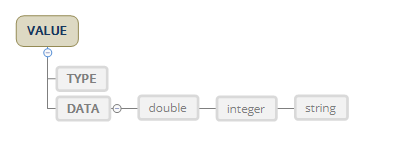

Value
Type of complex feature (Vector, Depth, …)

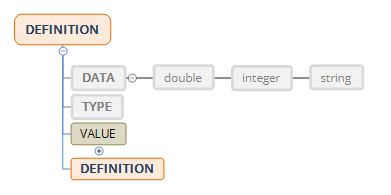

Definition
Type of complex feature (Vector, Depth, …)

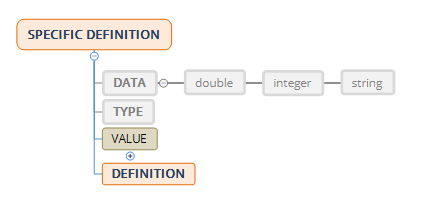

Definition Hole,
Definition Pattern
Type of complex feature defining a hole (Counter sunk, Counter bore, …)

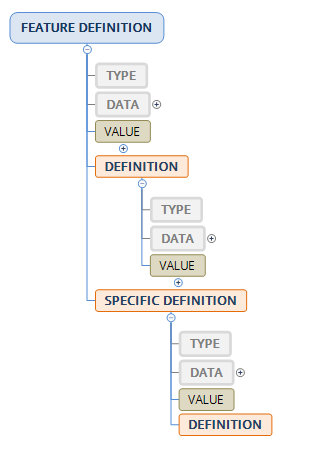

Feature Definition
Store an information specific to a cad feature (hole, patter, extrude, definition)
Root
Corresponds to cad node
Function Documentation
-
A3DStatus A3DFRMFeatureGet(const A3DFRMFeature *pFeature, A3DFRMFeatureData *pData)
brief Populates the A3DFRMFeatureData structure
- Version
10.2
- Parameters
pFeature – feature pointer
pData – feature data
- Return values
A3D_INVALID_DATA_STRUCT_SIZE –
A3D_INVALID_DATA_STRUCT_NULL –
A3D_ERROR –
A3D_SUCCESS –
- Returns
A3D_SUCCESS in case of success or an error code
-
A3DStatus A3DFRMGeomEntitiesExtract(const A3DFRMFeature *pFeature, A3DFRMGeomEntitiesData *pFeatureGeomEntities)
Create on the fly geometries related to the feature.
- Version
12.2
- Parameters
pFeature – feature pointer
pFeatureGeomEntities – struct containing the array of extracted geometries
- Return values
A3D_INVALID_DATA_STRUCT_SIZE –
A3D_INVALID_DATA_STRUCT_NULL –
A3D_INITIALIZE_NOT_CALLED –
A3D_ERROR –
A3D_SUCCESS –
- Returns
A3D_SUCCESS in case of success or an error code
