A3DSDKEnums.h

Macro Definitions

	`kA3DTextureMappingDiffuse`
	`kA3DTextureMappingBump`
	`kA3DTextureMappingOpacity`
	`kA3DTextureMappingSphericalReflection`
	`kA3DTextureMappingCubicalReflection`
	`kA3DTextureMappingRefraction`
	`kA3DTextureMappingSpecular`
	`kA3DTextureMappingAmbient`
	`kA3DTextureMappingEmission`
	`kA3DTextureMappingNormal`
	`kA3DTextureMappingMetalness`
	`kA3DTextureMappingRoughness`
	`kA3DTextureMappingOcclusion`
	`kA3DTextureMappingGlossiness`
	`kA3DTextureMappingSpecularColor`
	`kA3DTextureMappingClearcoat`
	`kA3DTextureMappingMetalnessRoughness`
	`kA3DTextureMappingMetalnessRoughnessOcclusion`
	`kA3DTextureMappingSpecularGlossiness`
	`kA3DTextureMappingDiffuseGlossiness`
	`kA3DTextureMappingClearcoatRoughness`
	`kA3DTextureMappingClearcoatNormal`
	`kA3DTextureApplyingModeNone`
	`kA3DTextureApplyingModeLighting`
	`kA3DTextureApplyingModeAlphaTest`
	`kA3DTextureApplyingModeVertexColor`
	`kA3DPBRAttributeNameAlphaCutOff`
	`kA3DPBRAttributeNameAlphaMode`
	`kA3DPBRAttributeNameMetallicFactor`
	`kA3DPBRAttributeNameNormalTextureFactor`
	`kA3DPBRAttributeNameOcclusionTextureFactor`
	`kA3DPBRAttributeNameRoughnessFactor`
	`kA3DTextureMappingComponentsRed`
	`kA3DTextureMappingComponentsGreen`
	`kA3DTextureMappingComponentsBlue`
	`kA3DTextureMappingComponentsRgb`
	`kA3DTextureMappingComponentsAlpha`
	`kA3DTextureMappingComponentsRgba`
	`A3D_PRODUCT_FLAG_DEFAULT`
	`A3D_PRODUCT_FLAG_INTERNAL`
	`A3D_PRODUCT_FLAG_CONTAINER`
	`A3D_PRODUCT_FLAG_CONFIG`
	`A3D_PRODUCT_FLAG_VIEW`
	`A3D_PRODUCT_FLAG_SUPPRESSED`
	`A3D_PRODUCT_FLAG_CONFIG_NOT_UPDATED`
	`A3D_PRODUCT_FLAG_EXTERNAL_REFERENCE`
	`A3D_PRODUCT_FLAG_BIM_PROJECT`
	`A3D_PRODUCT_FLAG_BIM_SITE`
	`A3D_PRODUCT_FLAG_BIM_BUILDING`
	`A3D_PRODUCT_FLAG_BIM_LEVEL`
	`A3D_PRODUCT_FLAG_BIM_CATEGORY`
	`A3D_PRODUCT_FLAG_BIM_COMPONENT`
	`kA3DRhinoAttributeName3DMVersion`
	`kA3DRhinoAttributeNameApplicationUUID`
	`kA3DRhinoAttributeNameArchiveClassUUID`
	`kA3DRhinoAttributeNameBufferData`
	`kA3DRhinoAttributeNameModelObjectUUID`
	`kA3DRhinoAttributeNameOpenNURBSVersion`
	`kA3DRhinoAttributeNameRDKMaterialInstanceUUID`
	`kA3DRhinoAttributeNameUnknownClassUUID`
	`kA3DRhinoAttributeNameUserDataCopyCount`
	`kA3DRhinoAttributeNameUserDataUUID`
	`kA3DRhinoAttributeNameUserDataXForm`
	`kA3DRhinoAttributeNameDocumentUserStrings`
	`kA3DTessFaceDataPolyface`
	`kA3DTessFaceDataTriangle`
	`kA3DTessFaceDataTriangleFan`
	`kA3DTessFaceDataTriangleStripe`
	`kA3DTessFaceDataPolyfaceOneNormal`
	`kA3DTessFaceDataTriangleOneNormal`
	`kA3DTessFaceDataTriangleFanOneNormal`
	`kA3DTessFaceDataTriangleStripeOneNormal`
	`kA3DTessFaceDataPolyfaceTextured`
	`kA3DTessFaceDataTriangleTextured`
	`kA3DTessFaceDataTriangleFanTextured`
	`kA3DTessFaceDataTriangleStripeTextured`
	`kA3DTessFaceDataPolyfaceOneNormalTextured`
	`kA3DTessFaceDataTriangleOneNormalTextured`
	`kA3DTessFaceDataTriangleFanOneNormalTextured`
	`kA3DTessFaceDataTriangleStripeOneNormalTextured`
	`kA3DTessFaceDataWireIsNotDrawn`
	`kA3DTessFaceDataWireIsClosing`
	`kA3DTessFaceDataNormalSingle`
	`kA3DTessFaceDataNormalMask`
	`kA3DMarkupIsMatrix`
	`kA3DMarkupIsExtraData`
	`kA3DMarkupIntegerMask`
	`kA3DMarkupExtraDataType`
	`kA3DMarkupPatternMask`
	`kA3DMarkupPictureMask`
	`kA3DMarkupTrianglesMask`
	`kA3DMarkupQuadsMask`
	`kA3DMarkupFaceViewMask`
	`kA3DMarkupFrameDrawMask`
	`kA3DMarkupFixedSizeMask`
	`kA3DMarkupSymbolMask`
	`kA3DMarkupCylinderMask`
	`kA3DMarkupColorMask`
	`kA3DMarkupLineStippleMask`
	`kA3DMarkupFontMask`
	`kA3DMarkupTextMask`
	`kA3DMarkupPointsMask`
	`kA3DMarkupPolygonMask`
	`kA3DMarkupLineWidthMask`
	`A3D_ENCODE_EXTRA_DATA`
	`A3D_DECODE_EXTRA_DATA`
	`kA3DMarkupIsHidden`
	`kA3DMarkupHasFrame`
	`kA3DMarkupIsNotModifiable`
	`kA3DMarkupIsZoomable`
	`kA3DMarkupIsOnTop`
	`kA3DMarkupIsNotRotatable`
	`kA3DFontKeyAttrib`
	`kA3DFontKeySize`
	`kA3DFontKeyStyle`
	`kA3DMDTrailingToleranceConsistentDigitsMask`
	`kA3DFontBold`
	`kA3DFontItalic`
	`kA3DFontUnderlined`
	`kA3DFontStrikedOut`
	`kA3DFontOverlined`
	`kA3DFontStreched`
	`kA3DFontWired`
	`kA3DFontFixedWidth`
	`kA3DGraphicsShow`
	`kA3DGraphicsSonHeritShow`
	`kA3DGraphicsFatherHeritShow`
	`kA3DGraphicsSonHeritColor`
	`kA3DGraphicsFatherHeritColor`
	`kA3DGraphicsSonHeritLayer`
	`kA3DGraphicsFatherHeritLayer`
	`kA3DGraphicsSonHeritTransparency`
	`kA3DGraphicsFatherHeritTransparency`
	`kA3DGraphicsSonHeritLinePattern`
	`kA3DGraphicsFatherHeritLinePattern`
	`kA3DGraphicsSonHeritLineWidth`
	`kA3DGraphicsFatherHeritLineWidth`
	`kA3DGraphicsRemoved`
	`A3D_HLR_TYPE_UNKNOWN`
	`A3D_HLR_TYPE_EDGE`
	`A3D_HLR_TYPE_SILHOUETTE`
	`A3D_HLR_TYPE_SECTION`
	`A3D_HLR_TYPE_SILHOUETTE_SECTION`
	`kA3DTransformationIdentity`
	`kA3DTransformationTranslate`
	`kA3DTransformationRotate`
	`kA3DTransformationMirror`
	`kA3DTransformationScale`
	`kA3DTransformationNonUniformScale`
	`kA3DNoActiveSheet`

Types

	`A3DETextureMappingOperator`
	`A3DETextureMappingType`
	`A3DETextureFunction`
	`A3DETextureBlendParameter`
	`A3DETextureAlphaMode`
	`A3DETextureAlphaTest`
	`A3DETextureWrappingMode`
	`A3DEModellerType`
	`A3DEProductLoadStatus`
	`A3DEProductOccurrenceTypeCat`
	`A3DEProductOccurrenceTypeInv`
	`A3DEProductOccurrenceTypeSLW`
	`A3DEModellerAttributeType`
	`A3DEReadGeomTessMode`
	`A3DEWriteGeomTessMode`
	`A3DEUnits`
	`A3DETessellationLevelOfDetail`
	`A3DProESessionColorType`
	`A3DProEReadConstructEntities`
	`A3DProEFamilyTables`
	`A3DEStepNameFromNAUO`
	`A3DEJTReadTessellationLevelOfDetail`
	`A3DECompressBrepType`
	`A3DEStepFormat`
	`A3DETranslateToPkPartsHealing`
	`A3DETranslateToPkPartsAccurate`
	`A3DETranslateToPkPartsSimplifyGeometry`
	`A3DETranslateToPkPartsMergeEntities`
	`A3DEU3DVersion`
	`A3DEJTVersion`
	`EA3DMDLineWeldingType`
	`EA3DMDLineWeldingSupplSymbolType`
	`EA3DMDLineWeldingFinishSymbol`
	`EA3DMDLineWeldingOption`
	`EA3DMDSpotWeldType`
	`EA3DMDSpotWeldThickness`
	`EA3DGDTType`
	`A3DMDGDTValueType`
	`EA3DMDGDTModifierType`
	`EA3DMarkupFrameType`
	`EA3DLeaderAlignmentType`
	`EA3DMDRoughnessType`
	`EA3DMDRoughnessContactArea`
	`EA3DMDRoughnessMode`
	`EA3DMDBalloonShape`
	`EA3DLocatorSymbol`
	`EA3DLocatorType`
	`EA3DLocatorSubType`
	`EA3DLocatorCoordinatePlane`
	`EA3DLocatorChangeLevel`
	`EA3DLocatorSubscript`
	`EA3DMDAnchorPointType`
	`A3DMDLeaderSymbolType`
	`EA3DMDDimensionValueOption`
	`EA3DMDDimensionLineGraphicalRepresentation`
	`EA3DMDDimensionOrientation`
	`EA3DMDDimensionSymbolType`
	`EA3DMDDimensionSymbolShape`
	`EA3DMDDimensionLineExtensionType`
	`EA3DMDDimensionType`
	`EA3DMDDimensionDualDisplay`
	`EA3DMDDimensionFrame`
	`EA3DMDDimensionScore`
	`EA3DMDDimensionAngleSector`
	`EA3DMDDimensionReferenceType`
	`EA3DMDMarkupDisplayType`
	`EA3DMDTextPropertiesScore`
	`EA3DMDTextPropertiesFormat`
	`EA3DMDTextPropertiesJustification`
	`A3DEMarkupType`
	`A3DEMarkupSubType`
	`A3DEMarkupSymbol`
	`A3DECharSet`
	`A3DERenderingMode`
	`A3DEPictureDataFormat`
	`A3DEBSplineSurfaceForm`
	`A3DEKnotType`
	`A3DEBSplineCurveForm`
	`A3DEHelixType`
	`A3DEIntersectionLimitType`
	`A3DEDrawingViewType`

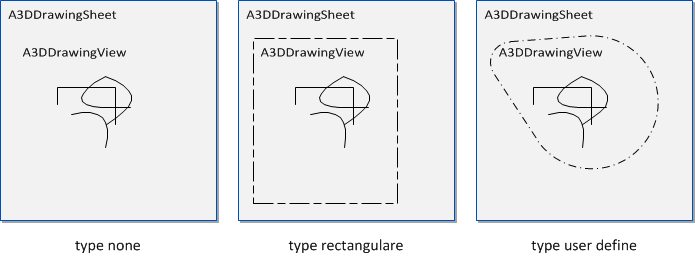

	`A3DEDrawingClipFrameType`
	`A3DEDrawingOperatorType`
	`A3DEDrawingFilledAreaMode`
	`A3DEDrawMaterialType`
	`A3DEDrawBeginEndType`
	`A3DEAnalyticType`
	`A3DMaterialPhysicType`
	`A3DCollisionType`
	`A3DEReadingMode2D3D`
	`A3DEBasicUnit`
	`EA3DFCFIndicatorType`
	`EA3DFCFIndicatorSymbol`
	`EA3DRevitPhysicalProperties`
	`EA3DRevitLinks`
	`EA3DRevitMultiThreadedMode`
	`A3DELayerDisplayStatus`
	`A3DERevitLevelOfDetail`

Fields

	`KEA3DMDWeldTypeUnknown`
	`KEA3DMDWeldTypeNone`
	`KEA3DMDWeldTypeEdgeFlange`
	`KEA3DMDWeldTypeSquare`
	`KEA3DMDWeldTypeSingleV`
	`KEA3DMDWeldTypeSingleBevel`
	`KEA3DMDWeldTypeBroadRootFaceSingleV`
	`KEA3DMDWeldTypeBroadRootFaceSingleBevel`
	`KEA3DMDWeldTypeSingleU`
	`KEA3DMDWeldTypeSingleJ`
	`KEA3DMDWeldTypeBacking`
	`KEA3DMDWeldTypeFillet`
	`KEA3DMDWeldTypePlug`
	`KEA3DMDWeldTypeSeam`
	`KEA3DMDWeldTypeSteepFlankedSingleV`
	`KEA3DMDWeldTypeSteepFlankedSingleBevel`
	`KEA3DMDWeldTypeEdge`
	`KEA3DMDWeldTypeSurface`
	`KEA3DMDWeldTypeSurfaceJoint`
	`KEA3DMDWeldTypeInclinedJoint`
	`KEA3DMDWeldTypeFoldJoint`
	`KEA3DMDWeldTypeSpot`
	`KEA3DMDWeldTypePermanentBackStrip`
	`KEA3DMDWeldTypeRemovableBackStrip`
	`KEA3DMDWeldTypeUnspecifiedEdgeType`
	`KEA3DMDWeldTypeFlare_V_Butt`
	`KEA3DMDWeldTypeFlare_Bevel_Butt`
	`KEA3DMDWeldTypeSingleEdgeFlange`
	`KEA3DMDWeldAddSymbolUnknown`
	`KEA3DMDWeldAddSymbolNone`
	`KEA3DMDWeldAddSymbolFlush`
	`KEA3DMDWeldAddSymbolConvex`
	`KEA3DMDWeldAddSymbolConcave`
	`KEA3DMDWeldAddSymbolToesBlended`
	`KEA3DMDWeldAddSymbolFlushFinished`
	`KEA3DMDWeldAddSymbolBackingPermanent`
	`KEA3DMDWeldAddSymbolBackingpRemovable`
	`KEA3DMDWeldFinishSymbolNone`
	`KEA3DMDWeldFinishSymbolC`
	`KEA3DMDWeldFinishSymbolF`
	`KEA3DMDWeldFinishSymbolG`
	`KEA3DMDWeldFinishSymbolH`
	`KEA3DMDWeldFinishSymbolM`
	`KEA3DMDWeldFinishSymbolR`
	`KEA3DMDWeldFinishSymbolU`
	`KEA3DMDWeldFinishSymbolChipping`
	`KEA3DMDWeldFinishSymbolGrinding`
	`KEA3DMDWeldFinishSymbolHammering`
	`KEA3DMDWeldFinishSymbolMachining`
	`KEA3DMDWeldFinishSymbolRolling`
	`KEA3DMDWeldFinishSymbolPeening`
	`KEA3DMDLineWeldOptionUnknown`
	`KEA3DMDLineWeldOptionNone`
	`KEA3DMDLineWeldOptionAllAround`
	`KEA3DMDLineWeldOptionFieldWeld`
	`KEA3DMDLineWeldOptionReferenceSign`
	`KEA3DMDLineWeldOptionTail`
	`KEA3DMDLineWeldOptionIdentifLine`
	`KEA3DMDLineWeldOptionIdentifLineUp`
	`KEA3DMDLineWeldOptionTextSideDown`
	`KEA3DMDSpotWeldTypeUnknown`
	`KEA3DMDSpotWeldTypeNone`
	`KEA3DMDSpotWeldTypeResistance`
	`KEA3DMDSpotWeldTypeProjection`
	`KEA3DMDSpotWeldThickUnknown`
	`KEA3DMDSpotWeldThick_None`
	`KEA3DMDSpotWeldTwoThick`
	`KEA3DMDSpotWeldThreeThick`
	`KEA3DMDSpotWeldE_FourThick`
	`KEA3DGDTTypeNone`
	`KEA3DGDTTypeStraightness`
	`KEA3DGDTTypeFlatness`
	`KEA3DGDTTypeCircularity`
	`KEA3DGDTTypeCylindricity`
	`KEA3DGDTTypeLineProfile`
	`KEA3DGDTTypeSurfaceProfile`
	`KEA3DGDTTypeAngularity`
	`KEA3DGDTTypePerpendicularity`
	`KEA3DGDTTypeParallelism`
	`KEA3DGDTTypePosition`
	`KEA3DGDTTypeConcentricity`
	`KEA3DGDTTypeSymmetry`
	`KEA3DGDTTypeCircularRunout`
	`KEA3DGDTTypeTotalRunout`
	`KEA3DGDTValueNone`
	`KEA3DGDTValueDiameter`
	`KEA3DGDTValueRadius`
	`KEA3DGDTValueSpherical`
	`KEA3DGDTModifierNone`
	`KEA3DGDTModifierMax`
	`KEA3DGDTModifierMin`
	`KEA3DGDTModifierProj`
	`KEA3DGDTModifierFree`
	`KEA3DGDTModifierRfs`
	`KEA3DGDTModifierTangent`
	`KEA3DGDTModifierST`
	`KA3DMarkupFrameNone`
	`KA3DMarkupFrameRectangle`
	`KA3DMarkupFrameSquare`
	`KA3DMarkupFrameCircle`
	`KA3DMarkupFrameScoredCircle`
	`KA3DMarkupFrameDiamond`
	`KA3DMarkupFrameTriangle`
	`KA3DMarkupFrameRightFlag`
	`KA3DMarkupFrameLeftFlag`
	`KA3DMarkupFrameBothFlag`
	`KA3DMarkupFrameOblong`
	`KA3DMarkupFrameEllipse`
	`KA3DMarkupFrameFixRectangle`
	`KA3DMarkupFrameFixSquare`
	`KA3DMarkupFrameFixCircle`
	`KA3DMarkupFrameFixScoredCircle`
	`KA3DMarkupFrameFixDiamond`
	`KA3DMarkupFrameFixTriangle`
	`KA3DMarkupFrameFixRightFlag`
	`KA3DMarkupFrameFixLeftFlag`
	`KA3DMarkupFrameFixBothFlag`
	`KA3DMarkupFrameFixOblong`
	`KA3DMarkupFrameFixEllipse`
	`KA3DMarkupFrameCustom`
	`KA3DLeaderAlignment_Simple`
	`KA3DLeaderAlignment_Below`
	`KA3DLeaderAlignment_Underline`
	`KA3DLeaderAlignment_ExtToMax`
	`KA3DLeaderAlignment_OnBoxPoint`
	`KA3DLeaderAlignment_SimpleOnBoxPoint`
	`KA3DLeaderAlignment_Maximal_Underline`
	`KA3DLeaderAlignment_Simple_OppositeAnchor`
	`KA3DRoughnessTypeBasic`
	`KA3DRoughnessTypeMachining_Required`
	`KA3DRoughnessTypeMachining_Prohibited`
	`KA3DRoughnessContactSurfTexture`
	`KA3DRoughnessContactSurfTextAndAllSrfAround`
	`KA3DRoughnessContactBasic`
	`KA3DRoughnessContactSrfAround`
	`KA3DRoughnessMode_None`
	`KA3DRoughnessModeM`
	`KA3DRoughnessModeC`
	`KA3DRoughnessModeR`
	`KA3DRoughnessModeP`
	`KA3DRoughnessModeX`
	`KA3DRoughnessModePARA`
	`KA3DRoughnessModePERP`
	`KA3DMDBalloonCircle`
	`KEA3DMDBalloonSquare`
	`KEA3DMDBalloonDividedSquare`
	`KEA3DMDBalloonQuadrantCircle`
	`KEA3DMDBalloonDividedCircle`
	`KEA3DMDBalloonRoundedBox`
	`KEA3DMDBalloonTriangle`
	`KEA3DMDBalloonTriangleUp`
	`KEA3DMDBalloonTriangleDown`
	`KEA3DMDBalloonHexagon`
	`KEA3DMDBalloonDividedHexagon`
	`KEA3DSymbolUnknown`
	`KEA3DEdge`
	`KEA3DHole`
	`KEA3DSurface`
	`KEA3DRectangle`
	`KEA3DSlot`
	`KEA3DFreeform`
	`KEA3DLocatorUnknown`
	`KEA3DMain`
	`KEA3DSecondary`
	`KEA3DMainPermTransf`
	`KEA3DSecondaryPermTransf`
	`KEA3DSecondaryCoordination`
	`KEA3DCoordination`
	`KEA3DAccessClearance`
	`KEA3DDetached`
	`KEA3DBlank`
	`KEA3DCorrectable`
	`KEA3DAuxiliaryRest`
	`KEA3DJclamps`
	`KEA3DSubtypeUnknown`
	`KEA3DDiesMolds`
	`KEA3DFixing`
	`KEA3DTemporaryTransferred`
	`KEA3DMechanicallyFastened`
	`KEA3DManufacturingAssembly`
	`KEA3DCoordPlaneUnknown`
	`KEA3DCoordPlaneX`
	`KEA3DCoordPlaneY`
	`KEA3DCoordPlaneZ`
	`KEA3DCoordPlaneXY`
	`KEA3DCoordPlaneXZ`
	`KEA3DCoordPlaneYZ`
	`KEA3DCoordPlaneXYZ`
	`KEA3DLevelUnknown`
	`KEA3DHard`
	`KEA3DMedium`
	`KEA3DSoft`
	`KEA3DLocatorSubscriptO`
	`KEA3DLocatorSubscriptS`
	`KEA3DLocatorSubscriptK`
	`KEA3DLocatorSubscriptC`
	`KEA3DLocatorSubscriptF`
	`KEA3DMDAnchorIgnored`
	`KEA3DMDAnchorTop_left`
	`KEA3DMDAnchorTop_center`
	`KEA3DMDAnchorTop_right`
	`KEA3DMDAnchorMiddle_left`
	`KEA3DMDAnchorMiddle_center`
	`KEA3DMDAnchorMiddle_right`
	`KEA3DMDAnchorMiddle_auto`
	`KEA3DMDAnchorBottom_left`
	`KEA3DMDAnchorBottom_center`
	`KEA3DMDAnchorBottom_right`
	`KEA3DMDAnchorBottom_auto`
	`KEA3DMDAnchorAutomatic`
	`KA3DMDLeaderSymbolNotUsed`
	`KA3DMDLeaderSymbolCross`
	`KA3DMDLeaderSymbolPlus`
	`KA3DMDLeaderSymbolConcentric`
	`KA3DMDLeaderSymbolCoincident`
	`KA3DMDLeaderSymbolFullCircle`
	`KA3DMDLeaderSymbolFullSquare`
	`KA3DMDLeaderSymbolStar`
	`KA3DMDLeaderSymbolDot`
	`KA3DMDLeaderSymbolSmallDot`
	`KA3DMDLeaderSymbolMisc1`
	`KA3DMDLeaderSymbolMisc2`
	`KA3DMDLeaderSymbolFullCircle2`
	`KA3DMDLeaderSymbolFullSquare2`
	`KA3DMDLeaderSymbolOpenArrow`
	`KA3DMDLeaderSymbolUnfilledArrow`
	`KA3DMDLeaderSymbolBlankedArrow`
	`KA3DMDLeaderSymbolFilledArrow`
	`KA3DMDLeaderSymbolUnfilledCircle`
	`KA3DMDLeaderSymbolBlankedCircle`
	`KA3DMDLeaderSymbolFilledCircle`
	`KA3DMDLeaderSymbolCrossedCircle`
	`KA3DMDLeaderSymbolBlankedSquare`
	`KA3DMDLeaderSymbolFilledSquare`
	`KA3DMDLeaderSymbolBlankedTriangle`
	`KA3DMDLeaderSymbolFilledTriangle`
	`KA3DMDLeaderSymbolManipulatorSquare`
	`KA3DMDLeaderSymbolMamipulatorDiamond`
	`KA3DMDLeaderSymbolManipulatorCircle`
	`KA3DMDLeaderSymbolManipulatorTriangle`
	`KA3DMDLeaderSymbolDoubleOpenArrow`
	`KA3DMDLeaderSymbolWave`
	`KA3DMDLeaderSymbolSegment`
	`KA3DMDLeaderSymbolDoubleFilledArrow`
	`KA3DMDLeaderSymbolDoubleClosedArrow`
	`KA3DMDLeaderSymbolHalfOpenArrowUp`
	`KA3DMDLeaderSymbolHalfOpenArrowDown`
	`KA3DMDLeaderSymbolHalfFilledArrowUp`
	`KA3DMDLeaderSymbolHalfFilledArrowDown`
	`KA3DMDLeaderSymbolSlash`
	`KA3DMDLeaderSymbolDoubleBlankedArrow`
	`KA3DMDLeaderSymbolIntegral`
	`KA3DMDLeaderSymbolZoneGlobalAllAround`
	`KA3DMDLeaderSymbolZonePartialAllAround`
	`KA3DMDLeaderSymbolZoneGlobalAllAboutWithHorizontalAxisIndicator`
	`KA3DMDLeaderSymbolZoneGlobalAllAboutWithVerticalAxisIndicator`
	`KA3DMDLeaderSymbolZonePartialAllAboutWithHorizontalAxisIndicator`
	`KA3DMDLeaderSymbolZonePartialAllAboutWithVerticalAxisIndicator`
	`KA3DMDLeaderSymbolZoneGlobalAllOver`
	`KA3DMDLeaderSymbolZonePartialAllOver`
	`KEA3DMDDimensionValueOptionNone`
	`KEA3DMDDimensionValueOptionMin`
	`KEA3DMDDimensionValueOptionMax`
	`KEA3DMDDimensionValueOptionEnvelopeModifier`
	`KEA3DMDDimensionValueOptionIndependencyModifier`
	`KEA3DMDDimensionValueOptionStaticalTolerancingModifier`
	`KEA3DMDDimensionValueOptionPerfectFormAtMMCNotRequired`
	`KEA3DMDDimensionValueOptionReferenceOrAuxiliary`
	`KEA3DMDDimensionValueOptionBasicOrTheorical`
	`KEA3DMDDimensionGraphicalRepresentationRegular`
	`KEA3DMDDimensionGraphicalRepresentationTwoParts`
	`KEA3DMDDimensionGraphicalRepresentationLeaderOnePart`
	`KEA3DMDDimensionGraphicalRepresentationLeaderTwoParts`
	`KEA3DMDDimensionOrientationScreenHorizontal`
	`KEA3DMDDimensionOrientationScreenVertical`
	`KEA3DMDDimensionOrientationScreenAngle`
	`KEA3DMDDimensionOrientationViewHorizontal`
	`KEA3DMDDimensionOrientationViewVertical`
	`KEA3DMDDimensionOrientationViewAngle`
	`KEA3DMDDimensionOrientationParallel`
	`KEA3DMDDimensionOrientationPerpendicular`
	`KEA3DMDDimensionOrientationAngle`
	`KEA3DDimensionSymbolTypeUNKNOW`
	`KEA3DDimensionSymbolTypeNONE`
	`KEA3DDimensionSymbolTypePROJTOLZONE`
	`KEA3DDimensionSymbolTypeMAXMATERIAL`
	`KEA3DDimensionSymbolTypeLEASTMATERIAL`
	`KEA3DDimensionSymbolTypeFREESTATE`
	`KEA3DDimensionSymbolTypeOHM`
	`KEA3DDimensionSymbolTypeCENTERLINE`
	`KEA3DDimensionSymbolTypeDEPTH`
	`KEA3DDimensionSymbolTypeCOUNTERBORE`
	`KEA3DDimensionSymbolTypeCOUNTERSUNK`
	`KEA3DDimensionSymbolTypeCIRCULARRUNOUT`
	`KEA3DDimensionSymbolTypeSURFPROFILE`
	`KEA3DDimensionSymbolTypeLINEPROFILE`
	`KEA3DDimensionSymbolTypeFLATNESS`
	`KEA3DDimensionSymbolTypeSTRAIGHT`
	`KEA3DDimensionSymbolTypeTOTALRUNOUT`
	`KEA3DDimensionSymbolTypeSYMMETRY`
	`KEA3DDimensionSymbolTypePERPENDICULAR`
	`KEA3DDimensionSymbolTypePARALLEL`
	`KEA3DDimensionSymbolTypeCYLINDRIC`
	`KEA3DDimensionSymbolTypeCONCENTRIC`
	`KEA3DDimensionSymbolTypeCIRCULAR`
	`KEA3DDimensionSymbolTypeANGULAR`
	`KEA3DDimensionSymbolTypeMICRO`
	`KEA3DDimensionSymbolTypeDEGREE`
	`KEA3DDimensionSymbolTypePLUSMINUS`
	`KEA3DDimensionSymbolTypePOSITION`
	`KEA3DDimensionSymbolTypeDIAMETER`
	`KEA3DDimensionSymbolTypeENVELOPE`
	`KEA3DDimensionSymbolTypeARROW`
	`KEA3DDimensionSymbolTypeNOACTUALSIZE`
	`KEA3DDimensionSymbolTypeTANGENTPLANE`
	`KEA3DDimensionSymbolTypeLOWEROREQUAL`
	`KEA3DDimensionSymbolTypeGREATEROREQUAL`
	`KEA3DDimensionSymbolTypeTHREADPREFIX`
	`KEA3DDimensionSymbolTypeSLOPE`
	`KEA3DDimensionSymbolTypeCONICALTAPER`
	`KEA3DDimensionSymbolTypeUPTRIANGLE`
	`KEA3DDimensionSymbolTypeSQUARE`
	`KEA3DDimensionSymbolTypeST`
	`KEA3DDimensionSymbolTypeSDIAMETER`
	`KEA3DDimensionSymbolTypeRADIUS`
	`KEA3DDimensionSymbolTypeSRADIUS`
	`KEA3DDimensionSymbolTypeCRADIUS`
	`KEA3DDimensionSymbolTypeUNEQUALLY`
	`KEA3DDimensionSymbolTypeCF`
	`KEA3DDimensionSymbolTypeSET_AFTER`
	`KEA3DDimensionSymbolNone`
	`KEA3DDimensionSymbolOpenArrow`
	`KEA3DDimensionSymbolClosedArrow`
	`KEA3DDimensionSymbolFilledArrow`
	`KEA3DDimensionSymbolSymArrow`
	`KEA3DDimensionSymbolSlash`
	`KEA3DDimensionSymbolCircle`
	`KEA3DDimensionSymbolFilledCircle`
	`KEA3DDimensionSymbolScoredCircle`
	`KEA3DDimensionSymbolCircledCross`
	`KEA3DDimensionSymbolTriangle`
	`KEA3DDimensionSymbolFilledTriangle`
	`KEA3DDimensionSymbolCross`
	`KEA3DDimensionSymbolXCross`
	`KEA3DDimensionSymbolDoubleArrow`
	`KEA3DDimensionSymbolSquare`
	`KEA3DDimensionSymbolFilledSquare`
	`KEA3DDimensionSymbolWave`
	`KEA3DMDDimensionExtensionFromStandard`
	`KEA3DMDDimensionExtensionTillCenter`
	`KEA3DMDDimensionExtensionNotTillCenter`
	`KEA3DMDDimensionExtensionHideFirstPartOfDimLine`
	`KEA3DMDDimensionExtensionHideFSecondPartOfDimLine`
	`KEA3DMDDimensionExtensionHideEntireDimLine`
	`KEA3DMDDimensionExtensionAddIsoLineUnderTextValue`
	`KEA3DMDDimensionTypeDistance`
	`KEA3DMDDimensionTypeDistanceOffset`
	`KEA3DMDDimensionTypeLength`
	`KEA3DMDDimensionTypeLengthCurvilinear`
	`KEA3DMDDimensionTypeAngle`
	`KEA3DMDDimensionTypeRadius`
	`KEA3DMDDimensionTypeRadiusTangent`
	`KEA3DMDDimensionTypeRadiusCylinder`
	`KEA3DMDDimensionTypeRadiusEdge`
	`KEA3DMDDimensionTypeDiameter`
	`KEA3DMDDimensionTypeDiameterTangent`
	`KEA3DMDDimensionTypeDiameterCylinder`
	`KEA3DMDDimensionTypeDiameterEdge`
	`KEA3DMDDimensionTypeDiameterCone`
	`KEA3DMDDimensionTypeChamfer`
	`KEA3DMDDimensionTypeSlope`
	`KEA3DMDDimensionDualDisplayNone`
	`KEA3DMDDimensionDualDisplayBelow`
	`KEA3DMDDimensionDualDisplayFractional`
	`KEA3DMDDimensionDualDisplaySideBySide`
	`KEA3DMDDimensionDualDisplayOnLeft`
	`KEA3DMDDimensionDualDisplayOnRight`
	`KEA3DMDDimensionDualDisplayAbove`
	`KEA3DMDDimensionDualDisplayOnly`
	`KEA3DMDDimensionFrameNone`
	`KEA3DMDDimensionFrameCircle`
	`KEA3DMDDimensionFrameScoredCircle`
	`KEA3DMDDimensionFrameDiamondShaped`
	`KEA3DMDDimensionFrameSquare`
	`KEA3DMDDimensionFrameRectangle`
	`KEA3DMDDimensionFrameOblong`
	`KEA3DMDDimensionFrameRightFlag`
	`KEA3DMDDimensionFrameRightTriangle`
	`KEA3DMDDimensionScoreNone`
	`KEA3DMDDimensionUnderScored`
	`KEA3DMDDimensionScored`
	`KEA3DMDDimensionOverScored`
	`KEA3DMDDimensionAngleSector_None`
	`KEA3DMDDimensionAngleSector_1`
	`KEA3DMDDimensionAngleSector_2`
	`KEA3DMDDimensionAngleSector_3`
	`KEA3DMDDimensionAngleSector_4`
	`KEA3DMDDimensionAngleSector_Complementary`
	`KEA3DMDDimensionRefType_None`
	`KEA3DMDDimensionRefType_Reference`
	`KEA3DMDDimensionRefType_Parenthesis`
	`KEA3DMDDimensionRefType_Match`
	`KEA3DMDDimensionRefType_Diameter_Reference`
	`KEA3DMDDimensionRefType_Not_To_Scale`
	`KEA3DMDDimensionRefType_Basic`
	`KEA3DMDDisplayType_Unknown`
	`KEA3DMDDisplayType_Unspecified`
	`KEA3DMDDisplayType_FlatToScreen`
	`KEA3DMDDisplayType_FlatToSurface`
	`KEA3DMDTextPropertiesScoreNone`
	`KEA3DMDTextPropertiesUnderScored`
	`KEA3DMDTextPropertiesScored`
	`KEA3DMDTextPropertiesOverScored`
	`KEA3DMDTextPropertiesFormatNormal`
	`KEA3DMDTextPropertiesFormatUnderLine`
	`KEA3DMDTextPropertiesFormatOverLine`
	`KEA3DMDTextPropertiesFormatExposant`
	`KEA3DMDTextPropertiesFormatindice`
	`KEA3DMDTextPropertiesJustificationLeft`
	`KEA3DMDTextPropertiesJustificationCenter`
	`KEA3DMDTextPropertiesJustificationRight`
	`kA3DPicturePng`
	`kA3DPictureJpg`
	`kA3DPictureBmp`
	`kA3DPictureBitmapRgbByte`
	`kA3DPictureBitmapRgbaByte`
	`kA3DPictureBitmapGreyByte`
	`kA3DPictureBitmapGreyaByte`
	`kA3DIntersectionLimitTypeHelp`
	`kA3DIntersectionLimitTypeTerminator`
	`kA3DIntersectionLimitTypeLimit`
	`kA3DIntersectionLimitTypeBoundary`
	`kA3DDrawingViewTypeUnknown`
	`kA3DDrawingViewTypeIso`
	`kA3DDrawingViewTypeTop`
	`kA3DDrawingViewTypeBottom`
	`kA3DDrawingViewTypeLeft`
	`kA3DDrawingViewTypeRight`
	`kA3DDrawingViewTypeFront`
	`kA3DDrawingViewTypeBack`
	`kA3DDrawingViewTypeBackground`
	`kA3DDrawingViewTypeWorking`
	`kA3DDrawingViewTypeProjected`
	`kA3DDrawingViewTypeAuxiliary`
	`kA3DDrawingViewTypeSection`
	`kA3DDrawingViewTypeDetail`
	`kA3DDrawingClipFrameTypeNone`
	`kA3DDrawingClipFrameTypeRectangular`
	`kA3DDrawingClipFrameTypeUserDefine`
	`kA3DDrawingOperatorTypeUnknown`
	`kA3DDrawingOperatorTypeDetail`
	`kA3DDrawingOperatorTypeSection`
	`kA3DAnalyticNone`
	`kA3DAnalyticCircle`
	`kA3DAnalyticAlreadyCircle`
	`kA3DAnalyticLine`
	`kA3DAnalyticAlreadyLine`
	`kA3DAnalyticCone`
	`kA3DAnalyticAlreadyCone`
	`kA3DAnalyticCylinder`
	`kA3DAnalyticAlreadyCylinder`
	`kA3DAnalyticPlane`
	`kA3DAnalyticAlreadyPlane`
	`kA3DAnalyticSphere`
	`kA3DAnalyticAlreadySphere`
	`kA3DAnalyticTorus`
	`kA3DAnalyticAlreadyTorus`
	`A3DPhysicType_None`
	`A3DPhysicType_Fiber`
	`A3DPhysicType_HoneyComb`
	`A3DPhysicType_Isotropic`
	`A3DPhysicType_Orthotropic2D`
	`A3DPhysicType_Orthotropic3D`
	`A3DPhysicType_Anisotropic`
	`A3DCollision_Unknown`
	`A3DCollision_NoCollision`
	`A3DCollision_Clearance`
	`A3DCollision_Contact`
	`A3DCollision_Collision`
	`A3DCollision_FirstInside`
	`A3DCollision_SecondInside`
	`kA3DRead_3D`
	`kA3DRead_Drawings`
	`kA3DRead_Both`
	`kA3DUnit_None`
	`kA3DUnit_Ampere`
	`kA3DUnit_Becquerel`
	`kA3DUnit_Candela`
	`kA3DUnit_Coulomb`
	`kA3DUnit_Degree_celsius`
	`kA3DUnit_Fahrenheit`
	`kA3DUnit_Farad`
	`kA3DUnit_Foot`
	`kA3DUnit_GallonUS`
	`kA3DUnit_Gram`
	`kA3DUnit_Gray`
	`kA3DUnit_Henry`
	`kA3DUnit_Hertz`
	`kA3DUnit_Hour`
	`kA3DUnit_Inch`
	`kA3DUnit_Joule`
	`kA3DUnit_Kelvin`
	`kA3DUnit_Liter`
	`kA3DUnit_Lumen`
	`kA3DUnit_Lux`
	`kA3DUnit_Metre`
	`kA3DUnit_Minute`
	`kA3DUnit_Mole`
	`kA3DUnit_Newton`
	`kA3DUnit_Ohm`
	`kA3DUnit_Pascal`
	`kA3DUnit_Radian`
	`kA3DUnit_Rankine`
	`kA3DUnit_Second`
	`kA3DUnit_Siemens`
	`kA3DUnit_Sievert`
	`kA3DUnit_Steradian`
	`kA3DUnit_Tesla`
	`kA3DUnit_Volt`
	`kA3DUnit_Watt`
	`kA3DUnit_Weber`
	`kA3DFCFIndicatorType_Undef`
	`kA3DFCFIndicatorType_DirectionFeature`
	`kA3DFCFIndicatorType_CollectionPlane`
	`kA3DFCFIndicatorType_IntersectionPlane`
	`kA3DFCFIndicatorType_OrientationPlane`
	`kA3DFCFIndicatorType_Text`
	`kA3DFCFIndicatorSymbol_Undef`
	`kA3DFCFIndicatorSymbol_Angularity`
	`kA3DFCFIndicatorSymbol_Perpendicularity`
	`kA3DFCFIndicatorSymbol_Parallelism`
	`kA3DFCFIndicatorSymbol_Symmetry`
	`kA3DFCFIndicatorSymbol_Runout`
	`kA3DRevitPhysicalProperties_NotComputed`
	`kA3DRevitPhysicalProperties_Computed`
	`kA3DRevitLinks_LoadAll`
	`kA3DRevitLinks_IgnoreAll`
	`kA3DRevitLinks_IgnoreRevit`
	`kA3DRevitLinks_IgnoreDwg`
	`kA3DRevitLinks_IgnoreIFC`
	`kA3DRevitMultiThreadedMode_Disabled`
	`kA3DRevitMultiThreadedMode_LoadingEnabled`
	`kA3DRevitMultiThreadedMode_RegenerationEnabled`
	`kA3DRevitMultiThreadedMode_LoadingAndRegenerationEnabled`
	`kA3DRevitLODDefault`
	`kA3DRevitLODCoarse`
	`kA3DRevitLODMedium`
	`kA3DRevitLODFine`

Detailed Description

Author: Tech Soft 3D
Version: 25.7
Date: September 2025
Copyright: Copyright (c) 2010 - 2025 by Tech Soft 3D, Inc. All rights reserved.

Type Documentation

enum EA3DMDLineWeldingType

Values:

enumerator KEA3DMDWeldTypeUnknown: Unknown.

enumerator KEA3DMDWeldTypeNone: None.

enumerator KEA3DMDWeldTypeEdgeFlange: Square edge flange.

enumerator KEA3DMDWeldTypeSquare

Square butt weld:

../../_images/KEA3DMDWeldTypeSquare.png

enumerator KEA3DMDWeldTypeSingleV

Single V butt weld:

../../_images/KEA3DMDWeldTypeSingleV.png

enumerator KEA3DMDWeldTypeSingleBevel

Single bevel butt weld:

../../_images/KEA3DMDWeldTypeSingleBevel.png

enumerator KEA3DMDWeldTypeBroadRootFaceSingleV: Single-V Butt Weld With Broad Root.

enumerator KEA3DMDWeldTypeBroadRootFaceSingleBevel: Single-Bevel Butt Weld with Broad Root Face .

enumerator KEA3DMDWeldTypeSingleU

Single U butt weld:

../../_images/KEA3DMDWeldTypeSingleU.png

enumerator KEA3DMDWeldTypeSingleJ

Single J butt weld:

../../_images/KEA3DMDWeldTypeSingleJ.png

enumerator KEA3DMDWeldTypeBacking

Back weld:

../../_images/KEA3DMDWeldTypeBacking.png

enumerator KEA3DMDWeldTypeFillet

Fillet weld:

../../_images/KEA3DMDWeldTypeFillet.png

enumerator KEA3DMDWeldTypePlug

Plug weld:

../../_images/KEA3DMDWeldTypePlug.png

enumerator KEA3DMDWeldTypeSeam: Seam.

enumerator KEA3DMDWeldTypeSteepFlankedSingleV

Steep-flanked single-V butt weld:

../../_images/KEA3DMDWeldTypeSteepFlankedSingleV.png

enumerator KEA3DMDWeldTypeSteepFlankedSingleBevel

Steep-flanked single-bevel butt weld:

../../_images/KEA3DMDWeldTypeSteepFlankedSingleBevel.png

enumerator KEA3DMDWeldTypeEdge: Edge.

enumerator KEA3DMDWeldTypeSurface

Surfacing weld:

../../_images/KEA3DMDWeldTypeSurface.png

enumerator KEA3DMDWeldTypeSurfaceJoint: Surface Joint.

enumerator KEA3DMDWeldTypeInclinedJoint: Inclined Joint.

enumerator KEA3DMDWeldTypeFoldJoint: Fold Joint.

enumerator KEA3DMDWeldTypeSpot

Spot weld:

../../_images/KEA3DMDWeldTypeSpot.png

enumerator KEA3DMDWeldTypePermanentBackStrip

Permanent backing strip used:

../../_images/KEA3DMDWeldTypePermanentBackStrip.png

enumerator KEA3DMDWeldTypeRemovableBackStrip

Removable backing strip used:

../../_images/KEA3DMDWeldTypeRemovableBackStrip.png

enumerator KEA3DMDWeldTypeUnspecifiedEdgeType: Unspecified Edge.

enumerator KEA3DMDWeldTypeFlare_V_Butt

Flare V butt weld:

../../_images/KEA3DMDWeldTypeFlare_V_Butt.png

enumerator KEA3DMDWeldTypeFlare_Bevel_Butt

Flare Bevel butt weld:

../../_images/KEA3DMDWeldTypeFlare_Bevel_Butt.png

enumerator KEA3DMDWeldTypeSingleEdgeFlange: Single Edge Flange.

enum EA3DMDLineWeldingSupplSymbolType

Values:

enumerator KEA3DMDWeldAddSymbolUnknown: Unknown.

enumerator KEA3DMDWeldAddSymbolNone: None.

enumerator KEA3DMDWeldAddSymbolFlush

enumerator KEA3DMDWeldAddSymbolConvex

Weld with convex face:

../../_images/KEA3DMDWeldAddSymbolConvex.png

enumerator KEA3DMDWeldAddSymbolConcave

Weld with concave face:

../../_images/KEA3DMDWeldAddSymbolConcave.png

enumerator KEA3DMDWeldAddSymbolToesBlended

Fillet weld with smooth blended face:

../../_images/KEA3DMDWeldAddSymbolToesBlended.png

enumerator KEA3DMDWeldAddSymbolFlushFinished

Flush finished weld:

../../_images/KEA3DMDWeldAddSymbolFlushFinished.png

enumerator KEA3DMDWeldAddSymbolBackingPermanent: Permanent Backing.

enumerator KEA3DMDWeldAddSymbolBackingpRemovable: Removable Backing.

enum EA3DMDLineWeldingFinishSymbol

Values:

enumerator KEA3DMDWeldFinishSymbolNone: No symbol.

enumerator KEA3DMDWeldFinishSymbolC: C.

enumerator KEA3DMDWeldFinishSymbolF: F.

enumerator KEA3DMDWeldFinishSymbolG: G.

enumerator KEA3DMDWeldFinishSymbolH: H.

enumerator KEA3DMDWeldFinishSymbolM: M.

enumerator KEA3DMDWeldFinishSymbolR: R.

enumerator KEA3DMDWeldFinishSymbolU: U.

enumerator KEA3DMDWeldFinishSymbolChipping: Chipping symbol.

enumerator KEA3DMDWeldFinishSymbolGrinding: Grinding symbol.

enumerator KEA3DMDWeldFinishSymbolHammering: Hammering symbol.

enumerator KEA3DMDWeldFinishSymbolMachining: Machining symbol.

enumerator KEA3DMDWeldFinishSymbolRolling: Rolling symbol.

enumerator KEA3DMDWeldFinishSymbolPeening: Peening symbol.

enum EA3DMDLineWeldingOption

Values:

enumerator KEA3DMDLineWeldOptionUnknown: Unknown.

enumerator KEA3DMDLineWeldOptionNone: None.

enumerator KEA3DMDLineWeldOptionAllAround: Weld applies all around.

enumerator KEA3DMDLineWeldOptionFieldWeld: Unfinished flag.

enumerator KEA3DMDLineWeldOptionReferenceSign: Reference frame.

enumerator KEA3DMDLineWeldOptionTail: Process symbol.

enumerator KEA3DMDLineWeldOptionIdentifLine: Additionnal dotted line.

enumerator KEA3DMDLineWeldOptionIdentifLineUp: Additionnal dotted line up.

enumerator KEA3DMDLineWeldOptionTextSideDown: Up/down reversing for approx texts and others.

enum EA3DMDSpotWeldType

Values:

enumerator KEA3DMDSpotWeldTypeUnknown: Unknown.

enumerator KEA3DMDSpotWeldTypeNone: None.

enumerator KEA3DMDSpotWeldTypeResistance: Resistance welding.

enumerator KEA3DMDSpotWeldTypeProjection: Projection welding.

enum EA3DMDSpotWeldThickness

Values:

enumerator KEA3DMDSpotWeldThickUnknown: Unknown.

enumerator KEA3DMDSpotWeldThick_None: No thickness level.

enumerator KEA3DMDSpotWeldTwoThick: Level 2 thickness.

enumerator KEA3DMDSpotWeldThreeThick: Level 3 thickness.

enumerator KEA3DMDSpotWeldE_FourThick: Level 4 thickness.

enum EA3DGDTType

Values:

enumerator KEA3DGDTTypeNone: No Type.

enumerator KEA3DGDTTypeStraightness: Straightness.

enumerator KEA3DGDTTypeFlatness: Flatness.

enumerator KEA3DGDTTypeCircularity: Circularity.

enumerator KEA3DGDTTypeCylindricity: Cylindricity.

enumerator KEA3DGDTTypeLineProfile: Profile of a line.

enumerator KEA3DGDTTypeSurfaceProfile: Profile of a surface.

enumerator KEA3DGDTTypeAngularity: Angularity.

enumerator KEA3DGDTTypePerpendicularity: Perpendicularity.

enumerator KEA3DGDTTypeParallelism: Parallel.

enumerator KEA3DGDTTypePosition: Positional.

enumerator KEA3DGDTTypeConcentricity: Concentricity.

enumerator KEA3DGDTTypeSymmetry: Symmetric.

enumerator KEA3DGDTTypeCircularRunout: Circular run out.

enumerator KEA3DGDTTypeTotalRunout: Total run out.

enum A3DMDGDTValueType

Values:

enumerator KEA3DGDTValueNone: No modifier defined.

enumerator KEA3DGDTValueDiameter: Diameter value type.

enumerator KEA3DGDTValueRadius: Radial value type.

enumerator KEA3DGDTValueSpherical: Spherical value type.

enum EA3DMDGDTModifierType

Values:

enumerator KEA3DGDTModifierNone: No modifier defined.

enumerator KEA3DGDTModifierMax: Maximum material condition.

enumerator KEA3DGDTModifierMin: Least material condition.

enumerator KEA3DGDTModifierProj: Projected tolerance zone.

enumerator KEA3DGDTModifierFree: Free State.

enumerator KEA3DGDTModifierRfs: Regardless of feature size.

enumerator KEA3DGDTModifierTangent: Tangent plane.

enumerator KEA3DGDTModifierST: Statistical.

enum EA3DMarkupFrameType

Values:

enumerator KA3DMarkupFrameNone: No Frame.

enumerator KA3DMarkupFrameRectangle: Rectangle Frame.

enumerator KA3DMarkupFrameSquare: Square Frame.

enumerator KA3DMarkupFrameCircle: Circle Frame.

enumerator KA3DMarkupFrameScoredCircle: Scored Circle.

enumerator KA3DMarkupFrameDiamond: Diamond Frame.

enumerator KA3DMarkupFrameTriangle: Triangle Frame.

enumerator KA3DMarkupFrameRightFlag: Right Flag Frame.

enumerator KA3DMarkupFrameLeftFlag: Left Flag Frame.

enumerator KA3DMarkupFrameBothFlag: Both Flag Frame.

enumerator KA3DMarkupFrameOblong: Oblong Frame.

enumerator KA3DMarkupFrameEllipse: Ellipse Frame.

enumerator KA3DMarkupFrameFixRectangle: Fixed Rectangle Frame.

enumerator KA3DMarkupFrameFixSquare: Fixed Square Frame.

enumerator KA3DMarkupFrameFixCircle: Fixed Circle Frame.

enumerator KA3DMarkupFrameFixScoredCircle: Fixed Scored Circle Frame.

enumerator KA3DMarkupFrameFixDiamond: Fixed Diamond Frame.

enumerator KA3DMarkupFrameFixTriangle: Fixed Triangle Frame.

enumerator KA3DMarkupFrameFixRightFlag: Fixed Right Flag Frame.

enumerator KA3DMarkupFrameFixLeftFlag: Fixed Left Flag Frame.

enumerator KA3DMarkupFrameFixBothFlag: Fixed Both Flag Frame.

enumerator KA3DMarkupFrameFixOblong: Fixed Oblong Frame.

enumerator KA3DMarkupFrameFixEllipse: Fixed Ellipse Frame.

enumerator KA3DMarkupFrameCustom: Custom Frame.

enum EA3DLeaderAlignmentType

Values:

enumerator KA3DLeaderAlignment_Simple: No alignment.

enumerator KA3DLeaderAlignment_Below: For a text note, the leader underlines the first text line.

enumerator KA3DLeaderAlignment_Underline: The leader underlines all lines.

enumerator KA3DLeaderAlignment_ExtToMax: The leader underlines all lines with the maximum line length.

enumerator KA3DLeaderAlignment_OnBoxPoint: The leader anchors to the markup bounding box.

enumerator KA3DLeaderAlignment_SimpleOnBoxPoint: The leader anchors to the markup bounding box, and in the middle of the line.

enumerator KA3DLeaderAlignment_Maximal_Underline

enumerator KA3DLeaderAlignment_Simple_OppositeAnchor

enum EA3DMDRoughnessType

Values:

enumerator KA3DRoughnessTypeBasic: Basic surface texture.

enumerator KA3DRoughnessTypeMachining_Required: Material removal by machining is required.

enumerator KA3DRoughnessTypeMachining_Prohibited: Material removal by machining is prohibited.

enum EA3DMDRoughnessContactArea

Values:

enumerator KA3DRoughnessContactSurfTexture: Surface texture.

enumerator KA3DRoughnessContactSurfTextAndAllSrfAround: Surface texture and all surfaces around.

enumerator KA3DRoughnessContactBasic: Basic contact.

enumerator KA3DRoughnessContactSrfAround: All surfaces around.

enum EA3DMDRoughnessMode

Values:

enumerator KA3DRoughnessMode_None: No specified lay.

enumerator KA3DRoughnessModeM: Lay multi directional.

enumerator KA3DRoughnessModeC: Lay approximately circular.

enumerator KA3DRoughnessModeR: Lay approximately radial.

enumerator KA3DRoughnessModeP: Lay particulate, non-directional, or protuberant.

enumerator KA3DRoughnessModeX: Lay angular in both directions.

enumerator KA3DRoughnessModePARA: Lay approximately parallel to the line representing the surface.

enumerator KA3DRoughnessModePERP: Lay approximately perpendicular to the line representing the surface.

enum EA3DMDBalloonShape

Values:

enumerator KA3DMDBalloonCircle: Circle Balloon.

enumerator KEA3DMDBalloonSquare: Square Balloon.

enumerator KEA3DMDBalloonDividedSquare: Divided Square Balloon.

enumerator KEA3DMDBalloonQuadrantCircle: Quadrant Circle Balloon.

enumerator KEA3DMDBalloonDividedCircle: Divided Circle Balloon.

enumerator KEA3DMDBalloonRoundedBox: Rounded Box Balloon.

enumerator KEA3DMDBalloonTriangle: Triangle Balloon.

enumerator KEA3DMDBalloonTriangleUp: Triangle Up Balloon.

enumerator KEA3DMDBalloonTriangleDown: Triangle Down Balloon.

enumerator KEA3DMDBalloonHexagon: Hexagon Balloon.

enumerator KEA3DMDBalloonDividedHexagon: Divided Hexagon Balloon.

enum EA3DLocatorSymbol

Values:

enumerator KEA3DSymbolUnknown: Unknown symbol.

enumerator KEA3DEdge: Edge.

enumerator KEA3DHole: Hole.

enumerator KEA3DSurface: Surface.

enumerator KEA3DRectangle: Rectangle.

enumerator KEA3DSlot: Slot.

enumerator KEA3DFreeform: Free form.

enum EA3DLocatorType

Values:

enumerator KEA3DLocatorUnknown: Unknown locator.

enumerator KEA3DMain: Main locator.

enumerator KEA3DSecondary: Secondary locator.

enumerator KEA3DMainPermTransf: Main permanent transform.

enumerator KEA3DSecondaryPermTransf: Secondary permanent transform.

enumerator KEA3DSecondaryCoordination: Secondary coordination locator.

enumerator KEA3DCoordination: Coordination locator.

enumerator KEA3DAccessClearance: Access Clearance.

enumerator KEA3DDetached: Detached.

enumerator KEA3DBlank: Blank.

enumerator KEA3DCorrectable: Correctable.

enumerator KEA3DAuxiliaryRest: Auxiliary rest.

enumerator KEA3DJclamps: Clamps.

enum EA3DLocatorSubType

Values:

enumerator KEA3DSubtypeUnknown: Unknown locator subtype.

enumerator KEA3DDiesMolds: Dies Molds.

enumerator KEA3DFixing: Fixing.

enumerator KEA3DTemporaryTransferred: Temporary Transferred.

enumerator KEA3DMechanicallyFastened: Mechanically Fastened.

enumerator KEA3DManufacturingAssembly: Manufacturing assembly.

enum EA3DLocatorCoordinatePlane

Values:

enumerator KEA3DCoordPlaneUnknown: Unknown coordinate plane.

enumerator KEA3DCoordPlaneX: X plane.

enumerator KEA3DCoordPlaneY: Y plane.

enumerator KEA3DCoordPlaneZ: Z plane.

enumerator KEA3DCoordPlaneXY: XY plane.

enumerator KEA3DCoordPlaneXZ: XZ plane.

enumerator KEA3DCoordPlaneYZ: YZ plane.

enumerator KEA3DCoordPlaneXYZ: XYZ plane.

enum EA3DLocatorChangeLevel

Values:

enumerator KEA3DLevelUnknown: Unknown change level.

enumerator KEA3DHard: Hard change level.

enumerator KEA3DMedium: Medium change level.

enumerator KEA3DSoft: Soft change level.

enum EA3DLocatorSubscript

Values:

enumerator KEA3DLocatorSubscriptO: Subscript O Locator.

enumerator KEA3DLocatorSubscriptS: Subscript S Locator.

enumerator KEA3DLocatorSubscriptK: Subscript K Locator.

enumerator KEA3DLocatorSubscriptC: Subscript C Locator.

enumerator KEA3DLocatorSubscriptF: Subscript F Locator.

enum EA3DMDAnchorPointType

Values:

enumerator KEA3DMDAnchorIgnored

enumerator KEA3DMDAnchorTop_left: Top left point.

enumerator KEA3DMDAnchorTop_center: Top center point.

enumerator KEA3DMDAnchorTop_right: Top right point.

enumerator KEA3DMDAnchorMiddle_left: Middle left point.

enumerator KEA3DMDAnchorMiddle_center: Middle center point.

enumerator KEA3DMDAnchorMiddle_right: Middle right point.

enumerator KEA3DMDAnchorMiddle_auto: Closest point to the middle of the frame.

enumerator KEA3DMDAnchorBottom_left: Bottom left point.

enumerator KEA3DMDAnchorBottom_center: Bottom center point.

enumerator KEA3DMDAnchorBottom_right: Bottom right point.

enumerator KEA3DMDAnchorBottom_auto: Closest point to the bottom of the frame.

enumerator KEA3DMDAnchorAutomatic: Closest point to the frame.

enum A3DMDLeaderSymbolType

Values:

enumerator KA3DMDLeaderSymbolNotUsed: Unused symbol.

enumerator KA3DMDLeaderSymbolCross: Cross.

enumerator KA3DMDLeaderSymbolPlus: Plus sign.

enumerator KA3DMDLeaderSymbolConcentric: Concentric sign.

enumerator KA3DMDLeaderSymbolCoincident: Coincident.

enumerator KA3DMDLeaderSymbolFullCircle: Full circle.

enumerator KA3DMDLeaderSymbolFullSquare: Full square.

enumerator KA3DMDLeaderSymbolStar: Star.

enumerator KA3DMDLeaderSymbolDot: Dot.

enumerator KA3DMDLeaderSymbolSmallDot: Small dot.

enumerator KA3DMDLeaderSymbolMisc1: Misc1.

enumerator KA3DMDLeaderSymbolMisc2: Misc2.

enumerator KA3DMDLeaderSymbolFullCircle2: Full circle2.

enumerator KA3DMDLeaderSymbolFullSquare2: Full square2.

enumerator KA3DMDLeaderSymbolOpenArrow: Open arrow.

enumerator KA3DMDLeaderSymbolUnfilledArrow: Transparent arrow.

enumerator KA3DMDLeaderSymbolBlankedArrow: Blanked arrow.

enumerator KA3DMDLeaderSymbolFilledArrow: Filled arrow.

enumerator KA3DMDLeaderSymbolUnfilledCircle: Transparent circle.

enumerator KA3DMDLeaderSymbolBlankedCircle: Opaque circle.

enumerator KA3DMDLeaderSymbolFilledCircle: Filled circle.

enumerator KA3DMDLeaderSymbolCrossedCircle: Crossed circle.

enumerator KA3DMDLeaderSymbolBlankedSquare: Opaque square.

enumerator KA3DMDLeaderSymbolFilledSquare: Filled square.

enumerator KA3DMDLeaderSymbolBlankedTriangle: Opaque triangle.

enumerator KA3DMDLeaderSymbolFilledTriangle: Filled triangle.

enumerator KA3DMDLeaderSymbolManipulatorSquare: Manipulator square.

enumerator KA3DMDLeaderSymbolMamipulatorDiamond: Mamipulator diamond.

enumerator KA3DMDLeaderSymbolManipulatorCircle: Manipulator circle.

enumerator KA3DMDLeaderSymbolManipulatorTriangle: Manipulator triangle.

enumerator KA3DMDLeaderSymbolDoubleOpenArrow: Double open arrow.

enumerator KA3DMDLeaderSymbolWave: Wave sign.

enumerator KA3DMDLeaderSymbolSegment: Segment.

enumerator KA3DMDLeaderSymbolDoubleFilledArrow: Double filled arrow.

enumerator KA3DMDLeaderSymbolDoubleClosedArrow: Double closed arrow.

enumerator KA3DMDLeaderSymbolHalfOpenArrowUp: Half open arrow up.

enumerator KA3DMDLeaderSymbolHalfOpenArrowDown: Half open arrow down.

enumerator KA3DMDLeaderSymbolHalfFilledArrowUp: Half filled arrow up.

enumerator KA3DMDLeaderSymbolHalfFilledArrowDown: Half filled arrow down.

enumerator KA3DMDLeaderSymbolSlash: Slash.

enumerator KA3DMDLeaderSymbolDoubleBlankedArrow: Double blanked arrow.

enumerator KA3DMDLeaderSymbolIntegral: Integral.

enumerator KA3DMDLeaderSymbolZoneGlobalAllAround: Global All Around.

enumerator KA3DMDLeaderSymbolZonePartialAllAround: Partial All Around.

enumerator KA3DMDLeaderSymbolZoneGlobalAllAboutWithHorizontalAxisIndicator: Zone global all about with horizontal axis indicator.

enumerator KA3DMDLeaderSymbolZoneGlobalAllAboutWithVerticalAxisIndicator: Zone global all about with vertical axis indicator.

enumerator KA3DMDLeaderSymbolZonePartialAllAboutWithHorizontalAxisIndicator: Zone partial all about with horizontal axis indicator.

enumerator KA3DMDLeaderSymbolZonePartialAllAboutWithVerticalAxisIndicator: Zone partial all about with vertical axis indicator.

enumerator KA3DMDLeaderSymbolZoneGlobalAllOver: Zone global all over.

enumerator KA3DMDLeaderSymbolZonePartialAllOver: Zone partial all over.

enum EA3DMDDimensionValueOption

Values:

enumerator KEA3DMDDimensionValueOptionNone: Dimension has no option.

enumerator KEA3DMDDimensionValueOptionMin: Dimension has the min modifier.

enumerator KEA3DMDDimensionValueOptionMax: Dimension has the max modifier.

enumerator KEA3DMDDimensionValueOptionEnvelopeModifier: Dimension has the envelope modifier.

enumerator KEA3DMDDimensionValueOptionIndependencyModifier: Dimension has the independency modifier.

enumerator KEA3DMDDimensionValueOptionStaticalTolerancingModifier: Dimension has the statical tolerancing modifier.

enumerator KEA3DMDDimensionValueOptionPerfectFormAtMMCNotRequired: Dimension has the option perfect form at MMC not required.

enumerator KEA3DMDDimensionValueOptionReferenceOrAuxiliary

ASME:Reference ISO:Auxiliary.

A dimension given for information purposes only. The value is given in parentheses and no tolerance applies to it.

Version: 12.

enumerator KEA3DMDDimensionValueOptionBasicOrTheorical

ASME:Basic ISO:Theoretical.

Dimensions enclosed in a frame are the theoretically exact location, orientation, or profile of a feature or group of features.

Version: 12

enum EA3DMDDimensionLineGraphicalRepresentation

Values:

enumerator KEA3DMDDimensionGraphicalRepresentationRegular

Regular dimension line representation:

../../_images/pmi_markup_dimension_GraphRep_Regular.png

enumerator KEA3DMDDimensionGraphicalRepresentationTwoParts

Two parts dimension line representation:

../../_images/pmi_markup_dimension_GraphRep_Two_Parts.png

enumerator KEA3DMDDimensionGraphicalRepresentationLeaderOnePart

Leader one part dimension line representation:

../../_images/pmi_markup_dimension_GraphRep_Leader_one_Part.png

enumerator KEA3DMDDimensionGraphicalRepresentationLeaderTwoParts

Leader two parts dimension line representation:

../../_images/pmi_markup_dimension_GraphRep_Leader_two_Parts.png

enum EA3DMDDimensionOrientation

Values:

enumerator KEA3DMDDimensionOrientationScreenHorizontal: Dimension along horizontal line of the screen.

enumerator KEA3DMDDimensionOrientationScreenVertical: Dimension along vertical line of the screen.

enumerator KEA3DMDDimensionOrientationScreenAngle: Uses m_dAttachAngle of A3DMarkupDefinitionData.

enumerator KEA3DMDDimensionOrientationViewHorizontal: Dimension along horizontal line of the view.

enumerator KEA3DMDDimensionOrientationViewVertical: Dimension along vertical line of the view.

enumerator KEA3DMDDimensionOrientationViewAngle: Uses m_dAttachAngle of A3DMarkupDefinitionData.

enumerator KEA3DMDDimensionOrientationParallel: Dimension is parallel to the dimension line.

enumerator KEA3DMDDimensionOrientationPerpendicular: Dimension is perpendicular to the dimension line.

enumerator KEA3DMDDimensionOrientationAngle: Uses m_dAttachAngle of A3DMarkupDefinitionData.

enum EA3DMDDimensionSymbolType

Values:

enumerator KEA3DDimensionSymbolTypeUNKNOW: Unknown.

enumerator KEA3DDimensionSymbolTypeNONE: None.

enumerator KEA3DDimensionSymbolTypePROJTOLZONE: Projection tolerance zone.

enumerator KEA3DDimensionSymbolTypeMAXMATERIAL: Max material.

enumerator KEA3DDimensionSymbolTypeLEASTMATERIAL: Least material.

enumerator KEA3DDimensionSymbolTypeFREESTATE: Freestate.

enumerator KEA3DDimensionSymbolTypeOHM: Ohm.

enumerator KEA3DDimensionSymbolTypeCENTERLINE: Center line.

enumerator KEA3DDimensionSymbolTypeDEPTH: Depth.

enumerator KEA3DDimensionSymbolTypeCOUNTERBORE: Counter bore.

enumerator KEA3DDimensionSymbolTypeCOUNTERSUNK: Counter sunk.

enumerator KEA3DDimensionSymbolTypeCIRCULARRUNOUT: Circular runout.

enumerator KEA3DDimensionSymbolTypeSURFPROFILE: Surface profile.

enumerator KEA3DDimensionSymbolTypeLINEPROFILE: Line profile.

enumerator KEA3DDimensionSymbolTypeFLATNESS: Flatness.

enumerator KEA3DDimensionSymbolTypeSTRAIGHT: Straight.

enumerator KEA3DDimensionSymbolTypeTOTALRUNOUT: Total runout.

enumerator KEA3DDimensionSymbolTypeSYMMETRY: Symmetry.

enumerator KEA3DDimensionSymbolTypePERPENDICULAR: Perpendicular.

enumerator KEA3DDimensionSymbolTypePARALLEL: Parallel.

enumerator KEA3DDimensionSymbolTypeCYLINDRIC: Cylindric.

enumerator KEA3DDimensionSymbolTypeCONCENTRIC: Concentric.

enumerator KEA3DDimensionSymbolTypeCIRCULAR: Circular.

enumerator KEA3DDimensionSymbolTypeANGULAR: Angular.

enumerator KEA3DDimensionSymbolTypeMICRO: Micro.

enumerator KEA3DDimensionSymbolTypeDEGREE: Degree.

enumerator KEA3DDimensionSymbolTypePLUSMINUS: Plus-minus.

enumerator KEA3DDimensionSymbolTypePOSITION: Position.

enumerator KEA3DDimensionSymbolTypeDIAMETER: Diameter.

enumerator KEA3DDimensionSymbolTypeENVELOPE: Envelope.

enumerator KEA3DDimensionSymbolTypeARROW: Arrow.

enumerator KEA3DDimensionSymbolTypeNOACTUALSIZE: No actual size.

enumerator KEA3DDimensionSymbolTypeTANGENTPLANE: Tangent plane.

enumerator KEA3DDimensionSymbolTypeLOWEROREQUAL: Lower or equal.

enumerator KEA3DDimensionSymbolTypeGREATEROREQUAL: Greater or equal.

enumerator KEA3DDimensionSymbolTypeTHREADPREFIX: Thread prefix.

enumerator KEA3DDimensionSymbolTypeSLOPE: Slope.

enumerator KEA3DDimensionSymbolTypeCONICALTAPER: Conical taper.

enumerator KEA3DDimensionSymbolTypeUPTRIANGLE: Up triangle.

enumerator KEA3DDimensionSymbolTypeSQUARE: Square.

enumerator KEA3DDimensionSymbolTypeST: Statistical.

enumerator KEA3DDimensionSymbolTypeSDIAMETER: Spherical Diameter.

enumerator KEA3DDimensionSymbolTypeRADIUS: Radius.

enumerator KEA3DDimensionSymbolTypeSRADIUS: Spherical Radius.

enumerator KEA3DDimensionSymbolTypeCRADIUS: Controlled Radius.

enumerator KEA3DDimensionSymbolTypeUNEQUALLY: Unequally.

enumerator KEA3DDimensionSymbolTypeCF: Continuous Feature.

enumerator KEA3DDimensionSymbolTypeSET_AFTER: Set after.

enum EA3DMDDimensionSymbolShape

Values:

enumerator KEA3DDimensionSymbolNone: No symbol.

enumerator KEA3DDimensionSymbolOpenArrow: Open arrow.

enumerator KEA3DDimensionSymbolClosedArrow: Closed arrow.

enumerator KEA3DDimensionSymbolFilledArrow: Filled arrow.

enumerator KEA3DDimensionSymbolSymArrow: Symetric arrow.

enumerator KEA3DDimensionSymbolSlash: Slash.

enumerator KEA3DDimensionSymbolCircle: Circle.

enumerator KEA3DDimensionSymbolFilledCircle: Filled circle.

enumerator KEA3DDimensionSymbolScoredCircle: Scored circle.

enumerator KEA3DDimensionSymbolCircledCross: Circled cross.

enumerator KEA3DDimensionSymbolTriangle: Triangle.

enumerator KEA3DDimensionSymbolFilledTriangle: Filled Triangle.

enumerator KEA3DDimensionSymbolCross: Cross.

enumerator KEA3DDimensionSymbolXCross: X cross.

enumerator KEA3DDimensionSymbolDoubleArrow: Double arrow.

enumerator KEA3DDimensionSymbolSquare

Box.

Version: 7.1

enumerator KEA3DDimensionSymbolFilledSquare

Filled box.

Version: 7.1

enumerator KEA3DDimensionSymbolWave

Wave.

Version: 7.1

enum EA3DMDDimensionLineExtensionType

Values:

enumerator KEA3DMDDimensionExtensionFromStandard: Extension from standard.

enumerator KEA3DMDDimensionExtensionTillCenter: Extension till center.

enumerator KEA3DMDDimensionExtensionNotTillCenter: Extension not till center.

enumerator KEA3DMDDimensionExtensionHideFirstPartOfDimLine: Extension hide first part of dim line.

enumerator KEA3DMDDimensionExtensionHideFSecondPartOfDimLine: Extension hide f second part of dim line.

enumerator KEA3DMDDimensionExtensionHideEntireDimLine: Extension hide entire dim line.

enumerator KEA3DMDDimensionExtensionAddIsoLineUnderTextValue: Extension add iso line under text value.

enum EA3DMDDimensionType

Values:

enumerator KEA3DMDDimensionTypeDistance: distance.

enumerator KEA3DMDDimensionTypeDistanceOffset: distance offset.

enumerator KEA3DMDDimensionTypeLength: length.

enumerator KEA3DMDDimensionTypeLengthCurvilinear: length curvilinear.

enumerator KEA3DMDDimensionTypeAngle: angle.

enumerator KEA3DMDDimensionTypeRadius: radius.

enumerator KEA3DMDDimensionTypeRadiusTangent: radius tangent.

enumerator KEA3DMDDimensionTypeRadiusCylinder: radius cylinder.

enumerator KEA3DMDDimensionTypeRadiusEdge: radius edge.

enumerator KEA3DMDDimensionTypeDiameter: diameter.

enumerator KEA3DMDDimensionTypeDiameterTangent: diameter tangent.

enumerator KEA3DMDDimensionTypeDiameterCylinder: diameter cylinder.

enumerator KEA3DMDDimensionTypeDiameterEdge: diameter edge.

enumerator KEA3DMDDimensionTypeDiameterCone: diameter cone.

enumerator KEA3DMDDimensionTypeChamfer: chamfer.

enumerator KEA3DMDDimensionTypeSlope: Slope.

enum EA3DMDDimensionDualDisplay

Values:

enumerator KEA3DMDDimensionDualDisplayNone: No.

enumerator KEA3DMDDimensionDualDisplayBelow: Display below.

enumerator KEA3DMDDimensionDualDisplayFractional: fractional display.

enumerator KEA3DMDDimensionDualDisplaySideBySide: Side by side display.

enumerator KEA3DMDDimensionDualDisplayOnLeft: Dual value display before main value.

enumerator KEA3DMDDimensionDualDisplayOnRight: Dual value display after main value.

enumerator KEA3DMDDimensionDualDisplayAbove: Dual value display above main value.

enumerator KEA3DMDDimensionDualDisplayOnly: Display only dual value, main value is hidden.

enum EA3DMDDimensionFrame

Values:

enumerator KEA3DMDDimensionFrameNone: No frame.

enumerator KEA3DMDDimensionFrameCircle: Circle frame.

enumerator KEA3DMDDimensionFrameScoredCircle: Scored circle frame.

enumerator KEA3DMDDimensionFrameDiamondShaped: Diamond frame.

enumerator KEA3DMDDimensionFrameSquare: Square frame.

enumerator KEA3DMDDimensionFrameRectangle: Rectangle frame.

enumerator KEA3DMDDimensionFrameOblong: Oblong frame.

enumerator KEA3DMDDimensionFrameRightFlag: Right flag frame.

enumerator KEA3DMDDimensionFrameRightTriangle: Triangle frame.

enum EA3DMDDimensionScore

Values:

enumerator KEA3DMDDimensionScoreNone: No Score.

enumerator KEA3DMDDimensionUnderScored: Underscored.

enumerator KEA3DMDDimensionScored: Scored.

enumerator KEA3DMDDimensionOverScored: overscored.

enum EA3DMDDimensionAngleSector

Values:

enumerator KEA3DMDDimensionAngleSector_None: No angle sector.

enumerator KEA3DMDDimensionAngleSector_1: First angle sector.

enumerator KEA3DMDDimensionAngleSector_2: Second angle sector.

enumerator KEA3DMDDimensionAngleSector_3: Third angle sector.

enumerator KEA3DMDDimensionAngleSector_4: Fourth angle sector.

enumerator KEA3DMDDimensionAngleSector_Complementary: Complementary angle sector.

enum EA3DMDDimensionReferenceType

Values:

enumerator KEA3DMDDimensionRefType_None: No reference type.

enumerator KEA3DMDDimensionRefType_Reference: Reference

enumerator KEA3DMDDimensionRefType_Parenthesis: Add parenthesis: ( value ).

enumerator KEA3DMDDimensionRefType_Match: Match

enumerator KEA3DMDDimensionRefType_Diameter_Reference: Diameter reference

enumerator KEA3DMDDimensionRefType_Not_To_Scale: Not to scale

enumerator KEA3DMDDimensionRefType_Basic: Basic

enum EA3DMDMarkupDisplayType

Values:

enumerator KEA3DMDDisplayType_Unknown: Unknown.

enumerator KEA3DMDDisplayType_Unspecified: Unspecified.

enumerator KEA3DMDDisplayType_FlatToScreen: Flat to screen.

enumerator KEA3DMDDisplayType_FlatToSurface: Flat to surface.

enum EA3DMDTextPropertiesScore

Values:

enumerator KEA3DMDTextPropertiesScoreNone: Text is not scored.

enumerator KEA3DMDTextPropertiesUnderScored: Text is underscored: draw a horizontal line below the text.

enumerator KEA3DMDTextPropertiesScored: Also called strike through, Text is scored: draw a horizontal line through the text.

enumerator KEA3DMDTextPropertiesOverScored: Text is overscored: draw a horizontal line above the text.

enum EA3DMDTextPropertiesFormat

Values:

enumerator KEA3DMDTextPropertiesFormatNormal: Classical text.

enumerator KEA3DMDTextPropertiesFormatUnderLine: Text positioning under the classical text.

enumerator KEA3DMDTextPropertiesFormatOverLine: Text positioning over the classical text.

enumerator KEA3DMDTextPropertiesFormatExposant: Text positioning as an exposant.

enumerator KEA3DMDTextPropertiesFormatindice: Text positioning as an indice.

enum EA3DMDTextPropertiesJustification

Values:

enumerator KEA3DMDTextPropertiesJustificationLeft: Justifies the text on the left side.

enumerator KEA3DMDTextPropertiesJustificationCenter: Centers the text.

enumerator KEA3DMDTextPropertiesJustificationRight: Justifies the text on the right side.

enum A3DEPictureDataFormat

Image format.

Version: 2.0

Note

The conventions described here are similar to the common scene graphics conventions described for other 3D standards such as OpenGL and DirectX.

Values:

enumerator kA3DPicturePng: PNG format.

enumerator kA3DPictureJpg: JPEG format.

enumerator kA3DPictureBmp: BMP format.

enumerator kA3DPictureBitmapRgbByte: Array of Red Green and Blue bytes.

enumerator kA3DPictureBitmapRgbaByte: Array of Red Green Blue and Alpha bytes.

enumerator kA3DPictureBitmapGreyByte: Array of Greyscale bytes.

enumerator kA3DPictureBitmapGreyaByte: Array of Greyscale and alpha bytes.

enum A3DEIntersectionLimitType

Values:

enumerator kA3DIntersectionLimitTypeHelp: Arbitary limit on a closed intersection curve.

enumerator kA3DIntersectionLimitTypeTerminator: Limit where one of the two intersection surface normals is degenerate or where they become colinear.

enumerator kA3DIntersectionLimitTypeLimit: Artificial limit to avoid an infinite curve.

enumerator kA3DIntersectionLimitTypeBoundary: Limit of the curve if a A3DSurfBlend02 surface (that uses the intersection curve as its center curve) becomes degenerate.

enum A3DEDrawingViewType

Drawing view type identifiers

Version: 5.0

Values:

enumerator kA3DDrawingViewTypeUnknown: Unknown value.

enumerator kA3DDrawingViewTypeIso: ISO view.

enumerator kA3DDrawingViewTypeTop: Top view.

enumerator kA3DDrawingViewTypeBottom: Bottom view.

enumerator kA3DDrawingViewTypeLeft: Left view.

enumerator kA3DDrawingViewTypeRight: Right view.

enumerator kA3DDrawingViewTypeFront: Front view.

enumerator kA3DDrawingViewTypeBack: Back view.

enumerator kA3DDrawingViewTypeBackground: Background view.

enumerator kA3DDrawingViewTypeWorking: Working view.

enumerator kA3DDrawingViewTypeProjected: Projected view.

enumerator kA3DDrawingViewTypeAuxiliary: Auxiliary view.

enumerator kA3DDrawingViewTypeSection: Section view.

enumerator kA3DDrawingViewTypeDetail: Detail view.

enum A3DEDrawingClipFrameType

A3DEDrawingClipFrameType enum.

../../_images/drawing_view_clipping_type.png

Version: 5.0

Values:

enumerator kA3DDrawingClipFrameTypeNone: Unknown value.

enumerator kA3DDrawingClipFrameTypeRectangular: The frame is a rectangle.

enumerator kA3DDrawingClipFrameTypeUserDefine: The frame is defined by user.

enum A3DEDrawingOperatorType

Drawing operator type identifiers

Version: 5.0

Values:

enumerator kA3DDrawingOperatorTypeUnknown: Unknown value.

enumerator kA3DDrawingOperatorTypeDetail: View of detail.

enumerator kA3DDrawingOperatorTypeSection: View of section.

enum A3DEAnalyticType

Values:

enumerator kA3DAnalyticNone: No Curve.

enumerator kA3DAnalyticCircle: Changed to circle.

enumerator kA3DAnalyticAlreadyCircle: Kept as a circle.

enumerator kA3DAnalyticLine: Changed to Line.

enumerator kA3DAnalyticAlreadyLine: Kept as a line.

enumerator kA3DAnalyticCone: Changed to Cone.

enumerator kA3DAnalyticAlreadyCone: Kept as a cone.

enumerator kA3DAnalyticCylinder: Changed to Cylinder.

enumerator kA3DAnalyticAlreadyCylinder: Kept as a cylinder.

enumerator kA3DAnalyticPlane: Changed to Plane.

enumerator kA3DAnalyticAlreadyPlane: Kept as a plane.

enumerator kA3DAnalyticSphere: Changed to Sphere.

enumerator kA3DAnalyticAlreadySphere: Kept as a sphere.

enumerator kA3DAnalyticTorus: Changed to Torus.

enumerator kA3DAnalyticAlreadyTorus: Kept as a torus.

enum A3DMaterialPhysicType

Values:

enumerator A3DPhysicType_None: If no material type set.

enumerator A3DPhysicType_Fiber: Fiber Type.

enumerator A3DPhysicType_HoneyComb: Honey Comb Type.

enumerator A3DPhysicType_Isotropic: Isotropic Type.

enumerator A3DPhysicType_Orthotropic2D: Orthotropic Type.

enumerator A3DPhysicType_Orthotropic3D: Orthotropic 3D Type.

enumerator A3DPhysicType_Anisotropic: Anisotropic Type.

enum A3DCollisionType

Values:

enumerator A3DCollision_Unknown: Cannot compute the result.

enumerator A3DCollision_NoCollision: There is no colision or contact between the two A3DRiRepresentationItem.

enumerator A3DCollision_Clearance: The safety distance is not verified between the two A3DRiRepresentationItem.

enumerator A3DCollision_Contact: There is a contact between the two A3DRiRepresentationItem.

enumerator A3DCollision_Collision: There is a collision between the two A3DRiRepresentationItem.

enumerator A3DCollision_FirstInside: The first A3DRiRepresentationItem is inside of the second A3DRiRepresentationItem.

enumerator A3DCollision_SecondInside: The second A3DRiRepresentationItem is inside of the first A3DRiRepresentationItem.

enum A3DEReadingMode2D3D

This value determine if we load only 3D, only Drawings or both.

Both only apply to DWG/DXF for the moment

Version: 12.0

Values:

enumerator kA3DRead_3D: Read 3D Only.

enumerator kA3DRead_Drawings: Read Drawings only.

enumerator kA3DRead_Both: Read 3D and Drawings.

enum A3DEBasicUnit

Unit enums.

Values:

enumerator kA3DUnit_None: No Unit.

enumerator kA3DUnit_Ampere: Ampere.

enumerator kA3DUnit_Becquerel: Becquerel.

enumerator kA3DUnit_Candela: Candela.

enumerator kA3DUnit_Coulomb: Coulomb.

enumerator kA3DUnit_Degree_celsius: Degree in Celsius.

enumerator kA3DUnit_Fahrenheit: Fahrenheit.

enumerator kA3DUnit_Farad: Farad.

enumerator kA3DUnit_Foot: Foot.

enumerator kA3DUnit_GallonUS: GallonUS.

enumerator kA3DUnit_Gram: Gram.

enumerator kA3DUnit_Gray: Gray.

enumerator kA3DUnit_Henry: Henry.

enumerator kA3DUnit_Hertz: Hertz.

enumerator kA3DUnit_Hour: Hour.

enumerator kA3DUnit_Inch: Inch.

enumerator kA3DUnit_Joule: Joule.

enumerator kA3DUnit_Kelvin: Kelvin.

enumerator kA3DUnit_Liter: Liter.

enumerator kA3DUnit_Lumen: Lumen.

enumerator kA3DUnit_Lux: Lux.

enumerator kA3DUnit_Metre: Metre.

enumerator kA3DUnit_Minute: Minute.

enumerator kA3DUnit_Mole: Mole.

enumerator kA3DUnit_Newton: Newton.

enumerator kA3DUnit_Ohm: Ohm.

enumerator kA3DUnit_Pascal: Pascal.

enumerator kA3DUnit_Radian: Radian.

enumerator kA3DUnit_Rankine: Rankine.

enumerator kA3DUnit_Second: Second.

enumerator kA3DUnit_Siemens: Siemens.

enumerator kA3DUnit_Sievert: Sievert.

enumerator kA3DUnit_Steradian: Steradian.

enumerator kA3DUnit_Tesla: Tesla.

enumerator kA3DUnit_Volt: Volt.

enumerator kA3DUnit_Watt: Watt.

enumerator kA3DUnit_Weber: Weber.

enum EA3DFCFIndicatorType

feature control frame indicator type

Version: 12.2

Values:

enumerator kA3DFCFIndicatorType_Undef: Undef.

enumerator kA3DFCFIndicatorType_DirectionFeature: DirectionFeature.

enumerator kA3DFCFIndicatorType_CollectionPlane: CollectionPlane.

enumerator kA3DFCFIndicatorType_IntersectionPlane: IntersectionPlane.

enumerator kA3DFCFIndicatorType_OrientationPlane: OrientationPlane.

enumerator kA3DFCFIndicatorType_Text

Text.

Version: 14.0

enum EA3DFCFIndicatorSymbol

Symbol define in the feature control frame indicator.

Version: 12.2

Values:

enumerator kA3DFCFIndicatorSymbol_Undef: Undef.

enumerator kA3DFCFIndicatorSymbol_Angularity: Angularity.

enumerator kA3DFCFIndicatorSymbol_Perpendicularity: Perpendicularity.

enumerator kA3DFCFIndicatorSymbol_Parallelism: Parallelism.

enumerator kA3DFCFIndicatorSymbol_Symmetry: Symmetry.

enumerator kA3DFCFIndicatorSymbol_Runout

Runout.

Version: 14.0

enum EA3DRevitPhysicalProperties

Values:

enumerator kA3DRevitPhysicalProperties_NotComputed

Not computed.

Default value

enumerator kA3DRevitPhysicalProperties_Computed: Computed during reading process, stored as attributes.

enum EA3DRevitLinks

Values:

enumerator kA3DRevitLinks_LoadAll

Load all file links.

Default value

enumerator kA3DRevitLinks_IgnoreAll: Do not load file links.

enumerator kA3DRevitLinks_IgnoreRevit: Do not load revit file links.

enumerator kA3DRevitLinks_IgnoreDwg: Do not load dwg file links.

enumerator kA3DRevitLinks_IgnoreIFC: Do not load ifc file links.

enum EA3DRevitMultiThreadedMode

Values:

enumerator kA3DRevitMultiThreadedMode_Disabled: Multi-threaded file loading and regeneration are disabled.

enumerator kA3DRevitMultiThreadedMode_LoadingEnabled: Multi-threaded file loading is enabled.

enumerator kA3DRevitMultiThreadedMode_RegenerationEnabled: Multi-threaded regeneration is enabled.

enumerator kA3DRevitMultiThreadedMode_LoadingAndRegenerationEnabled: Multi-threaded file loading and regeneration are enabled.

enum A3DERevitLevelOfDetail

Values:

enumerator kA3DRevitLODDefault: Will load the file using the level of detail defined in the Revit file.

enumerator kA3DRevitLODCoarse: Will load the file using the “Coarse” level of detail from Revit.

enumerator kA3DRevitLODMedium: Will load the file using the “Medium” level of detail from Revit.

enumerator kA3DRevitLODFine: Will load the file using the “Fine” level of detail from Revit.

A3DSDKEnums.h

Macro Definitions

Types

Fields

Detailed Description

Type Documentation
