Drawing Sheet

Types

A3DDrawingSheetData

Functions

A3DStatus

A3DDrawingSheetGet

A3DStatus

A3DDrawingSheetCreate

Detailed Description

group a3d_drawing_sheet

Entity type is kA3DTypeDrawingSheet.

See also

Drawing Model

Version

5.0

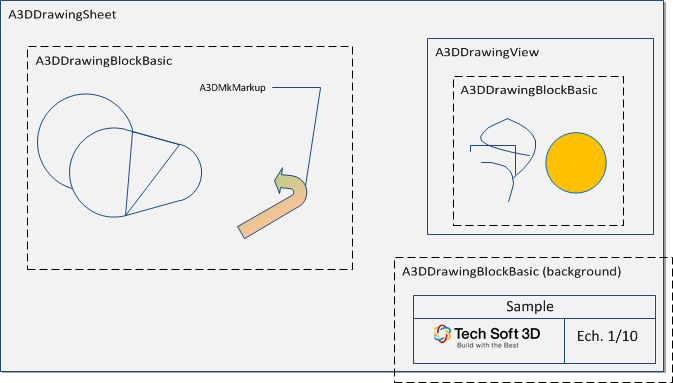

A sheet corresponds to a paper page with geometries which are groups into some structures. ../_images/drawing_sheet.png

Function Documentation

A3DStatus A3DDrawingSheetGet(const A3DDrawingSheet *pDrawingSheet, A3DDrawingSheetData *pData)

Populates the A3DDrawingSheetData structure.

Version

5.0

Parameters:

  • pDrawingSheet – [in] The input sheet.

  • pData – [out] Data of the sheet.

Return values:

  • A3D_INITIALIZE_NOT_CALLED –

  • A3D_INVALID_DATA_STRUCT_SIZE –

  • A3D_INVALID_DATA_STRUCT_NULL –

  • A3D_INVALID_ENTITY_NULL –

  • A3D_INVALID_ENTITY_TYPE –

  • A3D_SUCCESS –

Returns:

A3D_SUCCESS in case of success or an error code

A3DStatus A3DDrawingSheetCreate(const A3DDrawingSheetData *pData, A3DDrawingSheet **ppDrawingSheet)

Creates an A3DDrawingSheet from A3DDrawingSheetData structure.

Version

5.0

Parameters:

  • pData – [in] The input sheet data.

  • ppDrawingSheet – [out] The sheet entity.

Return values:

  • A3D_INVALID_DATA_STRUCT_SIZE –

  • A3D_INVALID_DATA_STRUCT_NULL –

  • A3D_DRW_SHEET_CANNOT_CREATE –

  • A3D_DRW_SHEET_INVALID_SIZE –

  • A3D_DRW_SHEET_INVALID_SCALE –

  • A3D_SUCCESS –

Returns:

A3D_SUCCESS in case of success or an error code
