CEETRON Envision with Win32

CEETRON Envision has (on Windows) a built-in support for Win32 apps. This is implemented by the Win Component.

Creating a Viewer

All CEETRON Envision apps needs one (or more) viewers in order to visualize the 3D data. The Win Component provides two Viewers which are described below:

  • ViewerWin32: ceewinViewerWin32.h/cpp
    A viewer that runs in an existing window.

  • ViewerWindowed: ceewinViewerWindowed.h/cpp
    A viewer that creates its own sub-window.

Example Programs

A .vcxproj file is included for Windows users.

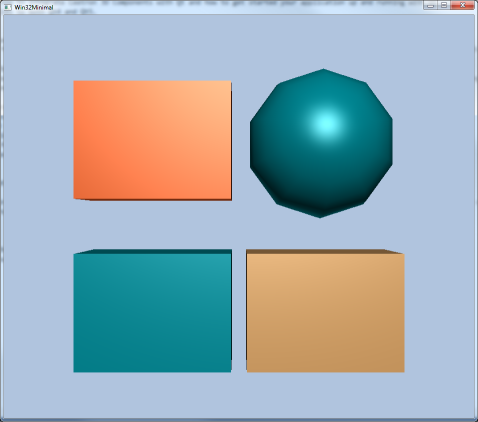

MinimalWin32


Location: Examples/Win32/Win32Minimal
A very small example showing the basic requirements for a Win32 application.
