Tree information

Detailed Description

group a3d_feature_data_root_module

There are three kinds of features that define the model tree.

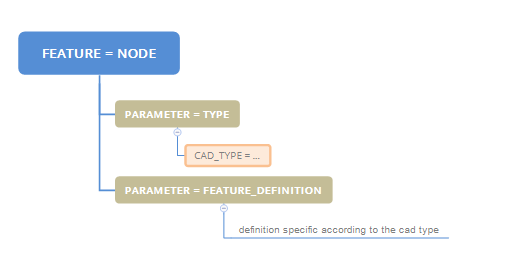

Feature Node (kA3DFamily_Root - kA3DFRMRoot_Node
)

This type of feature corresponds to a simple node in the tree, with the following structure

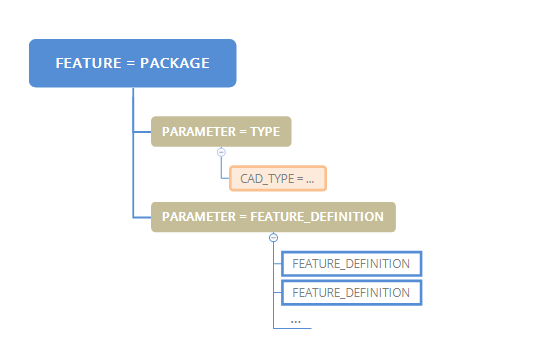

Feature Package (kA3DFamily_Root - kA3DFRMRoot_Package
)

This node will embed multiple feature definition, to define in one time several feature with the same cad file.

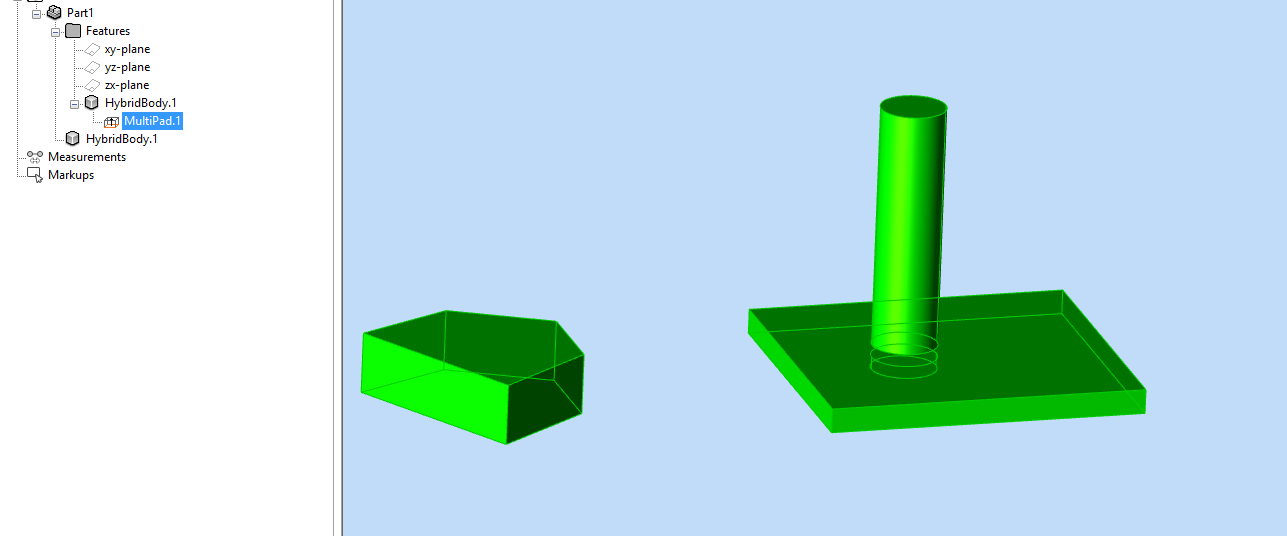

It’s the case of multi-pad, with the possibility to have different depth size.

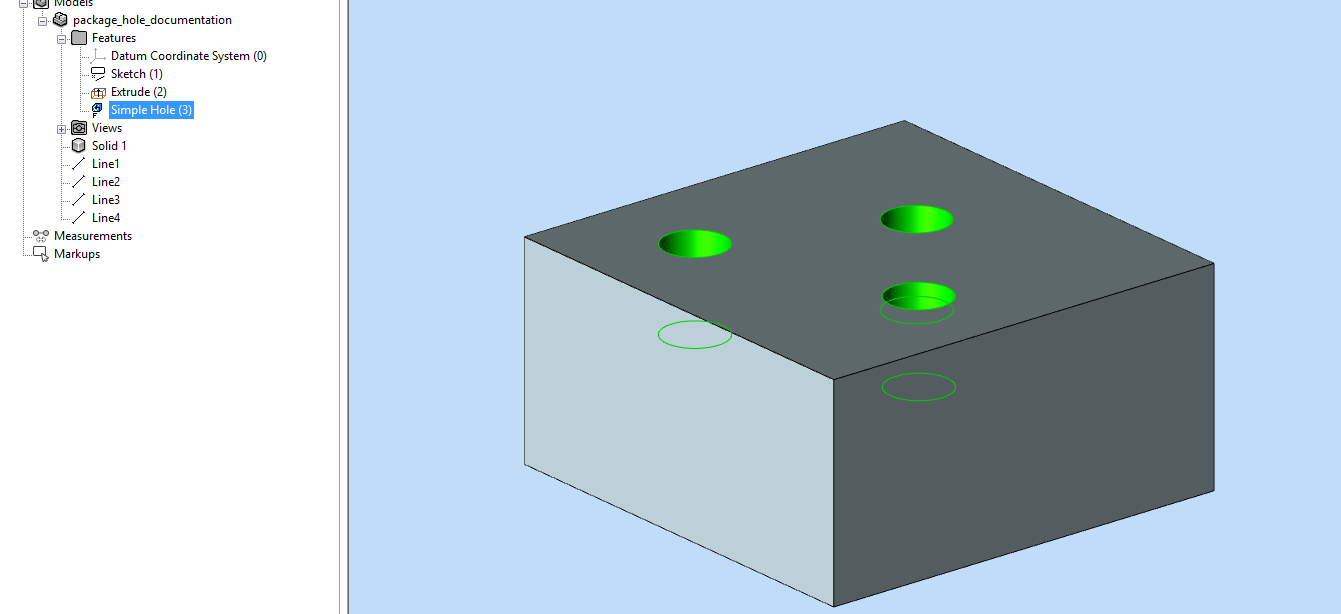

Another example, a feature that define multiple hole at different positions.

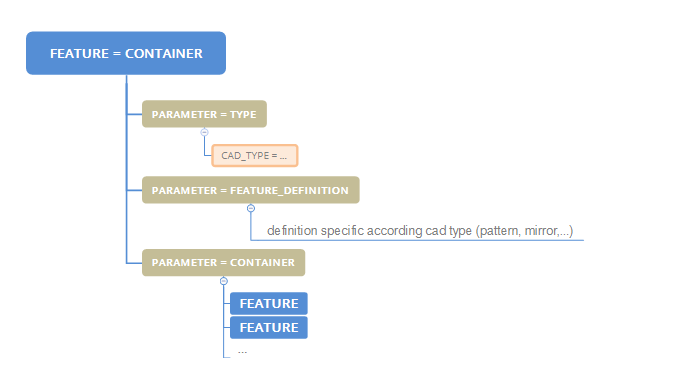

Feature Container (kA3DFamily_Root - kA3DFRMRoot_Container
)

This type of feature corresponds to a sub tree. Underneath, a parameter with type
kA3DParameterType_Container that regroup all sub nodes.
