A3DMDDimensionExtentionLineData

Fields

`A3DMDDimensionFunnel` *	`m_pFunnel`
A3DMDDimensionExtremityData	`m_sExtremity1`
A3DMDDimensionExtremityData	`m_sExtremity2`
`A3DDouble`	`m_dLineSlant`
`A3DUns16`	`m_usStyle`
`A3DFloat`	`m_fThickness`

struct A3DMDDimensionExtentionLineData

Structure that describes extension lines.

See also

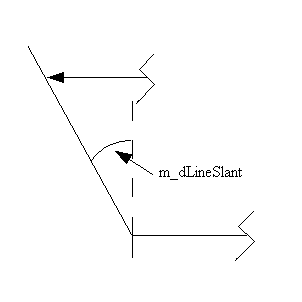

A3DMDDimensionExtentionLineGet, A3DMarkupDimensionData ../../_images/pmi_markup_dimension_ExtentionLine.png

Public Members

Pointer to optional funnel description.

This pointer can be shared with other markups.

A3DMDDimensionExtremityData m_sExtremity1: Description of first dimension extension line extremities.

A3DMDDimensionExtremityData m_sExtremity2: Description of second dimension extension line extremities.

A3DUns16 m_usStyle

Index of line symbol style in the table.
