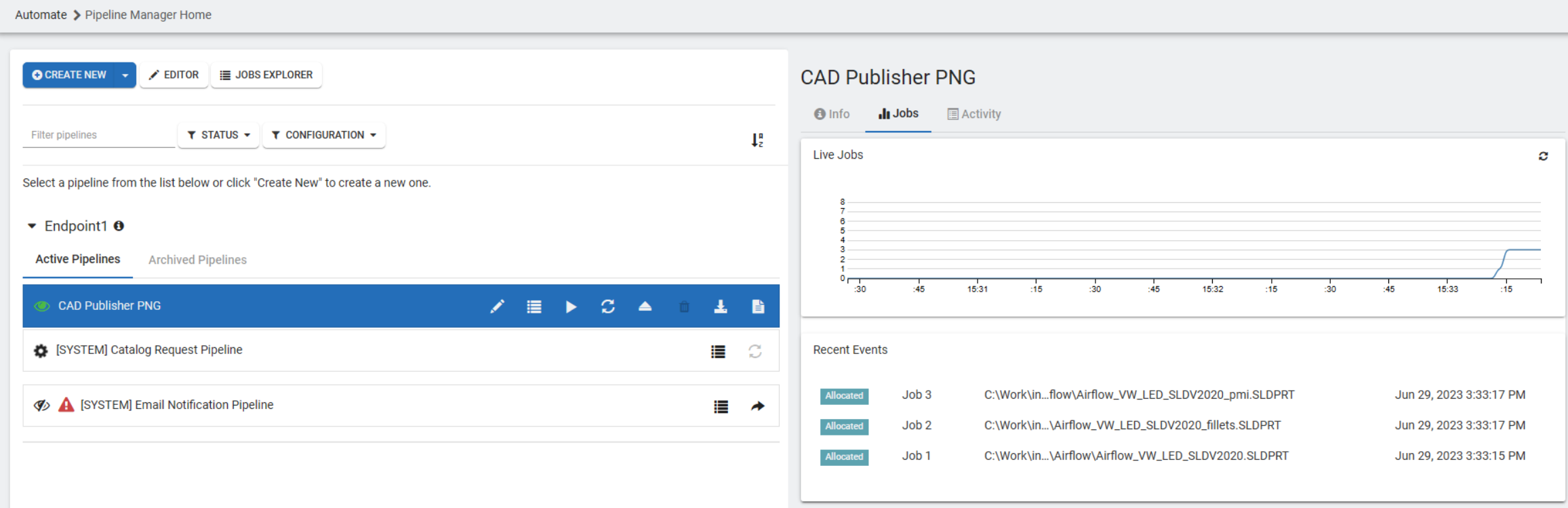

SpinFire Publish Pipeline Manager

Managing automated workflows, or pipelines, of data through a system is done from the SpinFire Publish Pipeline Manager. The Pipeline Manager enables you to create, edit, find, manage, and execute pipelines.

Finding Pipelines

Search - Enter text to search for a pipeline. The search automatically performs partial searches. Wildcard characters are not permitted.

Sort - Sort pipelines alphabetically in ascending or descending order using the sort toggle button.

Managing Pipelines

	Create a new pipeline from an empty pipeline flow. See CAD Publisher Pipeline Editor.
	From the Create New dropdown menu, select Import Pipeline to create a new pipeline from a pipeline configuration file.
	Click the Editor button to modify the selected pipeline. See CAD Publisher Pipeline Editor.
	View pipeline results via the Jobs Explorer. A pipeline must already be deployed. See CAD Publisher Jobs Explorer.

Executing Pipelines

Deployment Icons

	Deployed and started
	Deployed but not started
	Not deployed

Deployed/Not deployed

	Edit Pipeline - Click to edit the pipeline. Available only to users who have appropriate permissions. See Administration.
	Jobs Explorer - Click to view the results of the pipeline. Active only if the pipeline is already deployed.
	Start/Pause Pipeline - Start or pause pipeline processing. Active only if the pipeline is already deployed.
	Deploy a pipeline. A host manager is chosen as jobs are created.
	Redeploy a pipeline to apply pipeline changes, when the pipeline has already deployed.
	Unstage Pipeline - Remove the pipeline from deployment. Active only if the pipeline is already deployed.
	Delete Pipeline - Delete the pipeline from the pipeline manager. Active only if the pipeline is already deployed. Available only to users who have appropriate permissions
	Download Pipeline Configuration - Export the pipeline configuration to a file. The file can be used to create a new pipeline.
	Pipeline Log - View the log for the respective pipeline.
