HOOPS AI: Use the Dataset Explorer to navigate the dataset
The dataset module provides a comprehensive framework for exploring, navigating, and loading CAD model datasets for machine learning applications. It consists of two primary components that work together to simplify data handling:
DatasetExplorer - For exploring and querying dataset contents
DatasetLoader - For loading and preparing datasets for machine learning training
These components are designed to work with the processed data from the cadaccess and cadencoder modules, as well as the outputs from the flow pipeline system. They provide high-level abstractions that allow users to focus on machine learning tasks rather than data handling complexities.
DatasetExplorer
The DatasetExplorer class (dataset_explorer.py) provides methods for exploring and querying datasets stored in Zarr format (.dataset) with accompanying metadata (.infoset) in Parquet files. This class focuses on data discovery, filtering, and statistical analysis.
Key Methods
Data Discovery and Metadata
available_groups() -> set: Returns the set of available dataset groups (faces, edges, file, etc.)get_descriptions(table_name: str, key_id: Optional[int] = None, use_wildchar: Optional[bool] = False) -> pd.DataFrame: Retrieves metadata descriptions (labels, face types, edge types, etc.)get_parquet_info_by_code(file_id_code: int): Returns rows from the Parquet file for a specific file ID codeget_file_info_all() -> pd.DataFrame: Returns all file info from the Parquet metadata
Data Distribution Analysis
create_distribution(key: str, bins: int = 10, group: str = "faces") -> Dict[str, Any]: Computes histograms of data distributions using Dask for parallel processing
Data Filtering and Selection
get_file_list(group: str, where: Callable[[xr.Dataset], xr.DataArray]) -> List[str]: Returns file IDs matching a boolean filter conditionfile_dataset(file_id_code: int, group: str) -> xr.Dataset: Returns a subset of the dataset for a specific filebuild_membership_matrix(group: str, key: str, bins_or_categories: Union[int, List, np.ndarray], as_counts: bool = False) -> tuple[np.ndarray, np.ndarray, np.ndarray]: Builds a file-by-bin membership matrix for stratified splittingdecode_file_id_code(code: int) -> str: Converts an integer file ID code to the original string identifier
[1]:
import hoops_ai
import os
hoops_ai.set_license(hoops_ai.use_test_license())
ℹ️ Using TEST LICENSE (expires December 8, 2025 - 37 days remaining)
For production use, obtain your own license from Tech Soft 3D
======================================================================
✓ HOOPS AI License: Valid (TEST LICENSE - expires Dec 6, 2025)
======================================================================
[2]:
from hoops_ai.dataset import DatasetExplorer
import pathlib
# Define paths
flow_name = "cadsynth_aag"
flow_root_dir = pathlib.Path.cwd().parent.joinpath("packages", "flows", flow_name)
print(flow_root_dir)
parquet_file_path = str(flow_root_dir.joinpath(f"{flow_name}.infoset"))
merged_store_path = str(flow_root_dir.joinpath(f"{flow_name}.dataset"))
parquet_file_attribs = str(flow_root_dir.joinpath(f"{flow_name}.attribset"))
explorer = DatasetExplorer(merged_store_path=merged_store_path, parquet_file_path=parquet_file_path, parquet_file_attribs=parquet_file_attribs)
#explorer.print_table_of_contents()
C:\Users\LuisSalazar\Documents\MAIN\MLProject\repo\HOOPS-AI-tutorials\packages\flows\cadsynth_aag
[DatasetExplorer] Default local cluster started: <Client: 'tcp://127.0.0.1:57953' processes=1 threads=16, memory=7.45 GiB>
[3]:
groups = explorer.available_groups()
print(groups)
{'faceface', 'faces', 'file', 'edges', 'graph'}
[4]:
face_type_description = explorer.get_descriptions("face_types")
print(type(face_type_description), face_type_description)
<class 'pandas.core.frame.DataFrame'> id name description table_name
0 0 Plane not set face_types
1 1 Cylinder not set face_types
2 2 Cone not set face_types
3 14 Extrusion not set face_types
4 3 Sphere not set face_types
5 4 Torus not set face_types
6 5 Nurbs not set face_types
7 13 Revolution not set face_types
[5]:
# Get and print meta data information
file_id = 25
df_info = explorer.get_parquet_info_by_code(file_id)
print(type(df_info), df_info)
<class 'pandas.core.frame.DataFrame'> name description \
0 0007c9b910d876090f12c2cad80794df C:\Temp\Cadsynth_aag\step\00035533.stp
subset id table_name
0 train 25 file_info
[6]:
# Access various dataset groups
file_datasetGroup = {grp: explorer.file_dataset(file_id_code=file_id, group=grp) for grp in groups}
print(f"Datasets (Table of Content) for file ID '{file_id}':")
for grp, ds in file_datasetGroup.items():
for name, da in ds.data_vars.items():
print(f" [{grp}] DATA: {name}, Shape: {da.shape}, Dims: {da.dims}, Size: {da.size}")
print()
file_dataset = file_datasetGroup["faces"]
print("type of file_data_arrays", type(file_dataset))
#print the areas of each face
array_areas = file_dataset["face_areas"].data.compute()
print("type of array_areas", type(array_areas))
print("brep surfaces", array_areas.shape)
Datasets (Table of Content) for file ID '25':
[faceface] DATA: a3_distance, Shape: (2025, 64), Dims: ('faceface_flat', 'bins_d'), Size: 129600
[faceface] DATA: d2_distance, Shape: (2025, 64), Dims: ('faceface_flat', 'bins_a'), Size: 129600
[faceface] DATA: extended_adjacency, Shape: (2025,), Dims: ('faceface_flat',), Size: 2025
[faceface] DATA: face_pair_edges_path, Shape: (2025, 32), Dims: ('faceface_flat', 'dim_path'), Size: 64800
[faceface] DATA: face_x, Shape: (2025,), Dims: ('faceface_flat',), Size: 2025
[faceface] DATA: face_y, Shape: (2025,), Dims: ('faceface_flat',), Size: 2025
[faceface] DATA: file_id_code_faceface, Shape: (2025,), Dims: ('faceface_flat',), Size: 2025
[faces] DATA: face_areas, Shape: (45,), Dims: ('face',), Size: 45
[faces] DATA: face_indices, Shape: (45,), Dims: ('face',), Size: 45
[faces] DATA: face_labels, Shape: (45,), Dims: ('face',), Size: 45
[faces] DATA: face_loops, Shape: (45,), Dims: ('face',), Size: 45
[faces] DATA: face_neighborscount, Shape: (45,), Dims: ('face',), Size: 45
[faces] DATA: face_types, Shape: (45,), Dims: ('face',), Size: 45
[faces] DATA: face_uv_grids, Shape: (45, 5, 5, 7), Dims: ('face', 'uv_x', 'uv_y', 'component'), Size: 7875
[faces] DATA: file_id_code_faces, Shape: (45,), Dims: ('face',), Size: 45
[file] DATA: duration_dglconvert, Shape: (1,), Dims: ('file',), Size: 1
[file] DATA: file_id_code_file, Shape: (1,), Dims: ('file',), Size: 1
[file] DATA: size_cadfile, Shape: (1,), Dims: ('file',), Size: 1
[file] DATA: size_dglfile, Shape: (1,), Dims: ('file',), Size: 1
[edges] DATA: edge_convexities, Shape: (128,), Dims: ('edge',), Size: 128
[edges] DATA: edge_dihedral_angles, Shape: (128,), Dims: ('edge',), Size: 128
[edges] DATA: edge_indices, Shape: (128,), Dims: ('edge',), Size: 128
[edges] DATA: edge_lengths, Shape: (128,), Dims: ('edge',), Size: 128
[edges] DATA: edge_types, Shape: (128,), Dims: ('edge',), Size: 128
[edges] DATA: edge_u_grids, Shape: (128, 5, 6), Dims: ('edge', 'dim_x', 'component'), Size: 3840
[edges] DATA: file_id_code_edges, Shape: (128,), Dims: ('edge',), Size: 128
[graph] DATA: destination, Shape: (128,), Dims: ('edge',), Size: 128
[graph] DATA: file_id_code_graph, Shape: (128,), Dims: ('edge',), Size: 128
[graph] DATA: num_nodes, Shape: (128,), Dims: ('edge',), Size: 128
[graph] DATA: source, Shape: (128,), Dims: ('edge',), Size: 128
type of file_data_arrays <class 'xarray.core.dataset.Dataset'>
type of array_areas <class 'numpy.ndarray'>
brep surfaces (45,)
[7]:
# this requires to be a bit familiar with pandas and dask.
uv_grid_data = file_dataset["face_uv_grids"].data.compute()
print("numpy array shape", uv_grid_data.shape)
numpy array shape (45, 5, 5, 7)
[8]:
#print(uv_grid_data)
[9]:
explorer.get_file_info_all()
[9]:
| name | description | subset | id | table_name | |
|---|---|---|---|---|---|
| 0 | 00001d44b8eb37fe4bb6ec4e89746ea3 | C:\Temp\Cadsynth_aag\step\00021388.stp | train | 0 | file_info |
| 1 | 000093c3b74c8076fbba20bf8613e2a2 | C:\Temp\Cadsynth_aag\step\20221121_154647_2127... | validation | 1 | file_info |
| 2 | 00012dc0e22bd178d7c6a12436734130 | C:\Temp\Cadsynth_aag\step\00067737.stp | validation | 2 | file_info |
| 3 | 00013001df401fe06d5213ef6fc9e581 | C:\Temp\Cadsynth_aag\step\00058353.stp | validation | 3 | file_info |
| 4 | 00015d0e0e285c5089a485360b34db1a | C:\Temp\Cadsynth_aag\step\00048571.stp | train | 4 | file_info |
| ... | ... | ... | ... | ... | ... |
| 162407 | fffe278b406958997fff4c1f76b72ee0 | C:\Temp\Cadsynth_aag\step\20221123_142528_2390... | test | 162407 | file_info |
| 162408 | fffe3fba779b5fa5543c4a82c3cfbabb | C:\Temp\Cadsynth_aag\step\00091954.stp | train | 162408 | file_info |
| 162409 | fffee3edd46107ca808a958811dcb9a8 | C:\Temp\Cadsynth_aag\step\20221124_154714_1362... | validation | 162409 | file_info |
| 162410 | ffff1ac0abc28d3ede6b7bfb6434cdf4 | C:\Temp\Cadsynth_aag\step\00065860.stp | train | 162410 | file_info |
| 162411 | ffffdc1d0cb629065026fa55a97ca314 | C:\Temp\Cadsynth_aag\step\00016373.stp | train | 162411 | file_info |
162412 rows × 5 columns
[10]:
# Visualization libraries
import matplotlib.pyplot as plt
def print_distribution_info(dist, title="Distribution"):
"""Helper function to print and visualize distribution data."""
list_filecount = list()
for i, bin_files in enumerate(dist['file_id_codes_in_bins']):
list_filecount.append(bin_files.size)
dist['file_count'] =list_filecount
# Visualization with matplotlib
fig, ax = plt.subplots(figsize=(12, 4))
bin_centers = 0.5 * (dist['bin_edges'][1:] + dist['bin_edges'][:-1])
ax.bar(bin_centers, dist['file_count'], width=(dist['bin_edges'][1] - dist['bin_edges'][0]),
alpha=0.7, color='steelblue', edgecolor='black', linewidth=1)
# Add file count annotations
for i, count in enumerate(dist['file_count']):
if count > 0: # Only annotate non-empty bins
ax.text(bin_centers[i], count + 0.5, f"{count}",
ha='center', va='bottom', fontsize=8)
ax.set_xlabel('Value')
ax.set_ylabel('Count')
ax.set_title(f'{title} Histogram')
ax.grid(True, linestyle='--', alpha=0.7)
plt.tight_layout()
plt.show()
[11]:
import time

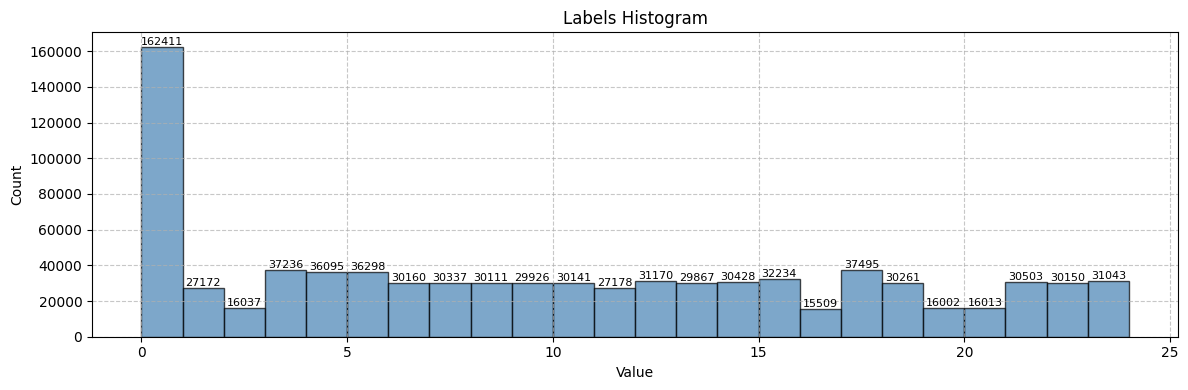

start_time = time.time()
face_dist = explorer.create_distribution(key="face_labels", bins=None, group="faces")
print(f"Face labels distribution created in {(time.time() - start_time):.2f} seconds\n")
print_distribution_info(face_dist, title="Labels")
Face labels distribution created in 2.31 seconds
[12]:
print(explorer.get_descriptions("face_labels"))
id name description table_name
14 0 no-label not set face_labels
15 7 2sides_through_step not set face_labels
16 11 rectangular_blind_slot not set face_labels
17 18 circular blind step not set face_labels
18 5 6sides_passage not set face_labels
19 9 rectangular_blind_step not set face_labels
20 12 rectangular_pocket not set face_labels
21 13 triangular_pocket not set face_labels
22 14 6sides_pocket not set face_labels
23 21 circular end pocket not set face_labels
24 23 blind hole not set face_labels
25 2 triangular_through_slot not set face_labels
26 17 through hole not set face_labels
27 3 rectangular_passage not set face_labels
28 16 circular through slot not set face_labels
29 4 triangular_passage not set face_labels
30 6 rectangular_through_step not set face_labels
31 10 triangular_blind_step not set face_labels
32 24 fillet not set face_labels
33 1 rectangular_through_slot not set face_labels
34 15 chamfer not set face_labels
35 19 horizontal circular end blind slot not set face_labels
36 22 o-ring not set face_labels
37 8 slanted_through_step not set face_labels
38 20 vertical circular end blind slot not set face_labels
[13]:

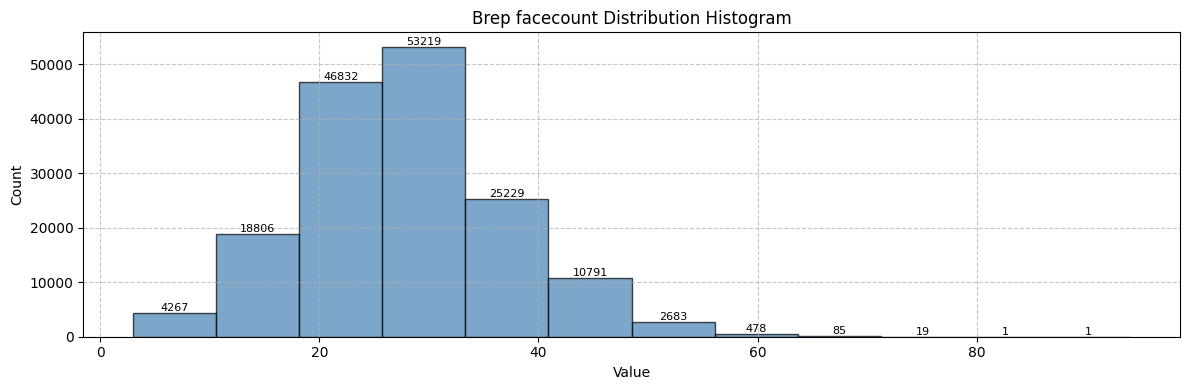

start_time = time.time()
dist = explorer.create_distribution(key="num_nodes", bins=12, group="graph")
print(f"Face labels distribution created in {(time.time() - start_time):.2f} seconds\n")
print_distribution_info(dist, title="Brep facecount Distribution")
Face labels distribution created in 4.20 seconds
Gather files that fulfilled a given condition. Filter
[14]:
start_time = time.time()
# condition
label_is_pipefittings = lambda ds: ds['face_labels'] == 15
filelist = explorer.get_file_list(group="faces", where=label_is_pipefittings)
print(f"Filtering completed in {(time.time() - start_time):.2f} seconds")
print(f"Found {len(filelist)} files with face_labels == 15 (chamfer)\n")
print(filelist)
Filtering completed in 0.21 seconds
Found 32234 files with face_labels == 15 (chamfer)
[ 10 12 15 ... 162392 162398 162401]
Query data for single file
[15]:
def demo_query_single_file(explorer, file_id):
"""Show how to access and query dataset details for a single file."""
print("=== Single File Dataset Access ===")
import time
# Get and print parquet info
df_info = explorer.get_parquet_info_by_code(file_id)
print("Files info:")
for column in df_info.columns:
print(f"Column: {column}")
for value in df_info[column]:
print(f" {value}")
print()
# Access various dataset groups
groups = ["faces", "file", "edges", "graph"]
datasets = {grp: explorer.file_dataset(file_id_code=file_id, group=grp) for grp in groups}
print(f"Datasets for file ID '{file_id}':")
for grp, ds in datasets.items():
for name, da in ds.data_vars.items():
print(f" [{grp}] VARIABLE: {name}, Shape: {da.shape}, Dims: {da.dims}, Size: {da.size}")
print()
# Query uv grids data for a specific face
start_time = time.time()
uv_grid_data = datasets["faces"]["face_uv_grids"].isel(face=2)
print("uv_grids data for face index 2:")
np_uvgrid = uv_grid_data.data.compute()
print(f"Query took {(time.time() - start_time):.2f} seconds\n")
[16]:
demo_query_single_file(explorer,file_id=4500)
=== Single File Dataset Access ===
Files info:
Column: name
07207dfd094fe0ebe9368ded4c271b23
Column: description
C:\Temp\Cadsynth_aag\step\20221124_154714_17096.step
Column: subset
test
Column: id
4500
Column: table_name
file_info
Datasets for file ID '4500':
[faces] VARIABLE: face_areas, Shape: (38,), Dims: ('face',), Size: 38
[faces] VARIABLE: face_indices, Shape: (38,), Dims: ('face',), Size: 38
[faces] VARIABLE: face_labels, Shape: (38,), Dims: ('face',), Size: 38
[faces] VARIABLE: face_loops, Shape: (38,), Dims: ('face',), Size: 38
[faces] VARIABLE: face_neighborscount, Shape: (38,), Dims: ('face',), Size: 38
[faces] VARIABLE: face_types, Shape: (38,), Dims: ('face',), Size: 38
[faces] VARIABLE: face_uv_grids, Shape: (38, 5, 5, 7), Dims: ('face', 'uv_x', 'uv_y', 'component'), Size: 6650
[faces] VARIABLE: file_id_code_faces, Shape: (38,), Dims: ('face',), Size: 38
[file] VARIABLE: duration_dglconvert, Shape: (1,), Dims: ('file',), Size: 1
[file] VARIABLE: file_id_code_file, Shape: (1,), Dims: ('file',), Size: 1
[file] VARIABLE: size_cadfile, Shape: (1,), Dims: ('file',), Size: 1
[file] VARIABLE: size_dglfile, Shape: (1,), Dims: ('file',), Size: 1
[edges] VARIABLE: edge_convexities, Shape: (96,), Dims: ('edge',), Size: 96
[edges] VARIABLE: edge_dihedral_angles, Shape: (96,), Dims: ('edge',), Size: 96
[edges] VARIABLE: edge_indices, Shape: (96,), Dims: ('edge',), Size: 96
[edges] VARIABLE: edge_lengths, Shape: (96,), Dims: ('edge',), Size: 96
[edges] VARIABLE: edge_types, Shape: (96,), Dims: ('edge',), Size: 96
[edges] VARIABLE: edge_u_grids, Shape: (96, 5, 6), Dims: ('edge', 'dim_x', 'component'), Size: 2880
[edges] VARIABLE: file_id_code_edges, Shape: (96,), Dims: ('edge',), Size: 96
[graph] VARIABLE: destination, Shape: (96,), Dims: ('edge',), Size: 96
[graph] VARIABLE: file_id_code_graph, Shape: (96,), Dims: ('edge',), Size: 96
[graph] VARIABLE: num_nodes, Shape: (96,), Dims: ('edge',), Size: 96
[graph] VARIABLE: source, Shape: (96,), Dims: ('edge',), Size: 96
uv_grids data for face index 2:
Query took 1.13 seconds
Create subsets (train, validation, test) based on the label distribution
[17]:
def demo_stratified_splits(explorer):
"""Show building a membership matrix and performing stratified splits."""
print("=== Membership Matrix and Data Splitting ===")
import time
from iterstrat.ml_stratifiers import MultilabelStratifiedShuffleSplit
import numpy as np
start_time = time.time()
df_label = explorer.get_descriptions("label", None, True)
label_key = df_label["table_name"].iloc[0]
if label_key == "file_label":
group = "file"
else:
group = "faces"
matrix, file_codes, _ = explorer.build_membership_matrix(group=group, key=label_key, bins_or_categories=None, as_counts=False)
# First split: 70% train, 30% temporary
msss = MultilabelStratifiedShuffleSplit(n_splits=1, test_size=0.30, random_state=42)
for train_idx, temp_idx in msss.split(np.arange(len(matrix))[:, None], matrix):
pass
# Second split on the temporary set into 50% validation, 50% test => 15% each overall
msss2 = MultilabelStratifiedShuffleSplit(n_splits=1, test_size=0.5, random_state=43)
for val_sub, test_sub in msss2.split(np.arange(len(temp_idx))[:, None], matrix[temp_idx]):
val_idx = temp_idx[val_sub]
test_idx = temp_idx[test_sub]
print("Train file IDs:", file_codes[train_idx].shape)
print("Validation file IDs:", file_codes[val_idx].shape)
print("Test file IDs:", file_codes[test_idx].shape)
print(f"Stratified Splitting completed in {(time.time() - start_time):.2f} seconds")
print()
[18]:
demo_stratified_splits(explorer)
=== Membership Matrix and Data Splitting ===
Train file IDs: (113479,)
Validation file IDs: (24453,)
Test file IDs: (24480,)
Stratified Splitting completed in 15.14 seconds
