Use the Dataset Explorer to navigate the dataset

The dataset module provides objects for exploring, navigating, and loading CAD encoded datasets for machine learning applications. It consists of two primary components that work together to simplify data handling:

1. DatasetExplorer - For exploring and querying dataset contents

2. DatasetLoader - For loading and preparing datasets for machine learning training

These components are designed to work with the processed data from the cadaccess and cadencoder modules, as well as the outputs from the flow pipeline system. They provide high-level abstractions that allow users to focus on machine learning tasks rather than data handling complexities.

DatasetExplorer

The DatasetExplorer class (dataset_explorer.py) provides methods for exploring and querying datasets stored in copressed and optimized format (.dataset) with accompanying metadata (.infoset) in files. This class focuses on data discovery, filtering, and statistical analysis.

Key Methods

Data Discovery and Metadata

• available_groups() -> set: Returns the set of available dataset groups (faces, edges, file, etc.)

• get_descriptions(table_name: str, key_id: Optional[int] = None, use_wildchar: Optional[bool] = False) -> pd.DataFrame: Retrieves metadata descriptions (labels, face types, edge types, etc.)

• get_parquet_info_by_code(file_id_code: int): Returns rows from the Parquet file for a specific file ID code

• get_file_info_all() -> pd.DataFrame: Returns all file info from the Parquet metadata

Data Distribution Analysis

• create_distribution(key: str, bins: int = 10, group: str = "faces") -> Dict[str, Any]: Computes histograms of data distributions using Dask for parallel processing

Data Filtering and Selection

• get_file_list(group: str, where: Callable[[xr.Dataset], xr.DataArray]) -> List[str]: Returns file IDs matching a boolean filter condition

• file_dataset(file_id_code: int, group: str) -> xr.Dataset: Returns a subset of the dataset for a specific file

• build_membership_matrix(group: str, key: str, bins_or_categories: Union[int, List, np.ndarray], as_counts: bool = False) -> tuple[np.ndarray, np.ndarray, np.ndarray]: Builds a file-by-bin membership matrix for stratified splitting

• decode_file_id_code(code: int) -> str: Converts an integer file ID code to the original string identifier

import hoops_ai
import os

hoops_ai.set_license(hoops_ai.use_test_license())

ℹ️ Using TEST LICENSE (expires December 8, 2025 - 36 days remaining)
   For production use, obtain your own license from Tech Soft 3D
======================================================================
✓ HOOPS AI License: Valid (TEST LICENSE - expires Dec 6, 2025)
======================================================================

from hoops_ai.dataset import DatasetExplorer
import pathlib
# Define paths
flow_name = "ETL_Fabwave_training"

flow_root_dir = pathlib.Path.cwd().parent.joinpath("packages", "flows", flow_name)
print(flow_root_dir)

parquet_file_path        = str(flow_root_dir.joinpath(f"{flow_name}.infoset"))
merged_store_path     = str(flow_root_dir.joinpath(f"{flow_name}.dataset"))
parquet_file_attribs  = str(flow_root_dir.joinpath(f"{flow_name}.attribset"))


explorer = DatasetExplorer(merged_store_path=merged_store_path, parquet_file_path=parquet_file_path, parquet_file_attribs=parquet_file_attribs)
#explorer.print_table_of_contents()

C:\Users\LuisSalazar\Documents\MAIN\MLProject\repo\HOOPS-AI-tutorials\packages\flows\ETL_Fabwave_training
[DatasetExplorer] Default local cluster started: <Client: 'tcp://127.0.0.1:62792' processes=1 threads=16, memory=7.45 GiB>

explorer.get_file_info_all()

	name	id	description	stream_cache_png	stream_cache_3d	subset	table_name
0	000757c971d4af379cff2bf219566f76	0	C:\Users\LuisSalazar\Documents\MAIN\MLProject\...	C:\Users\LuisSalazar\Documents\MAIN\MLProject\...	C:\Users\LuisSalazar\Documents\MAIN\MLProject\...	test	file_info
1	000d2096f1b75775aee0cca3869062ac	1	C:\Users\LuisSalazar\Documents\MAIN\MLProject\...	C:\Users\LuisSalazar\Documents\MAIN\MLProject\...	C:\Users\LuisSalazar\Documents\MAIN\MLProject\...	test	file_info
2	0018d103885051d4463bfbdf97642644	2	C:\Users\LuisSalazar\Documents\MAIN\MLProject\...	C:\Users\LuisSalazar\Documents\MAIN\MLProject\...	C:\Users\LuisSalazar\Documents\MAIN\MLProject\...	test	file_info
3	001ec9bc5e47900ff95873b20a8cf97e	3	C:\Users\LuisSalazar\Documents\MAIN\MLProject\...	C:\Users\LuisSalazar\Documents\MAIN\MLProject\...	C:\Users\LuisSalazar\Documents\MAIN\MLProject\...	test	file_info
4	002b9953b2669f0dbf7e95a97d47e759	4	C:\Users\LuisSalazar\Documents\MAIN\MLProject\...	C:\Users\LuisSalazar\Documents\MAIN\MLProject\...	C:\Users\LuisSalazar\Documents\MAIN\MLProject\...	train	file_info
...	...	...	...	...	...	...	...
4541	ff96da3be8fa50b0c3516392e7c57770	4541	C:\Users\LuisSalazar\Documents\MAIN\MLProject\...	C:\Users\LuisSalazar\Documents\MAIN\MLProject\...	C:\Users\LuisSalazar\Documents\MAIN\MLProject\...	train	file_info
4542	ffb399838ecd3d81f1e05edd13002887	4542	C:\Users\LuisSalazar\Documents\MAIN\MLProject\...	C:\Users\LuisSalazar\Documents\MAIN\MLProject\...	C:\Users\LuisSalazar\Documents\MAIN\MLProject\...	train	file_info
4543	ffc34e21ca8c3b0aefc40057489b1db0	4543	C:\Users\LuisSalazar\Documents\MAIN\MLProject\...	C:\Users\LuisSalazar\Documents\MAIN\MLProject\...	C:\Users\LuisSalazar\Documents\MAIN\MLProject\...	test	file_info
4544	ffd6cacefde868ff77c8057d55add378	4544	C:\Users\LuisSalazar\Documents\MAIN\MLProject\...	C:\Users\LuisSalazar\Documents\MAIN\MLProject\...	C:\Users\LuisSalazar\Documents\MAIN\MLProject\...	validation	file_info
4545	ffd8d4beab2e24522adc38308def99ec	4545	C:\Users\LuisSalazar\Documents\MAIN\MLProject\...	C:\Users\LuisSalazar\Documents\MAIN\MLProject\...	C:\Users\LuisSalazar\Documents\MAIN\MLProject\...	train	file_info

4546 rows × 7 columns

groups = explorer.available_groups()
print(groups)

{'graph', 'edges', 'Labels', 'faces'}

face_type_description = explorer.get_descriptions("face_types")
print(type(face_type_description), face_type_description)

<class 'pandas.core.frame.DataFrame'>       id      name description  table_name
13682  0     Plane     not set  face_types
13683  1  Cylinder     not set  face_types
13684  4     Torus     not set  face_types
13685  2      Cone     not set  face_types
13686  5     Nurbs     not set  face_types
13687  3    Sphere     not set  face_types

import time
import helper_tutorials
start_time = time.time()
dist = explorer.create_distribution(key="num_nodes", bins=12, group="graph")
print(f"Face labels distribution created in {(time.time() - start_time):.2f} seconds\n")
helper_tutorials.print_distribution_info(dist, title="Brep facecount Distribution")

Face labels distribution created in 2.41 seconds

largest_files = dist['file_id_codes_in_bins'][9]

Dataset Visualization with DatasetViewer

The DatasetViewer is a powerful visualization tool that bridges dataset queries and visual analysis. It enables you to quickly visualize query results in two ways:

1. Image Grids: Generate collages of PNG previews for rapid visual scanning

2. Interactive 3D Views: Open inline 3D viewers for detailed model inspection

# Import the DatasetViewer from the insights module
from hoops_ai.insights import DatasetViewer

dataset_viewer = DatasetViewer.from_explorer(explorer)

# condition

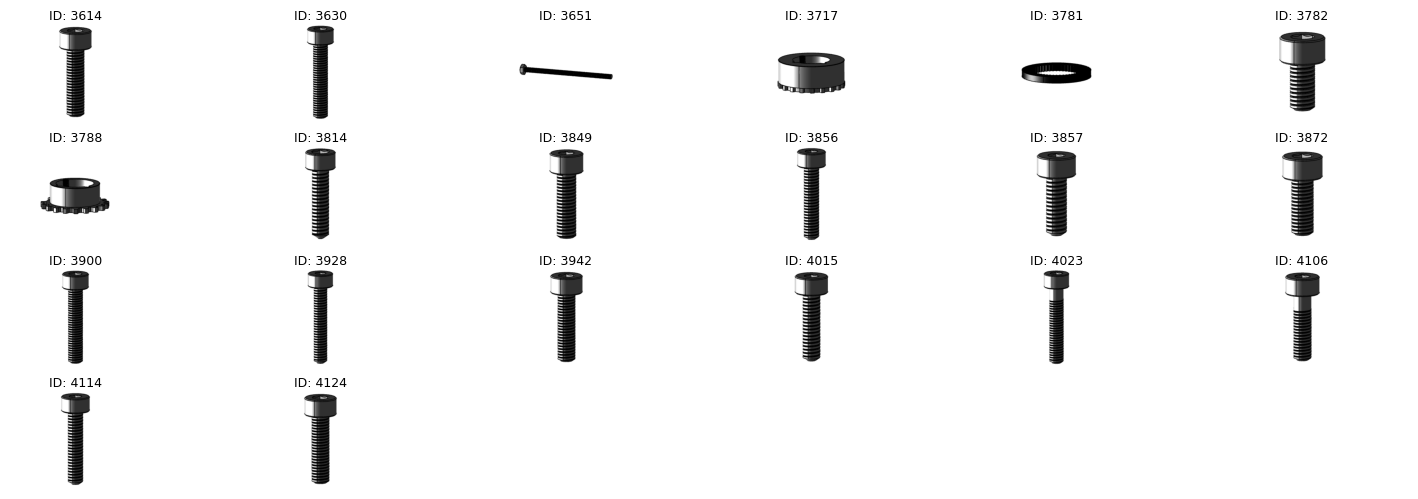

brepcount_is_large = lambda ds: ds['num_nodes'] > 200
filelist = explorer.get_file_list(group="graph", where=brepcount_is_large)
print(len(filelist))

107

fig = dataset_viewer.show_preview_as_image(filelist[80:100])

import time
start_time = time.time()

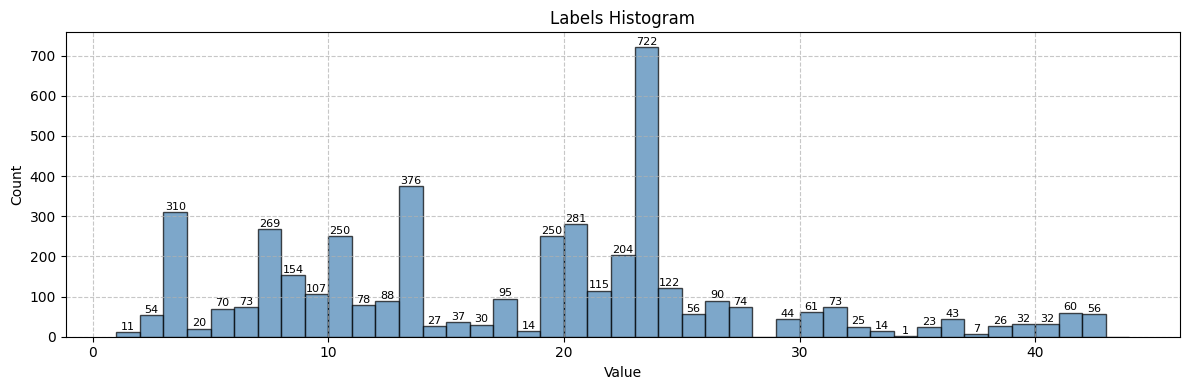

face_dist = explorer.create_distribution(key="part_label", bins=None, group="Labels")
print(f"Face labels distribution created in {(time.time() - start_time):.2f} seconds\n")
helper_tutorials.print_distribution_info(face_dist, title="Labels")

Face labels distribution created in 0.39 seconds

# condition

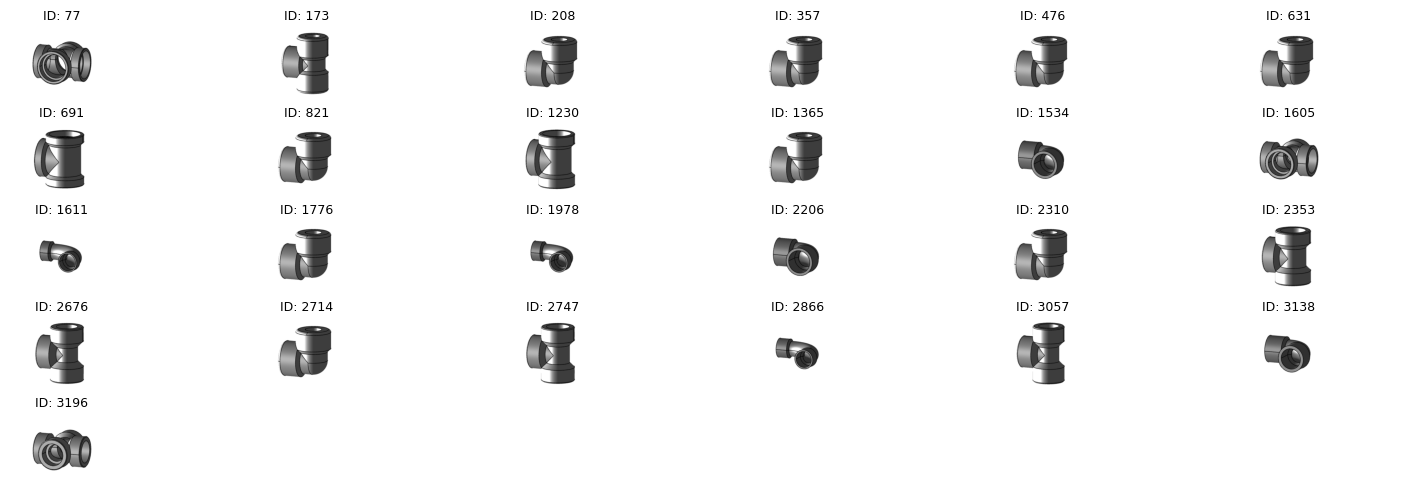

label_is_pipefittings = lambda ds: ds['part_label'] == 15
filelist = explorer.get_file_list(group="Labels", where=label_is_pipefittings)
print(len(filelist))

37

fig = dataset_viewer.show_preview_as_image(filelist[0:36])

# Get and print meta data information
file_id = 33

df_info = explorer.get_parquet_info_by_code(file_id)
print(type(df_info), df_info)

<class 'pandas.core.frame.DataFrame'>                                name  id  \
0  0230531bd60bc2d4e9cd1a1ee5b67020  33

                                         description  \
0  C:\Users\LuisSalazar\Documents\MAIN\MLProject\...

                                    stream_cache_png  \
0  C:\Users\LuisSalazar\Documents\MAIN\MLProject\...

                                     stream_cache_3d subset table_name
0  C:\Users\LuisSalazar\Documents\MAIN\MLProject\...  train  file_info

print(explorer.get_descriptions("part_label_description"))

[DatasetExplorer] No records found for part_label_description.
Empty DataFrame
Columns: []
Index: []

start_time = time.time()

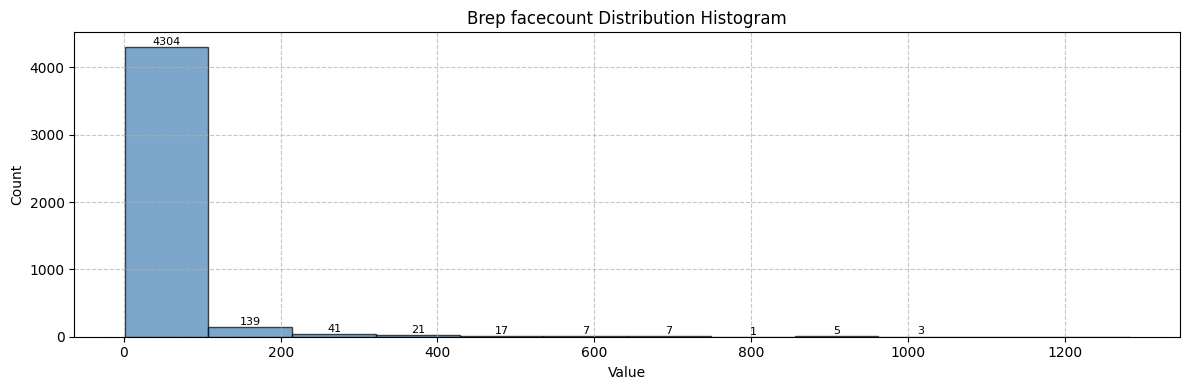

dist = explorer.create_distribution(key="num_nodes", bins=12, group="graph")
print(f"Face labels distribution created in {(time.time() - start_time):.2f} seconds\n")
helper_tutorials.print_distribution_info(dist, title="Brep facecount Distribution")

Face labels distribution created in 0.38 seconds

Gather files that fulfilled a given condition. Filter

start_time = time.time()

# condition
label_is_pipefittings = lambda ds: ds['part_label'] == 15

filelist = explorer.get_file_list(group="Labels", where=label_is_pipefittings)
print(f"Filtering completed in {(time.time() - start_time):.2f} seconds")
print(f"Found {len(filelist)} files with file_labels == 15 (Pipe Fittings)\n")
print(filelist)

Filtering completed in 0.09 seconds
Found 37 files with file_labels == 15 (Pipe Fittings)

[  77  173  208  357  476  631  691  821 1230 1365 1534 1605 1611 1776
 1978 2206 2310 2353 2676 2714 2747 2866 3057 3138 3196 3213 3282 3300
 3359 3610 3873 3877 3932 4062 4065 4225 4241]

Query data for single file

def demo_query_single_file(explorer, file_id):
    """Show how to access and query dataset details for a single file."""
    print("=== Single File Dataset Access ===")
    import time
    # Get and print parquet info
    df_info = explorer.get_parquet_info_by_code(file_id)
    print("Files info:")
    for column in df_info.columns:
        print(f"Column: {column}")
        for value in df_info[column]:
            print(f"  {value}")
    print()

    # Access various dataset groups
    groups = ["faces", "Labels", "edges", "graph"]
    datasets = {grp: explorer.file_dataset(file_id_code=file_id, group=grp) for grp in groups}

    print(f"Datasets for file ID '{file_id}':")
    for grp, ds in datasets.items():
        for name, da in ds.data_vars.items():
            print(f"  [{grp}] VARIABLE: {name}, Shape: {da.shape}, Dims: {da.dims}, Size: {da.size}")
    print()

    # Query uv grids data for a specific face
    start_time = time.time()
    uv_grid_data = datasets["faces"]["face_discretization"].isel(face=2)
    print("uv_grids data for face index 2:")
    np_uvgrid = uv_grid_data.data.compute()
    print(f"Query took {(time.time() - start_time):.2f} seconds\n")

demo_query_single_file(explorer,file_id=4500)

=== Single File Dataset Access ===
Files info:
Column: name
  fc60de484998e424494caafa0e286fc3
Column: id
  4500
Column: description
  C:\Users\LuisSalazar\Documents\MAIN\MLProject\repo\HOOPS-AI-tutorials\packages\cadfiles\fabwave\CAD25-45_TOTAL1000\Boxes\STEP\836a504e-ac03-4248-affd-de81643d4191.stp
Column: stream_cache_png
  C:\Users\LuisSalazar\Documents\MAIN\MLProject\repo\HOOPS-AI-tutorials\notebooks\out\flows\ETL_Fabwave_training\stream_cache\fc60de484998e424494caafa0e286fc3.png
Column: stream_cache_3d
  C:\Users\LuisSalazar\Documents\MAIN\MLProject\repo\HOOPS-AI-tutorials\notebooks\out\flows\ETL_Fabwave_training\stream_cache\fc60de484998e424494caafa0e286fc3.scs
Column: subset
  test
Column: table_name
  file_info

Datasets for file ID '4500':
  [faces] VARIABLE: face_areas, Shape: (11,), Dims: ('face',), Size: 11
  [faces] VARIABLE: face_discretization, Shape: (11, 100, 7), Dims: ('face', 'sample', 'component'), Size: 7700
  [faces] VARIABLE: face_indices, Shape: (11,), Dims: ('face',), Size: 11
  [faces] VARIABLE: face_loops, Shape: (11,), Dims: ('face',), Size: 11
  [faces] VARIABLE: face_types, Shape: (11,), Dims: ('face',), Size: 11
  [faces] VARIABLE: file_id_code_faces, Shape: (11,), Dims: ('face',), Size: 11
  [Labels] VARIABLE: file_id_code_Labels, Shape: (1,), Dims: ('Labels_part_label_dim_0',), Size: 1
  [Labels] VARIABLE: part_label, Shape: (1,), Dims: ('Labels_part_label_dim_0',), Size: 1
  [edges] VARIABLE: edge_convexities, Shape: (24,), Dims: ('edge',), Size: 24
  [edges] VARIABLE: edge_dihedral_angles, Shape: (24,), Dims: ('edge',), Size: 24
  [edges] VARIABLE: edge_indices, Shape: (24,), Dims: ('edge',), Size: 24
  [edges] VARIABLE: edge_lengths, Shape: (24,), Dims: ('edge',), Size: 24
  [edges] VARIABLE: edge_types, Shape: (24,), Dims: ('edge',), Size: 24
  [edges] VARIABLE: edge_u_grids, Shape: (24, 10, 6), Dims: ('edge', 'u', 'component'), Size: 1440
  [edges] VARIABLE: file_id_code_edges, Shape: (24,), Dims: ('edge',), Size: 24
  [graph] VARIABLE: edges_destination, Shape: (24,), Dims: ('edge',), Size: 24
  [graph] VARIABLE: edges_source, Shape: (24,), Dims: ('edge',), Size: 24
  [graph] VARIABLE: file_id_code_graph, Shape: (24,), Dims: ('edge',), Size: 24
  [graph] VARIABLE: num_nodes, Shape: (24,), Dims: ('edge',), Size: 24

uv_grids data for face index 2:
Query took 0.86 seconds
