Installation

On this page

Requirements

SpinFire Manage Server

• Windows OS:

  • Win10 64-bit, Win Server 2016/2019/2022

• Memory: 16GB or more

• Disk Space: 80GB or more

Database Server

• Windows OS:

  • Win10 64-bit, Win Server 2016/2019/2022

• Linux OS:

  • Ubuntu v23.10, Debian v12.5.0

• Memory: 16GB or more

• Disk Space: 80GB or more

• See the ArangoDB Compatibility Chart

Client

• WebGL Compatible Browser: FireFox, Chrome, Edge

• Memory: 2GB or more

About

SpinFire Manage Pipelines can be configured to automate data conversions and catalog updating so that the current correct information is made available to the user community.

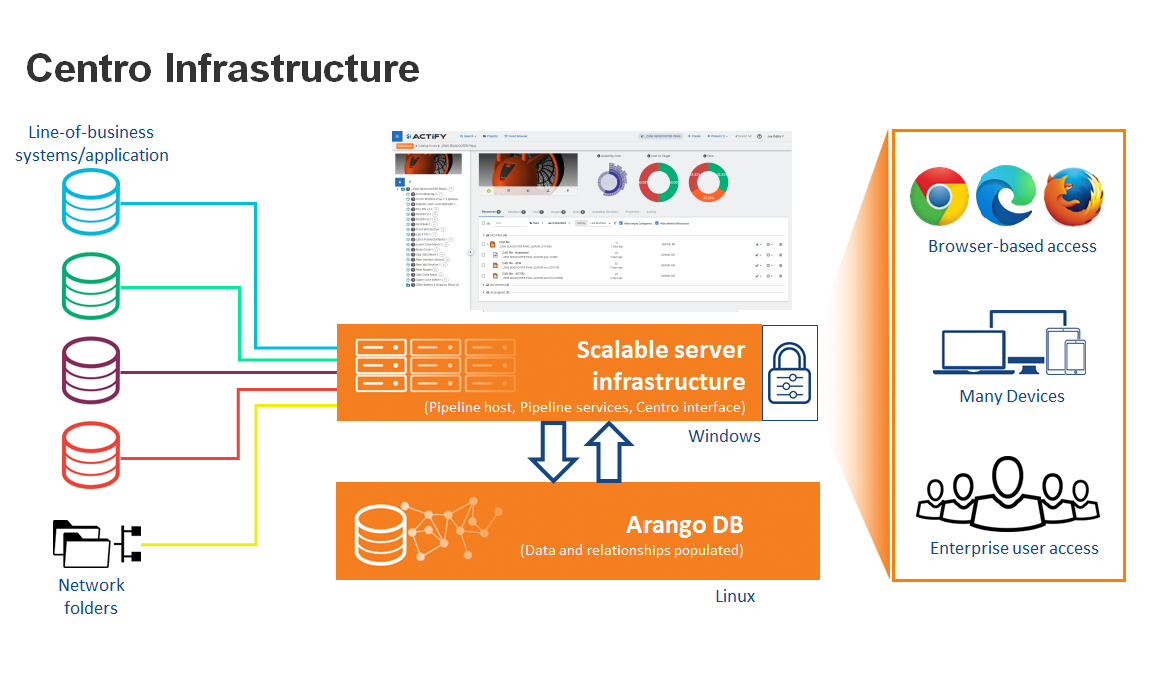

SpinFire Manage is a 64-bit server-based scalable application operating from a graph database. Installation involves four components:

• The Database (ArangoDB)

• The Webapp

• The Pipeline Host

• The Pipeline Manager

SpinFire Manage can be installed on either LInux or Windows Servers. See Server Requirements on this page.

Before You Begin

• Check the Server Requirements and Prerequisite Software

• Enable PowerShell in Administrator Mode

Prerequisite Software

• Internet Information Services

• .NET Framework 4.8

• Microsoft Edge of Google Chrome

• Note: Internet Explorer is no longer supported

Prerequisite Steps

There are a few steps required before installing C7. You’ll need to run PowerShell in administrator mode.

To do this:

1. Go to the Start menu.

2. Select Accessories > Windows PowerShell

3. Right mouse click on Windows PowerShell and select Run as administrator.

Windows Server Setup

For Windows Server, add the following roles and features as described for the specified version.

Windows 10 Standard Required Features

For Windows 10 web app servers, there are needed Windows features that need to be enabled.

To enable these in Windows 10,

1. Launch Control Panel.

2. Click Get Programs.

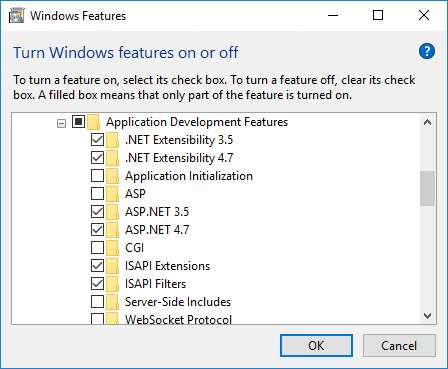

3. Click Turn Windows features on or off.

4. Expand Internet Information Services > World Wide Web Services > Application Development Features.

5. Check .NET Extensibility 3.5.

6. Check .NET Extensibility 4.x.

7. Check ASP.NET 3.5.

8. Check ASP.NET 4.x.

9. Check ISAPI Extensions.

10. Check ISAPI Filters.



11. Expand ASP.NET 4.x

12. Check HTTP Activation.

13. Check Named Pipe Activation.

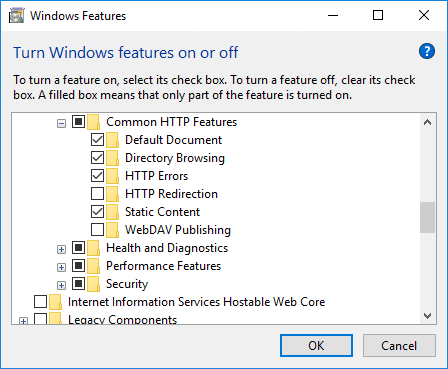

14. Expand Internet Information Services > World Wide Web Services > Common HTTP Features.

15. Check Default Document.

16. Check Directory Browsing.

17. Check HTTP Errors.

18. Check Static Content.



19. Click OK.

WinServer 2012 Standard Required Roles and Features

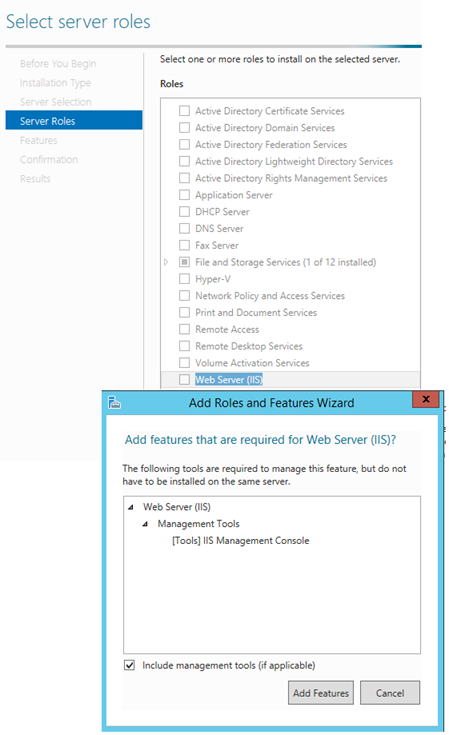

1. Select Web Server (IIS) under Server Roles

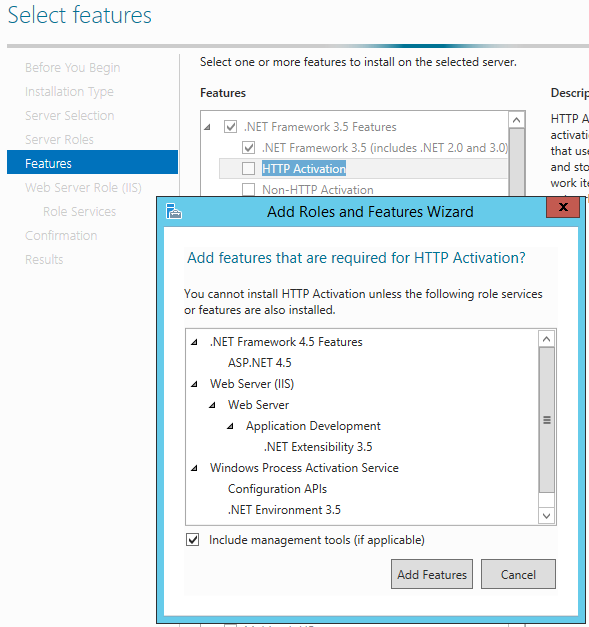

2. Select the pictured features



3. Select Message Queuing (MSMQ).



4. For the Web Server Role (IIS) role service, select the pictured role services
5. Install the roles and services.

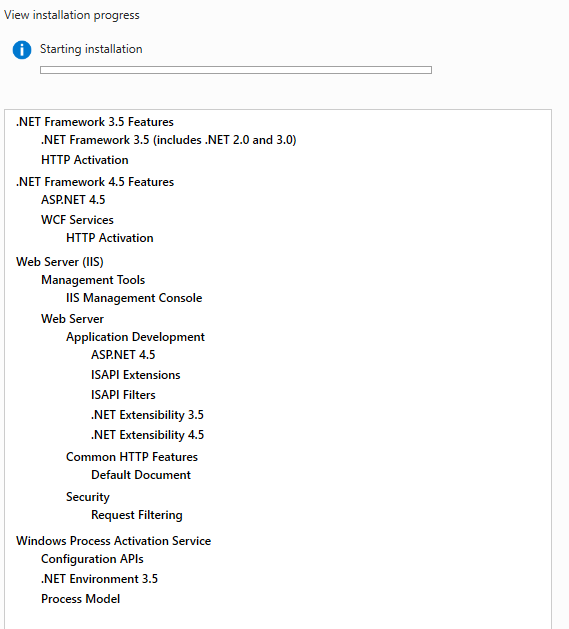

6. Confirm the selected roles and features.



WinServer 2012 R2 Required Roles and Features

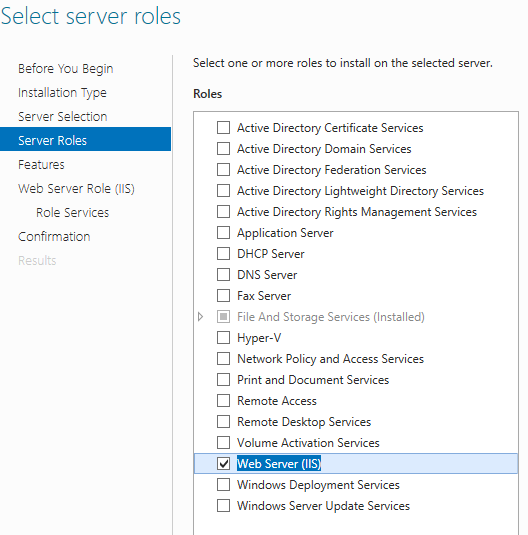

1. Select Web Server (IIS) under Server Roles

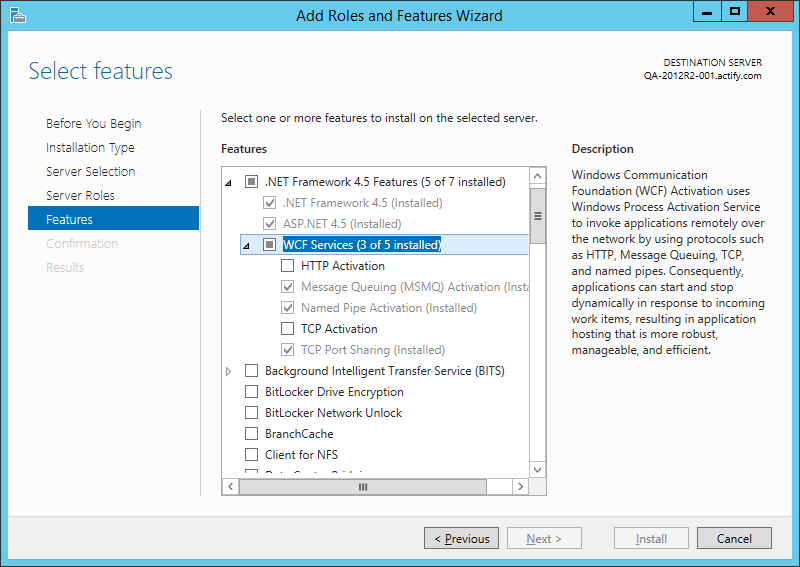

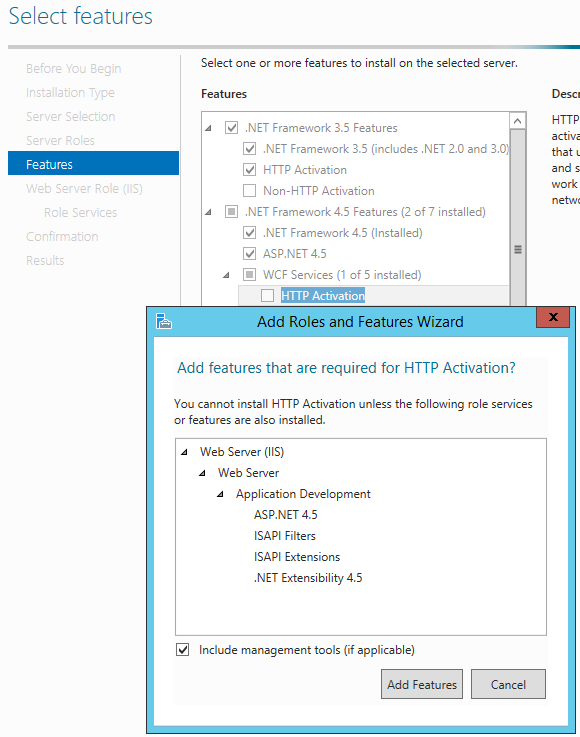

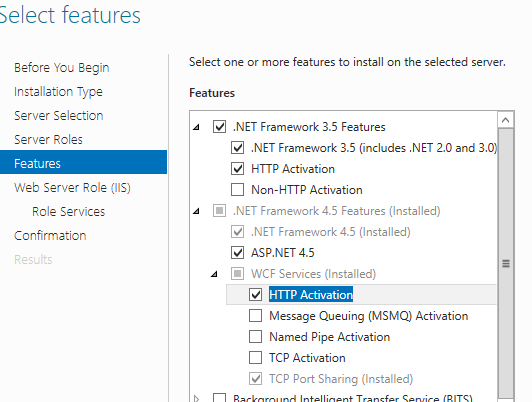

2. Select the pictured features



3. Select Message Queuing (MSMQ).

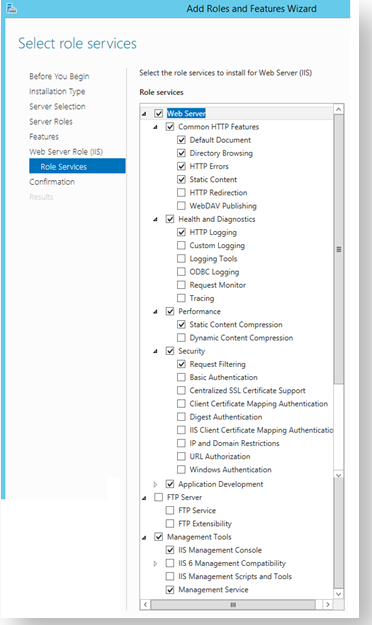

4. For the Web Server Role (IIS) role service, select the pictured role services.



5. Add the services shown below for the Web Server Role.

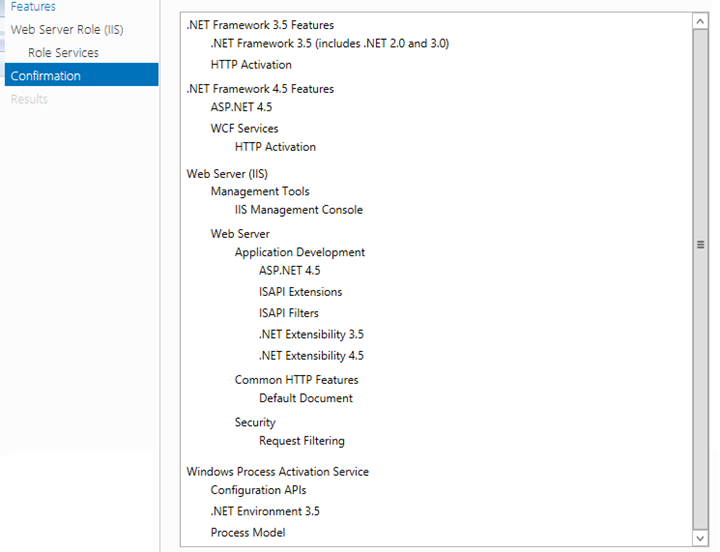

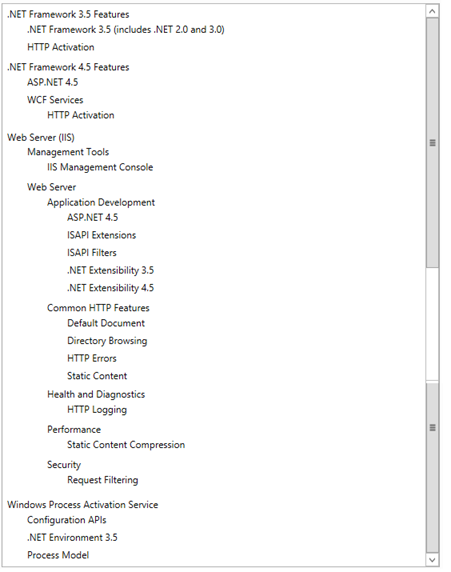

6. Confirm selections.



WinServer 2016 Required Roles and Features

For Windows Server 2016, add the roles and features as described for the 2012 R2 section, except for .Net 3.5.  You will have to install the other Roles and Features first, do a reboot, then install .Net 3.5.

Continue with the pre-installation items:

• Copy/download the installation files to a single temporary folder. For example: C:Centro\

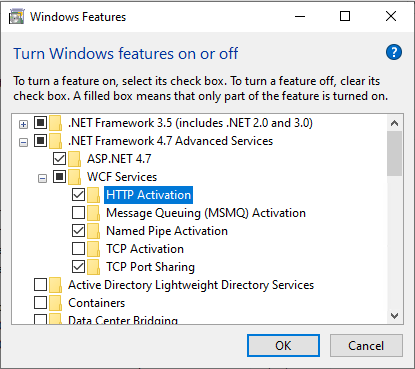

•  Open the “Turn Windows features on or off” window, and locate and check the following:

• Windows 7: Microsoft .NET Framework 3.5.1 -> Windows Communication Foundation Non-HTTP Activation

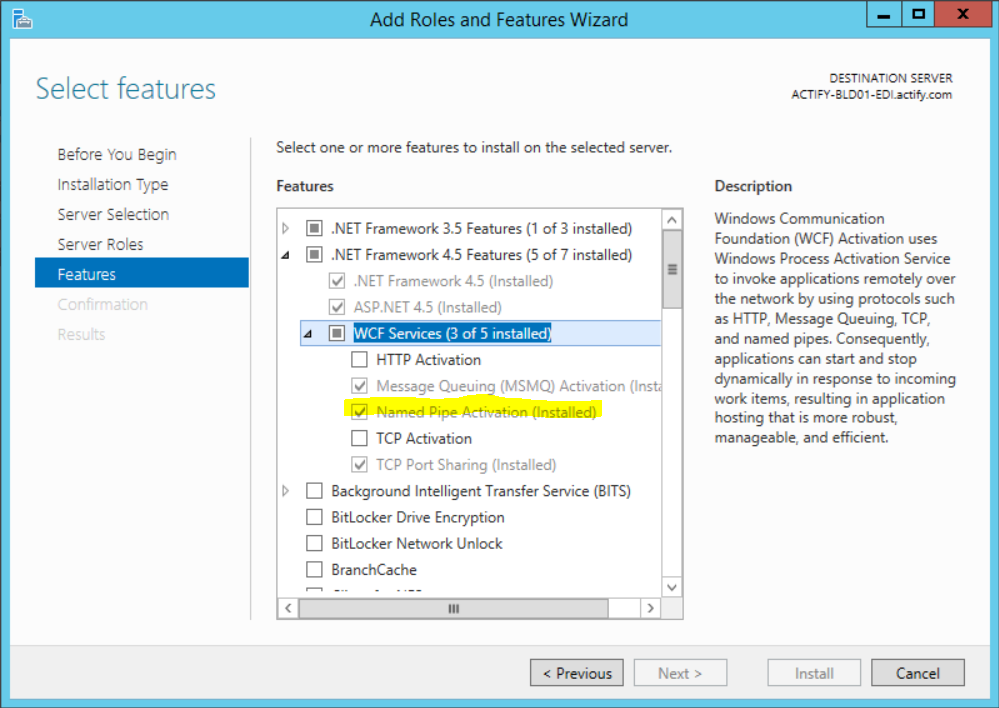

• Windows 8: .NET Framework 4.5 Advanced Features -> WCF Services -> Named Pipe Activation

• Windows 10: .NET Framework 4.6 Advanced Features -> WCF Services -> Named Pipe Activation

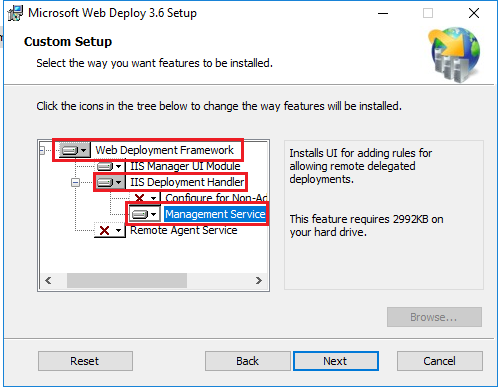

• If installing a One-Pager Dashboard, you must also install Web Deploy

• Select Custom

• Select IIS Deployment Handler

• Select Management Services

• (https://www.iis.net/downloads/microsoft/web-deploy).

• Also make sure the Web Server→Management Tools→Management Service is installed

SpinFire Manage User Credentials

The following items must have Read/Write access to network locations where the CAD data is stored and SpinFire Manage needs to connect to. The CAD data is typically stored in network paths defined in the pipelines.

• Services > SpinFire Manage | Pipeline Host Service

• IIS > Application Pool > CentroPool

Installation Steps

1. Install the Database

2. Install the WebApp engine

3. Install the Pipeline host service

4. Install the Pipeline Manager service

Distributed Deployments

For distributed deployment configurations see  Distributed Deployment before beginning installing.

Licensing

To apply licensing, refer to SpinFire Manage Licensing .

Important

WARNING:Do not apply a floating license to SpinFire Manage. This is not supported and will cause unwanted results.
