Tessellation Quality Examples

Effect of Angle Tolerance

AngleTolDegree AccurateTessellation == true AccurateTessellation == false

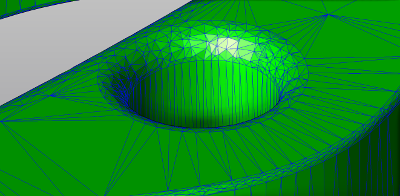

40 degrees 2-AngleTolDegree_10_5k_acc 2-AngleTolDegree_10_5k

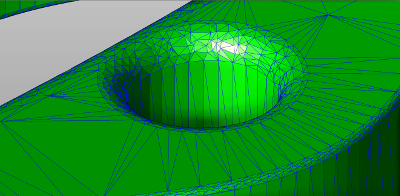

20 degrees 2-AngleTolDegree_20_5k_acc 2-AngleTolDegree_20_5k

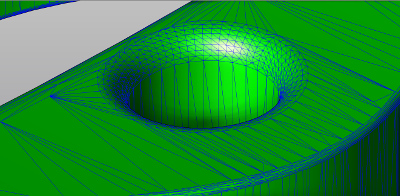

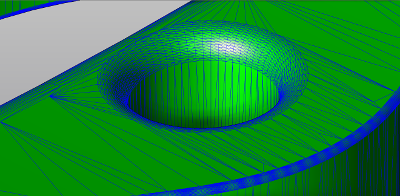

10 degrees 2-AngleTolDegree_40_5k_acc 2-AngleTolDegree_40_5k

Effect of Maximum Chord Height

MaxChordHeight AccurateTessellation == true AccurateTessellation == false
0.1 3-MaxChordHeight_10_0_1_acc 3-MaxChordHeight_10_0_1

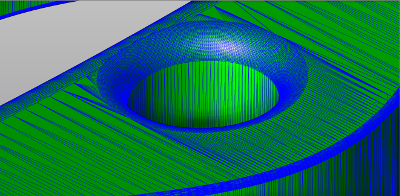

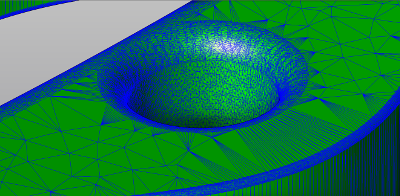

0.01 3-MaxChordHeight_10_0_01_acc 3-MaxChordHeight_10_0_01

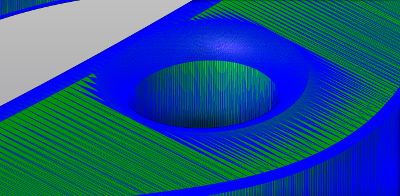

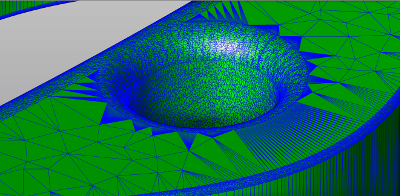

0.001 3-MaxChordHeight_10_0_001_acc 3-MaxChordHeight_10_0_001

Effect of Chord Height Ratio

ChordHeightRatio AccurateTessellation == true AccurateTessellation == false

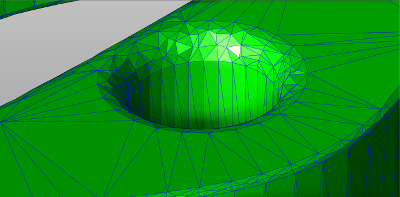

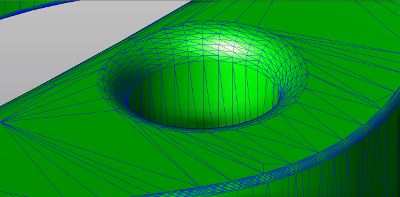

2000 4-ChordHeightRatio_2k_acc 4-ChordHeightRatio_2k

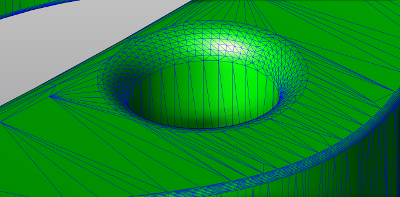

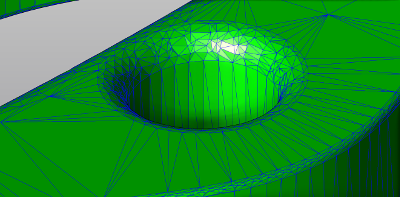

5000 4-ChordHeightRatio_5k_acc 4-ChordHeightRatio_5k
10 000 4-CordHeightRatio_10k_acc 4-ChordHeightRatio_10k

Effect of Level of Detail

Level of detail AccurateTessellation == true AccurateTessellation == false

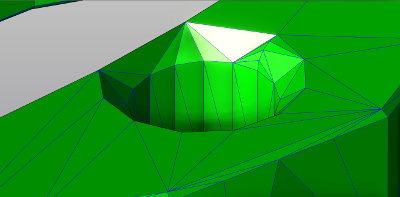

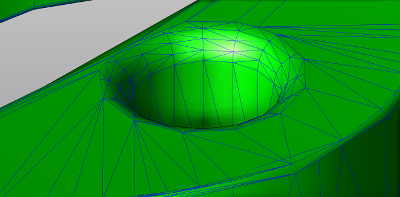

extra low 1-LOD_extralow_acc 1-LOD_extralow
low 1-LOD_low_acc 1-LOD_low
medium 1-LOD_medium_acc 1-LOD_medium
high 1-LOD_high_acc 1-LOD_high

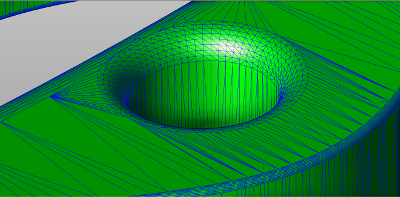

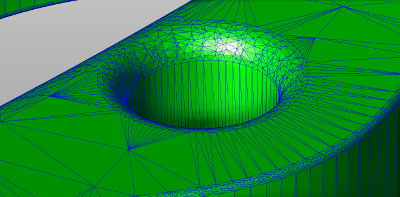

extra high 1-LOD_extrahigh_acc 1-LOD_extrahigh
