Manipulation

Manipulation Menu

Icon	Description	Usage

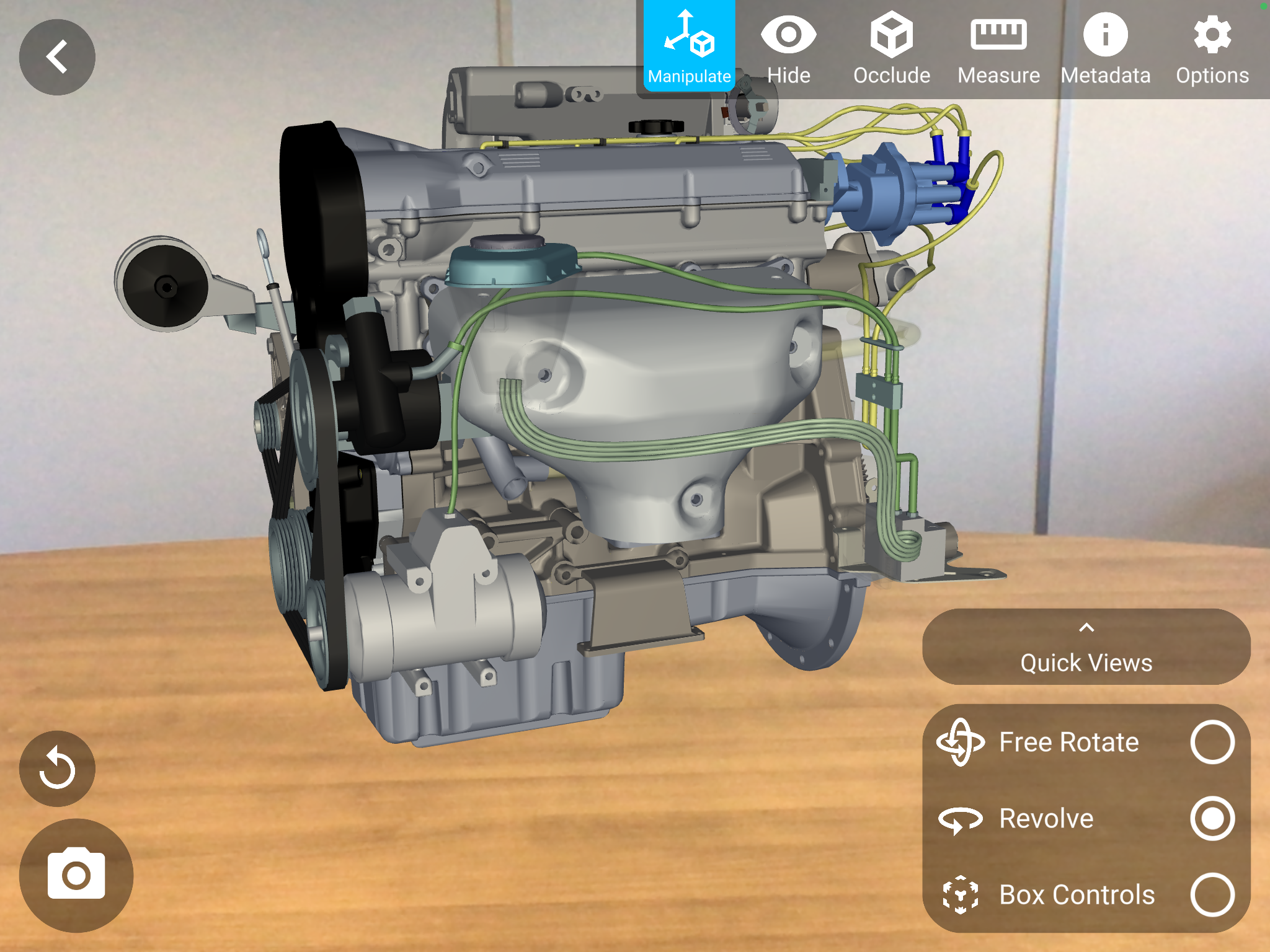

Manipulation Box	Provides full control over the position, orientation and sectioning of the model while presented to the user in transparent control box with various control tools.	Select the icon by pressing the toggle button. Model outline is displayed with manipulation box around it. Orthogonal Move: Press and drag the arrow to move in that direction. Rotate: Press and drag the marker at the box edge to rotate in that direction. Free Rotate: Press and drag the box corner icon to rotate in any direction.
Free Rotate	Allows the user to move the model in 3D space over any axis	Select the icon by pressing the toggle button. Press anywhere on the screen and drag to freely rotate the model
Revolve	Revolves the model parallel to the ground	Select the icon by pressing the toggle button Press anywhere in the screen and drag horizontally to rotate the model parallel to the ground
Quick Views	Quickly manipulates the model into various views.	Press and open the tab associated with Quick Views. This will display a list of views available including: •Front •Back •Left •Right •Top •Bottom
