Add (Design Review/Factory Layout)

Add Menu

(Design Review/Factory Layout only)

Use your finger to press the Add thumbnail or hover the pointer and selection button over it and air tap, to select it, a window will open on the right with further options:

../../../../../_images/image-666.png

Models available to add are organised in various folders:

  • Library – models that have been configured as library components

  • Loaded– models that have already been loaded

  • Recent– models that you have added recently

  • Scenery – models that can be placed into their world origin position when added and as an assembly or loaded as a component

  • Manikin– ergonomic Male / Female manikins

Models can be sorted by:

  • Name

  • Date

  • Size

To view project folders select Project under the section Group.

To search for a particular model, select the text box under Filter, a virtual keyboard will appear where you can type in text to search for a model, the model list will display the searched model if found.

Clicking on Common files will display the common models available.

For scenery, click on Load as Component to load a scenery model as a component rather than an assembly.

Use the option Close on Load to close the Add menu after a component has been loaded.

To select a model to load:

  • Use your finger to select a model or use the pointer and selection button to hover over a model and air tap to select

  • The model will load into the scene

  • If the model has been loaded from Scenery it will be placed at its origin and cannot be manipulated

  • Models loaded as components or library can be manipulated

To load a model in Azure Remote Rendering the toggle for ‘Use ARR’ must be on.

Manikins can be added into the scene by selecting either Male or Female:

  • To manipulate them, hover the pointer and selection button over them then air tap and hold to select

  • Move your hand to position them

  • Release the air tap to place them in that position

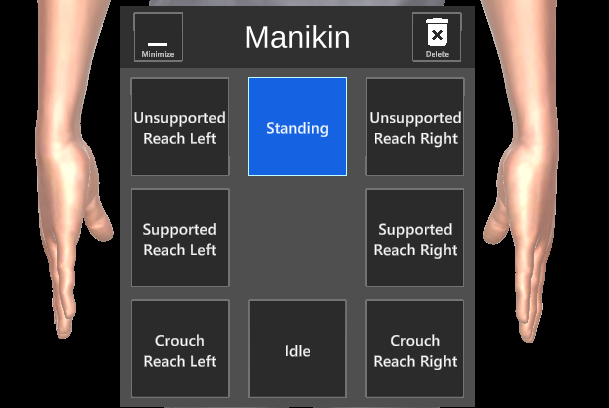

  • Manikins can also be postured:

../../../../../_images/image-375.png

  • Hover the pointer and selection button over the bar shown on the Manikin

  • Air tap to expand the options

  • Select a pre configured posture to position the manikin. You can choose from the following postures:

    • Standing

    • Unsupported reach right

    • Supported right

    • Unsupported reach left

    • Supported left

    • Crouch reach right

    • Crouch reach left

    • Idle
