Measure

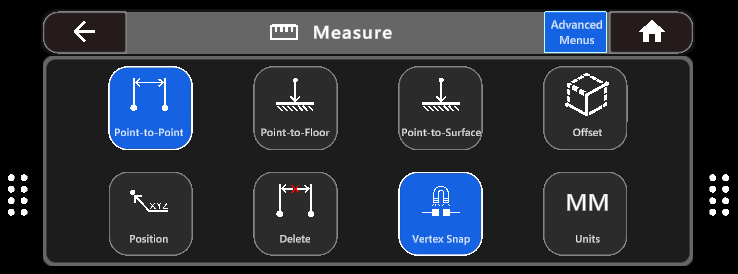

Measure Menu

Icon	Description	Usage
Point-to-Point	Measure the straight line distance between two points	Use the pointer and selection button to point to where you want the measurement to start from, air tap to select that point and then move the pointer and selection button to where you want the measurement to end and air tap to select that point.
Offset	Display X,Y,Z distance between points	Use the pointer and selection button to point to where you want the measurement to start from, air tap to select that point and then move the pointer and selection button to where you want the measurement to end and air tap to select that point. The measurement will appear showing the X, Y and Z offset between the 2 selected points
Point-to-Floor	Measure between a point and the floor	Use the pointer and selection button to point to where you want the measurement from, air tap to select that point.
Position	Display X,Y,Z location of a point	Use the pointer and selection button to point to where you want the measurement of then air tap to select that point.
Delete	Delete selected dimension	Use the pointer and selection button to point at an existing measurement then air tap to delete that measurement.
Point-to-Surface	Measure between a point and a defined surface	Use the pointer and selection button to point to where you want the measurement from, air tap to select that point.
Delete All	Delete all dimensions	Use the pointer and selection button to point at an existing measurement then air tap to delete that measurement.
Vertex Snap	Enables the snapping of dimensions to vertices	When this option is selected, the pointer and selection button will snap to a vertex on the model. When this option is switched off you will be able to take a measurement from any part of the model’s surface without having the pointer and selection button snap to a vertex
Units	Toggle units between Metric (MM) and Imperial (IN)	This will toggle the units displayed on the measurement labels, you can switch between millimetres and inches.
