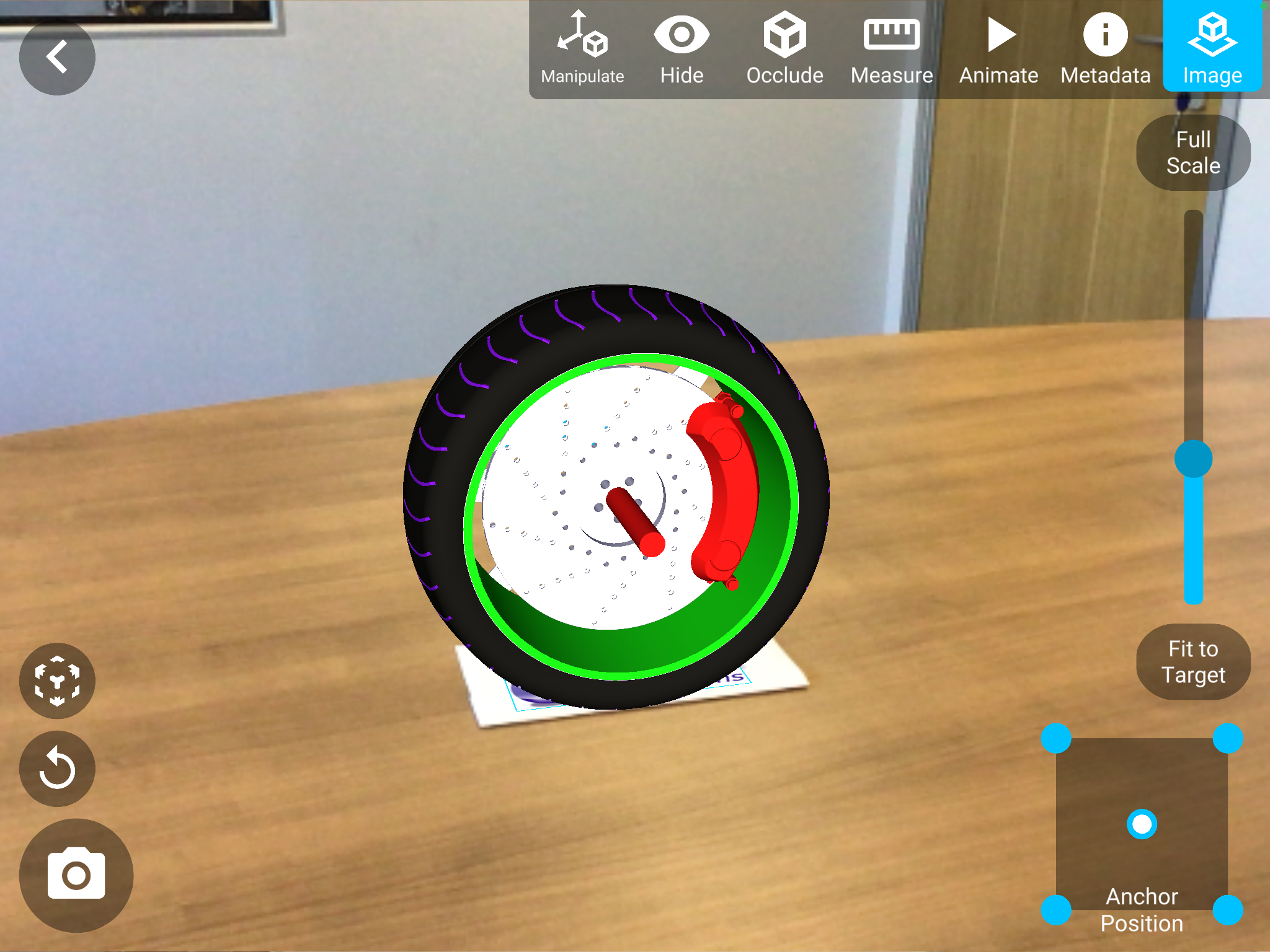

Options related to the Anchor position and model scale can be found here.

../../../../../_images/image-551.png

Icon

Description

Usage

Anchor Position

The point where the origin of the model is positioned with the image.

Select the origin for the model to track the image by pressing the required position indicator.

Full Scale

Displays the model at full scale

Select the tool by pressing the button

Fit to Target

Fits the model within the defined image size.

Select the tool by pressing the button.

Scale Bar

Custom scale for the model.

Press and drag the scroll indicator up and down for required scale.
