Keyboard Shortcuts
Changing SpinFire Insight Default Settings
To do this… |
Do this… |
|

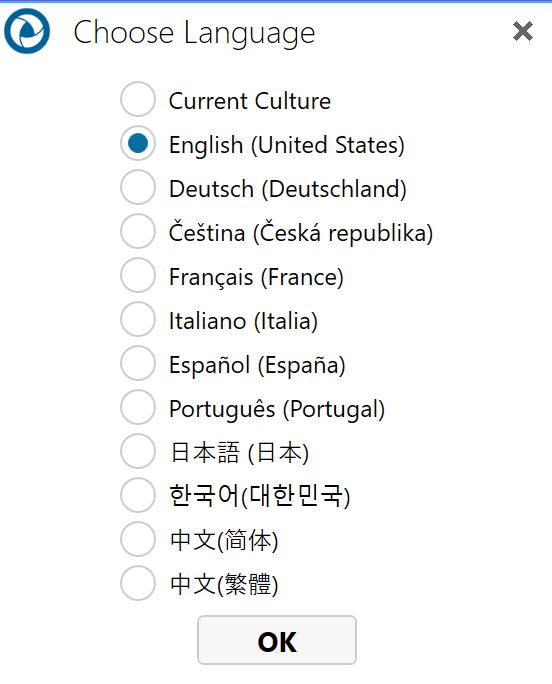

Select the language used by SpinFire Insight |
LEFT CTRL-LEFT ALT+F1
OR RIGHT CTRL - RIGHT ALT + F1
|
![]() |
Controlling the View (3D Documents)
Selection |
To do this… |
Do this… |
If available, do this…. |
![]() Rotate Mode |
Rotate |
Left-Mouse-click+Drag |
|
Zoom out |
CTRL+Left-click+Drag up |
Rotate middle mouse wheel up |
|
Zoom in |
CTRL+Left-click+Drag down |
Rotate middle mouse wheel down |
|
Pan |
SHIFT+Left-click+Drag |
||
![]() Zoom Mode |
Zoom out |
Left-click+Drag up or CTRL+Left-click+Drag up |
Rotate middle mouse wheel up |
Zoom in |
Left-click+Drag down or CTRL+Left-click+Drag down |
Rotate middle mouse wheel down |
|
Pan |
SHIFT+Left-click+Drag |
Click middle mouse button/wheel+Drag |
|
Rotate |
N/A |
||
![]() Pan Mode |
Pan |
Left-click+Drag or SHIFT+Left-click+Drag |
Click middle mouse button/wheel+Drag |
Rotate |
N/A |
||
Zoom out |
CTRL+Left-click+Drag up |
Rotate middle mouse wheel up |
|
Zoom in |
CTRL+Left-click+Drag down |
Rotate middle mouse wheel down |
|
|
Ctrl-C |
||
Toggle the shortcut toolbar on/off |
Ctrl-T |
||
|
Ctrl + Mouse wheel scroll |
||
|
Alt + Mouse wheel scroll |
||
Rotate around the z-axis of the monitor |
Shift + Mouse wheel scroll |
||
F6 |
Cycle through standard view settings |
||
<CTRL> Z |
Perform UNDO |
||
![]() |
Magnifying Glass |
CTRL + G and then Mouse wheel Scroll (Magnification) |
Controlling the View (2D Documents)
To do this… |
Do this… |
If available, do this… |
Pan |
Left-click+Drag |
|
Zoom out |
CTRL+Left-click+Dragup |
Rotate middle mouse wheel up |
Zoomin |
CTRL+Left-click+Dragdown |
Rotate middle mouse wheel down |
Copy image of 2D work space to clipboard |
Ctrl-C |
|
Toggle the shortcut toolbar on/off |
Ctrl-T |
Working with Cross Sections
To do this… |
Do this… |
|

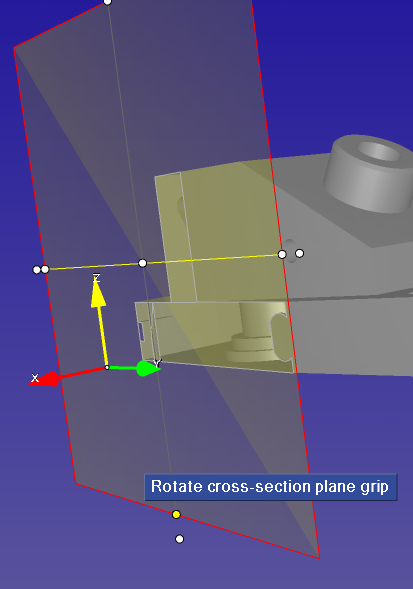

Rotate a cross-section plane on an axis |
Right-click on the plane to select Select Enable Dragging on the context menu Click left mouse on yellow rotate grip+Drag |
![]() |

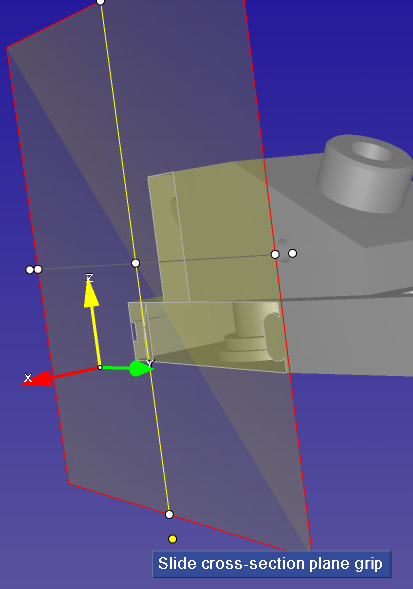

Slide a cross-section plane along an axis |
Right-click on plane to select Select Enable Dragging on the context menu Click left mouse on yellow slide grip+Drag |
![]() |
To position a plane on a model |
Right-click on plane to select Select Enable Dragging on the context menu With the left mouse button, click anywhere on the plane and drag |
Selecting Parts and Surfaces
To do this… |
Do this on the assembly tree… |
Do this in the viewport… |
Select a part on a model |
Left-click |
Right-Click |
Select multiple parts on a model |
SHIFT+Left-click |
CTRL+Right-Click (Select or Deselect multiple parts) or SHIFT+Right-click+Drag red selection box to encompass parts |
To add parts to a selection |
CTRL+SHIFT+Right-Click+Drag red selection box to encompass parts |
|
Deselect all parts |
Right-click on background |
|
Deselect all except chosen part |
Right-click on chosen part |
