User Guide

Document History

Version	Description	Date Updated
1.0	Initial Release	11/08/2016
2.0	Updated for 20.3 release	18/01/2018
3.0	Updated for 21.2 release	02/08/2018
4.0	Updates for 22.2 release	28/08/2019
5.0	Updates for 23.1 release	30/04/2020
6.0	Updated for 24.1 release	03/03/2022
7.0	Updated for 25.1 release	26/05/2022
8.0	Updated for 26.0 release	04/09/2023

Using the Product

Default Translations

Default Translation – via the Unified Interface

The Unified Interface can be started via the Start Menu – if a shortcut was added during installation.

Alternatively, the Unified Interface can be run via a Windows Explorer selection in:

<UI_installation_directory>\bin\Unified_Interface.cmd

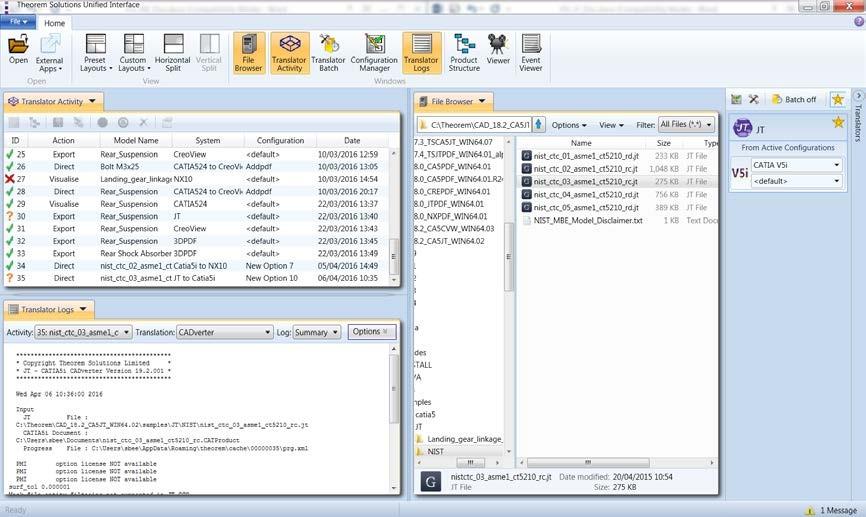

The following interface will be launched:

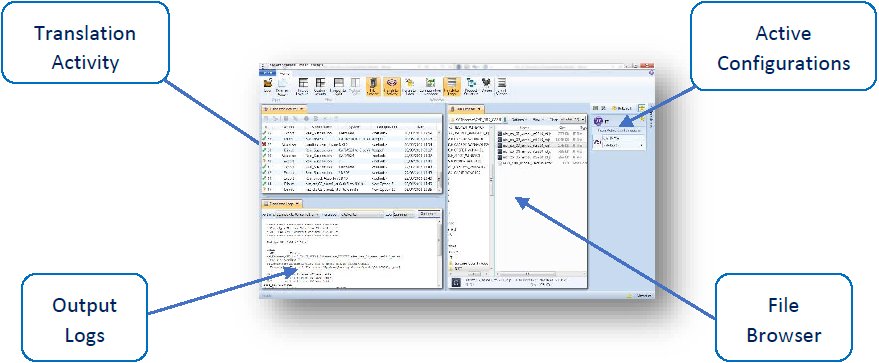

The default layout is split into 4 primary areas, which can be altered to the users preference:

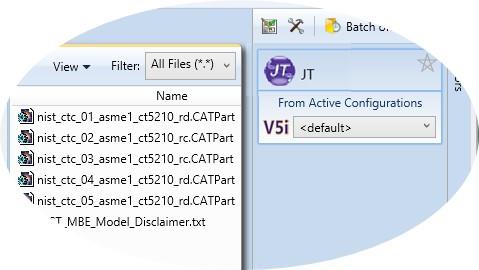

The simplest way to translate from CATIA V5i to JT is to drag a file from the file Browser Pane on to the Active Configurations for the translation you require.

On completion, the Unified Interface will display the activity information and details from the log file created during the translation, if requested, in the Translation Activity and Output Log panes, respectively.

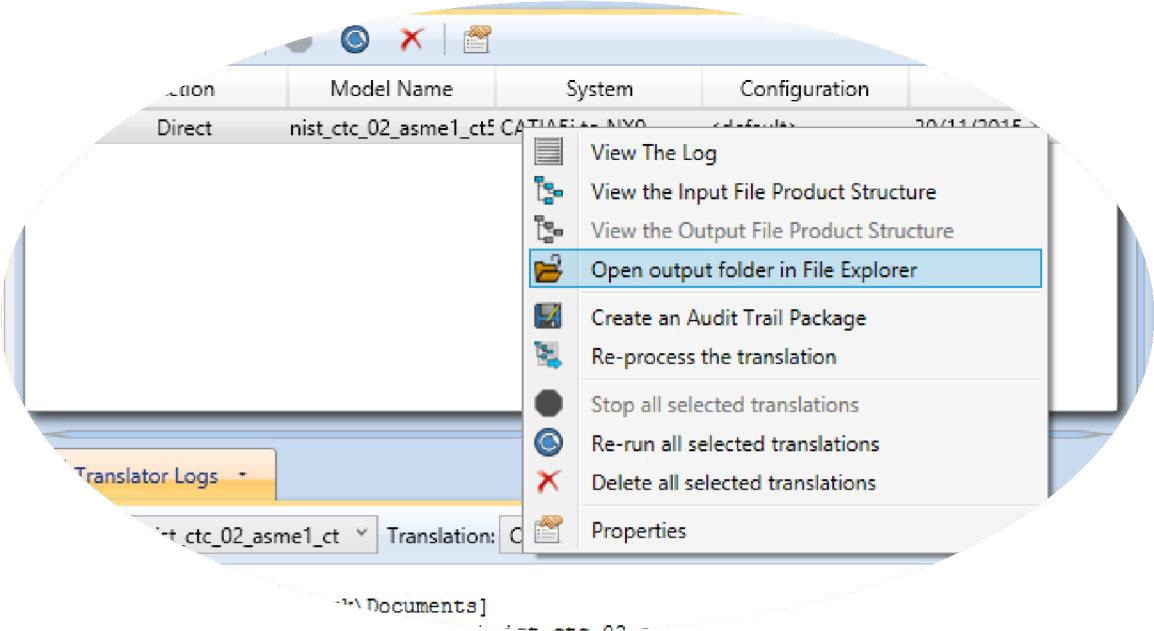

The generated output data can be located by selecting the translation from the Activity pane and opening the output folder:

Default Translation – via the Command Line

Running a translation via the command line can be carried out via the cad_run.cmd file located in the <installation_directory>\bin directory.

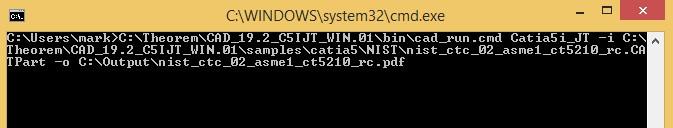

The format of the command is as follows when translating from CATIA V5 to JT:

<Translator_installation_directory>\bin\cad_run.cmd Catia5i_jt -i <input_file> -o <output_file>

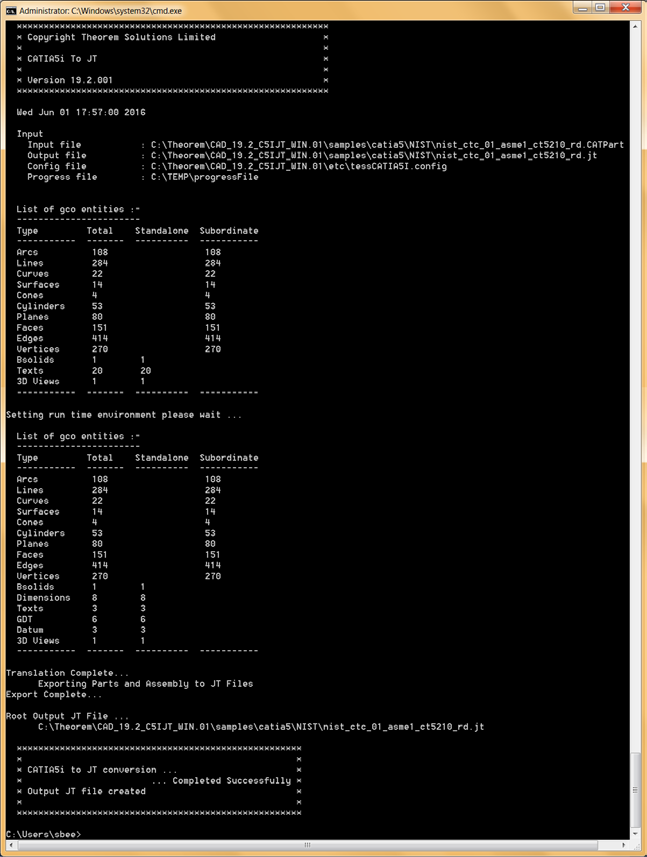

The example above will translate a CATIA V5 sample file provided within the installation and produce the following screen output:

The file will be output to the target location. In this case:

%Theorem_Installation%\samples\catia5\NIST\nist_ctc_03_asme1_ct5210_rc.jt

Translator Customization

The Theorem translator allows the information that is read from the source system and written to the target system to be tailored via a set of user specified arguments. Commonly used arguments are supported via the Unified Interface, with Advanced Arguments being described within this document for use in the Unified Interface or via the Command Line invocation.

Common Options for CATIA V5i to JT

Within the Configuration Manager pane of the Unified Interface, arguments that can be specified when publishing CATIA V5 data into JT are grouped into the following areas:

• CATIA V5i Read – Those arguments that affect how data is read from CATIA V5

• JT Write – Those arguments that affect how the data is written to JT

• Masking – Additional Read/Write options to limit the types of data translated e.g. Solids Only

• General – Those arguments that are common to ALL Publishing activities regardless of source data

CATIA V5i Read Arguments

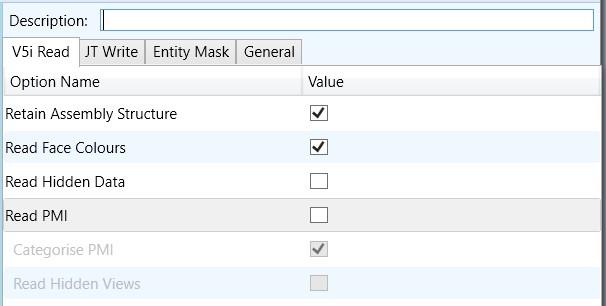

The image below shows the CATIA V5I Read arguments that are available, with their default settings:

Each of these options is described below:

Option	Description
Retain Assembly Structure	Retain the assembly structure. Default is ON. Command Line Syntax: offditto (to disable) – reduces an assembly to a single Part
Read Face Colours	Process face colours in preference to body colours. Default is OFF Command Line Syntax: disable_face_colours
Read Hidden Data	Allow selective data types to be read regardless of hide/show state. Default is OFF. Command Line Syntax: read_hidden_geometry
Read PMI	Reads any PMI data available in the V5 file(s)
Categorise PMI	PMI is categorised by type. Default is ON. Only selectable if ‘Read PMI’ is selected. This can be switched off using Command Line Syntax: disable_catagorise_pmi
Read Hidden Views	Reads any Views that are hidden

JT Write Arguments

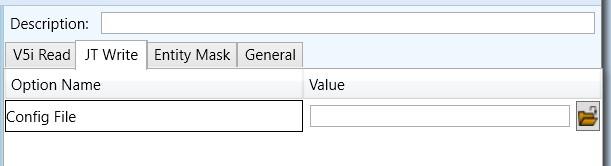

The image below shows the JT Write arguments that are available, with their default settings:

Each of these options is described below:

Option	Description
Config File	Allows a JT configuration file to be specified. Please see JT Configuration File for a full description of the JT config file format. Command Line Syntax: -z [path_to_file]

CATIA V5i to JT Entity Mask Arguments

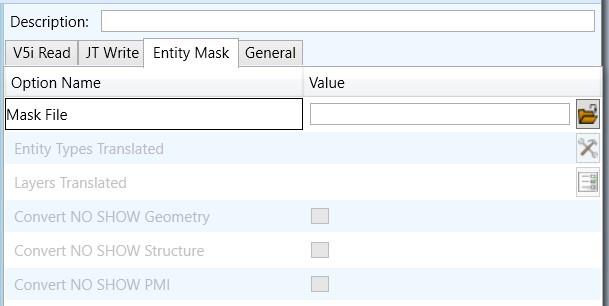

The image below shows the CATIA V5i to JT Entity Mask arguments that are available, with their default settings:

Each of these options is described below:

Option	Description
Mask File	Specifies the Mask File to be written to, that can be referenced by future translations. A Mask file MUST be specified if masking is required. The first line in this file is OFF ALL ENT: Command Line Syntax: Mask <filename>
Entity Types Translated	Specifies a selection list from which to select which entity types are to be processed. The following types are available: “SOL” – Masks any 3D entity “SKIN” – Masks any 2D entity “CUR” – Masks any 1D entity “POI” – Masks any 0D entity “AXIS” – Masks Axis Systems “ISOL” – Masks Isolated facetted solids “CCRV” – If on creates a CCRV curve for wire frame edges that have more than one supporting curve “TEXT” – Masks PMI Text Command Line Syntax: Add any of the above to the specified mask file, one entry per line prefixed by the word ON, e.g.: ON POI to ensure they are considered in the translation
Layers Translated	Specifies a selection list from which to select which layers are to be processed. Command Line Syntax: A single entry of ON ALL LAY Must precede any Layer Mask command. Add a list or range of numbers representing layer to be processed to the specified mask file to ensure they are NOT considered in the translation e.g.: OFF LAY 114,149,166,167,168
Convert No Show Geometry	Enables Hidden geometry to be processed (Default = Off) Command Line Syntax: Add the following entry to the Mask file: ON NOSHOW GEO
Convert No Show Structure	Enables Hidden Assembly Structure to be processed (Default = Off) Command Line Syntax: Add the following entry to the Mask file: ON NOSHOW STR
Convert No Show PMI	Enables Hidden PMI to be processed (Default = Off) Command Line Syntax: Add the following entry to the Mask file: ON NOSHOW PMI

CATIA V5i to JT General Arguments

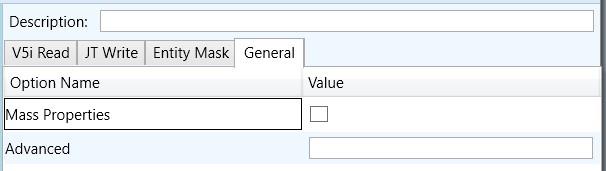

The image below shows the General arguments that are available, with their default settings:

Each of these options is described below:

Option	Description
Mass Properties	CATIA V5 mass properties (volume/area CofG) are read and any applied materials, using this option, in cases where a part has multiple solids, volume and area values are summed, but CofG data is invalid. Command Line Syntax: mprops
Advanced	Allows any of the Command Line Advanced arguments documented to be passed to the Unified Interface invocation.

CATIA V5i to JT Advanced Arguments

Theorem’s CATIA V5i to JT translator has been configured with default settings that optimises the translation process. However, there are times when a satisfactory result cannot be obtained, so it may be required to deploy one or more Advanced Arguments to improve the translated result.

Option	Description
Simplify Curves	Convert NURBS curves to conics. Default is OFF. Command Line Syntax: simplify_curve
Convert Curves to NURBS	Convert curves to NURBS. Default is OFF. Command Line Syntax: convert_curves
Conversion Tolerance	A secondary argument to ‘Convert Curves’ defining the conversion tolerance. Default is 0.00001 Command Line Syntax: convert_curve_tol 0.00001
Convert Surfaces to NURBS	Process data (read) types as NURBS. Data type is selected from options. Default is Fillets. Command Line Syntax: None: dont_convert_fillets Fillets: Default Option. Spheres: dont_convert_fillets convert_spheres Fillets + Spheres: convert_spheres All: convert_surfaces
Convert Torus to NURBS	Even when data is read as NURBS data, the Torus types are converted to NURBS by default, this can be disabled using the command line Command Line Syntax: dont_convert_torus
Conversion Tolerance	A secondary option to ‘Convert Surfaces to NURBS’. Defines the conversion tolerance. Default is 0.00001. Command Line Syntax: convert_surface_tol 0.00001
Trim Face Surfaces	Trims face surfaces. Default is ON. Command Line Syntax: dont_trim_surfaces
Process Large Faces	Enable reading of faces larger than 1km. Default is OFF. Command Line Syntax: allow_large_faces
UDF Axis Systems	Enable reading of User Defined Axis systems. Default is OFF. Command Line Syntax: read_udf_axis – to turn on
Graphical Read	By default the BREP data will be read. It is possible to read the CATIA V5 data as a graphical representation using this option Command Line Syntax: enable_graphical
Filter Geometry	It is possible to filter large planes (construction planes) larger than a given size using (default being 1000 meters) Command Line Syntax: filter_large_geom <meters> There is a special case for PLANES (typically construction planes) which are by default not read, these can be enabled using read_planes
Disable the read of Geometry	By default all entities are read, the following options allow the masking of specified data types: Command Line Syntax: disable_solids disable_skins disable_wireframe disable_points struct_read – only read assembly structure, everything else being disabled
Disable the read of meta data	By default all attributes are read, the following options allow the masking of this data: Command Line Syntax: disable_attributes
Parasolid Tolerant Modelling	A secondary option to be used when Brep Type = XT Brep (Theorem) output is specified. Enables Parasolid tolerant modelling. Default is ON Command Line Syntax: nopstolmodel – to turn off
Factor	Specify the factor level of Parasolid Tolerant Modelling when turned on. Default is 3. Command Line Syntax: pstolmodel 3
Sew Parasolid Bodies	A secondary option to be used when Brep Type = XT Brep (Theorem) output is specified. Enables the sewing of Parasolid bodies. Default is ON Command Line Syntax: nosew – to turn off
Tolerance	Specify the tolerance for the sew command above. Default is 0.01. Command Line Syntax: pssew 0.01
Incremental Sewing	Enables incremental sewing when used with Sew Parasolid Bodies. Default is ON. Command Line Syntax: no_sew_increm – to turn off
Split Discontinuous Surfaces	A secondary option to be used when Brep Type = XT Brep (Theorem) output specified. Splits discontinuous surfaces. Default is OFF. Command Line Syntax: brep_prep – to turn on no_brep_prep – to turn off
Force body creation (No check of Parasolid entities)	A secondary option enabled when XT Brep (Theorem) output specified. Removes the checking of Parasolid entities. Default is ON. Command Line Syntax: nocheck – (force body creation without checking = Default) check – (doesn’t force the body creation - Parasolid checking is enabled)
Fix Degenerate Edges	A secondary option to be used when Brep Type = XT Brep (Theorem) output specified. On face create failure, check and fix any degenerate edges. Default is ON. Command Line Syntax: fix_degen no_fix_degen – to turn off
Specify a Face Edge Tolerance	A secondary option to be used when Brep Type = XT Brep (Theorem) output specified. Specify an edge tolerance to be used when creating faces. Default is ON. Command Line Syntax: Please see Edge Tolerance below
Edge Tolerance	A secondary option used with Specify a Face Edge Tolerance where the tolerance value is assigned. Default is 0.000006. Command Line Syntax: face_edge_tol 0.000006
Fix small features in solids	A secondary option to be used when Brep Type = XT Brep (Theorem) output specified. Remove small edges, sliver and spike faces from solid bodies. Default is OFF. Command Line Syntax: ps_fix_small – to turn on no_ps_fix_small – default
Fix small features in open solids	A secondary option to be used when Brep Type = XT Brep (Theorem) output specified. Remove small edges, sliver and spike faces from open solids. Default is OFF. Command Line Syntax: ps_fix_osol – to turn on no_ps_fix_osol – default
Simplify Geometry	A secondary option to be used when Brep Type = XT Brep (Theorem) output specified. Simplify Geometry. Default is OFF. Command Line Syntax: simplify_solids – to turn on
Expand Part	This option will generate a tree structure for each solid in the part Command Line Syntax: expand_part

Common Options for JT to CATIA V5i

Within the Configuration Manager pane of the Unified Interface, arguments that can be specified when publishing JT into CATIA V5 data are grouped into the following areas:

• JT Read – Those arguments that affect how data is read from JT

• Catia5i Write – Those arguments that affect how the data is written to Catia5

• General – Those arguments that are common to ALL Publishing activities regardless of source data

JT Read Arguments

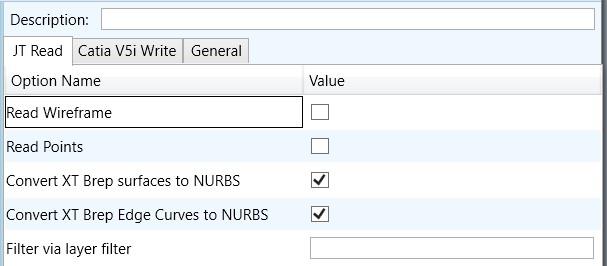

The image below shows the JT Read arguments that are available, with their default settings:

Each of these options is described below:

Option	Description
Read Wireframe	Read JT wireframe data. Default is OFF. Command Line Syntax: read_wire_frame
Read Points	Read JT point data. Default is OFF. Command Line Syntax: read_points
Convert XT Brep surfaces to NURBS	Read XT Brep surfaces as NURBS surfaces (else read in native form). Default is ON. Command Line Syntax: noprep – to turn off
Convert XT Brep Edge Curves to NURBS	Read XT Brep edge curves as NURBS curves (else read in native form). Default is ON. Command Line Syntax: rd_native_edge – to turn off
Filter via layer filter	Supply layer filter(s) separated by commas and double quoted. Default is OFF. Command Line Syntax: layer_filter

Catia V5i Write Arguments

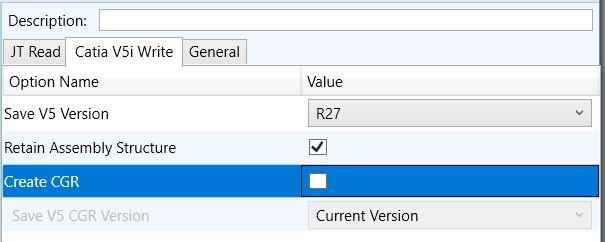

The image below shows the CATIA V5I Write arguments that are available, with their default settings:

Each of these options is described below:

Option	Description
Save Catia5 Version	Save a specified version of Catia5 data (default 25 (2015)) Command Line Syntax: save_catia5_version <version> Where versions are: 16-32 2012-2022
Retain Assembly Structure	The default processing will write any JT assembly structure to CATProduct structure files with each JT part being written as separate CATIA V5 CATPart or CGR output. When this option is deselected the output representation will be a single file (CATPart or CGR) dependent upon the format selection The command line option off_ditto would achieve the same results.
Create CGR	Selecting this option will write the geometry as CGR format data, rather than the default CATPart representation of the output geometry. The version of the CGR format will be consistent with the highest version of CATIA V5 output supported with the current version of V5 libraries. To create CGR data suitable for earlier releases of CATIA V5 select the version of the output required from the menu selector.

JT to CATIA V5i General Arguments

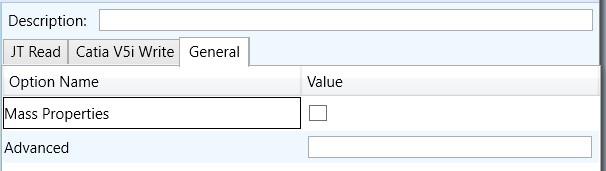

The image below shows the General arguments that are available, with their default settings:

Each of these options is described below:

Option	Description
Mass Properties	CATIA V5 mass properties (volume/area CofG) are read and any applied materials, using this option, in cases where a part has multiple solids, volume and area values are summed, but CofG data is invalid. Command Line Syntax: mprops
Advanced	Allows any of the Command Line Advanced arguments documented to be passed to the Unified Interface invocation.

JT to CATIA V5i Advanced Arguments

The available Advanced options are described below:

Advanced Option	Description
Solid Colour	When writing CATIA data from JT the colour of the CATIA V5 output can be specified to be taken from the JT colour associated with the solid by using the option solid_colour. The default would be to use the colour associated with the JT faces rather than the colour applied at the solid level.
Occurrence Tree Output	When processing JT assemblies that have had unique colours applied at the occurrence of multiply instanced parts it is necessary to expand the CATIA V5 assembly output to enable the occurrence colour to be applied. Using the option occur_tree will expand the assembly structure and generate a unique occurrence for each instance of the assembly structure.
Small Curves	Report Small curves as errors. (default OFF) Command Line Syntax: small_curves (to enable)
Extend Nurb Surfaces	Extends NURBS surfaces beyond face limits for curve projection (default state) Command Line Syntax: no_extend_nurb – Don’t extend NURBS surfaces to face limits extend_nurb <int> – trims NURBS surfaces to <int> * 0.0001 face extents in u and v
Remove Groups	Remove Group entities into assembly structure. (default OFF) Command Line Syntax: remove_groups (to enable)
Use Ref Name	Uses file name from input system to name files (default OFF) Command Line Syntax: use_ref_name (to enable)
Re-tessellate Brep Data	Allows Brep data to be re-tessellated to create a link between the faces in the Brep and the tessellated representation. There is a choice between processing just the tessellated form or both the tessellated and Brep forms with the links between them. Default is ‘Off’. Command Line Syntax: On -- Re-tessellate Brep Data: tess_brep On -- Re-tessellate and Read Brep Data: tess_and_read_brep
Read as Bounding Boxes	This option allows the user to read the JT file as a very light weight bounding box representation, with each solid having its own bounding box. This option may be useful when the part’s details are not of interest, as much as the physical space, the part occupies. Command Line Syntax: bounding_box
Exclude small solids (by absolute value)	Exclude solids that have bounding boxes smaller than value. Default is OFF. Command Line Syntax: bb_exclude_value
Exclude small solids (by bounding box fraction)	This option allows the user to exclude small solids from the JT read, the excluded solids being smaller than a specified fractional size of the overall bounding box of the part. Command Line Syntax: bounding_box_frac [value]
Exclude parts File for bounding box checks	This option allows the user to supply an input file containing a list of JT parts, one per line. The parts specified in the file will be excluded from the checks to remove small solids. This option is used in conjunction with the “Exclude Small Solids” options. Command Line Syntax: bb_exclusion_file '[path_to_file]

JT Configuration File

Introduction

A configuration file contains the settings for your translations. The configuration file can be specified using the command line option -config or -z.

If this is not supplied the following directories will be searched in the specified order for the named configuration files: (TS_INST = Installed directory)

• tessCATIA5i.config in the directory where the translator is run

• tess.config in the directory where the translator is run

• tessCATIA5i.config in TS_INST\etc directory

• tess.config in TS_INST\etc directory

Two example config files are provided in the TS_INST\etc directory, a standard tess.config one, and one that illustrates the options required for large assembly processing, tessLargeAssm.config which is documented by some comments within it.

The JT configuration file contains various sections, each containing different settings based on the section.

The Setup Section

The setup options in the configuration file define how your files are translated. The setup section is the first part of the configuration file and contains a series of standard translator options.

To edit setup options:

1. Open an existing configuration file with a text editor.

2. Edit the configuration file options listed in the table below.

3. Save the configuration with a .config extension

Option Name	Keywords	Example
EAITranslator	EAITranslator {	EAITranslator {
OutputDirectory	“path to directory”	OutputDirectory = “/home/<user>/”
CommonPartsPath	“path to directory”	CommonPartsPath = “/myaccount/jtparts/”
chordalOption	“RELATIVE” “ABSOLUTE”	chordalOption = “RELATIVE”
structureOption	“PER_PART” “MONOLITHIC” “FULL_SHATTER”	structureOption = “MONOLITHIC”
WriteWhichFiles	“ALL” “ASSEMBLY_ONLY” “PARTS_ONLY”	WriteWhichFiles = “ALL”
compression	true/TRUE false/FALSE	compression = true
triStripOpt	true/TRUE false/FALSE	triStripOpt = false
seamSewing	true/TRUE false/FALSE	seamSewing = true
seamSewingTol	any integer	seamSewingTol = 0.001
includeBrep	true/TRUE false/FALSE	includeBrep = false
brepPrecision	“SINGLE” “DOUBLE”	brepPrecision = “SINGLE”
autoNameSanitize	true/TRUE false/FALSE	autoNameSanitize = true
updateChangedPartsOnly	true/TRUE false/FALSE	updateChangedPartsOnly = false
verboseReporting	true/TRUE false/FALSE	verboseReporting = false
writeAsciiAssembly	true/TRUE false/FALSE	writeAsciiAssembly = false
singlePartsNoAssem	true/TRUE false/FALSE	singlePartsNoAssem = false
smartLODgeneration	true/TRUE false/FALSE	smartLODgeneration = true
autoLowLODgeneration	true/TRUE false/FALSE	autoLowLODgeneration = true
numLODs	any integer	numLODs = 3
close brace	}	}

The Level of Detail Section

The level of detail section of the configuration file contains the tessellation and simplification information for each level of detail in the file.

This section consists of several sets of level of detail (LOD) information, and the number of these sets depends on the number you specified on the numLODs line in the configuration file.

To edit level of detail options:

1. Open an existing configuration file in a text editor.

2. Edit the configuration file options listed below.

3. Save the configuration with a .config extension

Option name	Keywords	Example
LOD	LOD “lod number” {	LOD “1” {
Level	any integer	Level = 1
Chordal	any number	Chordal = 0.001
Angular	any number	Angular = 25
Length	any number	Length = 1
FeatureSuppression	any integer	FeatureSuppression = 0
Simplify	any number	Simplify = 0.60
close brace	}	}

The Filter Section

The filter section of the configuration file contains the filename and metadata filtering information. Edit this section if you want to change how the translator sanitizes filenames and filters metadata keys.

To edit filter options:

1. Open an existing configuration file with a text editor.

2. Edit the configuration file options from the table below.

3. Save the configuration with a .config extension

Option Name	Key Words	Example
Filter	Filter {	Filter {
FilenameSanitizeSet	“string of characters”	FilenameSanitizeSet = “abc123.”
FilenameSanitizeSetAdd	“string of characters”	FilenameSanitizeSetAdd = “4l”
FilenameSanitizeSetDelete	“string of characters”	FilenameSanitizeSetDelete = “c”
MetadataKey	“string of characters”	MetadataKey = “metadata key to exclude”
close brace	}	}

The Metadata Section

The metadata section sets which metadata to attach to all parts, assemblies, and nodes of the model.

Note

Be sure to add these options to the configuration file in pairs: one line to define the metadata key and one line to define the metadata value.

To edit metadata options:

1. Open an existing configuration file (.CONFIG) in a text editor.

2. Edit the configuration file options shown in the table below.

3. Save the configuration with a .config extension

Option name	Keywords	Example
Metadata	Metadata {	Metadata {
AddToParts	“string of characters”	AddToParts = “<metadata key>” / AddToParts = “<metadata value>”
AddToAssemblies	“string of characters”	AddToAssemblies = “<metadata key>” / AddToAssemblies = “<metadata value>”
AddToAllNodes	“string of characters”	AddToAllNodes = “<metadata key>” / AddToAllNodes = “<metadata value>”
close brace	}	}

The Special Section

The special section of the configuration file contains lines that are unique to this translator.

To edit special options:

1. Open an existing configuration file with a text editor.

2. Edit the configuration file options shown in the table below.

3. Save the configuration with a .config file extension.

Option	Keyword	Example	Default Value
Catia5iOptions	Catia5iOptions {	Catia5iOptions {
ReportFilename	Full system file path	ReportFilename = P:\caddata\translation\result\part55	C:%TEMP%\tscprogressyi
OutputUnits	mm, millimetres, cm, centimetres, m, metre, metres, inches, feet, yards, inputUnits	OutputUnits = mm	inputUnits
process_hidden_geom	true/TRUE false/FALSE	process_hidden_geom = false	false
process_hidden_views	true/TRUE false/FALSE	process_hidden_views = false	false
disable_wireframe	true/TRUE false/FALSE	disable_wireframe = false	false
disable_point	true/TRUE false/FALSE	disable_point = false	false
disable_attributes	true/TRUE false/FALSE	disable_attributes = false	false
disable_surfaces	true/TRUE false/FALSE	disable_surfaces = false	false
disable_solids	true/TRUE false/FALSE	disable_solids = false	false
disable_face_colours	true/TRUE false/FALSE	disable_face_colours = true	false
disable_pmi	true/TRUE false/FALSE	disable_pmi = true	false
disable_categorise_pmi	true/TRUE false/FALSE	disable_categorise_pmi = true	false
read_udf_axis	true/TRUE false/FALSE	read_udf_axis = true	false
read_planes	true/TRUE false/FALSE	read_planes = true	false
struct_read	true/TRUE false/FALSE	struct_read = false	false
StructureOutputType	JT, PLMXML, PLMXMLJT	StructureOutputType = JT	JT
PLMXMLPropertyMappingFile	File Name	PLMXMLPropertyMappingFile = “PLMXML_mapping_file.txt”	“%TS_INST%\data\jt\plmxml_property_mapping.txt”
CadPropertyMappingFile	File name	CadPropertyMappingFile = “%CAD_mapping_file.txt”	“%TS_INST%\data\jt\v5_jt_property_mapping.txt”
brepType	XT, JT, XTJT	brepType = XT	JT
ParasolidTolerantModelling	true/TRUE false/FALSE	ParasolidTolerantModelling = true	true
ParasolidTolerantModellingFactor	Any positive integer	ParasolidTolerantModellingFactor = 3	3
SewParasolidBodies	true/TRUE false/FALSE	SewParasolidBodies = true	true
SewParasolidBodiesTol	Any number	SewParasolidBodiesTol = 0.01	0.01
IncrementalSewing	true/TRUE false/FALSE	IncrementalSewing = true	true
IncrementalSewingNoOfIterations	true/TRUE false/FALSE	IncrementalSewingNoOfIterations = 5	5
ExplodeSolidstoFaces	true/TRUE false/FALSE	ExplodeSolidstoFaces = false	false
SplitDiscontinuousSurfaces	true/TRUE false/FALSE	SplitDiscontinuousSurfaces = true	false
ForceBodyCreation	true/TRUE false/FALSE	ForceBodyCreation = true	true
FixDegenerateEdges	true/TRUE false/FALSE	FixDegenerateEdges = true	true
FaceEdgeTol	Any number	FaceEdgeTol = 0.000006	0.000006
FixSmallFeaturesSolids	true/TRUE false/FALSE	FixSmallFeaturesSolids = false	false
FixSmallFeaturesOpenSolids	true/TRUE false/FALSE	FixSmallFeaturesOpenSolids = false	false
SimplifyGeometry	true/TRUE false/FALSE	SimplifyGeometry = false	false
BrepWireframe	true/TRUE false/FALSE	BrepWireframe = true	true
ProduceTessellatedOutput	true/TRUE false/FALSE	ProduceTessellatedOutput = false	false
ExpandPart	true/TRUE false/FALSE	ExpandPart = false	false
ReuseSolids	true/TRUE false/FALSE	ReuseSolids = false	false
CADPropertyMappingFile	File Name	CADPropertyMappingFile = “mapping_file.txt”	“”
SavedViewsViewSetName	“string of characters”	SavedViewsViewSetName	“SavedViews”
AnnotationPlanesViewSetName	“string of characters”	AnnotationPlanesViewSetName	“AnnotationPlanes”
close brace	}	}

Property Mapping Files

Property mapping files are required for CAD property Mapping and PLMXML Property Mapping.

A Property Mapping File is a comma separated text file containing information of how CAD properties from the source system will be mapped into the target file.

The format is as follows:

• Lines beginning with a “#” are treated as comment lines and are ignored.

• Any space characters will be treated as part of the item

• Lines containing a mapping must contain 6 items separated by 5 commas

The six items are:

Item	Description
Source name	The attribute name in the Source System
Target name	The attribute name in the Target File
Data derived from	0 – Do not convert 1 – Use the source value as given 6 – Use the source value as given and hide the property Note! Value 6 For CAD Mapping Files ONLY (Not PLMXML)
Default Value	Not currently used
Value Type	Not currently used
Default Units	Not currently used

An Example of a mapping file is shown below:

# Mapping from input attribute name to Target property name
#
# Line Format:-
# Source name,Target name,Data derived from,Default Value,Value Type,Default Units
# Data derived from:-
# 0 - Do not convert
# 1 - Use the source values as given
# 6 - Use the source value as given and hide the property
#
_ActivateBOM,NULL,0,0,,
_LastModifier,NULL,0,0,,
_Maturity,NULL,0,0,,
_PrdVersion,NULL,0,0,,
_ReferenceTimeStamp,NULL,0,0,,
_Responsible,NULL,0,0,,
COG M,ud_CAD_CENTER_OF_GRAVITY,1,0,,
COMPONENTS PRINCIPAL AXES ,NULL,0,0,,
DENSITY Kg/M^3,NULL,0,0,,
INERTIA MATRIX KgM2,ud_CAD_MOMENT_OF_INERTIA,1,0,,
INERTIA VOLUME M^3,ud_CAD_VOLUME,1,0,,
INERTIA WET AREA M^2,ud_CAD_SURFACE_AREA,1,0,,
MASS Kg,ud_CAD_MASS,1,0,,
PRINCIPAL MOMENTS KgM^2,NULL,0,0,,
FILESAVETIME,File Last Modified,1,0,,
LOCALE,LOCALE,1,0,,
Masterdata Version,Masterdata Version,1,0,,
Material Details,Material Details,1,0,,
PART_NUMBER,PART_NUMBER,1,0,,
MPARTNAME,Source Model Name,1,0,,
Source,SourceName,1,0,,
