User Guide

Translating Interactively from within 3DExperience

Launching 3DExperience with SpinFire Convert Plug-ins

The 3DExperience to JT translator allows an opened 3DExperience part or assembly to be exported directly to JT, and for a JT part or assembly to be imported directly into the 3DExperience application.

In order to translate from within 3DExperience, the application must be started using a SpinFire Convert environment, so that the appropriate plug-ins are available. (See 3DExperience Environment files.)

3DExperience can be started from a desktop shortcut created during installation.

Alternatively, it can be started via the script provided in the Translator installation located in:

<installation_directory>\bin

The script name is:

start_3DEXPERIENCE_<version>_JT.cmd

Where <version> is the version of 3DExperience that you have installed – e.g. 2023x, 2024x, 2025x.

Interactive Export to JT

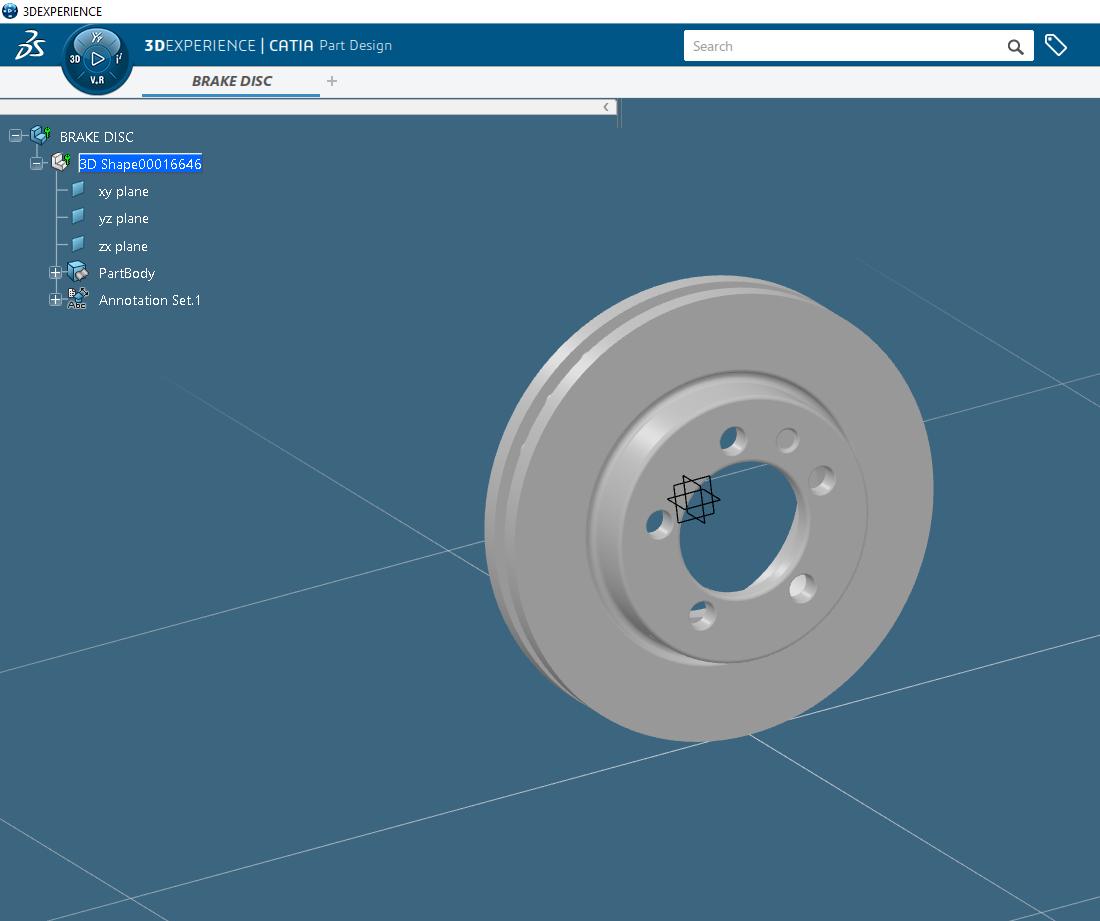

Once the 3DExperience application has been launched, open the product or representation that is going to be exported to JT.

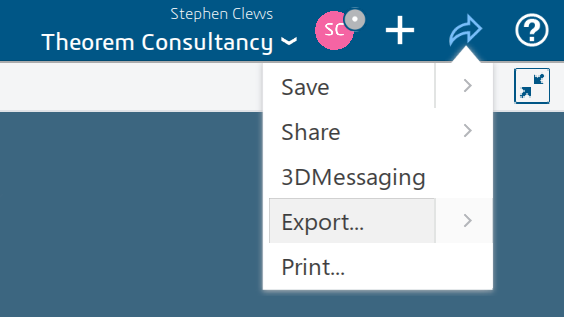

Select the arrow in the top right corner, then from the list displayed select Export.

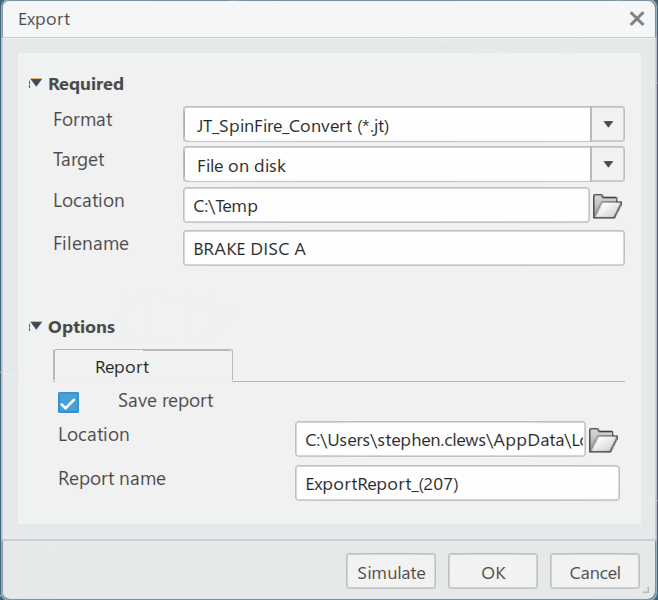

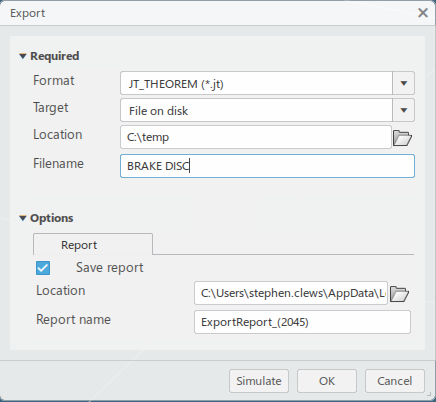

In the Export dialog box displayed, ensure the ‘Format’ is set to JT_SpinFire_Convert (*.jt/*.plmxml/*.stpx). Select the required location for the file and ensure the Filename displayed is correct. Click OK to initiate the export to JT.

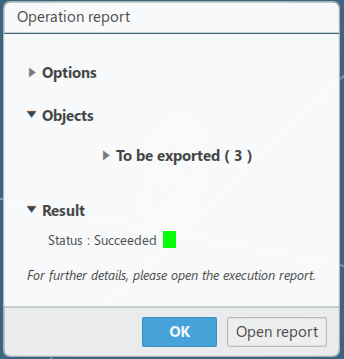

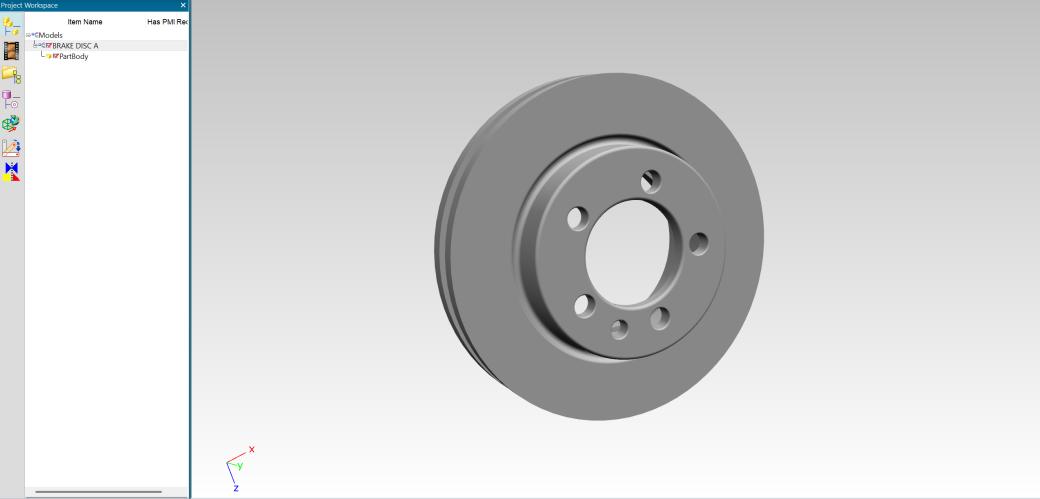

Export status of Succeeded displayed in Operation report window. JT files created in the location specified.

Interactive Import to 3DExperience

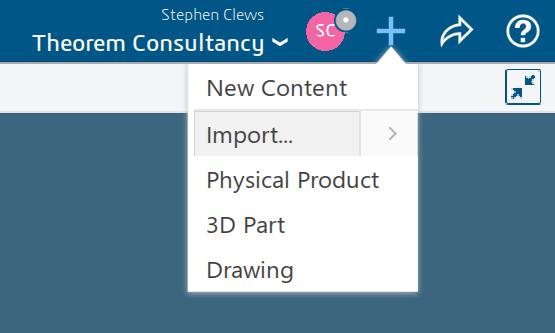

Once the 3DExperience application has been launched, it is possible for a model to be imported from JT. To do this select the ‘+’ icon in the top right corner, then from the list displayed select import.

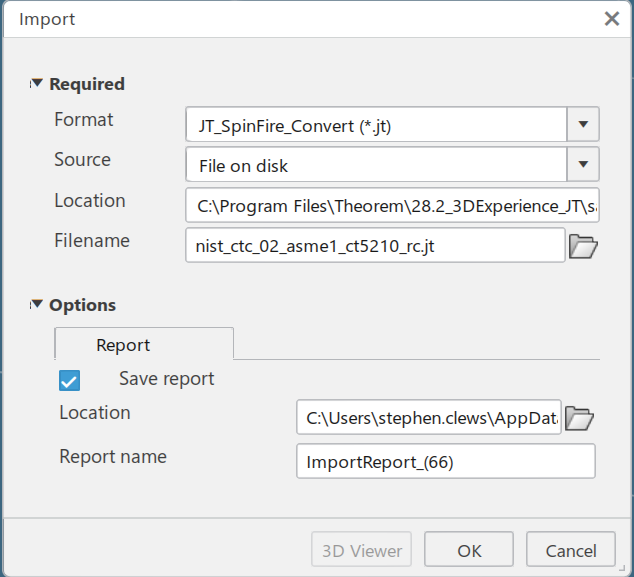

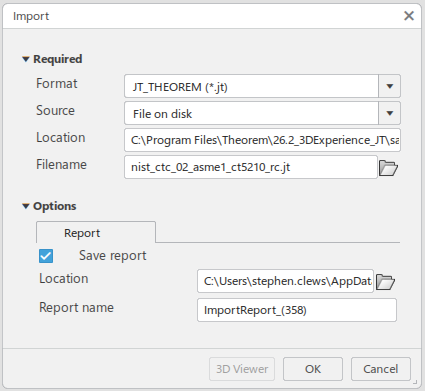

In the Import dialog box displayed, ensure the ‘Format’ is set to JT_SpinFire_Convert (*.jt/*.plmxml/*.stpx). Click on the folder icon next to the Filename field and select the required JT file, then click OK to initiate the import to 3DExperience.

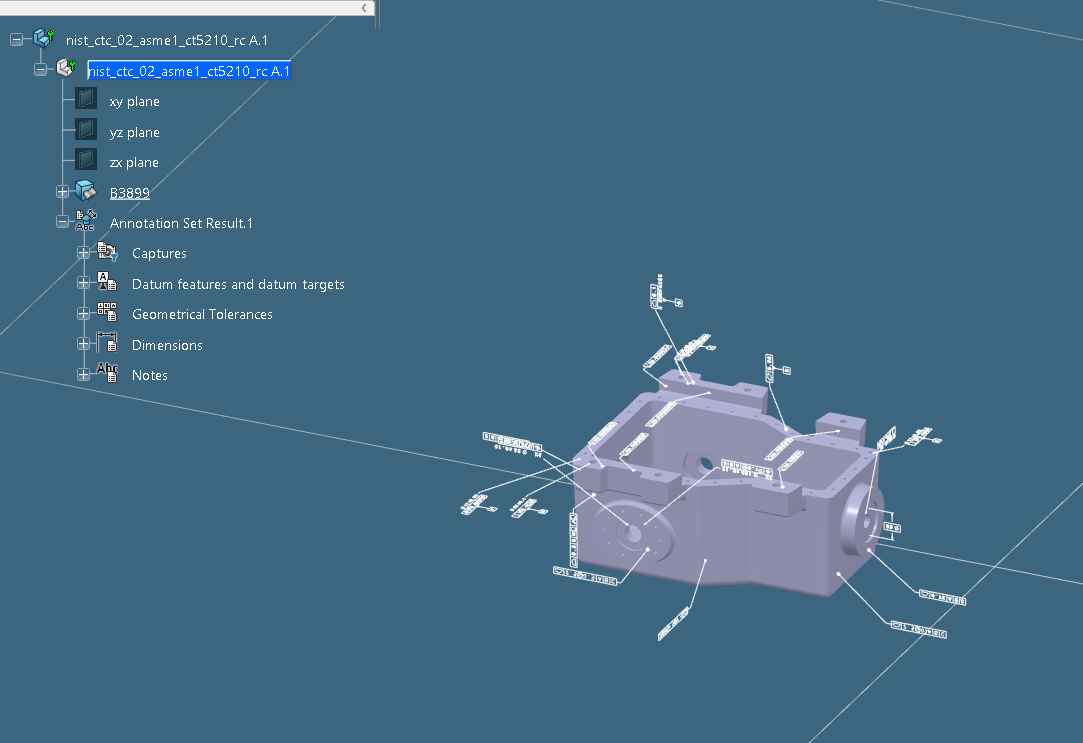

Import status of Succeeded displayed in Operation report window. Imported data saved into the 3DExperience database and opened into a new tab in the user’s session.

Please note that from version 28.2 of the 3DExperience to JT translator you will need to use the JT_SpinFire_Convert format in order to export data from 3DExperience and import data into 3DExperience successfully. Using the JT_THEOREM format which may still be displayed in the list will produce errors and ultimately an unsuccessful export or import.

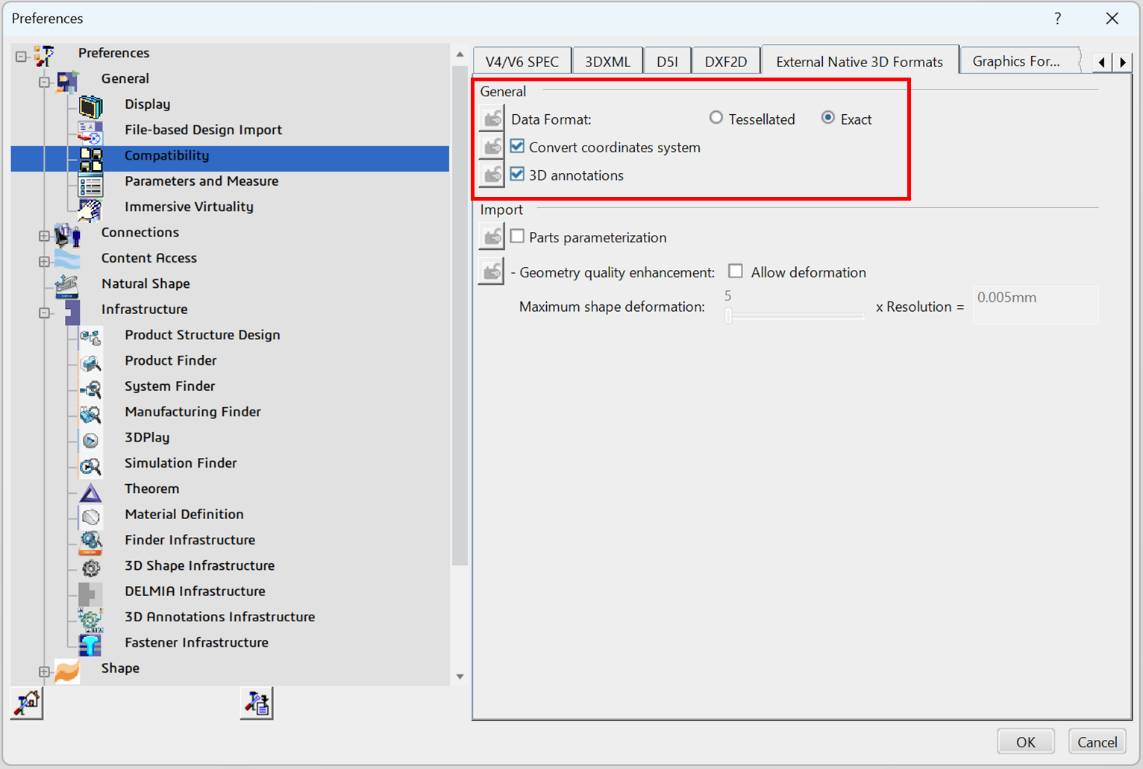

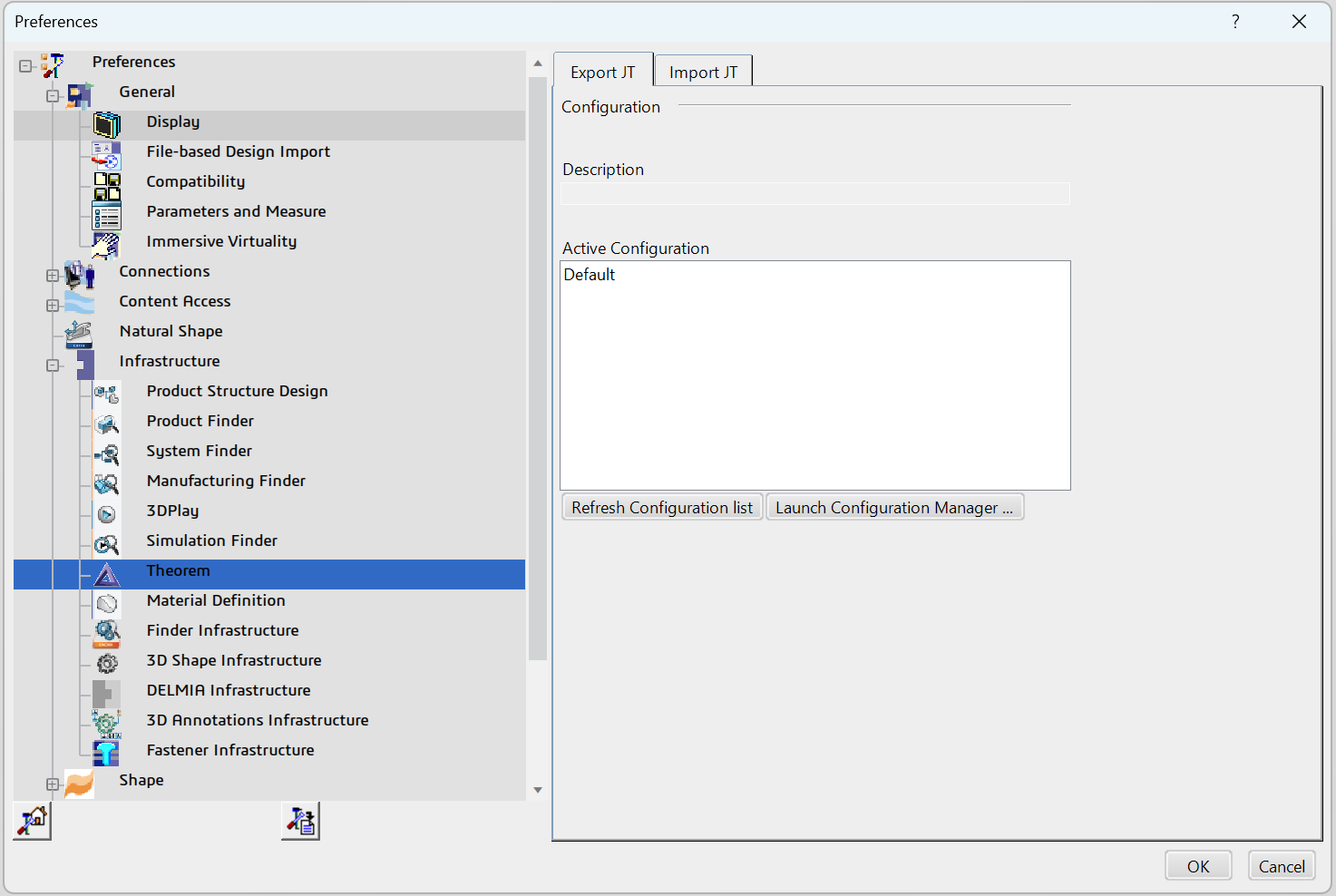

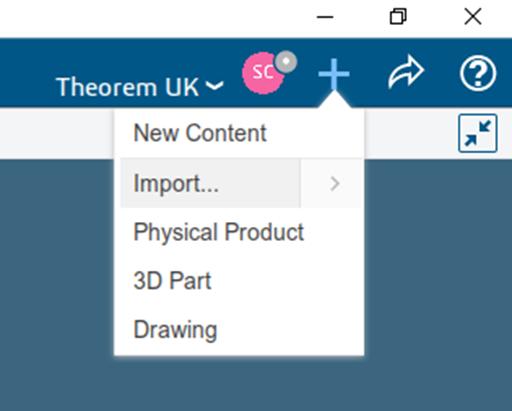

For earlier versions of the software, the JT_THEOREM format will still need to be used. Please see :ref:`interactive-translation` for more information on this.

SpinFire Convert Interactive Conversion Settings

The 3DExperience interface does not currently require the user to apply any specific settings for the translation. There are some general settings that should be checked if required (e.g. for PMI conversion.) These are accessed through Preferences > App Preferences > Social and Collaborative > 3DEXPERIENCE Open > Format Converters > External Native 3D Formats.

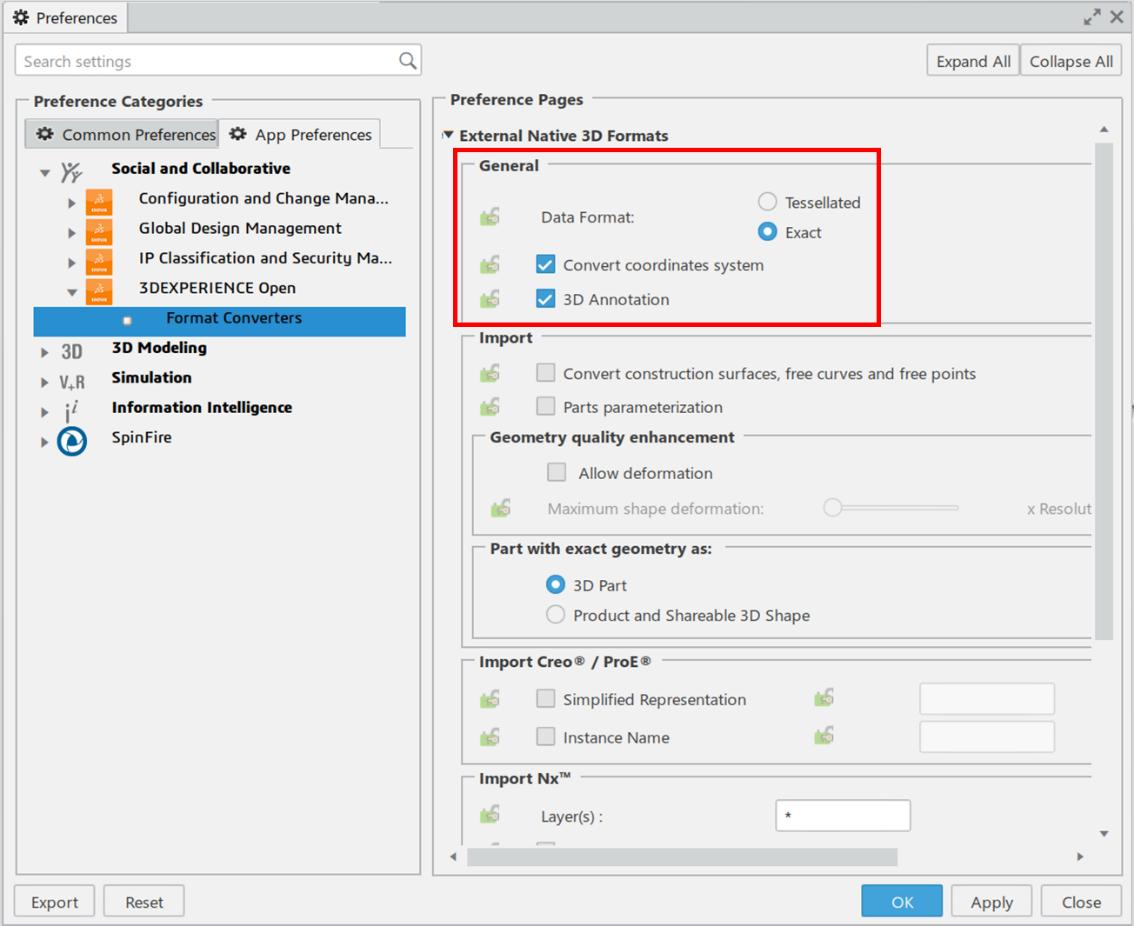

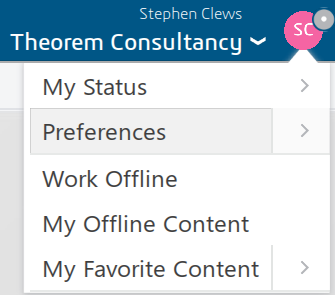

This page is a standard Dassault Page that enables the user to set the preferred mode of conversion (in this case Exact). It also enables the user to apply general options such as ‘Convert coordinates system’ and ‘3D Annotation’.

There are also some SpinFire Convert settings that can be applied. These are accessed through Preferences > App Preferences > SpinFire > SpinFire Convert.

A JT drop down menu under ‘SpinFire Convert’ allows the user access to any active configurations for both JT Export and JT Import with 2 separate active configuration windows displayed for both options. From this menu, the user can select a predefined configuration or create a new configuration for exporting to JT and importing from JT.

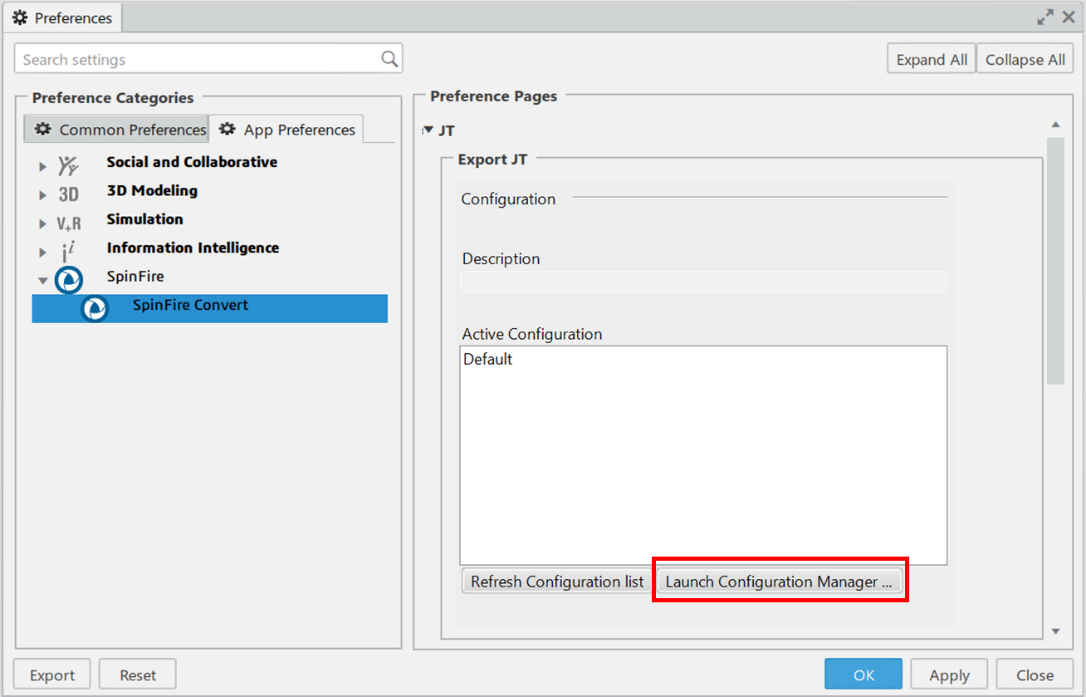

To create a new configuration, select the ‘Launch Configuration Manager’ command.

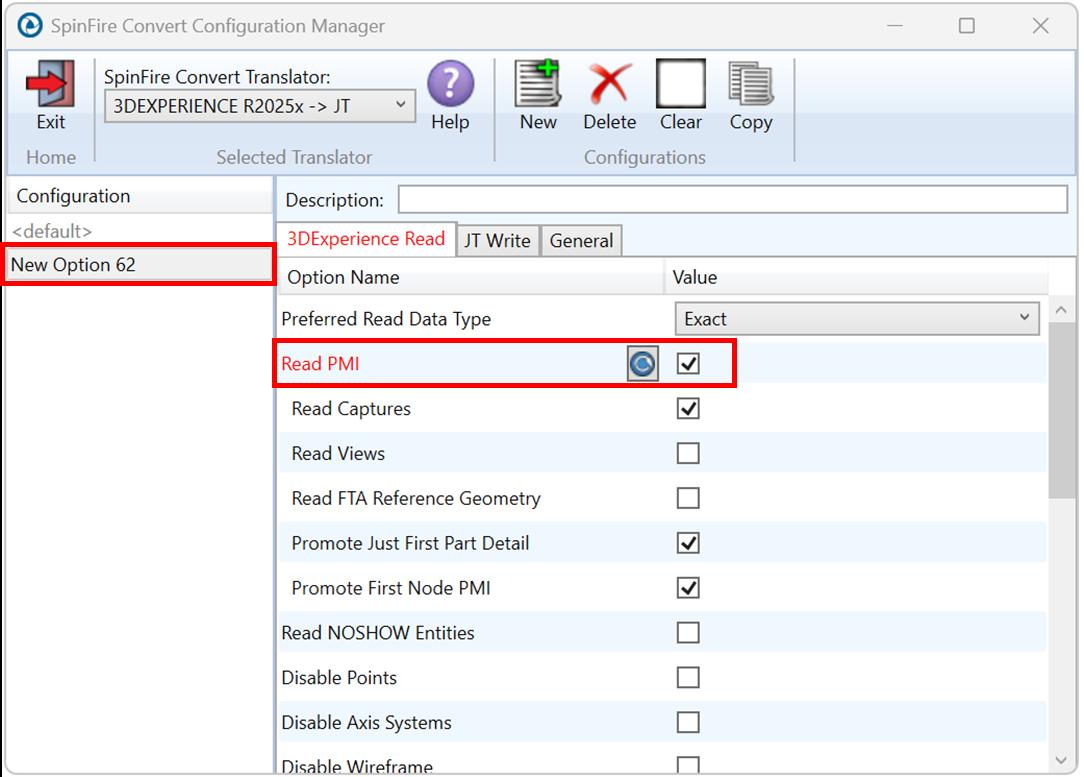

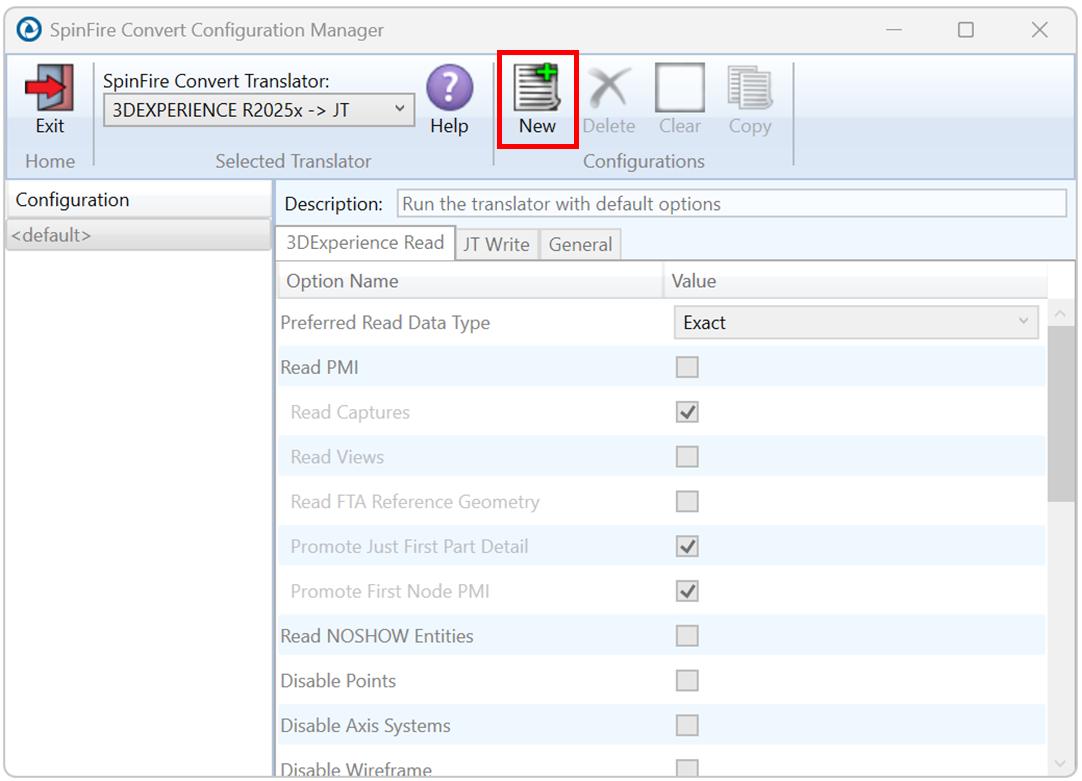

In the configuration manager window, select New, apply the relevant options, (see Configuration Manager), then rename the configuration as required.

When all the relevant options have been applied, click on Exit to close the configuration manager window.

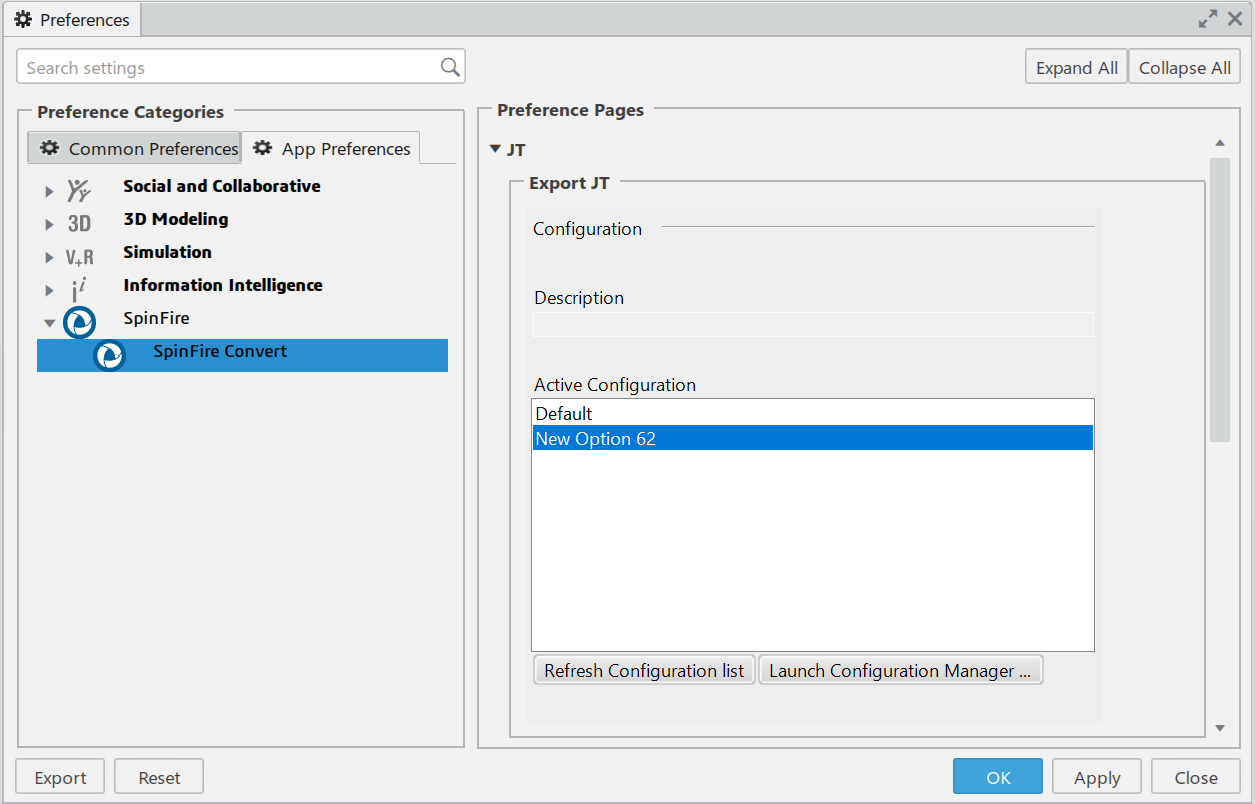

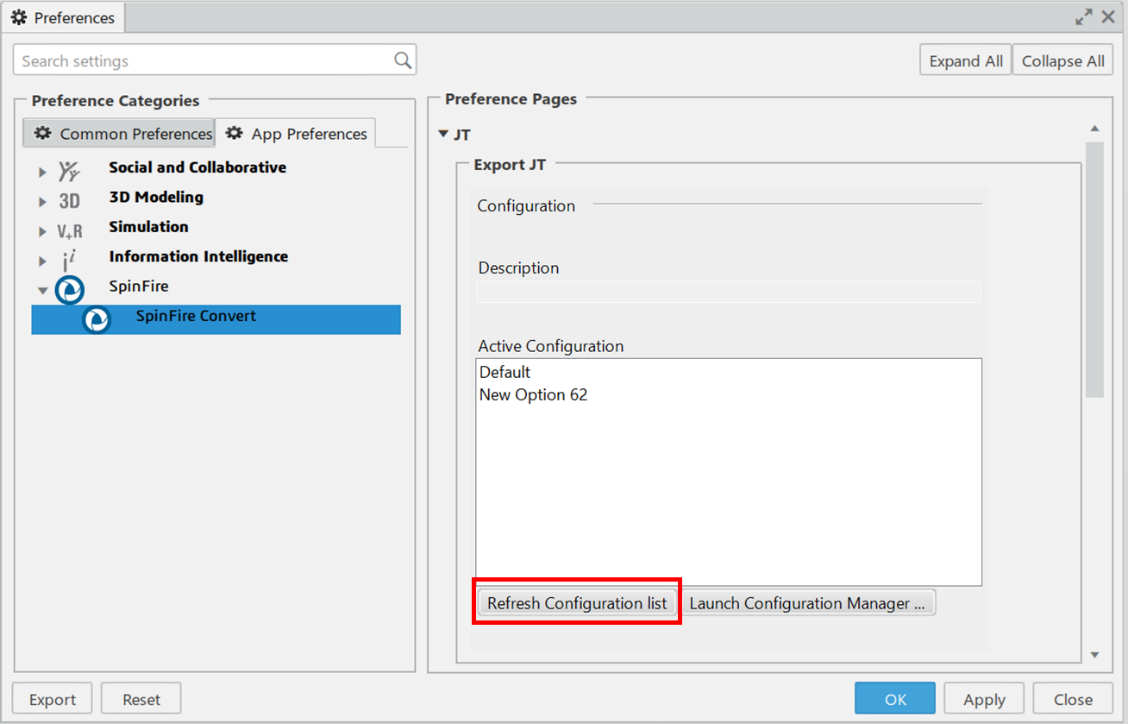

Any new configurations created will be displayed in the Active Configurations list once it has been refreshed. To do this select ‘Refresh Configuration list’.

Select the required configuration to make it the active configuration. This will be highlighted in blue when selected.

Configuration Manager

3DExperience to JT

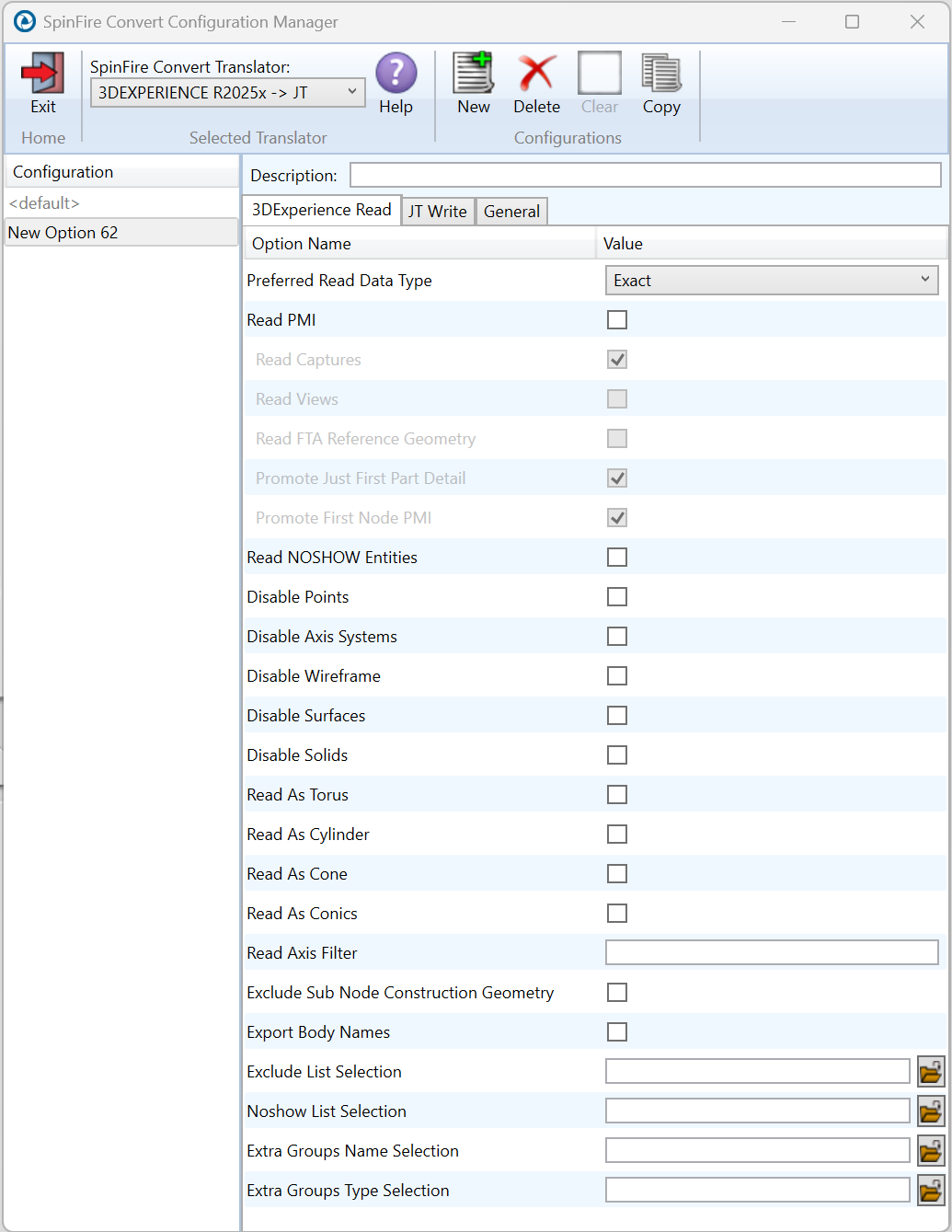

3DExperience Read

Each of the options displayed in the image above are described below:

Option	Description
Preferred Read Data Type	The setting options are EXACT (default) or TESSELATED. Command Line Syntax: read_tess
Read PMI	Enables PMI data read (Default is OFF.) Command Line Syntax: read_pmi_off – default read_pmi – to turn on Note – When ‘read_pmi’ is enabled it also enables the ‘fill_pmi_arrows’, ‘fill_pmi_text’ and ‘pmi_filled_text’ options. These can be overridden by setting the Advanced arguments ‘dont_fill_pmi_arrows’ and/or ‘dont_fill_pmi_text’.
Read Captures	A secondary argument to ‘Read PMI’ and allows control over whether captures are read as part of the process. Default is ON when ‘Read PMI’ is marked as ON. Captures can ONLY be read when ‘Read PMI’ is ON. Command Line Syntax: read_captures – default dont_read_captures – to turn off
Read Views	A secondary argument to ‘Read PMI’ and allows control over whether views are read as part of the process. Default is OFF. Views can ONLY be read when ‘Read PMI’ is ON. Command Line Syntax: read_views – to turn on
Read FTA Reference Geometry	A secondary argument to ‘Read PMI’ and enables the reading of FTA Reference Geometry. Default is OFF. FTA Reference Geometry can ONLY be read when ‘Read PMI’ is ON. Command Line Syntax: read_geometry – to turn on
Promote Just First Part Detail	A secondary argument to ‘Read PMI’ that enables the first node in the assembly in the specification tree to be promoted to the top node in the structure and subsequently read irrespective of what is contained in the node, i.e. geometry, PMI, Axis Systems etc. Default is ON when ‘Read PMI’ is marked as ON. Can ONLY be read when ‘Read PMI’ is ON. Command Line Syntax: promote_just_first_part_detail – default promote_just_first_part_detail_off – to turn off
Promote First Node PMI	A secondary argument to ‘Read PMI’ that enables PMI on the first node in the assembly in the specification tree to be promoted to the top node in the structure and subsequently read. Default is ON when ‘Read PMI’ is marked as ON. Can ONLY be read when ‘Read PMI’ is ON. Command Line Syntax: promote_first_node_pmi – default promote_first_node_pmi_off – to turn off Note – Promote Just First Part detail will also need to be toggled on in order for this option to be applied.
Read NOSHOW Entities	Read any entities that are in NOSHOW. Default is not to read NOSHOW entities. Command Line Syntax: noshow
Disable Points	Switches off Point processing. Command Line Syntax: disable_points
Disable Axis Systems	Switches off Axis System processing. Command Line Syntax: disable_axes
Disable Wireframe	Switches off Wireframe processing. Command Line Syntax: disable_wireframe
Disable Surfaces	Switches off Surface processing. Command Line Syntax: disable_surfaces
Disable Solids	Switches off Solids processing. Command Line Syntax: disable_solids
Read As Torus	Read Toroidal surfaces in analytical form (default is NURBS.) Command Line Syntax: read_torus
Read As Cylinder	Read Cylindrical surfaces in analytical form (default is NURBS.) Command Line Syntax: read_cylinder
Read As Cone	Read Cone surfaces in analytical form (default is NURBS.) Command Line Syntax: read_cone
Read As Conics	Read surfaces generated from a Conic in analytical form (default is NURBS.) Command Line Syntax: read_conics
Read Axis Filter	Enables a specified list of axis systems to be processed. Command Line Syntax: read_axis <value> Where <value> is the name of the axis system. This can be formatted as per the examples below: Axis System.1; – Only ‘Axis System.1’ will be processed *System.2; – Any axis system that includes ‘System.2’ at the end of the name will be processed, i.e. Axis System.2 Axis System*; – Any axis system that includes ‘Axis System’ at the start of the name will be processed, i.e. Axis System.1, Axis System.2, Axis System.3, etc *System*; – Any axis system that includes ‘System’ anywhere in the name will be processed. Multiple axis systems can also be processed. This is formatted as per the example below: Axis System.1;Axis System.2;Axis System.3;
Exclude Sub Node Construction Geometry	Excludes part level construction geometry from the output generated. Applying this option improves performance when exporting large assemblies. Command Line Syntax: subnode_cgeom_off
Export Body Names	Maintains body names for parts that consist of multiple bodies. Command Line Syntax: body_names
Exclude List Selection	Enables nodes to be excluded from the output generated when the corresponding node names have been added to a supplied list. This list will be in a .txt file format. Command Line Syntax: exclude_list <list file> Where <list file> is the list of node names added to the text file. For example: Project Data External References
Noshow List Selection	Enables nodes that are in a noshow state to be included in the output generated when the corresponding node names have been added to a supplied list. This list will be in a .txt file format. Command Line Syntax: nowshow_list <list file> Where <list file> is the list of node names added to the text file. For example: Geometrical Set.1 Geometrical Set.2
Extra Groups Name Selection	Adds an extra node per body below a node where the corresponding names have been specified in a supplied list. This list will be in a .txt file format. These extra nodes allow for finer control in what can be made visible / hidden in the output and results in better matching of Capture Views. Command Line Syntax: extra_groups_name_list <list file> Where <list file> is the list of names added to the text file. For example: StiffenerSet_1 StiffenerSet_2
Extra Groups Type Selection	Adds an extra node per body below a node where its corresponding object types have been specified in a supplied list. This list will be in a .txt file format. These extra nodes allow for finer control in what can be made visible / hidden in the output and results in better matching of Capture Views. Command Line Syntax: extra_groups_type_list <list file> Where <list file> is the list of object types added to the text file. For example: SldStiffenerSet SldPlateSet

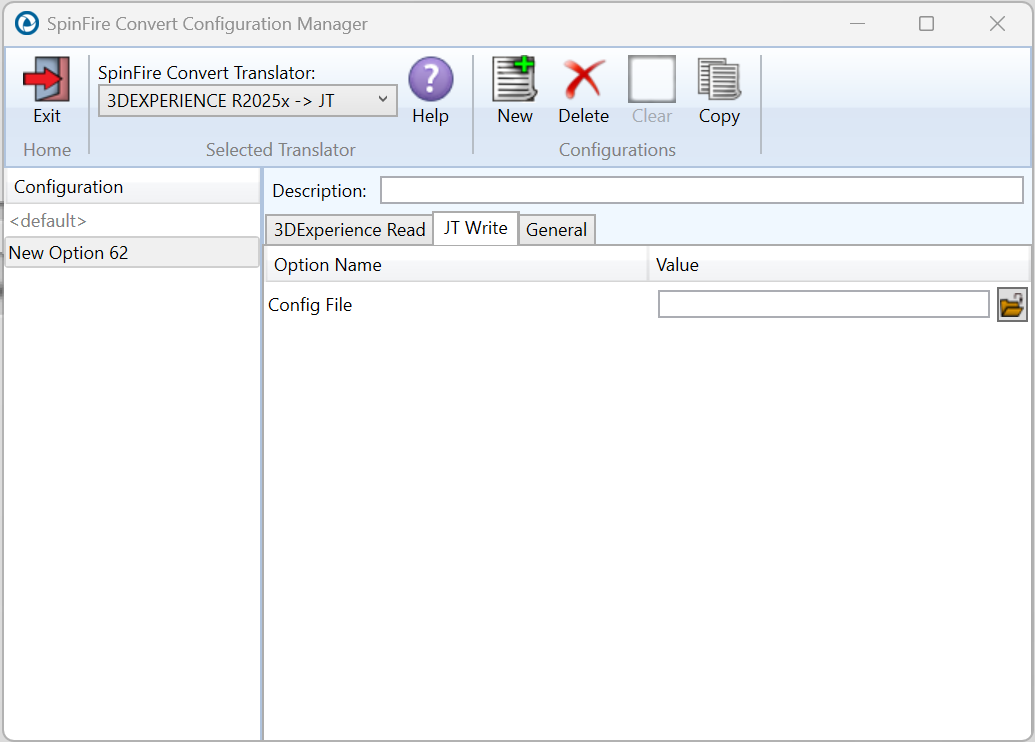

JT Write

Each of the options displayed in the image above are described below:

Option	Description
Config File	Allows a JT configuration file to be specified. “<TS_INST>/etc/tess.config” is the default. (See JT Configuration File for config file options.) Command Line Syntax: -z <path to JT configuration file>

General

Each of the options displayed in the image above are described below:

Option	Description
Mass Properties	Allows mass property information to be read. Command Line Syntax: mprops
Retain Assembly Structure	Enables Assembly Structure to be retained. (Default is ON.) Disabling this option will remove all assembly structure and collapse ALL geometry into a single selectable object. Command Line Syntax: off_ditto – to turn off
Advanced	Allows any advanced arguments to be added to the configuration manager and applied during the translation.

JT to 3DExperience

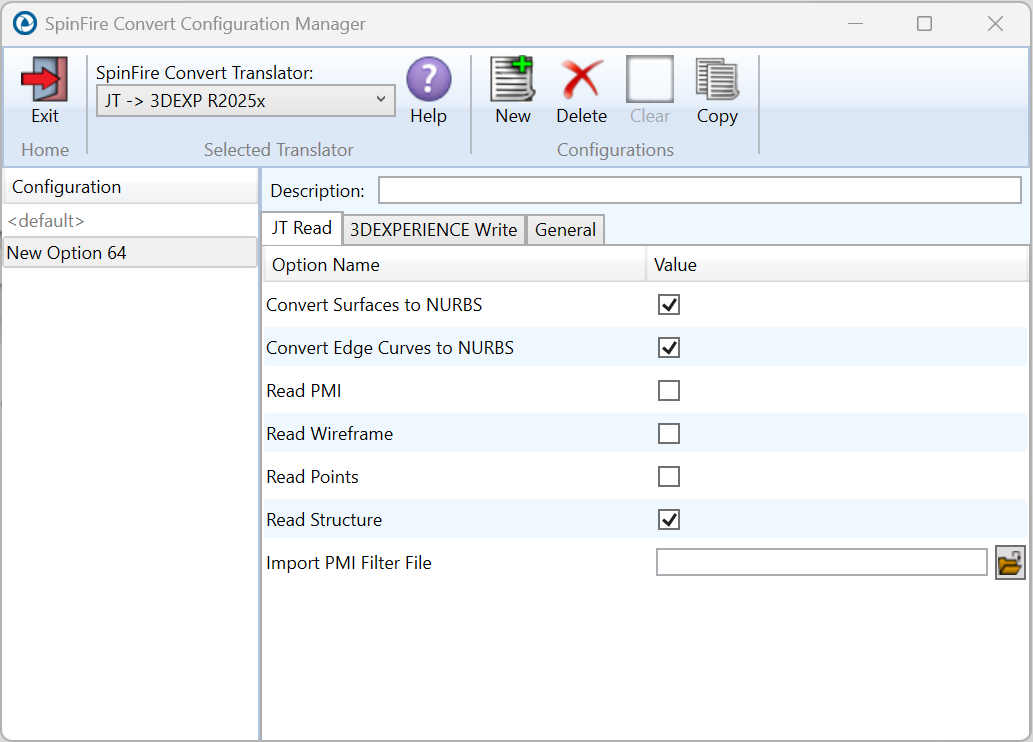

JT Read

Each of the options displayed in the image above are described below:

Option	Description
Convert Surfaces to NURBS	Read XT Brep surfaces as NURBS surfaces (else read in native form). Default is ON.
Convert Edge Curves to NURBS	Read XT Brep edge curves as NURBS curves (else read in native form). Default is ON.
Read PMI	Reads 3D PMI. Default is OFF.
Read Wireframe	Reads JT wireframe data. Default is OFF.
Read Points	Reads JT point data. Default is OFF.
Read Structure	Read assembly tree structure. Default is ON.
Import PMI Filter File	Supply a PMI filter file. “<TS_INST>/data/jt/jt_pmi_filter.txt” is the default. (See PMI Type Filter for more information on PMI Filter Files.)

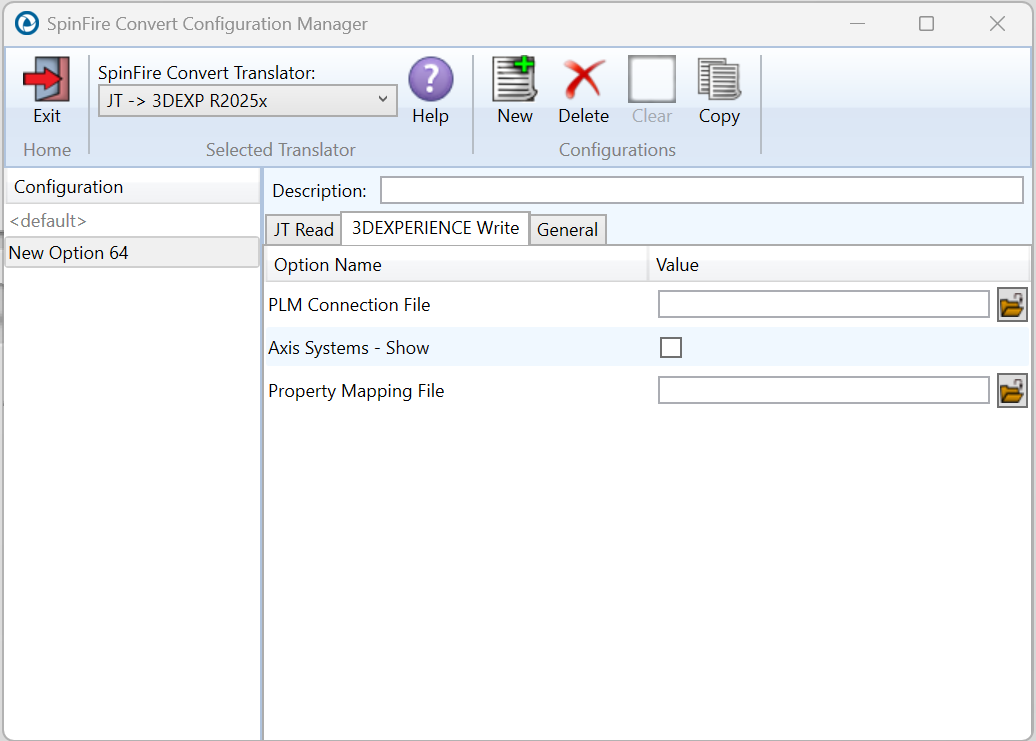

3DExperience Write

Each of the options displayed in the image above are described below:

Option	Description
PLM Connection File	The PLM Connection file is one of the xml files defining the connection parameters to the PLM database. It is required to create a connection and logging into a PLM session programmatically.
Axis Systems - Show	Show all the axis systems on the imported object in 3DExperience.
Property Mapping File	Map CAD properties using a mapping file. (See Property Mapping Files for more information on Property Mapping Files.)

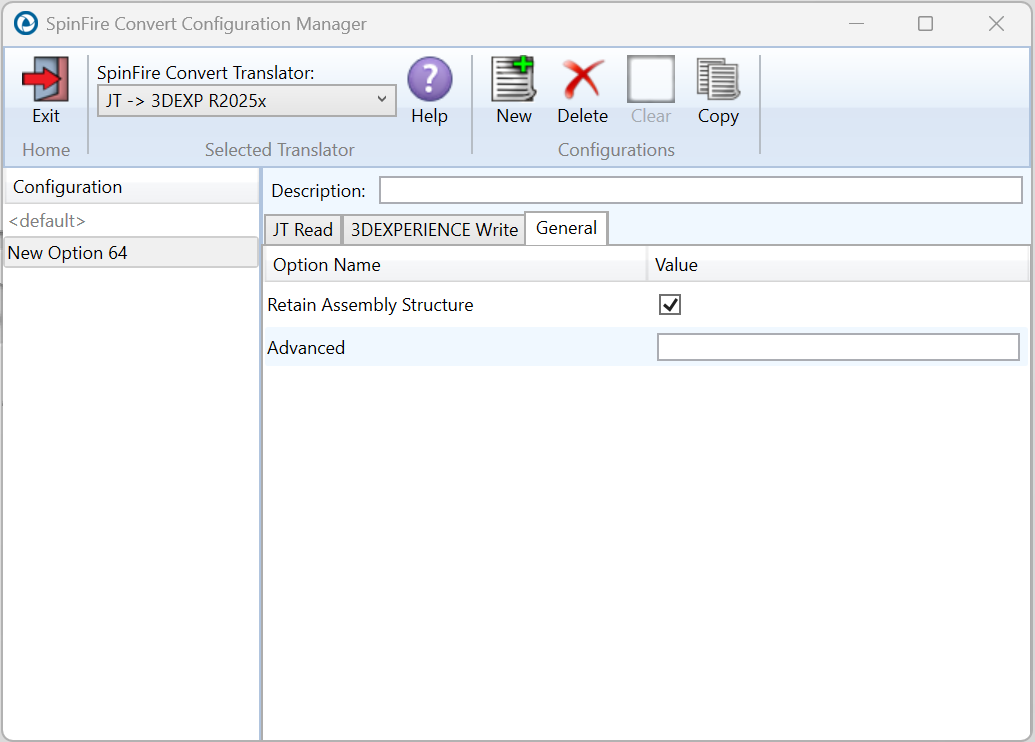

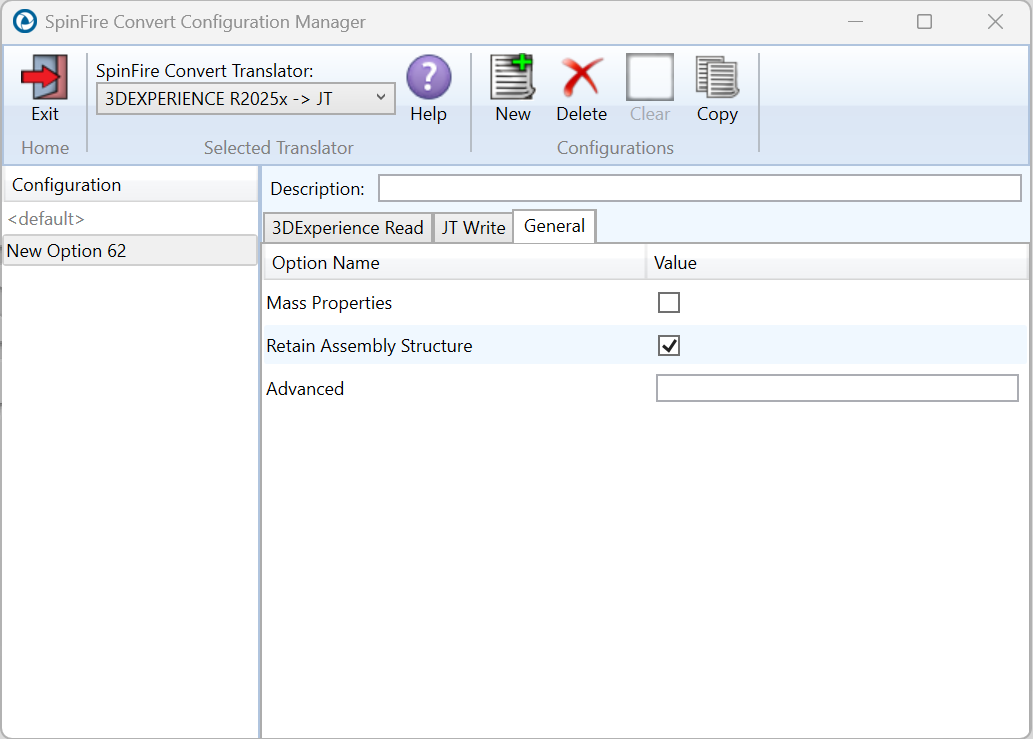

General

Each of the options displayed in the image above are described below:

Option	Description
Retain Assembly Structure	Enables Assembly Structure to be retained. (Default is ON.) Disabling this option will remove all assembly structure and collapse ALL geometry into a single selectable object.
Advanced	Allows any advanced arguments to be added to the configuration manager and applied during the translation.

Translating in Batch using CATUTIL – DataExchangePLMBatch

Launching DataExchangePLMBatch

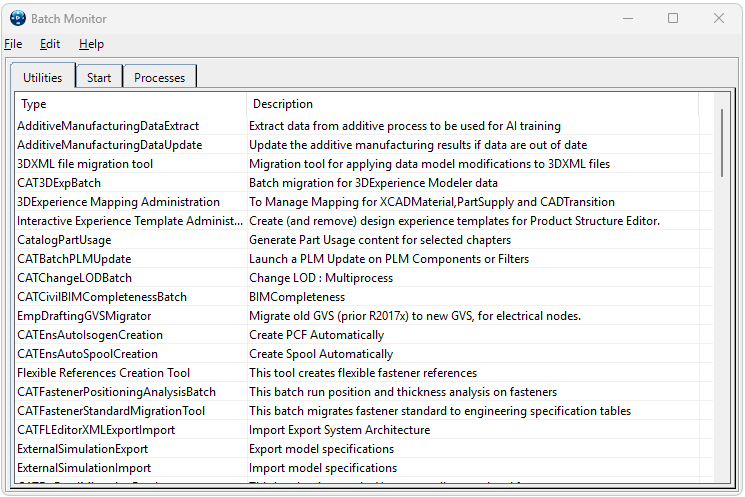

The Dassault Systemes CATUTIL Batch Monitor tool can be launched with the correct SpinFire Convert environment using the scripts provided in the Translator installation at:

<installation_directory>\bin\start_CATUTIL_<version>_JT.cmd

Where <version> is the version of 3DExperience that you have installed – e.g. 2023x, 2024x, 2025x.

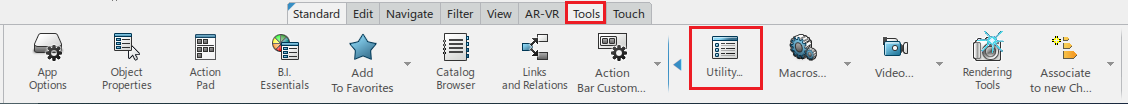

It can also be started from the Tools > Utility workbench within an Interactive 3DExperience session.

In some cases, it may be desirable to ignore the interactive settings while translating using DataExchangePLMBatch.

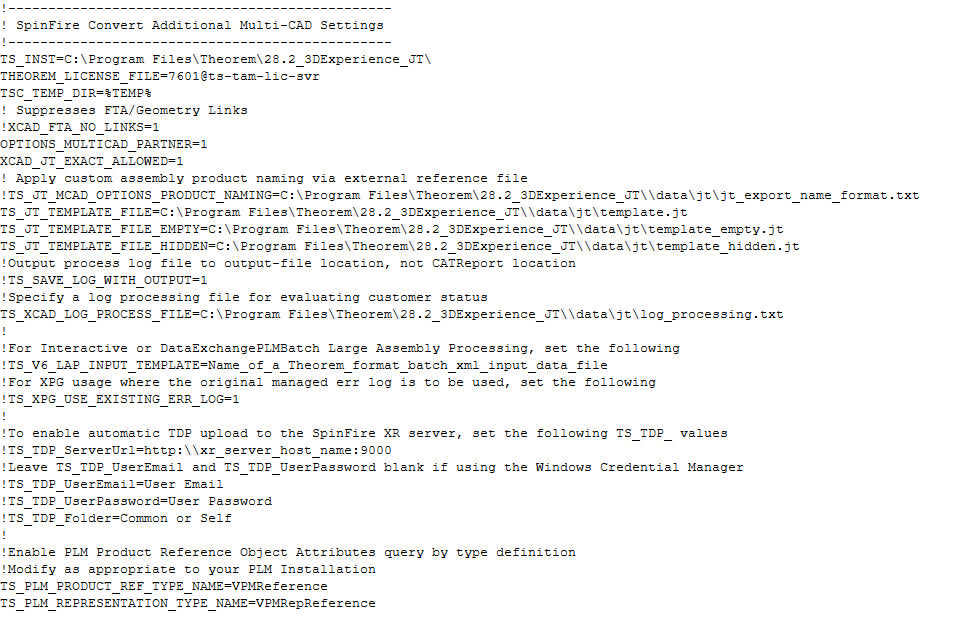

This can be achieved by setting the following variable in the SpinFire Convert CATEnv file:

TS_IGNORE_JT_CATSETTINGS=1

Batch Import from JT

Here is an example showing what is required in preparation for a JT file selection and batch import.

Double click on DataExchangePLMBatch in the Batch Monitor window.

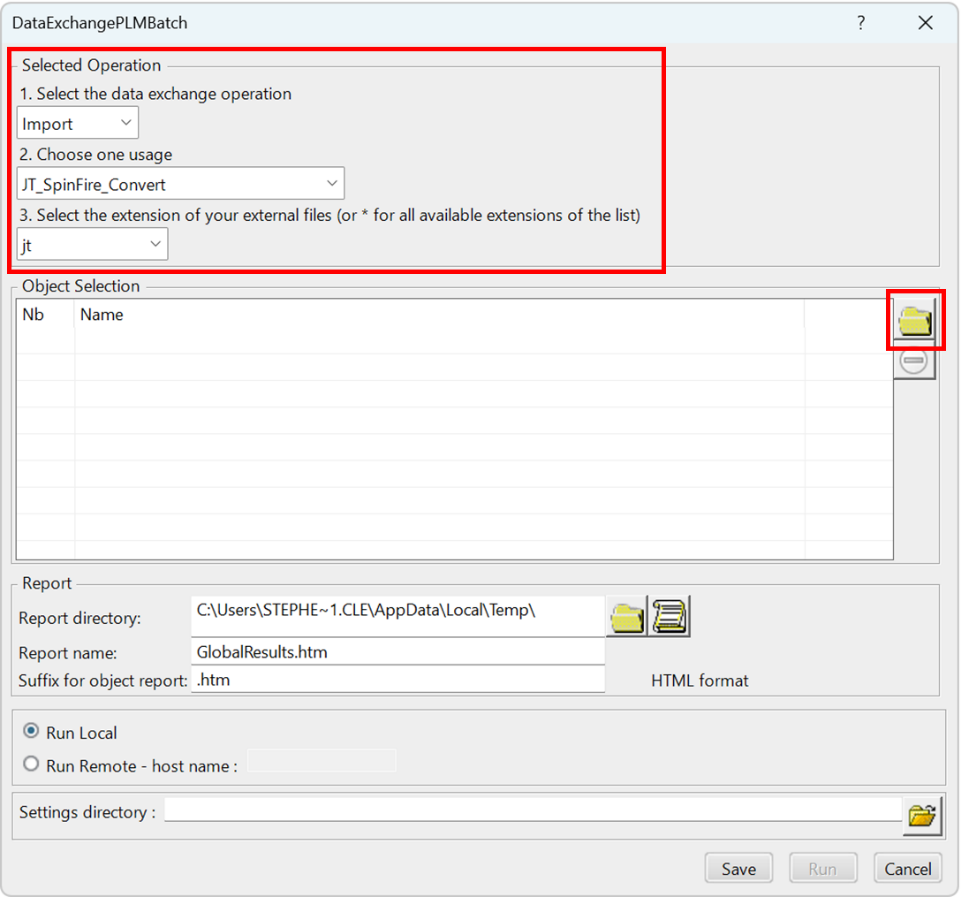

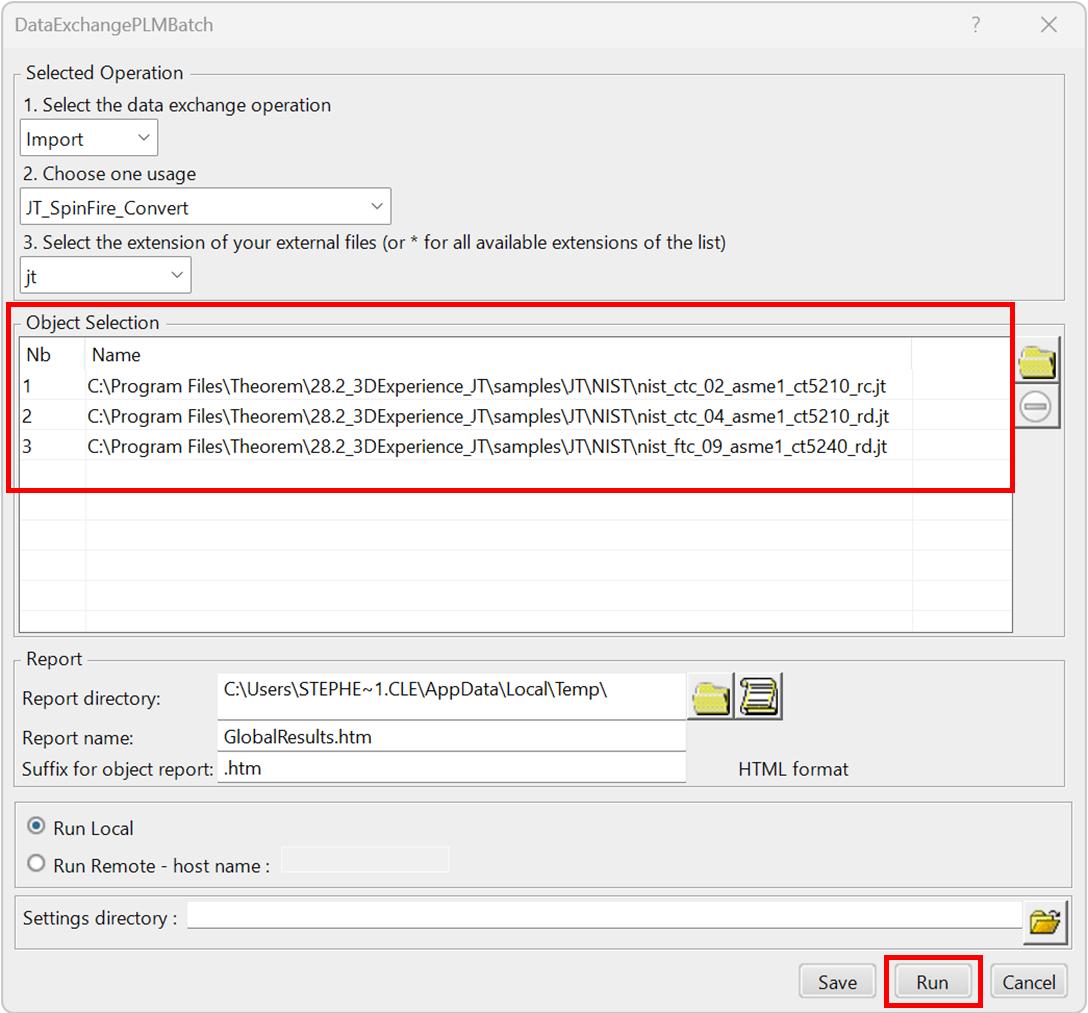

Ensure that ‘Import’ is selected as the data exchange operation, ‘JT_SpinFire_Convert’ is selected as the usage and ‘jt’, ‘plmxml’ or ‘stpx’ is selected as the extension.

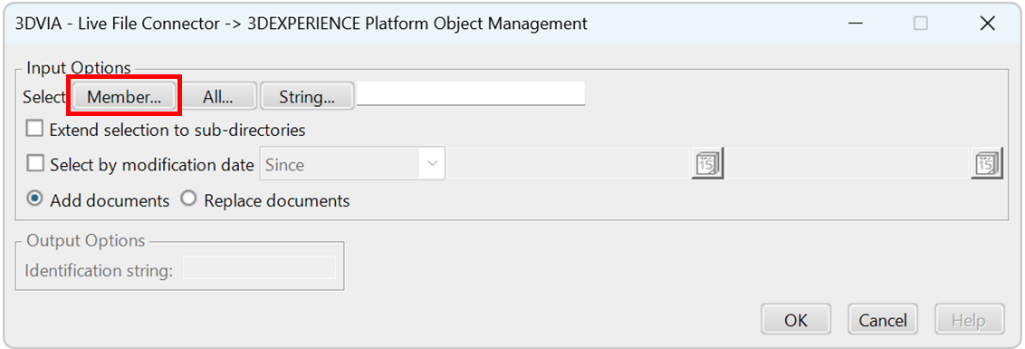

To add the required products for the batch import, select the 3DVIA – Live File Connector Object Search icon, next to the Object Selection field.

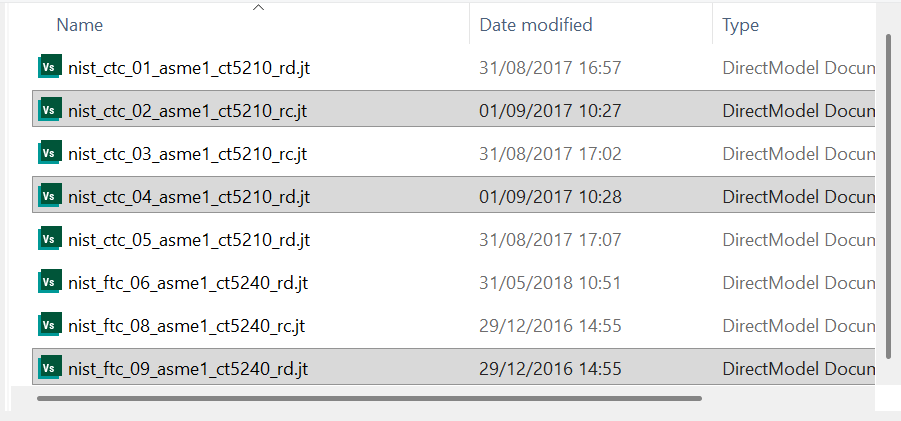

In the subsequent window displayed, add the products by clicking on Member and selecting the required JT files.

Click OK to add them to the Object Selection field.

Click Run to initiate the Batch Import.

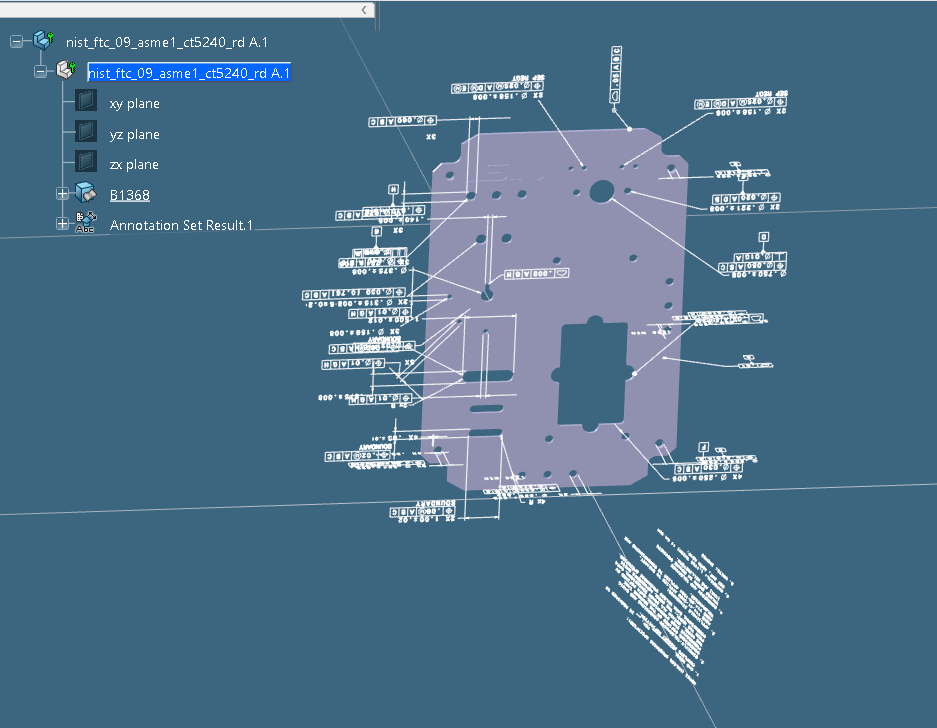

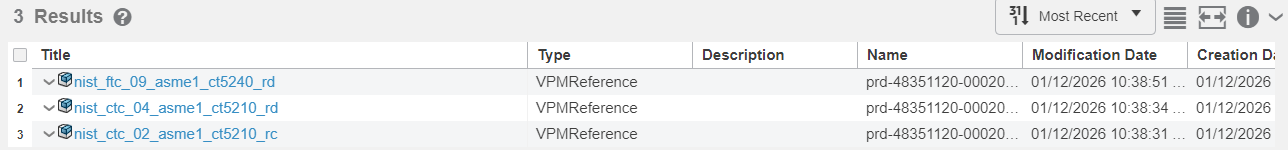

Imported data saved into the 3DExperience database.

Batch Export to JT

Here is an example showing what is required in preparation for a 3DExperience database selection and batch export.

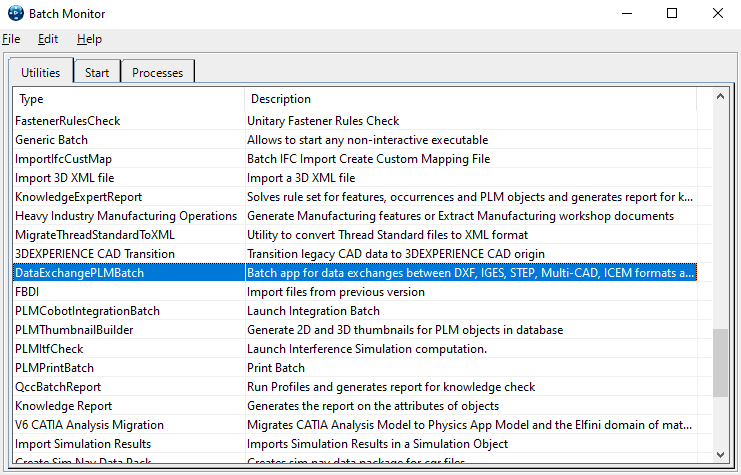

Double click on DataExchangePLMBatch in the Batch Monitor window.

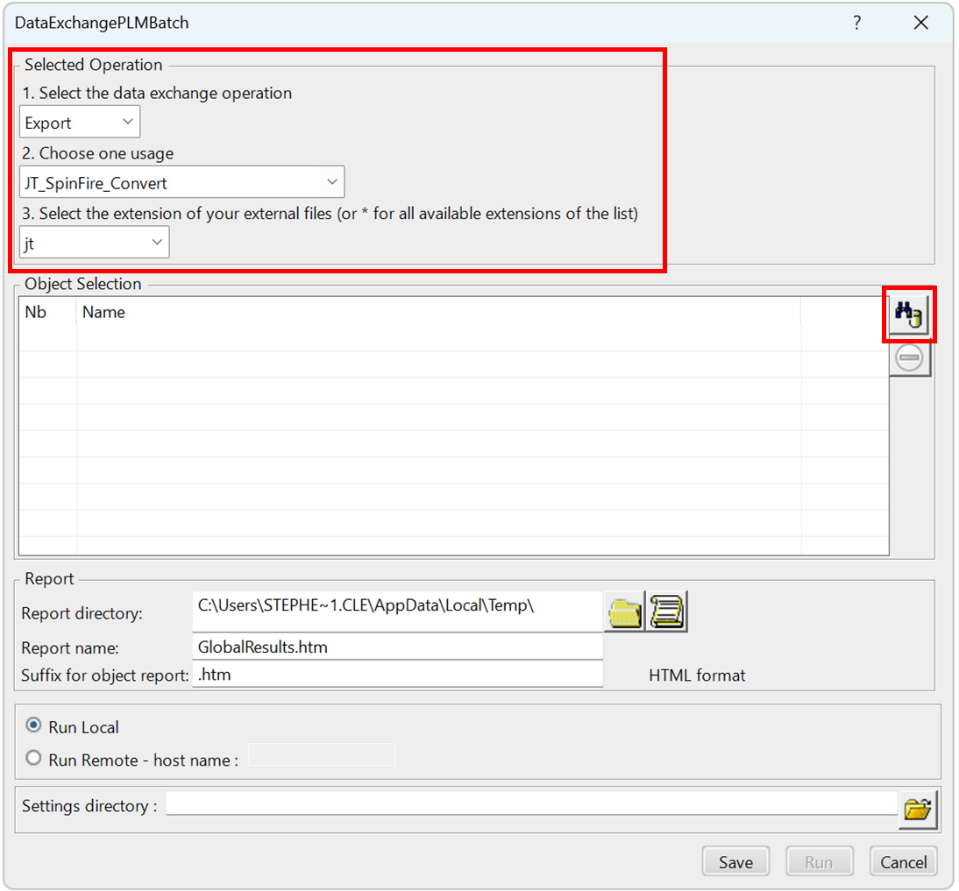

Ensure that ‘Export’ is selected as the data exchange operation, ‘JT_SpinFire_Convert’ is selected as the usage and ‘jt’, ‘plmxml’ or ‘stpx’ is selected as the extension.

To add the required products for the batch export, select the 3DExperience Platform Object Search icon.

In the subsequent window displayed, add the required products using the correct attribute, operator and value ensuring that the correct object type has been selected. (E.g. Physical Product). Where required use an Asterix in the value field to identify multiple parts or assemblies.

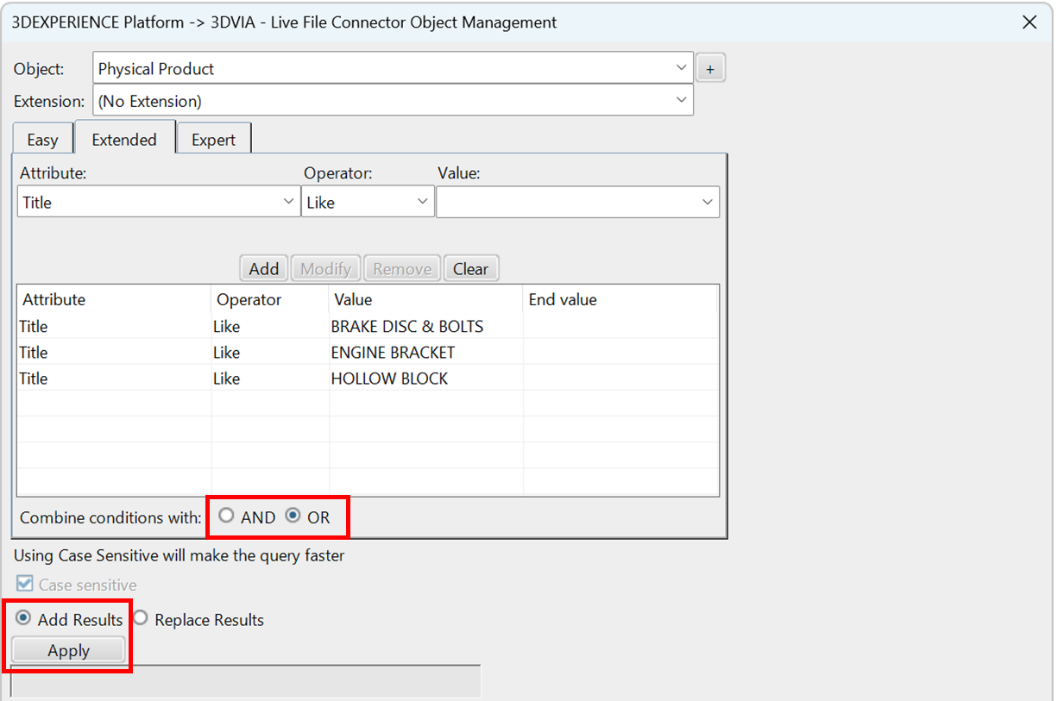

For multiple products ensure that the OR condition has been selected.

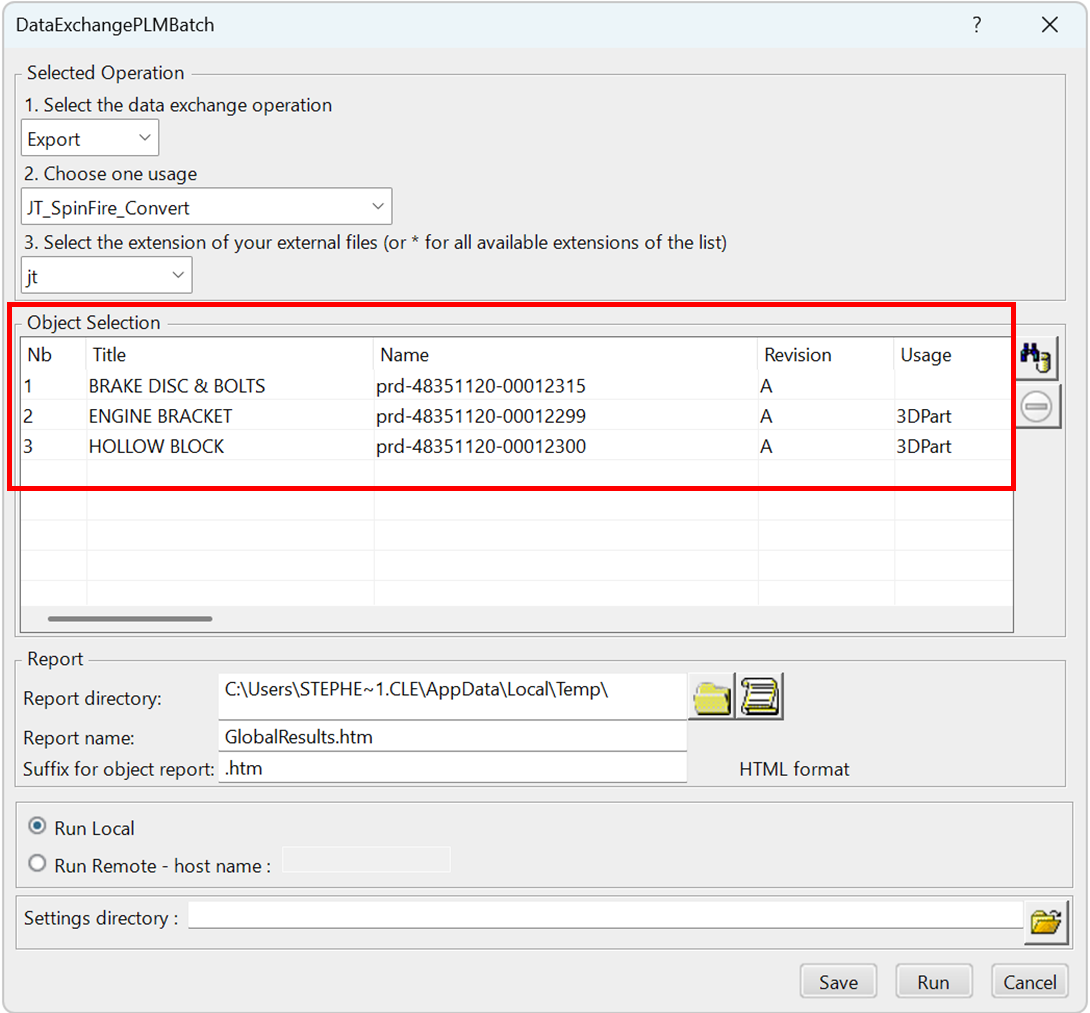

Select Add results and click Apply to add the list of products to the Object Selection field.

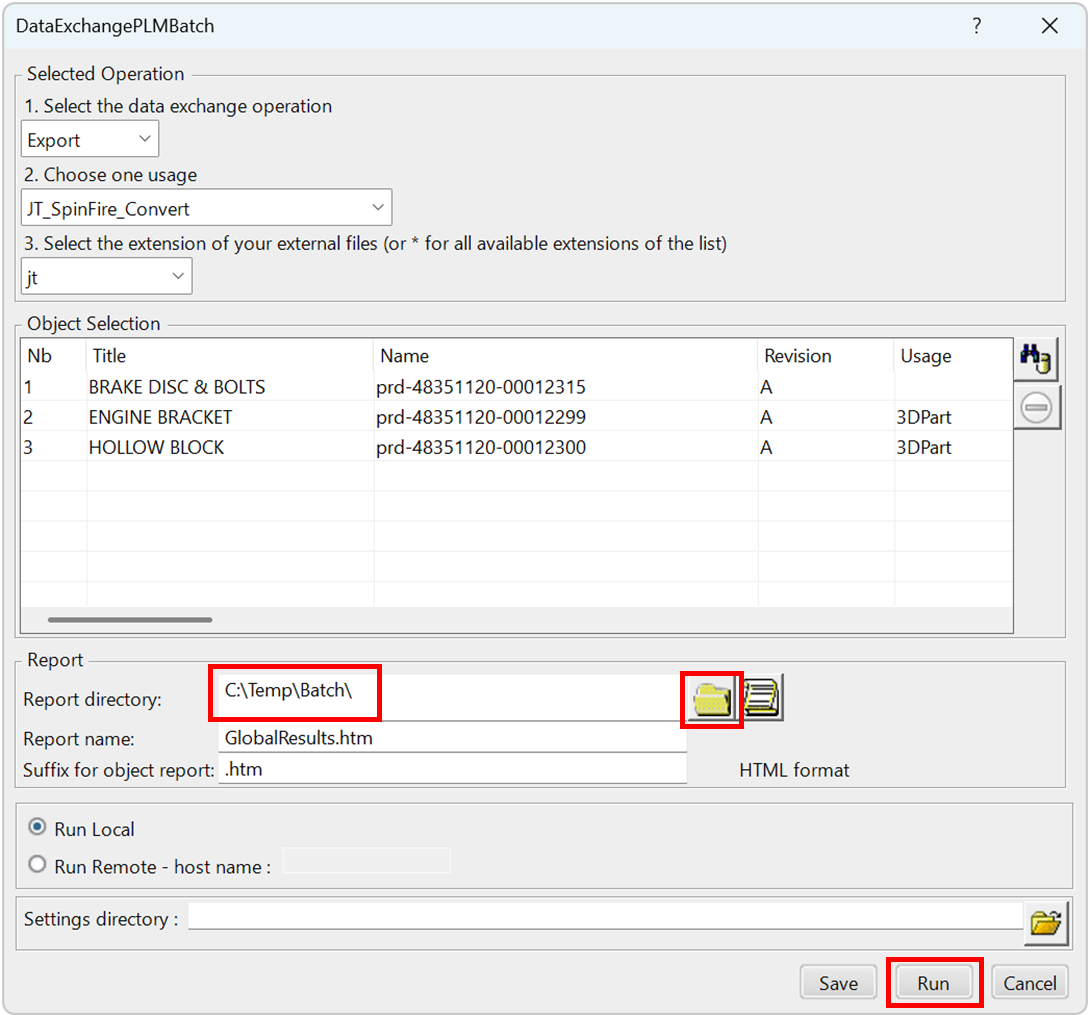

To change the location where both the report and the JT files will be saved, select the icon next to the Report directory field, then select the required directory.

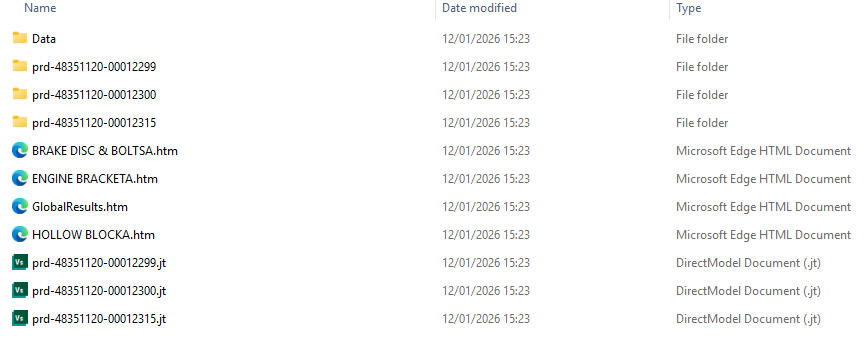

Click Run to initiate the Batch Export.

Running a Saved Batch File

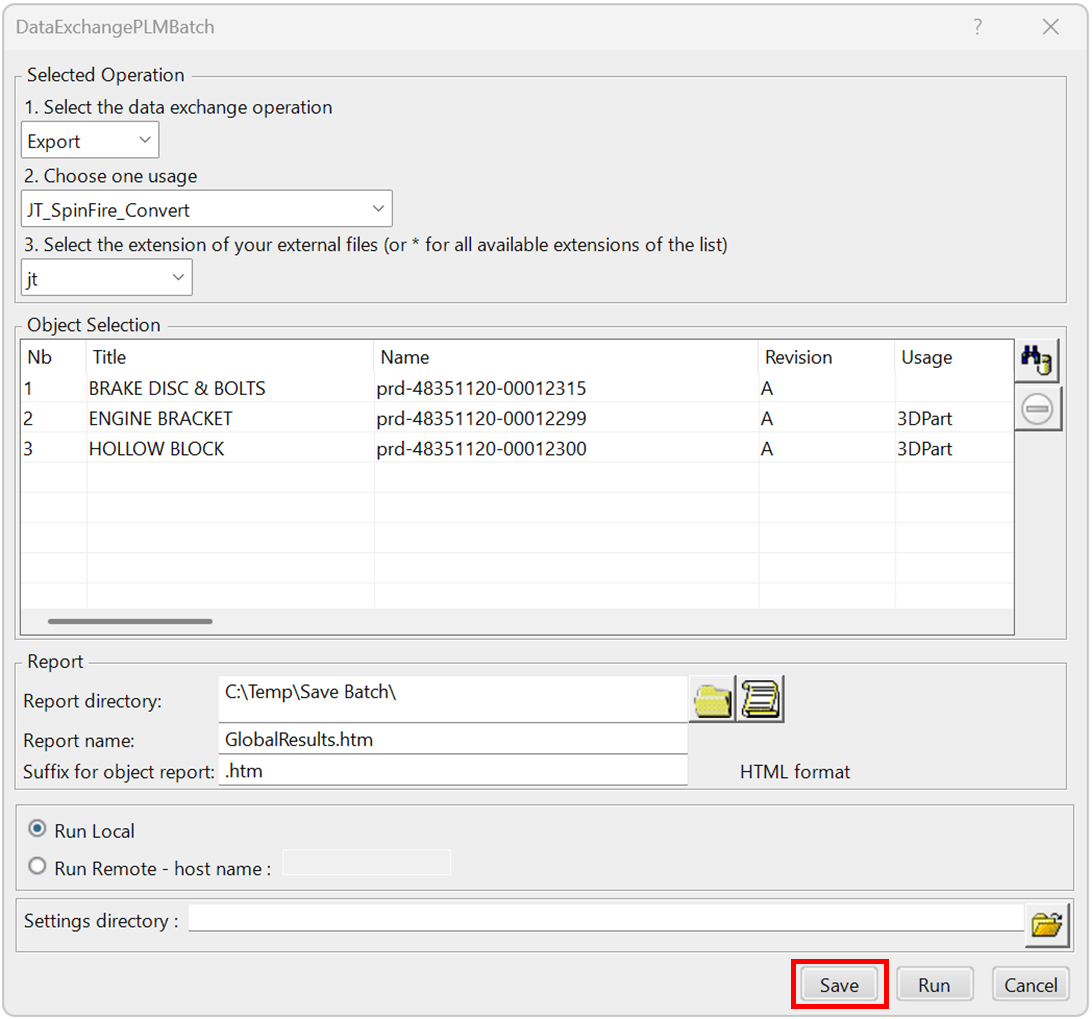

It is also possible to run a saved batch file on the command line. To do this click Save instead of Run in the DataExchangePLMBatch window.

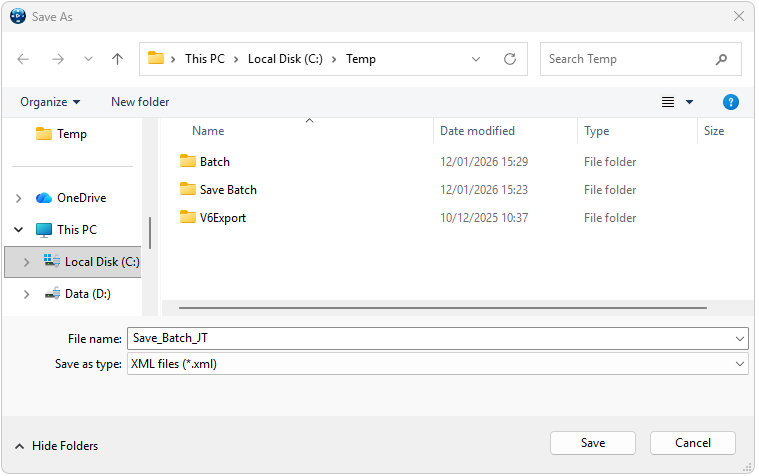

In the Save As pop-up window displayed, enter a file name, select the required directory where the batch file will be saved, then click Save.

In order to run a saved batch file on the command line the following is required:

<installation_directory>\bin\start_CATBatchStarter_<version>_JT.cmd <input file>

Where <installation_directory> is the SpinFire Convert software installation directory.

Where <version> is the version of 3DExperience that you have installed – e.g. 2023x, 2024x, 2025x.

<input_file> is the saved batch file. This will be in an XML file format.

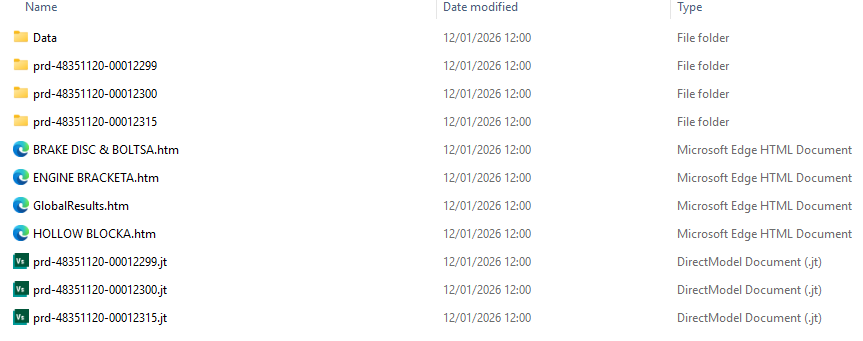

Please note the JT files will be saved in the location specified in the Report Directory in the DataExchangePLMBatch window.

Changing the Options Selected for a Batch Export / Import

The default options selected for a batch export and import can be modified within the xcad_jt_opts.txt file and jt_xcad_opts.txt file respectively. Both files are available in the following location.

<installation_directory>\data\jt

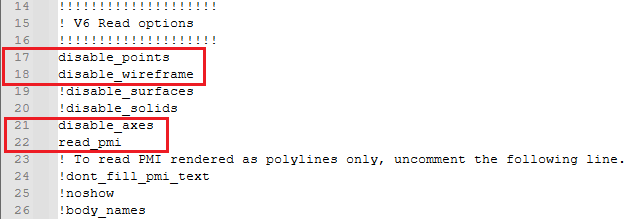

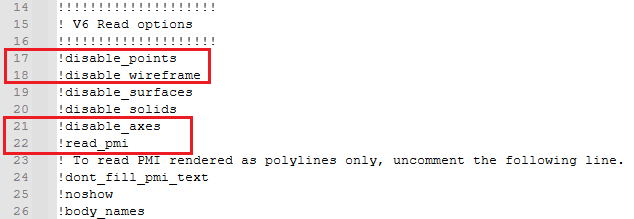

Within the xcad_jt_opts.txt file a number of arguments are displayed, these include common arguments such as read_pmi, disable_points, disable_wireframe and disable_axes which are all turned off by default. If an argument has the character (!) at the start of the line then this means that the argument is turned off.

To turn on a particular argument remove the (!) character from that particular line. Consequently, to turn off an argument add the (!) character to the start of the line. Please note that the user will need to be in administrator mode in order to make the change.

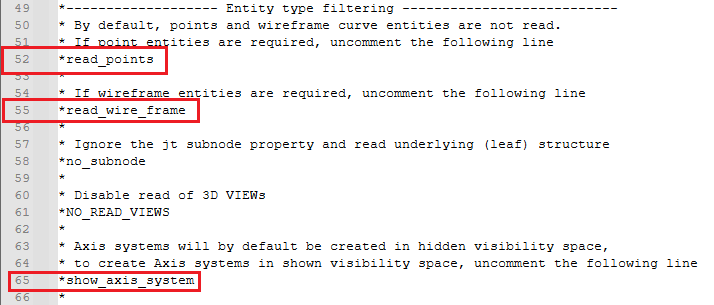

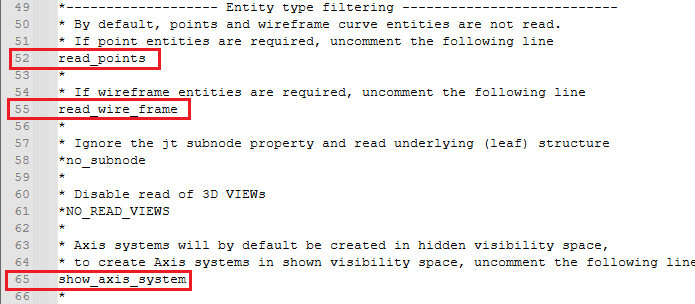

Within the jt_xcad_opts.txt file a number of arguments are also displayed, these include read_points, read_wire_frame and show_axis_system which are all turned off by default. If an argument has the character (*) at the start of the line then this means that the argument is turned off.

Once again, to turn on a particular argument remove the (*) character from that particular line. Consequently, to turn off an argument add the (*) character to the start of the line. Please note that the user will need to be in administrator mode in order to make the change.

Changing the JT Configuration Selected for a Batch Export

The JT configuration file selected for a batch export can also be modified within the xcad_jt_opts.txt file.

To change the JT configuration, simply remove the existing file path displayed and replace it with the new file path. The JT configuration argument will be displayed under the JT Write options section in the xcad_jt_opts.txt file. Note – ensure that the -z character is not removed.

These changes will consequently mean that the user specified JT configuration will be used instead of the default JT configuration when translating via DataExchangePLMBatch. Please note that the user will need to be in administrator mode in order to make the change.

Changing the Name of the Top Node in the JT Output

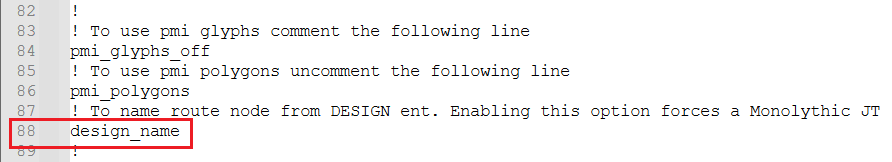

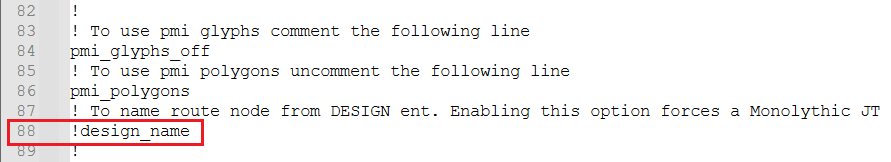

When exporting data using DataExchangePLMBatch, ensure that the design_name option has been turned on in the xcad_jt_opts.txt file. If this option is turned off then the top node displayed in the JT output will be named the object name displayed in 3DExperience, (this is a 3DExperience generated name/number). The design_name option is turned OFF by default.

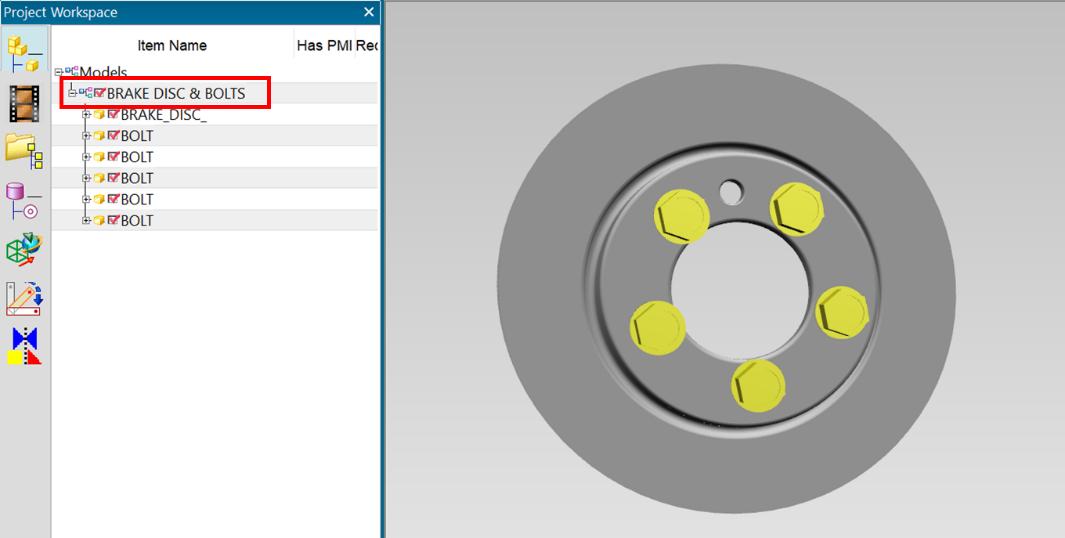

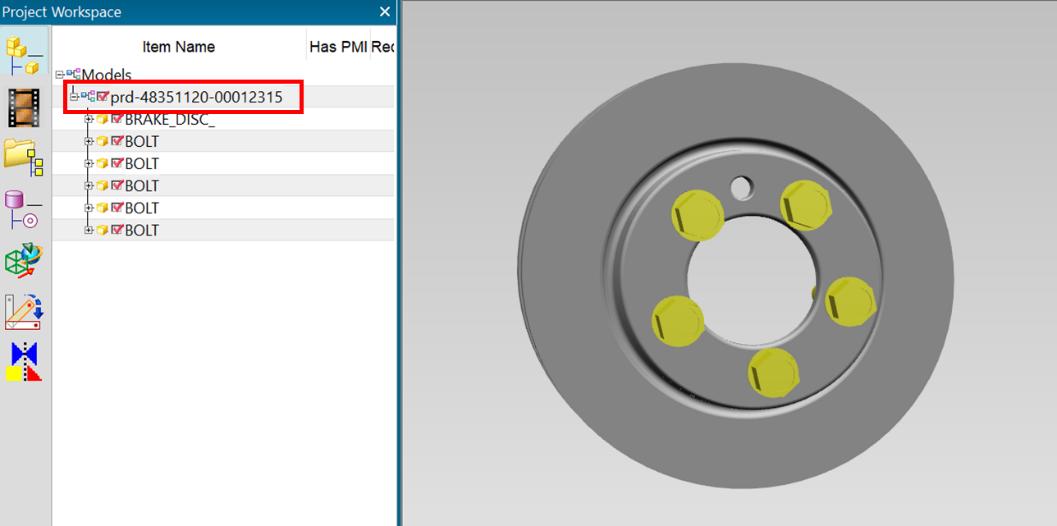

If the design_name option is turned on then the top node displayed in the JT output will be named the object title displayed in 3DExperience, (this is a user generated name/number). Turning on the design_name option will also generate a monolithic JT output. Removing the (!) character will turn this option on. Please note that the user will need to be in administrator mode in order to make the change.

Changing the JT File Name

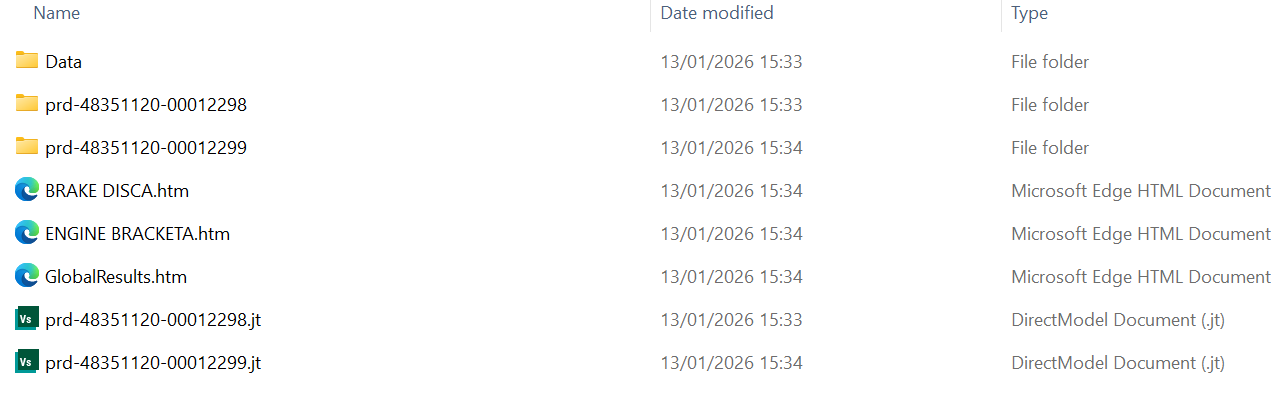

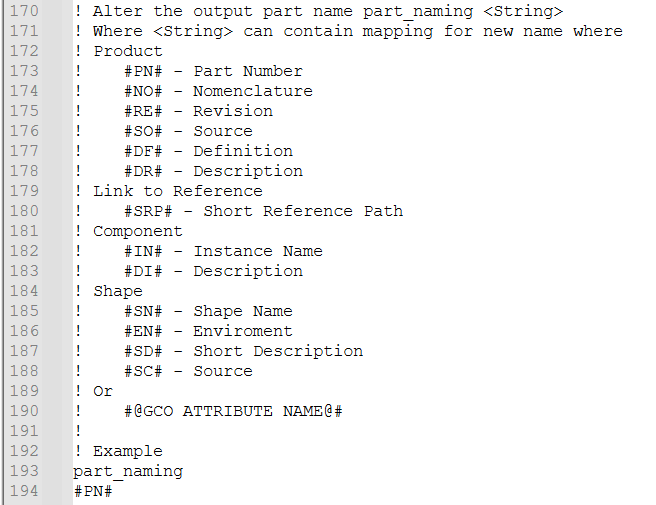

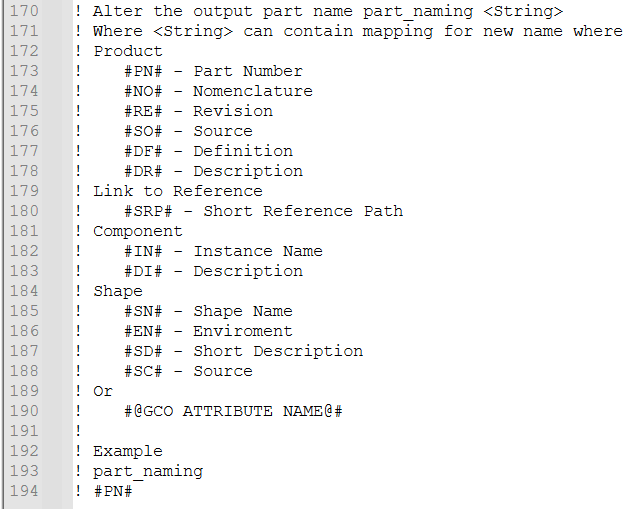

When exporting data using DataExchangePLMBatch, ensure that the part_naming #PN# option has been turned on in the xcad_jt_opts.txt file. If this option is turned off then the JT file will be named the object name displayed in 3DExperience, (this is a 3DExperience generated name/number). The part_naming #PN# option is turned OFF by default.

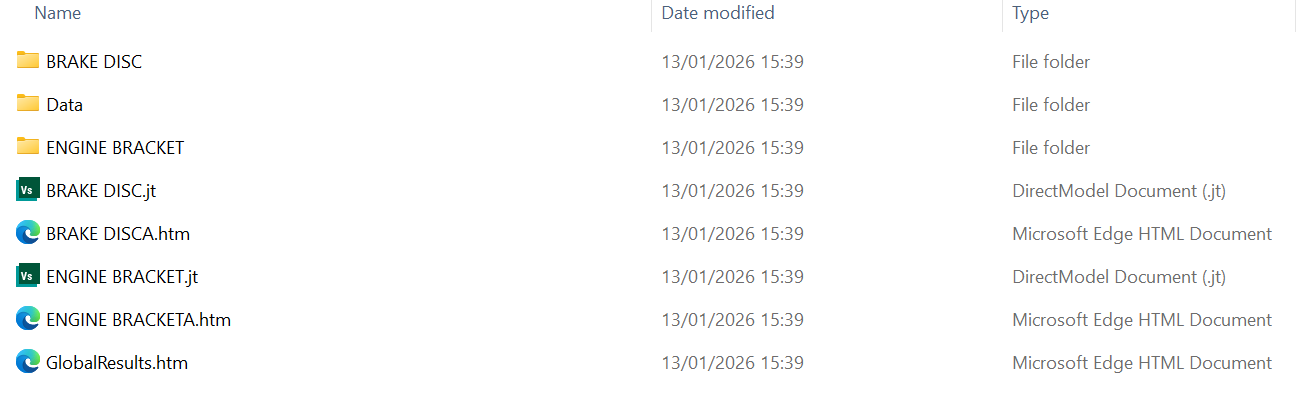

If the part_naming #PN# option is turned on then the JT file will be named the object title displayed in 3DExperience, (this is a user generated name/number). Removing the (!) character from both the part_naming and #PN# lines will turn this option on. Please note that the user will need to be in administrator mode in order to make the change.

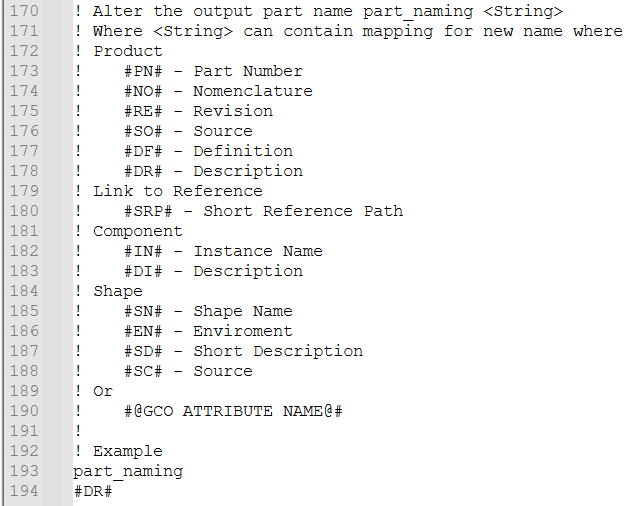

Please note that different attributes can also be used to name the output file, for example part_naming #DR# will name the JT file the object description.

Translating on the Command Line

It is possible to run a 3DExperience to JT translation on the command line, however as all CAD data is saved in the 3DExperience database an XML file will need to be used as the input file instead of a CAD file. This XML file contains all the necessary information to locate, open and translate the CAD data. This is explained in more detail below. In order to run a translation on the command line the following is required:

<installation_directory>\bin\catia6r<revision>_jt.cmd <input_file> -o <output_file> -z <config_file> <options>

Where <installation_directory> is the SpinFire Convert software installation directory.

Where <version> is the version of 3DExperience that you have installed – e.g. 2023x, 2024x, 2025x.

<input_file> is an xml file defining access to a specific object in the 3DExperience database.

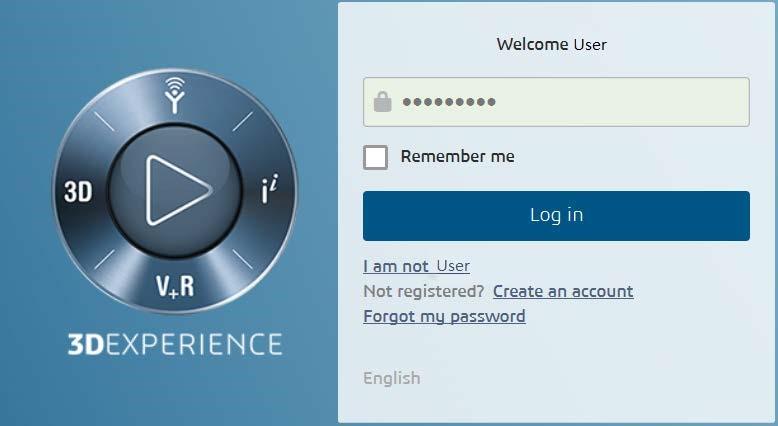

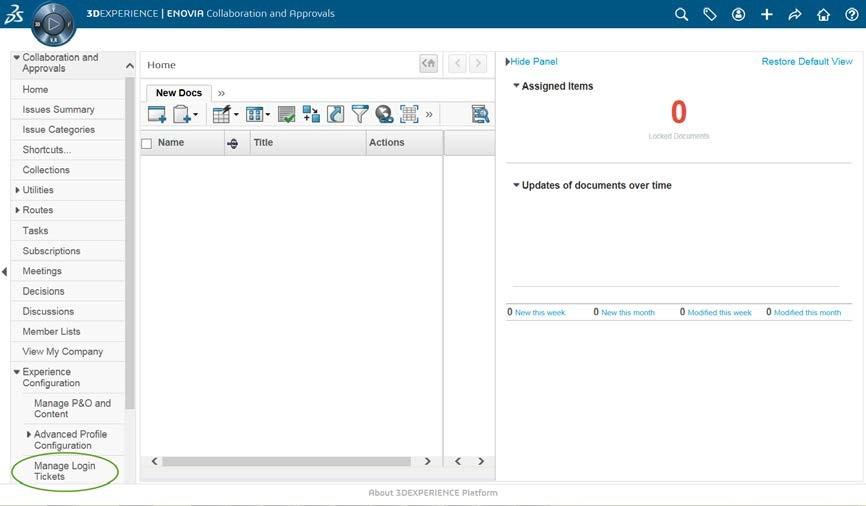

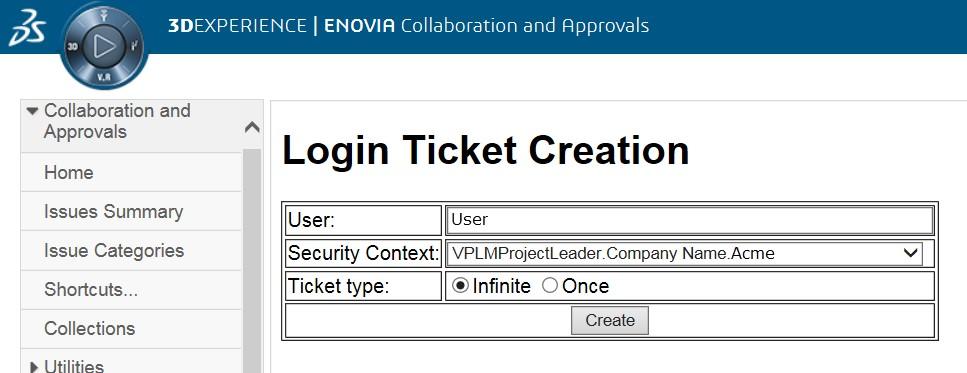

This file provides user login details (V6R2013x) or a Login Ticket (2015x onwards) (see :ref:`login-ticket`), to a specified Enovia repository plus a set of attribute names and values which will uniquely identify the input object required for the conversion.

Example XML files can be found in the <installation_directory>\samples\3dexperience folder. These can be modified and saved on your local drive.

Here is an example of the xml input file for 3DExperience:

<?xml version="1.0" encoding="utf-8"?>
<mc6_read>
  <!-- parameters must be in this ORDER -->
  <!-- parameters only the value passed to V6 -->
  <parameters>
    <attribute name="repository" value="PLM1"/>
    <attribute name="ServerName" value="https://3dspace-2025x-ga.theorem.com"/>
    <attribute name="ServerPort" value="443"/>
    <attribute name="ServerRootURI" value="3dspace"/>
    <attribute name="LoginTicket"
      value="MUQ3NThFQkI3NjQzNDc0NkFBRkRGMkJBN0I0MkZBNzl8c3..." />
    <attribute name="PLMType" value="VPMReference"/>
    <attribute name="ReportDirectory" value="C:\TEMP\V6Export"/>
    <attribute name="LicenseData" value="LIC"/>
    <attribute name="BatchXMLFileName" value="Default"/>
  </parameters>
  <!-- arguments both key and value are passed to V6 -->
  <arguments>
    <attribute key="PLM_ExternalID" value="prd-48351120-00012299"/>
    <attribute key="V_version" value="A"/>
  </arguments>
</mc6_read>

The PLM_ExternalID value will be the Name displayed in the properties of the object selected in 3DExperience. The V_version value will be the Revision displayed.

Please note that in some cases, a “minorrevision” value may be required in the XML file. For example, if the revision is A.1 then a value of 1 may be required. This attribute can be added below the V_version attribute in the XML file as per the format below:

<attribute key="PLM_ExternalID" value="prd-48351120-00012299"/>
<attribute key="V_version" value="A"/>
<attribute key="minorrevision" value="1"/>

-o <output_file> is the required JT output file name.

-z <config_file> is the name of the JT configuration file used for controlling the output characteristics described in JT Configuration File. -z <config_file> is not required in the command line if using the default configuration.

<options> – Options displayed in the configuration manager can be added at the end of the command using the correct syntax, e.g. disable_points, disable_wireframe. (See Configuration Manager, 3DExperience to JT for list of command line syntaxes.)

Log File Generation

Export Process Log Files

In the process of exporting the selected 3DExperience part or assembly, the following log files are generated by the JT Export plug-in.

• .err file – gives the full processing list of errors, warnings and information

• .rpt file – gives a short list of the entities created and failed

• .log.summary file – gives the times for start and finish and the status message code (these can be customised)

• .log file – gives a single file with the data from all three logs

The process log and error messages are, by default, located in the 3DExperience CATReport directory, e.g.

C:\Users\<user>\AppData\Local\DassaultSystemes\CATReport

Where <user> is your user name.

The files are named the same as the part or assembly being exported e.g. ENGINE_BRACKET would produce the following log file names:

• ENGINE_BRACKET.err

• ENGINE_BRACKET.rpt

• ENGINE_BRACKET.log.summary

• ENGINE_BRACKET.log

Additional log files are created in the TSC_TEMP_DIR directory. This directory is defined in the ts_env.bat file which can be accessed from within the SpinFire Convert install.

%TSC_TEMP_DIR%\Read_to_viewer_<input_part_name>.log

Where <input_part_name> is the name of the input part (or the active part name in interactive usage). This contains information describing the 3DExperience ‘data read’ processing into the SpinFire Convert Intermediate data format. Normally a list of entities.

%TSC_TEMP_DIR%\viewer_<part-name>_screen_output.log

Where <part-name> is the selected output file name. This contains the screen output of the process of writing the data to JT. The status of the translation can be found here.

%TSC_TEMP_DIR%\viewer_<part-name>.log

Where <part-name> is the selected output file name. This contains detailed process information of the write of the data to JT and contains additional information such as modifiers and options used.

Import Process Log Files

In the process of importing a JT file, the following log files are generated by the JT Import plug-in. These are the same types of files produced when exporting from 3DExperience.

• .err file

• .rpt file

• .log.summary file

• .log file

The process log and error messages are, by default, located in the 3DExperience CATReport directory, e.g.

C:\Users\<user>\AppData\Local\DassaultSystemes\CATReport

Where <user> is your user name.

The files are named after the selected input file name. e.g. nist_ftc_08_asme1_ct5240_rc.jt would produce the following log file names:

• nist_ftc_08_asme1_ct5240_rc.err

• nist_ftc_08_asme1_ct5240_rc.rpt

• nist_ftc_08_asme1_ct5240_rc.log.summary

• nist_ftc_08_asme1_ct5240_rc.log

3DExperience Environment Files

As part of the SpinFire Convert installation process, a set of 3DExperience environment files are created which are subsequently used in the launch of 3DExperience and CATUTIL sessions to support the plug-ins for JT import and export.

A ‘CATEnv’ file is created for each installed version of 3DExperience.

These environment files are located in the 3DExperience revision specific folder e.g.

• <installation_directory>\B425\win_b64\CATEnv\2023x_JT.txt

• <installation_directory>\B426\win_b64\CATEnv\2024x_JT.txt

• <installation_directory>\B427\win_b64\CATEnv\2025x_JT.txt

These files consist of the current 3DExperience settings along with the required SpinFire Convert settings appended at the bottom.

JT Configuration File

Introduction

A configuration file contains the settings for your translations. The configuration file can be specified using the command line option -z.

For interactive users the configuration file can be defined in the configuration manager within Preferences > App Preferences > SpinFire > SpinFire Convert.

By default, this is set to TS_INST\etc\tess.config

Alternatively, if translating using DataExchangePLMBatch, with the environment variable TS_IGNORE_JT_CATSETTINGS=1 set, the content of the TS_INST\data\jt\xcad_jt_opts.txt file will be used.

In this file, the default is also defined as “%TS_INST%etctess.config”

The JT configuration file contains various sections, each containing different settings based on the section.

The Setup Section

The setup options in the configuration file define how your files are translated. The setup section is the first part of the configuration file and contains a series of standard translator options.

To edit setup options:

1. Open an existing configuration file with a text editor.

2. Edit the configuration file options listed in the table below.

3. Save the configuration with a .config extension.

Option Name	Keywords	Example
EAITranslator	EAITranslator {	EAITranslator {
OutputDirectory	“path to directory”	OutputDirectory = "/home/<user>/"
CommonPartsPath	“path to directory”	CommonPartsPath = "/myaccount/jtparts/"
chordalOption	“RELATIVE”, “ABSOLUTE”	chordalOption = "RELATIVE"
structureOption	“PER_PART”, “MONOLITHIC”, “FULL_SHATTER”	structureOption = "MONOLITHIC"
WriteWhichFiles	“ALL”, “ASSEMBLY_ONLY”, “PARTS_ONLY”	WriteWhichFiles = "ALL"
compression	true / false	compression = true
triStripOpt	true / false	triStripOpt = false
seamSewing	true / false (Note: Not available for Unigraphics.)	seamSewing = true
seamSewingTol	any integer	seamSewingTol = 0.001
includeBrep	true / false	includeBrep = false
brepPrecision	“SINGLE”, “DOUBLE”	brepPrecision = "SINGLE"
autoNameSanitize	true / false	autoNameSanitize = true
updateChangedPartsOnly	true / false	updateChangedPartsOnly = false
verboseReporting	true / false	verboseReporting = false
writeAsciiAssembly	true / false	writeAsciiAssembly = false
singlePartsNoAssem	true / false	singlePartsNoAssem = false
smartLODgeneration	true / false	smartLODgeneration = true
autoLowLODgeneration	true / false	autoLowLODgeneration = true
numLODs	any integer	numLODs = 3
close brace		}

The Level of Detail (LOD) Section

The level of detail section of the configuration file contains the tessellation and simplification information for each level of detail in the file.

This section consists of several sets of level of detail (LOD) information, and the number of these sets depends on the number you specified on the numLODs line in the configuration file.

To edit level of detail options:

1. Open an existing configuration file in a text editor.

2. Edit the configuration file options listed below.

3. Save the configuration with a .config extension.

Option Name	Keywords	Example
LOD	LOD "lod number" {	LOD "1" {
Level	any integer	Level = 1
Chordal	any number	Chordal = 0.001
Angular	any number	Angular = 25
Length	any number	Length = 1
FeatureSuppression	any integer	FeatureSuppression = 0
Simplify	any number	Simplify = 0.60
close brace		}

The Filter Section

The filter section of the configuration file contains the filename and metadata filtering information. Edit this section if you want to change how the translator sanitizes filenames and filters metadata keys.

To edit filter options:

1. Open an existing configuration file with a text editor.

2. Edit the configuration file options from the table below.

3. Save the configuration with a .config extension.

Option Name	Keywords	Example
Filter	Filter {	Filter {
FilenameSanitizeSet	“string of characters”	FilenameSanitizeSet =
FilenameSanitizeSetAdd	“string of characters”	FilenameSanitizeSetAdd = "4l"
FilenameSanitizeSetDelete	“string of characters”	FilenameSanitizeSetDelete = "c"
MetadataKey	“string of characters”	MetadataKey = "metadata key to exclude"
close brace		}

The Metadata Section

The metadata section sets which metadata to attach to all parts, assemblies and nodes of the model.

Note

Be sure to add these options to the configuration file in pairs: one line to define the metadata key and one line to define the metadata value.

To edit metadata options:

1. Open an existing configuration file (.CONFIG) in a text editor.

2. Edit the configuration file options shown in the table below.

3. Save the configuration with a .config extension.

Option Name	Keywords	Example
Metadata	Metadata {	Metadata {
AddToParts	“string of characters”	AddToParts = "<metadata key>" / AddToParts = "<metadata value>"
AddToAssemblies	“string of characters”	AddToAssemblies = "<metadata key>" / AddToAssemblies = "<metadata value>"
AddToAllNodes	“string of characters”	AddToAllNodes = "<metadata key>" / AddToAllNodes = "<metadata value>"
close brace		}

Example JT Configuration File

Below is an example JT configuration file:

version "EAITranslator" 1.0.1 "EAITranslator"
EAITranslator {
    OutputDirectory = "./"
    CommonPartsPath = ""
    chordalOption = "ABSOLUTE"
    structureOption = "PER_PART"
    writeWhichFiles = "ALL"
    compression = true
    advCompression = true
    advCompressionLevel = 0.0
    JtFileFormat = "95"
    triStripOpt = true
    seamSewing = false
    seamSewingTol = 0.001
    includeBrep = true
    includeGeom = true
    autoXtBrep = false
    brepPrecision = "DOUBLE"
    autoNameSanitize = false
    nameSanitizeMacro = ""
    updateChangedPartsOnly = false
    verboseReporting = false
    writeAsciiAssembly = false
    singlePartsNoAssem = true
    autoLowLODgeneration = false
    smartLODgeneration = true
    numLODs = 3
    includeULP = "PASSTHROUGH"
    ulpPrecision = 0.001
}
Filter {
}
Metadata {
}
LOD "1" {
    Level = 1
    Chordal = 0.2
    Angular = 5
    Length  = 0.0
    Label = "ud_FINE"
    FeatureSuppression = 0
    Simplify = 1.0
    AdvCompressionLevel = 0.0
    ULP = false
}

Large Assembly Processing (LAP)

Overview

The export of large assemblies from 3DExperience to JT may be handled using the default process, or a new Large Assembly Processing method. This new process is as follows:

The assembly is read from 3DExperience using the MultiCAD interfaces as normal, but only the assembly structure is directly converted to a main output JT file.

The reference to the geometry for each individual component part node in the assembly is written to separate .xml files. This part of the process takes minimal time and processing resource.

As each of the individual .xml files are created, an entry is made into a batch processing file to allow subsequent conversion of the geometry data into the output JT files required for the complete assembly.

LAP Options

The following option support has been added into the 3DExperience to JT product to support Large Assembly Processing (LAP). This can be modified in the xcad_jt_opts.txt file.

Option	Description
struct_read (mandatory)	This option causes only the CATIA assembly structure to be written to the specified output jt file.
large_assy_process (mandatory)	This option invokes the creation of separate intermediate data files representing each assembly ‘leaf node’ (component/part) containing the part geometry. This option should always be used with the ‘struct_read’ option. A batch command file (.bat) is also created and this contains a sequence of individual commands to convert the intermediate data files into the required jt files representing the part/component geometry. The default name for the generated batch file is <output_file_path>.bat, e.g if the output file name was C:\parts\jt\assembly1.jt, the batch file name would be C:\parts\jt\assembly1.bat.
write_assembly_script (optional)	This option allows the user to specify a non-default file name path for the batch command file generated by the large_assy_process option.
autorun (optional)	This option will cause the batch command script to be automatically invoked when the main conversion process ends.
zpart (optional)	This option specifies the name of a JT write config file to be used in the batch file conversions for creating the jt files representing the part geometry. This will override the -z option used for the main assembly conversion.

Command Line Operation

The options for Large Assembly Processing can be used as command line options on the catia6_jt.cmd. (See Translating on the Command Line.)

Interactive Operation

The Large Assembly Processing facility can be used in interactive mode by including the required options in the %TS_INST%\data\jt\xcad_jt_opts.txt file.

DataExchangePLMBatch Operation

The Large Assembly Processing facility can be used in DataExchangePLMBatch mode.

For Interactive or DataExchangePLMBatch Large Assembly Processing, set the following in the relevant environment file, e.g. <installation_directory>\B427\win_b64\CATEnv\2025x_JT.txt:

TS_V6_LAP_INPUT_TEMPLATE=<XML File name>
TS_PLM_PRODUCT_REF_TYPE_NAME=VPMReference
TS_PLM_REPRESENTATION_TYPE_NAME=VPMRepReference

Where <XML File name> is the XML file used. See Translating on the Command Line for more information on XML Files.

Property Mapping Files

The selections of the displayed JT Config File (.config), Property Mapping files and PMI Type Filter Files are set through the configuration file:

%TS_INST%\data\jt\jt_mcad_options_configuration.txt

The format of the jt_mcad_options_configuration.txt is:

<jt_config_files>
Default TessCATIA6MultiCAD;%TS_INST%\etc\tessCATIAV6MultiCAD.config
</jt_config_files>
<jt_import_property_files>
Default Import Jt Property Filter;%TS_INST%\data\jt\jt_v6_property_mapping.txt
</jt_import_property_files>
<jt_export_property_files>
Default Export Jt Property Filter;%TS_INST%\data\jt\v6_jt_property_mapping.txt
</jt_export_property_files>
<jt_import_pmi_files>
Default Import PMI Type Filter;%TS_INST%\data\jt\jt_pmi_filter.txt </jt_import_pmi_files>

There is one option menu entry per line containing <Description> ; <Absolute File Path>

Where the <Description> is the text to be displayed in the option menu and the file path is the location of the JT write configuration file or the property filter. This path definition can include environment variables.

The user can control the mapping of user defined attributes contained in the PLM part definition and external files during the import and export processes.

The ‘JT Import Property Mapping File’ and ‘JT Export Property Mapping File’ are text files of a format described below:

A mapping file is used to control which properties are converted by setting a control value. Setting the control value to 0 will stop a specific property from being exported.

The mapping file can also enable the mapping of property names to new names: this is performed by switching the name between the input name (= field 1) and the output name (= field 2).

The file line format is as follows:

SourceName, TargetName, Control, Dummy, Dummy, Dummy Lines beginning with a "#" are taken as comment lines
SourceName - is the input attribute name.
TargetName - is the output attribute name (NULL means use SourceName)
Control - is flag to control conversion: 0 - Do not convert, 1 - Do convert, Dummy - unused fields
If SourceName is given as NULL then any item not included in map will match
So to include all other attributes use
NULL,NULL,1,,,
Or to exclude all other attributes use
NULL,NULL,0,,,
Examples
To exclude the MPARTNAME attribute
MPARTNAME,NULL,0,,,
To include the TAG attribute
TAG,NULL,1,,,
To include the TAG attribute but under a different name, i.e. PART NUMBER
TAG,PART NUMBER,1,,,

PMI Type Filter

The user can control the filtering of PMI types on import from JT by specifying an appropriate filter file. A default filter file is provided with the installation located as %TS_INST%\data\jt\jt_pmi_filter.txt. This file contains a list of all PMI types by name and can be edited to exclude different named types by removing a ‘#’ (comment character) from the type not required to be imported.

e.g. if the file is edited as follows:

# File for filtering on PMI type via the command : pmi_filter_file "file name"
#
# Line Format:-
# "pmi type"
#
# Lines that start with a '#' are ignored.
# The supplied file contains all possible PMI types in alphabetical order preceded by a '#'
#
# To prevent a particular PMI type from being processed, remove the '#' from that type
#
#arc spot weld
#attribute note
#balloon
#bead
#bundle dressing note
#callout dimension
center point
#centerline
#cert
point
#chamfer

Any PMI entities of type ‘center point’ would NOT be imported.

This facility was introduced to reduce processing time due to large numbers of ‘redundant’ PMI entities in a JT file.

Note that default settings that can control the JT Export plugin, are also read from the data file %TS_INST%\data\jt\xcad_jt_opts.txt.

Default settings that can control the JT Import plugin, are also read from the data file %TS_INST%\data\jt\jt_xcad_opts.txt.

JT Template Files

If, when a representation is read from 3DExperience, no geometry is found in the representation, all the geometry is hidden or a major write error occurs preventing a JT file being produced, then a template JT file (named by default as template_empty.jt, template_hidden.jt and template.jt respectively) will be copied to the expected output file name.

This enables the conversion process to complete successfully and maintains the expected file outputs.

This behaviour is implemented via environment variables set in the SpinFire Convert CATEnv file e.g. <installation_directory>\B427\win_b64\CATEnv\2025x_JT.txt, typically as follows:

TS_JT_TEMPLATE_FILE=C:\Program Files\SpinFire\SpinFire Convert\28.2\data\jt\template.jt
TS_JT_TEMPLATE_FILE_EMPTY=C:\Program Files\SpinFire\SpinFire Convert\28.2\data\jt\template_empty.jt
TS_JT_TEMPLATE_FILE_HIDDEN=C:\Program Files\SpinFire\SpinFire Convert\28.2\data\jt\template_hidden.jt

The user can change the content of these JT files, or their location and names as required.

Creating a Login Ticket

Use a browser link (similar to the one below) to your 3DExperience Server to create a Login Ticket.

https://3dspace.2017x.theorem.com:447/3dspace/common/emxNavigator.jsp

Login as normal, then select Collaboration and Approvals > Experience Configuration > Manage Login Tickets.

Select the values required for your user:

User and Security Context should already be set, make sure that Ticket Type ‘Infinite’ is selected. Then click on ‘Create’.

This will produce the ticket. See example below: -

REEyNzM3STE1MER2NDgxQzlFNzk1QzIwNjZGNATzDAN8Um9iaW58Um9iaW58fHwwfA==

This can then be used as the ‘LoginTicket’ value explained previously.

Translating Interactively from within 3DExperience – Version 27.0 and Earlier

Interactive Export to JT

Once the 3DExperience application has been launched, open the product or representation that is going to be exported to JT.

Select the arrow in the top right corner, then from the list displayed select Export.

In the Export dialog box displayed, ensure the ‘Format’ is set to JT_THEOREM (*.jt/*.plmxml/*.stpx). Select the required location for the file and ensure the Filename displayed is correct. Click OK to initiate the export to JT.

Export status of Succeeded displayed in Operation report window. JT files created in the location specified.

Interactive Import to 3DExperience

Once the 3DExperience application has been launched, it is possible for a model to be imported from JT. To do this select the ‘+’ icon in the top right corner, then from the list displayed select import.

In the Import dialog box displayed, ensure the ‘Format’ is set to JT_THEOREM (*.jt/*.plmxml/*.stpx). Click on the folder icon next to the Filename field and choose the required JT file, then click OK to initiate the import to 3DExperience.

Import status of Succeeded displayed in Operation report window. Imported data saved into the 3DExperience database and opened into a new tab in the user’s session.

Theorem Interactive Conversion Settings – Version 27.0 and Earlier

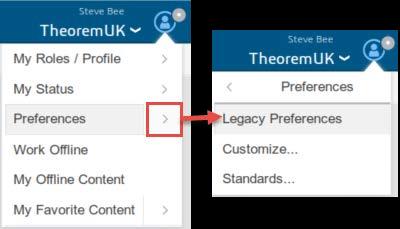

The 3DExperience interface does not currently require the user to apply any specific settings for the translation. There are some general settings that should be checked if required (e.g. for PMI conversion.) These are accessed through Preferences > Legacy Preferences > General > Compatibility > External Native 3D Formats.

This page is a standard Dassault Page that enables the user to set the preferred mode of conversion (in this case Exact). It also enables the user to apply general options such as ‘Convert coordinates system’ and ‘3D annotations’.

There are also some Theorem settings that can be applied. These are accessed through Preferences > Legacy Preferences > Infrastructure > Theorem.

Two dedicated tabs under ‘Theorem’ allow the user access to Theorem Configurations for importing from JT and exporting to JT. From this Panel, the user can select a predefined configuration or create a new configuration. Please follow the process defined in SpinFire Convert Interactive Conversion Settings for creating new configurations.
