User Guide

Latest Release: Version V19.2

Using the Product

Default Translations

Default Translation – via the Unified Interface

The Unified Interface can be started via the Start Menu – if a shortcut was added during installation.

Alternatively, the Unified Interface can be run via a Windows Explorer selection in:

<UI_installation_directory>\bin\Unified_Interface.cmd

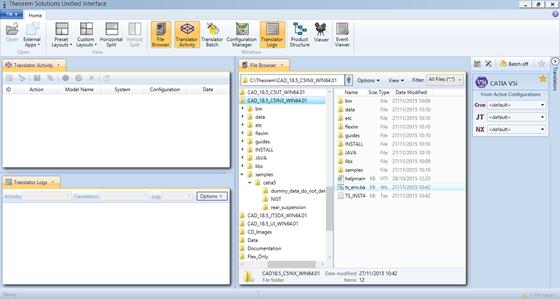

The following interface will be launched:

The default layout is split into 4 primary areas, which can be altered to the users preference:

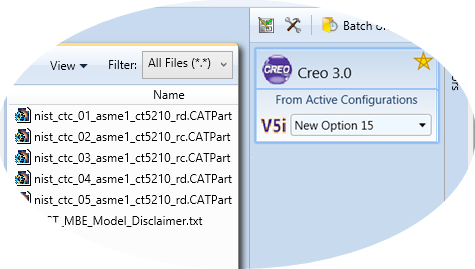

The simplest way to translate from CATIA V5 to CREO is to drag a file from the file Browser Pane on to the Active Configurations for the translation you require.

On completion, the Unified Interface will display the activity information and details from the log file created during the translation, if requested, in the Translation Activity and Output Log panes, respectively.

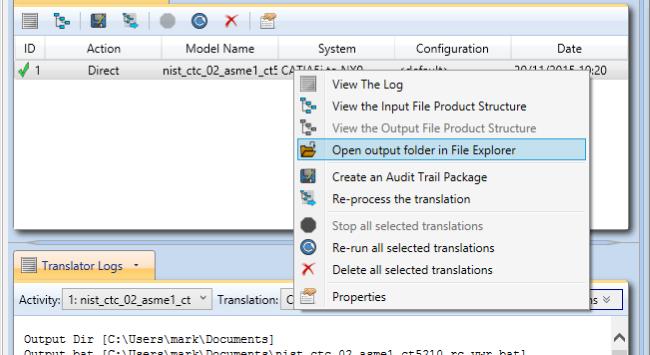

The generated output data can be located by selecting the translation from the Activity pane and opening the output folder:

Default Translation – via the Command Line (CATIA V5 to CREO)

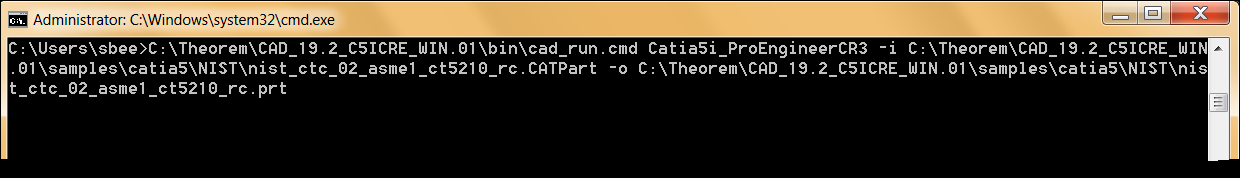

Running a translation via the command line can be carried out via the cad_run.cmd file located in the <installation_directory>\bin directory. The format of the command is as follows when translating from CATIA V5 to CREO:

<Translator_installation_directory>\bin\cad_run.cmd Catia5i_ProEngineerCR3 -i <input_file> -o <output_file>

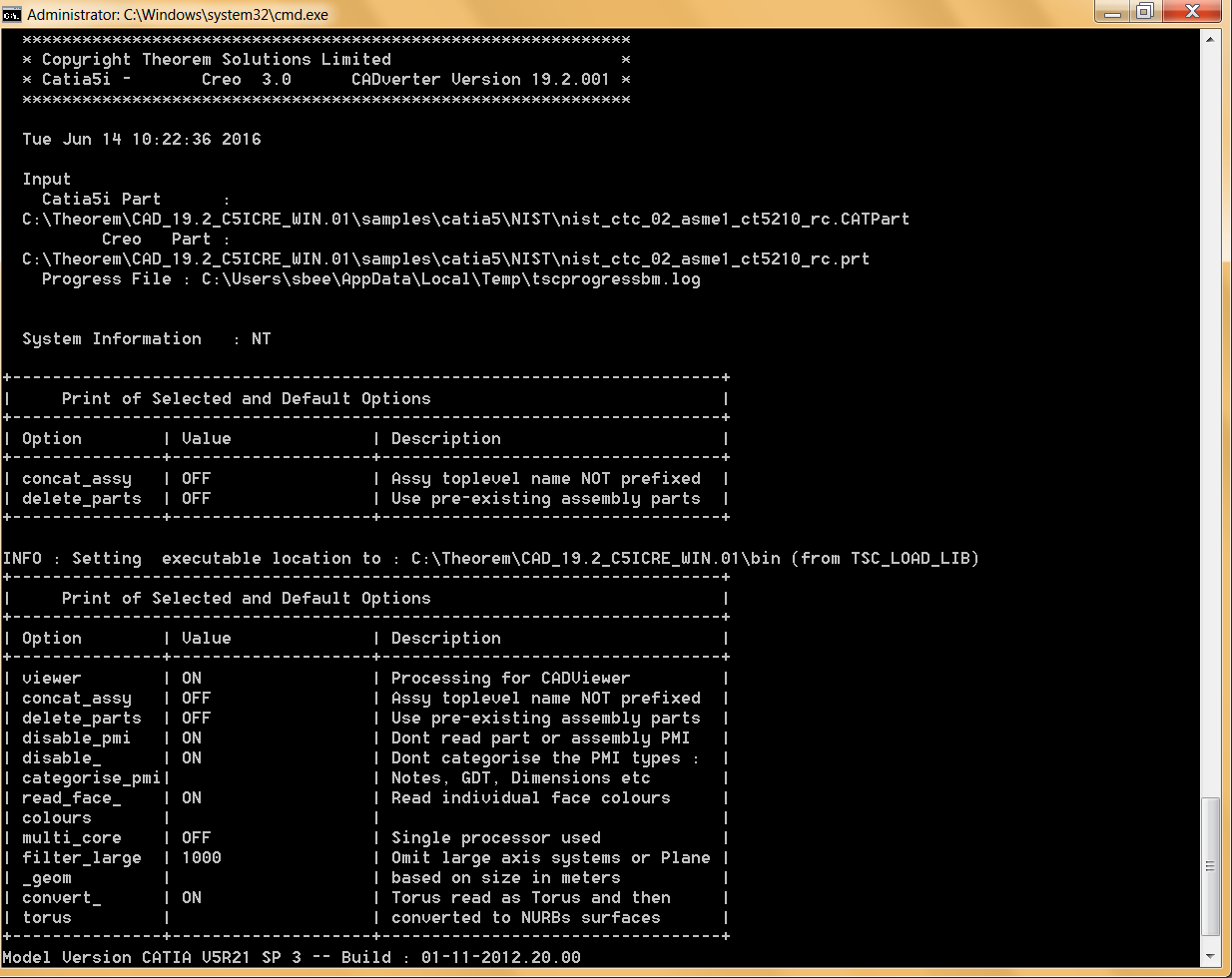

The example above will translate a CATIA V5 sample file provided within the installation and produce screen output similar to the following:

The file will be output to the target location. In this case:

%Theorem_Installation%\samples\catia5\NIST\nist_ctc_02_asme1_ct5210_rc.prt;1

Default Translation – via the Command Line (CREO to CATIA V5)

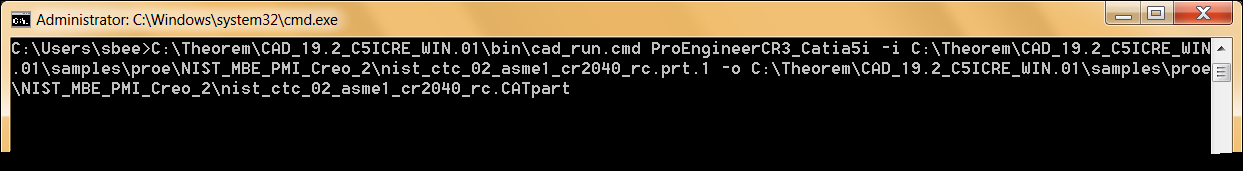

Running a translation via the command line can be carried out via the cad_run.cmd file located in the <installation_directory>\bin directory. The format of the command is as follows when translating from CREO to CATIA V5:

<Translator_installation_directory>\bin\cad_run.cmd ProEngineerCR3_Catia5i -i <input_file> -o <output_file>

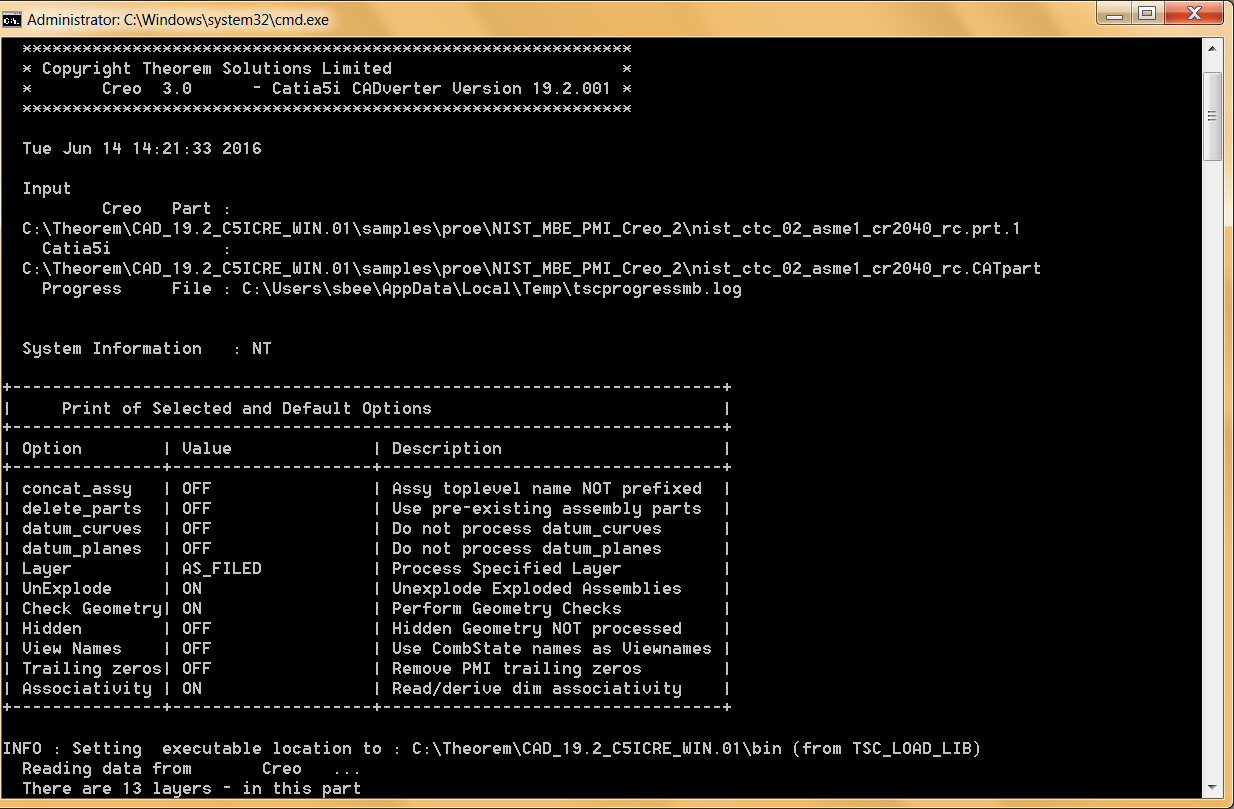

The example above will translate a CREO sample file provided within the installation and produce screen output similar to the following:

The file will be output to the target location. In this case:

%Theorem_Installation%\samples\proe\NIST_MBE_PMI_Creo_2\nist_ctc_02_asme1_cr2040_rc.CATPart

Translator Customization

The Theorem translator allows the information that is read from the source system and written to the target system to be tailored via a set of user specified arguments. Commonly used arguments are supported via the Unified Interface, with Advanced Arguments being described within this document for use in the Unified Interface or via the Command Line invocation.

Common Options for CATIA V5i to CREO

Within the Configuration Manager pane of the Unified Interface, arguments that can be specified when publishing CATIA V5 data into CREO are grouped into the following areas:

• CATIA V5i Read – Those arguments that affect how data is read from CATIA V5

• CREO Write – Those arguments that affect how the data is written to CREO

• Masking – Additional Read/Write options to limit the types of data translated e.g. Solids Only

• General – Those arguments that are common to ALL Publishing activities regardless of source data

CATIA V5i Read Arguments

The image below shows the CATIA V5I Read arguments that are available, with their default settings:

Each of these options is described below:

Option	Description
Retain Assembly Structure	Retain the assembly structure. Default is ON. Command Line Syntax: offditto – to disable – reduces an assembly to a single Part
Read Face Colours	Process face colours in preference to body colours. Default is ON. Command Line Syntax to turn off: disable_face_colours
Read PMI	Reads PMI data from V5. Command Line Syntax: read_pmi

CREO Write Arguments

The image below shows the CREO Write arguments that are available, with their default settings:

Each of these options is described below:

Option	Description
Simplify Geometry	Convert NURBS curves to analytics. Default is OFF. Command Line Syntax: simplify
Use existing Assembly Parts	Use any existing parts created by a previous translation. Command Line Syntax: use_parts

CATIA V5i to CREO Entity Mask Arguments

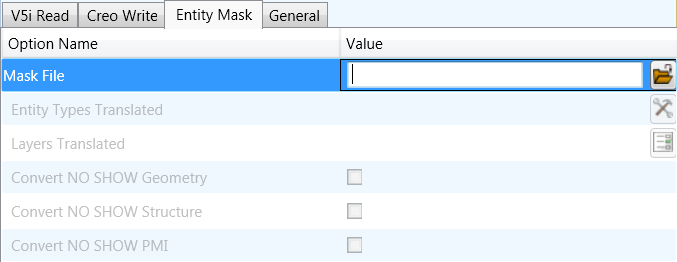

The image below shows the CATIA V5i to CREO Entity Mask arguments that are available, with their default settings:

Each of these options is described below:

Option	Description
Mask File	Specifies the Mask File to be written to, that can be referenced by future translations. A Mask file MUST be specified if masking is required. The first line in this file is OFF ALL ENT: Command Line Syntax: Mask <filename>
Entity Types Translated	Specifies a selection list from which to select which entity types are to be processed. The following types are available: “POI” – Masks any 0D entity “CUR” – Masks any 1D entity “SKIN” – Masks any 2D entity “SOL” – Masks any 3D entity “ISOL” – Masks Isolated facetted solids “TEXT” – Masks PMI Text “AXIS” – Masks Axis Systems Command Line Syntax: Add any of the above to the specified mask file, one entry per line prefixed by the word ON e.g.: ON POI to ensure they are considered in the translation
Layers Translated	Specifies a selection list from which to select which layers are to be processed. Command Line Syntax: A single entry of ON ALL LAY Must precede any Layer Mask command. Add a list or range of numbers representing layer to be processed to the specified mask file to ensure they are NOT considered in the translation e.g.: OFF LAY 114,149,166,167,168
Convert No Show Geometry	Enables Hidden Geometry to be processed (Default = Off). Command Line Syntax: Add the following entry to the Mask file ON NOSHOW
Convert No Show Structure	Enables Hidden Assembly Structure to be processed (Default = Off). Command Line Syntax: Add the following entry to the Mask file ON NOSHOW STR
Convert No Show PMI	Enables Hidden PMI to be processed (Default = Off). Command Line Syntax: Add the following entry to the Mask file ON NOSHOW PMI

CATIA V5i to CREO General Arguments

The image below shows the General arguments that are available, with their default settings:

Each of these options is described below:

Option	Description
Mass Properties	CATIA V5 mass properties (volume/area CofG) are read and any applied materials, using this option, in cases where a part has multiple solids, volume and area values are summed, but CofG data is invalid. Command Line Syntax: mprops
Advanced	Allows any of the Command Line Advanced arguments documented to be passed to the Unified Interface invocation.

Common Options for CREO to CATIA V5i

Within the Configuration Manager pane of the Unified Interface, arguments that can be specified when publishing CREO into CATIA V5 data are grouped into the following areas:

• CREO Read – Those arguments that affect how data is read from CREO

• Catia5i Write – Those arguments that affect how the data is written to Catia5

• General – Those arguments that are common to ALL Publishing activities regardless of source data

CREO Read Arguments

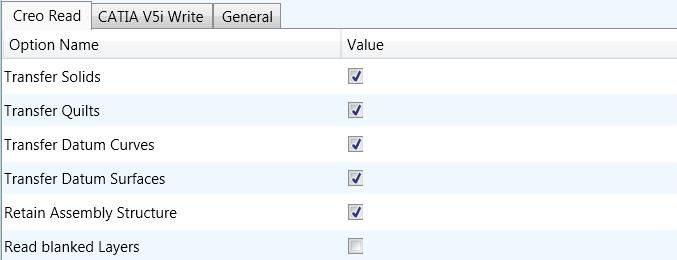

The image below shows the CATIA V5I Read arguments that are available, with their default settings:

Each of these options is described below.

Option	Description
Transfer Solids	Enables solid processing. (Default is on). Command Line Syntax: no_solids – to turn off
Transfer Quilts	Enables quilt processing. (Default is on). Command Line Syntax: no_quilts – to turn off
Transfer Datum Curves	Enables solid processing. (Default is on). Command Line Syntax: no_datum_curves – to turn off
Transfer Datum Surfaces	Enables solid processing. (Default is on). Command Line Syntax: no_datum_surfaces – to turn off
Retain assembly structure	This will retain the structure of an assembly. (Default is on). Command Line Syntax: Noditto – to turn off
Read Blanked Layers	Reads all layers, including blanked layers. (Default is off). Command Line Syntax: Layer ALL – to turn on

Catia V5i Write Arguments

The image below shows the CATIA V5I Write arguments that are available, with their default settings:

Each of these options is described below:

Option	Description
Save Catia5 Version	Save a specified version of Catia5 data (default R25 (2015)). Command Line Syntax: save_catia5_version <version> Where versions are: 16 17 18 19 20 21 22 or 2012 23 or 2013 24 or 2014 25 or 2015
disable_points	Prevents point entities from being written. Command Line Syntax: disable_points
disable_wireframe	Prevents wireframe entities from being written. Command Line Syntax: disable_wireframe
Create CGR	Writes data as a CGR file. Command Line Syntax: Create_CGR

CREO to CATIA V5i General Arguments

The image below shows the General arguments that are available, with their default settings:

The option is described below:

Option	Description
Mass Properties	CATIA V5 mass properties (volume/area CofG) are read and any applied materials, using this option, in cases where a part has multiple solids, volume and area values are summed, but CofG data is invalid. Command Line Syntax: mprops
Advanced	Allows any of the Command Line Advanced arguments documented below to be passed to the Unified Interface invocation.

Command Line Advanced Arguments

Any of the Advanced arguments can be added to the Command Line Invocation or to the General->Advanced field when run from within the User Interface.

CATIA V5i to CREO Advanced Arguments

Option	Description
Simplify Curves	Convert NURBS curves to conics. Default is OFF. Command Line Syntax: simplify_curve
Convert Curves to NURBS	Convert curves to NURBS. Default is OFF. Command Line Syntax: convert_curves
Conversion Tolerance (Curves)	A secondary argument to ‘Convert Curves’ defining the conversion tolerance. Default is 0.00001. Command Line Syntax: convert_curve_tol 0.00001
Convert Surfaces to NURBS	Process data (read) types as NURBS. Data type is selected from options. Default is Fillets. Command Line Syntax: None: dont_convert_fillets Fillets: Default Option. Spheres: dont_convert_fillets convert_spheres Fillets + Spheres: convert_spheres All: convert_surfaces
Convert Torus to NURBS	Even when data is read as NURBS data, the Torus types are converted to NURBS by default, this can be disabled using the command line. Command Line Syntax: dont_convert_torus
Conversion Tolerance (Surfaces)	A secondary option to ‘Convert Surfaces to NURBS’. Defines the conversion tolerance. Default is 0.00001. Command Line Syntax: convert_surface_tol 0.00001
Trim Face Surfaces	Trims face surfaces. Default is ON. Command Line Syntax: dont_trim_surfaces
Process Large Faces	Enable reading of faces larger than 1km. Default is OFF. Command Line Syntax: allow_large_faces
UDF Axis Systems	Enable reading of User Defined Axis systems. Default is OFF. Command Line Syntax: read_udf_axis – to turn on
Graphical Read	By default the BREP data will be read. It is possible to read the CATIA V5 data as a graphical representation using this option. Command Line Syntax: enable_graphical
Filter Geometry	It is possible to filter large planes (construction planes) larger than a given size using (default being 1000 meters). Command Line Syntax: filter_large_geom <meters> There is a special case for PLANES (typically construction planes) which by default are not read, these can be enabled using: Command Line Syntax: read_planes

CREO to CATIA V5i Advanced Arguments

This section will be updated in a future release.

Advanced Option	Description
