User Guide
Using the Product
PUBLISH On-Demand
By default the PUBLISH for Creo translator will translate source data using a default template.
This template can be used as a basis for a customer’s specific template design and illustrates fundamental capabilities of the translator with regard to publishing 3D data into a predefined document format.
More complex template examples are provided in the following the locations:
<installation_directory>\data\publish_3dpdf\
default_Manifest – Illustrates various Adobe capabilities
publishBlank – Illustrates publishing to a blank template
<installation_directory>\data\publish_3dpdf\templates\
publishBOM – Illustrates how to output an Assembly Bill of Materials
publishMotion – Illustrates using CAD data with motion in PDF
publishViewer – Illustrates JavaScript additions to a template replicating a CAD viewer
publishECR – Illustrates a simple Engineering Change Request
publishRFQ – Illustrates a simple Request for Quotation
publishAttachments – Illustrates adding attachments to a template
These templates are supplied as examples only and can be used by customers as a guide to creating their own template documents.
Theorem offer a wide range of services to assist customers with their document creation needs. If you would like more information regarding our template design services please contact sales@theorem.com quoting “3D PDF Template Design”.
Default Publishing
Default Publishing – via the Unified Interface
The Unified Interface can be started via the Start Menu – if a shortcut was added during installation.
Alternatively, the Unified Interface can be run via a Windows Explorer selection in:
<UI_installation_directory>\bin\Unified_Interface.cmd

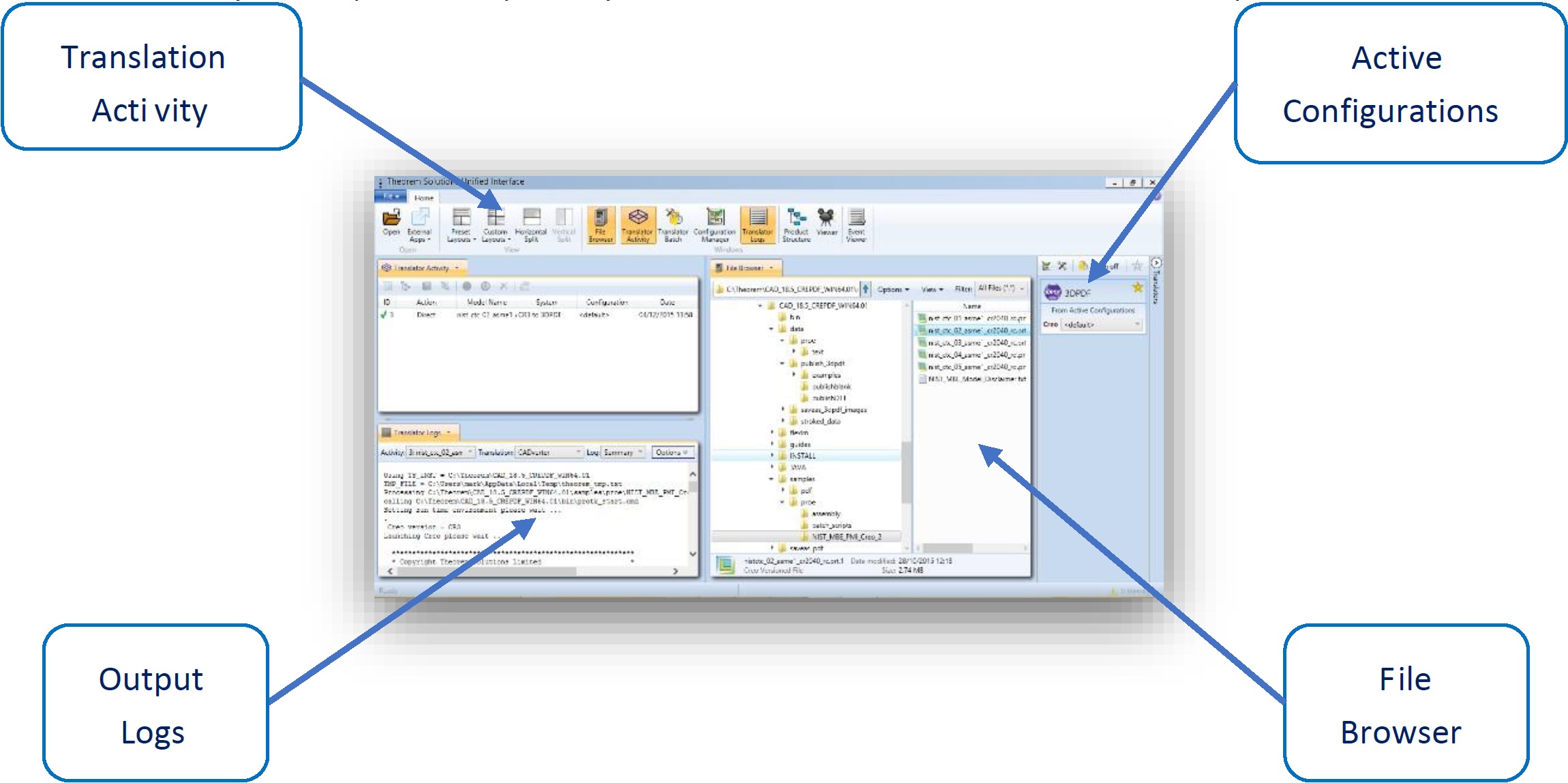

The following interface will be launched:
The default layout is split into 4 primary areas, which can be altered to the user’s preference:

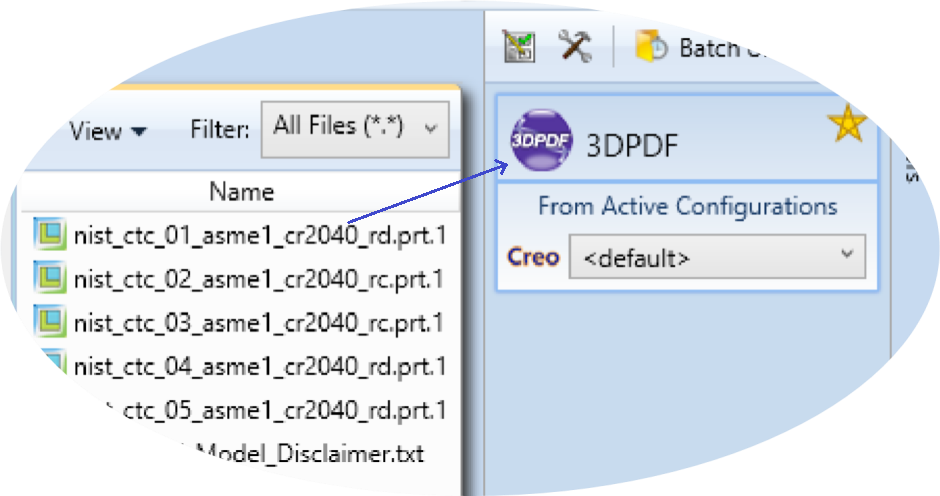

The simplest way to publish a Creo file in 3D PDF is to drag a file from the file Browser Pane on to the 3D PDF Active Configuration. This will create a PDF file based upon the default template.

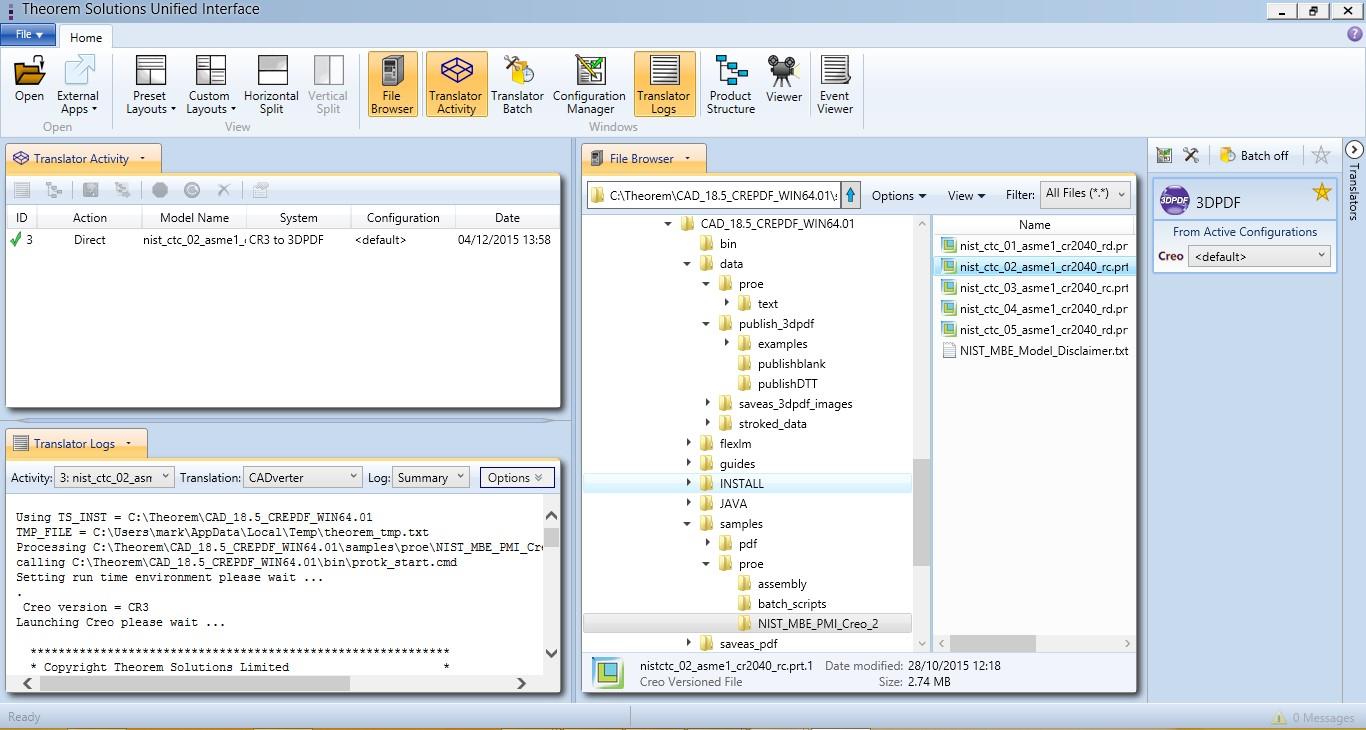

On completion, the Unified Interface will display the activity information and details from the log file created during the translation, if requested, in the Translation Activity and Output Log panes, respectively.

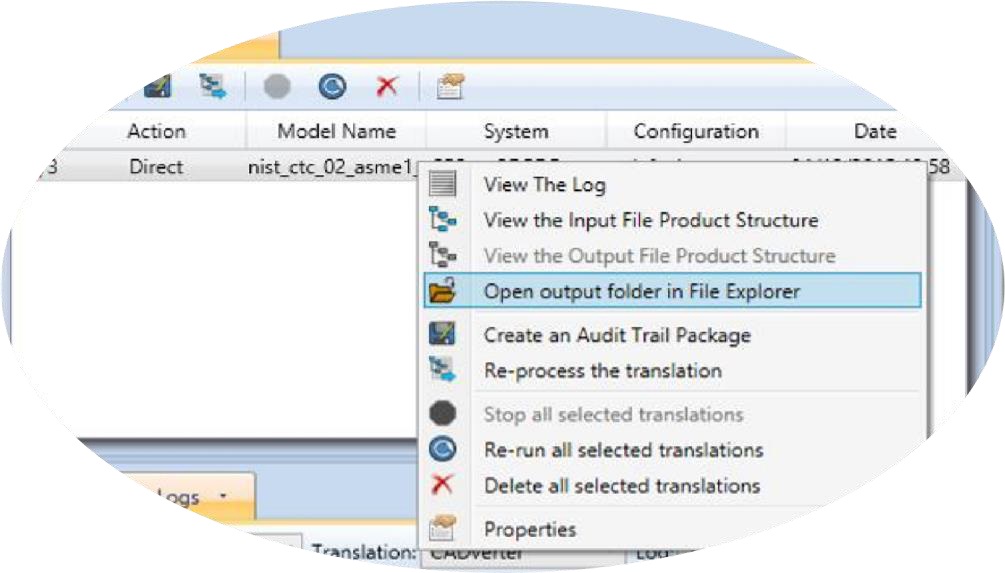

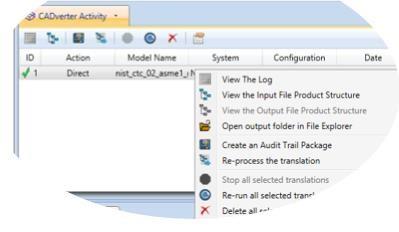

The generated output data can be located by selecting the translation from the Activity pane and opening the output folder:
Default Publishing – via the Command Line

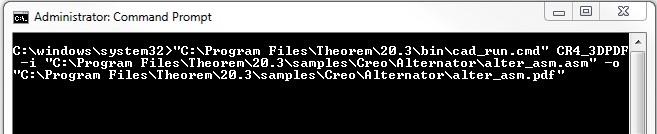

Running a translation via the command line can be carried out via the cad_run.cmd file located in the <installation_directory>\bin directory. The format of the command is as follows (Note! Replace the [version] from the example with your version of Creo, e.g. for Creo 3.0 use CR3 and Creo 4.0 use CR4):
<Translator_installation_directory>\bin\cad_run.cmd CR[version]_3DPDF –i <input_file> -o <output_file>

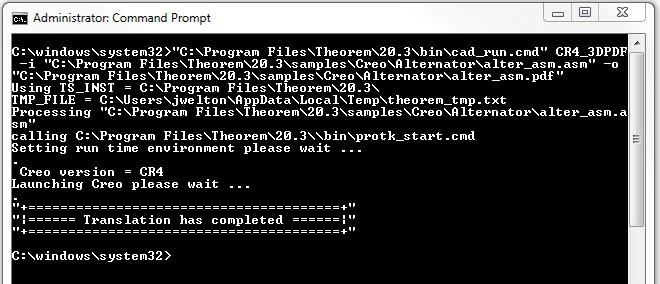

The example above will translate a sample file provided within the installation and produce the following screen output:
The file will be output to the target location. In this case:
C:\Program Files\Theorem\20.3\samples\Creo\Alternator\alter_asm.pdf
Publishing to Specific List of Templates
Publishing to Targeted Templates – via the Unified Interface
It is possible to publish to an individual or multiple templates via one translation run using the Unified Interface. In order to do this, a new configuration will be required.

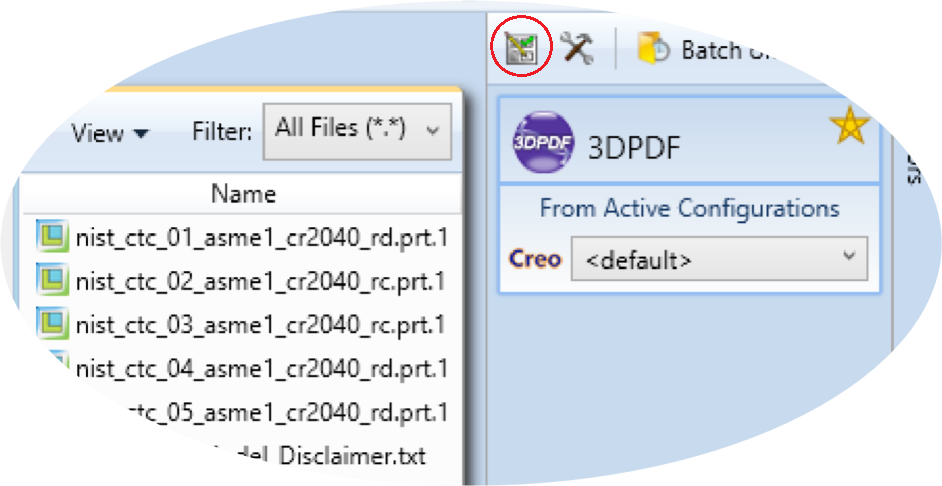

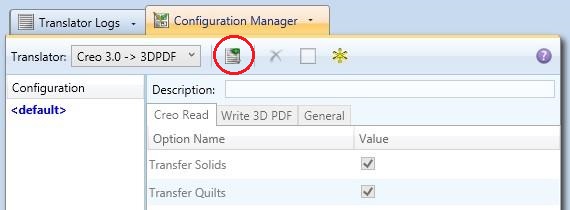

The Configuration Manager pane can be launched via the Active Configuration Pane or from the Ribbon Configuration Manager button:
OR
Select the ‘Configuration Manager’ option from the ribbon menu at the top of the Unfied Interface. This will then display the ‘Configuration Manager’ pane.

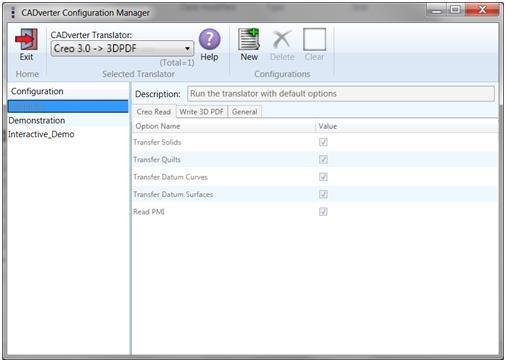

The Configuration Pane allows new configurations to be created based upon ALL available arguments within the PUBLISH application. Selecting the New Configuration icon will allow the user to change any PUBLISH argument.

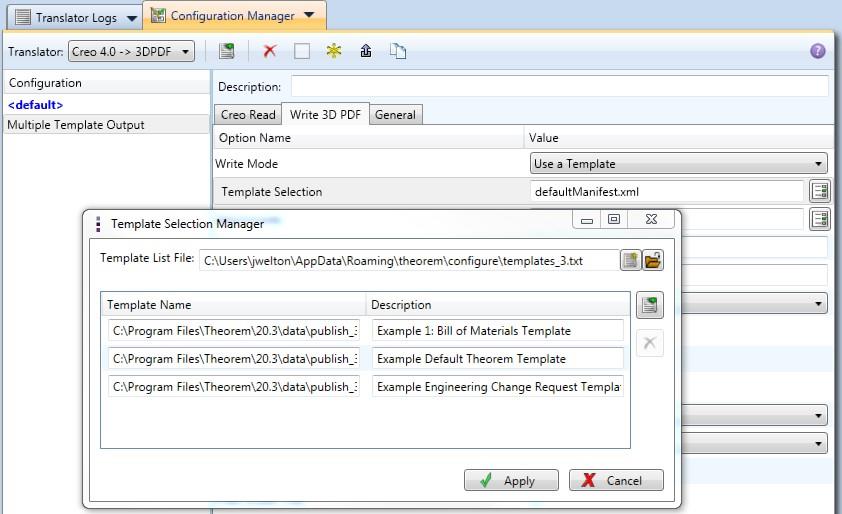

The panels below show the required selections to create a Configuration to create output based upon Multiple Templates (Note! The same method is used to target an individual template, by selected only one template):

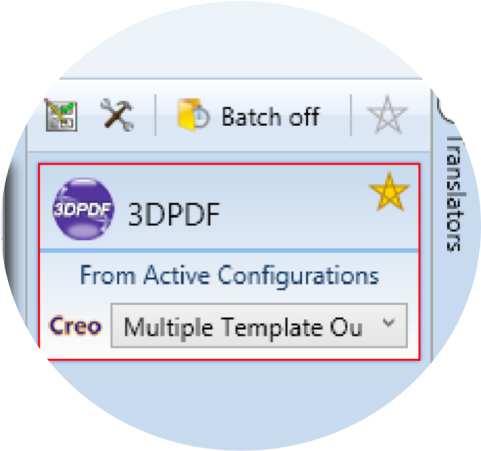

In order to run a translation using this configuration the Active Configuration setting for Creo to 3D PDF must be changed to The “Multiple Template Output” Configuration:
Once this has been done the translation can be invoked in the same manner as for the Default publishing mechanism
Publishing to Targeted Templates – via the Command Line
Publishing to an individual template or multiple templates can also be achieved via the command line interface.
First a list of target Manifest files that describe how to use a template must be created. (Note! For further information regarding our template design services please contact sales@theorem.com quoting “3D PDF Template Design”.) The list is provided via a text file in the following format:
<Translator_installation_directory>\data\publish_3dpdf\examples\publishBOM.xml<Translator_installation_directory>\data\publish_3dpdf\examples\publishDTT.xml<Translator_installation_directory>\data\publish_3dpdf\examples\publishECR.xml
Note! Each line points to an XML manifest file, examples of which are provided in the PUBLISH installation.
Once this file has been created the syntax for running a command to publish to multiple templates is as follows (Note! Replace the [version] from the example with your version of Creo, e.g. Creo 2.0 use CR2 and Creo 3.0 use CR3):
<Translator_installation_directory>\bin\cad_run.cmd CR[version]_3DPDF -i <input_file> -o <output_file> publish <manifest list>

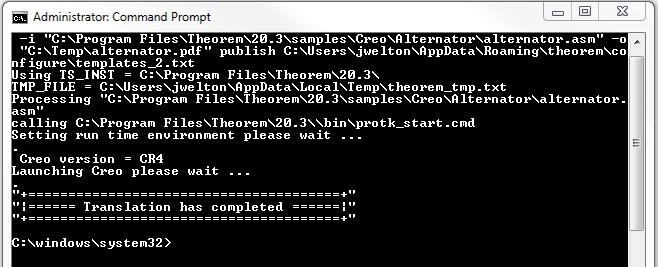

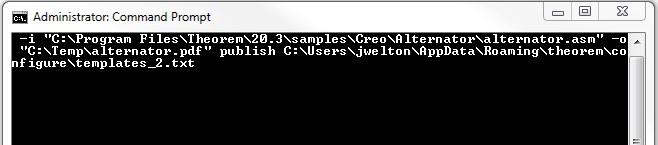

The example above will use the referenced template manifest list and will publish an output to each of the templates referenced via the manifest files provided, whether there be one or many in the list. The following screen output should be expected:
Publishing without a Template
Publishing without a Template – via the Unified Interface

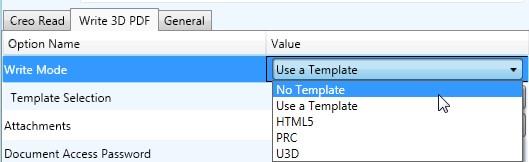

To run PUBLISH without a template in the Unified Interface, navigate to the configuration manager as described, and from the ‘Write Mode’ option in the ‘Write 3D PDF’ tab, select ‘No Template’. Save this configuration as previously described, you are now ready to publish without using a template.

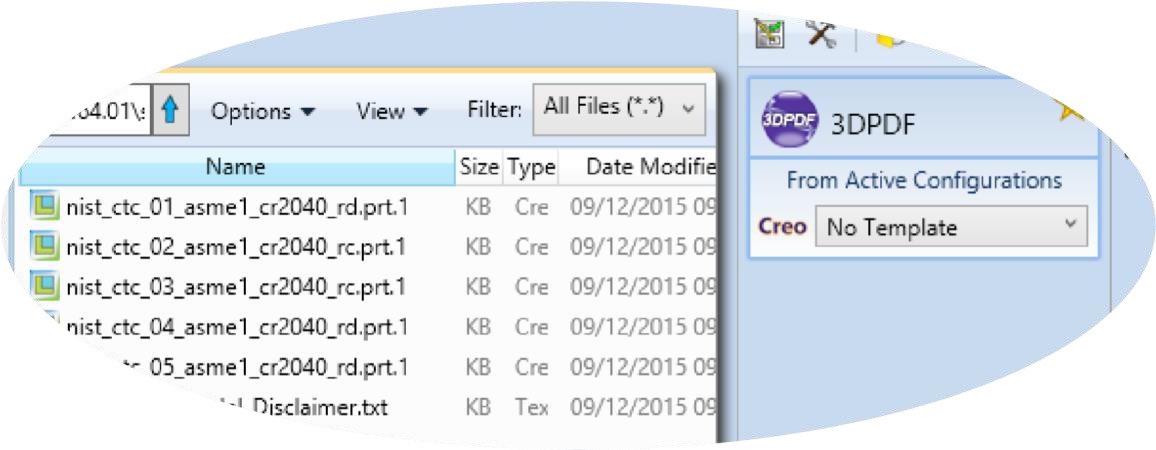

Now, in the ‘Active Configurations’ pane select your configuration from the menu and then ‘drag and drop’ your data to publish it to a PDF document.
On completion, the Unified Interface will display the activity information and details from the log file created during the translation, if requested, in the Translation Activity and Output Log panes, respectively. The generated output data can be located by selecting the translation from the Activity pane and opening the output folder:
Publishing without a Template – via the Command Line
Publishing without a template can also be achieved via the command line interface.

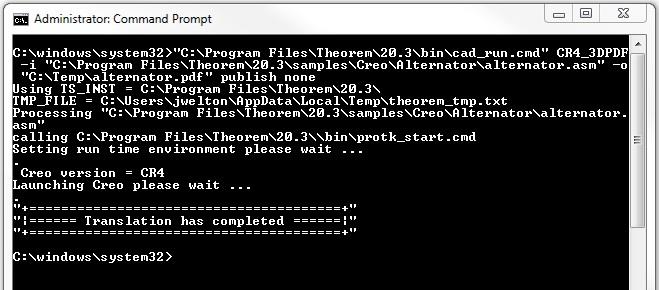

The syntax for running a command to publish without a template is as follows (Note! Replace the [version] from the example with your version of Creo, e.g. for Wildfire 5 use WF5; Creo 1.0 use CR1 and Creo 3.0 use CR3):
<Translator_installation_directory>\bin\cad_run.cmd CR[version]_3DPDF -i <input_file> -o <output_file> publish none

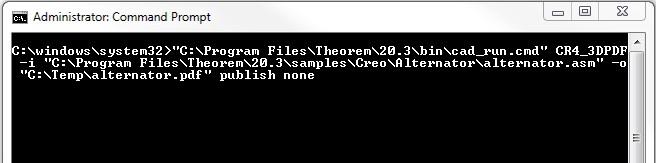

The example above will publish a PDF file containing the model data without any formatting. The following screen output should be expected:
PUBLISH Customization
PUBLISH allows the information that is read from the source system and written to the target system to be tailored via a set of user specified arguments. Commonly used arguments are supported via the Unified Interface, with Advanced Arguments being described within this document for use in the Unified Interface or via the Command Line invocation.
Common Options for Creo Publishing
Within the Configuration Manager pane of the Unified Interface, arguments that can be specified when publishing Creo data into 3D PDF are grouped into 3 areas:
Creo Read – Those arguments that affect how data is read from Creo
Write 3D PDF – Those arguments that affect how the data is written to 3D PDF
General – Those arguments that are common to ALL Publishing activities regardless of source data

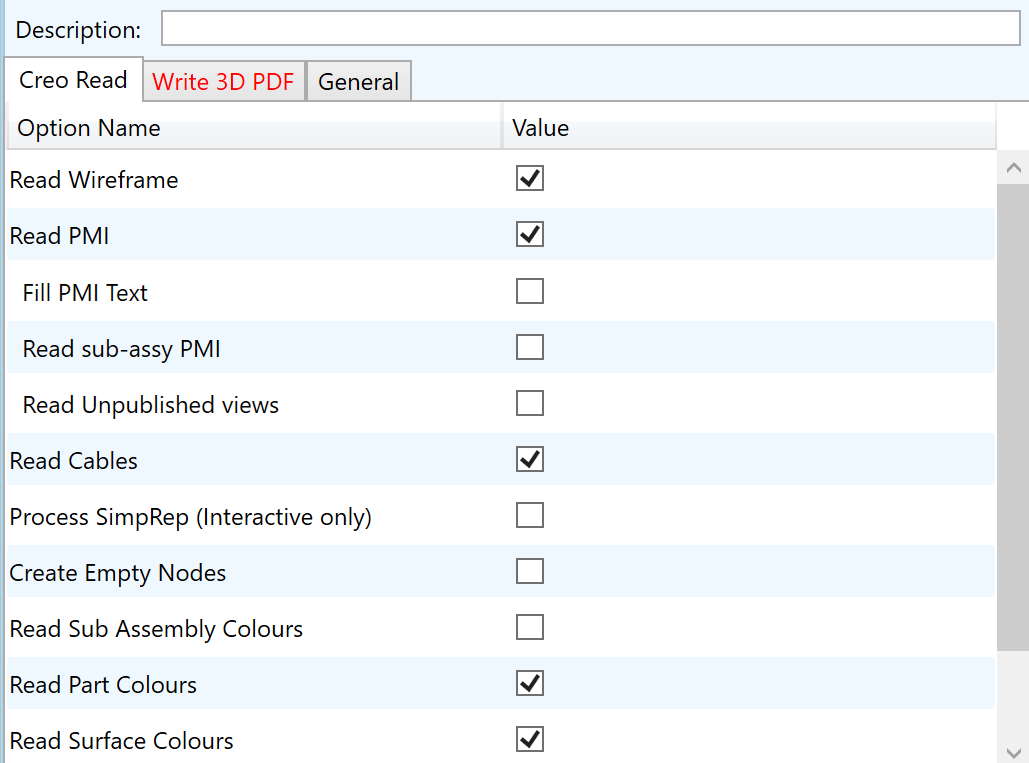

The image below shows the Creo Read arguments that are available, with their default settings:
Each of these options is described below:
Option |
Description |
|---|---|
Read Unpublished Views |
Unpublished views are no longer read by default. New option read_unpublished_views has been added to allow them to be read. |
Don’t read Wireframe |
Wireframe reading can now be turned off |
Read PMI |
Enables Datum Surface processing. (Default is on). Command Line Syntax:
|
Fill PMI Text |
this will make the text very bold and clear, but will increases file size and run time when parts with a lot of notes are run Command Line Syntax:
|
Read Cables |
Enables Electrical data to be read Command Line Syntax:
|
Process Simprep (Interactive only) |
Switches on the processing on Simplified reps |
Instance Processing |
If a list of Instance names has been generated (see above), or the specific Instance is known, this can be entered and the translation can be processed.
|
Instance Name |
Enter the name of the instance to process |

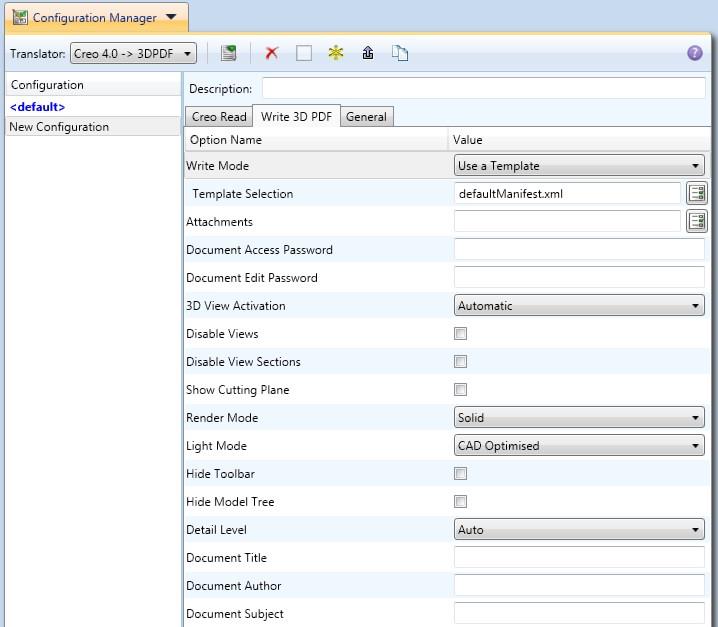

The image below shows the Write 3D PDF arguments that are available, with their default settings:
Each of these options is described below:
Option |
Description |
|---|---|
Write Mode |
Contains two options:
|
Template Selection |
Select which templates PUBLISH will use to create the output 3D PDF, if Write Mode is set to Use a Template (Default = defaultManifest.xml) Command Line Syntax: This is a secondary argument to the publish command. The argument can be a single xml manifest file to a text file containing a list of manifest files |
Attachments |
This option allows files to be attached to the output PDF file together with a brief description of the selected files. (Default is for no files to be attached) Command Line Syntax:
Where Attachment_List is a list of full path names to file followed by an optional description line: e.g. C:\TEMP\my_image.jpg
This is a jpg Image
C:\TEMP\report.txt
Report Document
C:\TEMP\related.pdf
C:\TEMP\another.pdf
This PDF has a description
Note in this example the ‘Related.pdf’ attached file doesn’t have the optional comment. The file path may contain environment variables which will be resolved. e.g. %TEMP%/myFile.pdf |
Document Access Password |
Contains two options selectable via a checkbox:
Note: If using in conjunction with the “Document Edit Password”, these 2 passwords must be different. |
Password |
Specify what the password is to be used. Command Line Syntax: See Document Access Password - This is a secondary argument to this command. |
Document Edit Password |
Contains two options selectable via a checkbox:
Note: If using in conjunction with the “Document Access Password”, these 2 passwords must be different. |
Password |
Specify what the password is to be used. Note this needs to be different to the Document Access Password Command Line Syntax: See Document Edit Password - This is a secondary argument to this command. |
3D View Activation |
Specifies how the 3D view in the resultant 3D PDF file is activated (Default is On Selection) Options are: Automatic, On Selection, Page Visible Command Line Syntax:
|
Disable Views |
Switch off any Captures/Views from being written into the PDF. (Default is off) Command Line Syntax:
|
Disable View Sections |
Switch off any sections within the Captures/Views from being written into the PDF. (Default is off) Command Line Syntax:
|
Show Cutting Plane |
Enable cut plane visualization (Default is off) Command Line Syntax:
|
Render Mode |
Controls which Rendering Mode to use for the model. Options are:
Command Line Syntax:
Where mode is set to one of the above values |
Light Mode |
Controls which Light Mode to use. Options are:
Command Line Syntax:
Where mode is set to one of the above values. Note! No command is required for the default value. |
Hide Toolbar |
Hide the 3D Toolbar in the resultant document. This can be re-enabled in Adobe if required. (Default is off) Command Line Syntax:
|
Hide Model Tree |
Hide the Model Tree in the resultant document. This can be re-enabled in Adobe if required. (Default is off) Command Line Syntax:
|
Detail Level |
The Detail Level option can be used to set the render quality of the resultant 3D PDF output. A number of discrete values are made available via the UI. They correspond to a relative chordal deviation (% of the diagonal length across the model bounding box) or absolute chordal deviation, whichever is the smaller. The following options are available:
For very large (detailed) parts the use of this option (Low or Very Low) can significantly reduce the size of the output PDF file and the time taken to produce it, at the cost of quality. A setting of Medium is seen as a good compromise, between quality and size. This value is the default value. Command Line Syntax:
Where value = ultra_low, v_low, low, med, high, v_high, off |
Document Title |
Set the Document Properties ‘title’ field. Command Line Syntax:
The text should be quoted |
Document Author |
Set the Document Properties ‘author’ field Command Line Syntax:
The text should be quoted |
Document Subject |
Set the Document Properties ‘subject’ field Command Line Syntax:
The text should be quoted |

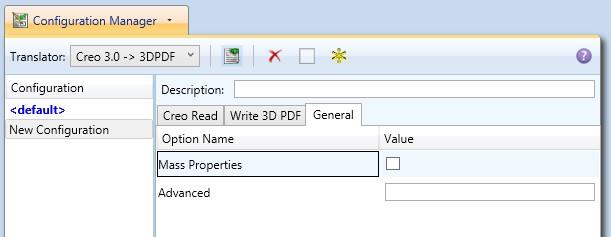

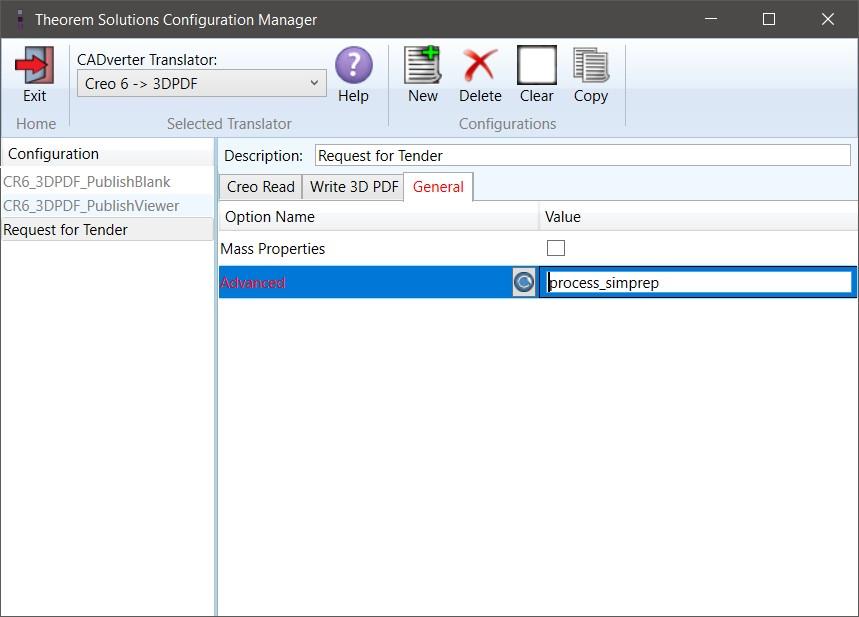

The image below shows the General arguments that are available, with their default settings:
Each of these options is described below:
Option |
Description |
|---|---|
Mass Properties |
Allows Mass Property information to be read from the source data and written as attributes to the PDF document (Default is off) Command Line Syntax:
|
Advanced |
Allows any of the Command Line Advanced arguments documented below to be passed to the Unified Interface invocation |
Command Line Advanced Arguments
Any of the advanced arguments can be added to the Command Line Invocation or to the General- >Advanced field when run from within the User Interface.
Important Note
It is important to understand the interaction/hierarchy which exists between template options files, config file and command line arguments will define the result. In essence the config file is a set of command line arguments and therefore will always over-rule the template options. Also if any commands specified in the ‘Advanced Options’ contradict the standard config file settings then they will take precedence.
Creo Advanced Arguments
Argument |
Description |
|---|---|
pmi_pcurves |
Store non planar PMI graphics (leaders not in the plane of the annotation) |
Transfer Solids |
Enables solid processing. (Default is on).
|
Transfer Quilts |
Enables quilt processing. (Default is on).
|
Transfer Datum Curves |
Enables Datum Curve processing. (Default is on).
|
Transfer Datum Surfaces |
Enables Datum Surface processing. (Default is on).
|
unique_occ |
Read multiple occurrences, eg support for occurrence PMI associations |
read_assy_pmi |
reads PMI in lower level assembly parts |
ignore_std_views |
Disable reading views with standard names (TOP, LEFT, etc). |
ignore_view_list <file> |
supply a list of view names to be ignored |
no_exploded_views |
Disables exploded views. |
part_level_views |
Default: off Enable the processing of Part Level Views within an assembly. |
part_level_views_moved |
Process part level views and move into assembly space, such that only one part instance’s views are displayed. |
part_level_pmi |
Default: off Enable the processing of PMI on parts within an assembly. |
view_part_name |
Uses the part name in the view names to help identify the views when selected in PDF |
views_geom_exploded <on | off | hybrid | hybrid2> |
Default: hybrid Geometry grouped into assembly nodes for views is by default done on a view bases, which re-uses geometry where possible. This option creates a node for every item of geometry so that the views can hide/show them in the views. This can (depending upon the data and views) reduce the resulting file size and shorten the translation time, BUT in some cases the PDF is slow to respond due to the VIEW limitations. exploded - off - create a node per view with all geometry / wire etc for that view explode - on - create nodes for very solid / wireframe etc that can be referenced by views hybrid (default) - mixture of explode on/off - solids being exploded and wireframe grouped (best compromise) hybrind2 - as hybrid with points also grouped |
fixup |
There are occasions when the source data presented for publishing to 3D PDF is invalid. In these circumstances, a validation of the data is carried out by the translator and the user is advised, via a message to the screen to re-run the translator, specifying the ‘fixup’ command line option. Specifying this option will allow the translation to complete, omitting any faces that are not topologically correct. |
hide_merged_quilts |
This hides any ‘Merged Features’ that are greyed out in the model tree to overcome the fact that the Creo APIs do not return the status as (Hidden/Not Active/NotVisible etc.) |
process_simprep |
Allows the user to specify the Simplified Representation that they wish to process. NOTE: This is currently only available in Interactive (Save As) mode. |
3DPDF Advanced Arguments
Argument |
Description |
|---|---|
progress_file <filename> |
Specify the log file for this process. |
info |
Add ‘info’ messages to the log file. |
no_inst_colours |
Switch off the writing of instance colours. |
no_colours |
Switch off the writing of any colours. |
no_attrs |
Switch off the writing of attributes into the PDF. |
no_pmi_edge_associations |
Disables edge highlighting |
no_poster |
By default a 2D poster is generated from the 3D model which can be very time consuming for a complex model. This option disables that process and uses a default JPG called TS_INST\data\saveas_3dpdf_images\no_poster.jpg. The user could replace this JPG file with their own if desired. |
background_RGB <r g b> |
Where r g b are values 1 to 255, this controls the background colour of the 3D display, which now defaults to pale grey (204,204,204). |
pmi_RGB <r g b> |
Where r g b are values 1 to 255, this controls the override PMI colour. By default PMI is displayed in the same colour as the source CAD system. When a colour is not read the default will be black. This option allows the PMI colour to be fixed to any colour, clearly this is a single override colour for all PMI. NOTE: It is recommended that this value is not set if colour coded PMI values are required |
wireframe_RGB <r g b> |
Where r g b are values 1 to 255, this controls the override Wireframe colour. By default wireframe is displayed in the same colour(s) as the source CAD system. This option allows the wireframe colour to be fixed to any colour, clearly this is a single override colour for all wireframe. |
process_wf <value> |
Where value = tess_low, tess_med, tess_high, nurb or off When this option is selected the wireframe entities are written as lines/conic/nurbs. This results in a wire node for each entity contained under the Wireframe node in the model tree, there could be many wire nodes in a complex model. If any of the settings prefixed tess are used, these options convert wireframe into a number of sampled points on the curve and writes wireframe as a Poly Line, this allows many wires to be combined. However a Poly Line can only be a single colour, so wireframe of the same colour will be grouped into a Poly Wire, which will be a wire node contained under the Wireframe node in the model tree, there will be a wire node for each colour, when multi colours exist. If however all wireframe is the same colour, all wireframe is contained in the Wireframe node. |
attr_filter_file <filter file> |
This is a method to define which attributes are masked or included during translation. By default there is an attribute filter file installed at: %TS_INST%\data\publish_3dpdf\attrFilters\defaultAttrFilter.txt This command line option allows this file to be overridden, such that the named file is used instead of the default. The file format is best explained by means of examples: MPARTNAME,,0,,, (Delete MPARTNAME attribute)FILENAME,F I L E (name),1,,, (Rename ‘FILENAME’ to ‘F I L E (name)’)FILESIZE,,3,big,, (Default (always) FILESIZE value to big)*END,,0,,, (Delete all attributes that end with ‘END’)Theorem*,,0,,, (Delete all attributes that start with ‘Theorem’) |
dump_attr_file <file> |
This is a utility which can be used to generate a text file with the Key/Value pairs from the GCO DESIGN, DITTO and DETAIL entities, this can be used in the ‘design’ of templates. |
hide_empty_node |
When assembly nodes contain no geometry, (could be due to missing part files) this option results in the model tree with ‘un- ticked’ nodes where no geometry was read. Where the 3DGeom node would be there will be a NoGeom node. Please node in order to activate this behaviour it was necessary to add a point at 0,0,0 which is contained by the NoGeom node. |
compress_tess <value> |
Where value = v_low, low, med, high, v_high, off These options can be used to control the tessellation setting, using the values 10,25,50,75,90%. These compression settings apply ONLY to PRC/U3D output files. |
add_standard_views_1st |
Force views to be first angle projection regardless of source data |
add_standard_views_3rd |
Force views to be third angle projection regardless of source data |
copy_part_attrs <on/off> |
Attributes on parts can be copied onto instance nodes with this option (default is off). (The user can enable dump_attr_file <file> option to confirm what attributes are available on part/instances, to check the effect of this option) |
cutplane_capping_off |
Disable section capping (Default is on) |
cutplane_RGB <r g b> |
When section cutting planes are enabled, the cutting plane colour can be controlled by r g b values in the range of 1 to 255 |
cutplane_opacity <val> |
When section cutting planes are enabled, the cutting plane opacity can be specified by setting ‘val’ between 0.0 and 1.0 |
cutplane_intersections |
Section cutting intersections can be enabled via this option. (Default is off) |
cutplaneIS_RGB <r g b> |
When section cutting plane intersections are enabled, the cutting plane intersection colour can be controlled by r g b values in the range of 1 to 255 |
enable_brep |
By default BREP data is omitted when the PDF file is generated so this options allows for such data to be retain. Do not use this option when the generation of BREP data in PDF is forbidden for legal or commercial reasons. |
fixup |
There are occasions when the source data presented for publishing to 3D PDF is invalid. In these circumstances, a validation of the data is carried out by the translator and the user is advised, via a message to the screen to re-run the translator, specifying the ‘fixup’ command line option. Specifying this option will allow the translation to complete, omitting any faces that are not topologically correct. |
fix_inst_names <on/off> |
By default this option is on. It will detect instances with no names and apply the part name to those instances. This accommodates cases where instance names are not available in the source data. |
launch_adobe_viewer |
This option will automatically display the resulting PDF file in an Adobe Reader. The environment variable TS_CMD_PATH_AND_EXE can be used to specify the Adobe application if it isn’t found in a default location. |
group_solids |
This can be useful when data is created with many open solids (1 per face). This can result in many 100’s or even 1000’s of solids which causes the 3D PDF file to have a massive entity tree, to be slower and larger than necessary, and with a Bounding Box for each face. Setting this option groups the solids into logical entities. |
dont_group_solids |
Some systems will group solids by default so this option allows that setting to be disabled. |
invisible <on/off> |
Wireframe entities that are marked as invisible are by default NOT processed. This option allows them to be processed. |
no_nx_camera_fixup |
By default extra checks are made to prevent views with clipped geometry. This flag disables these checks. |
pmi_assoc_limit <off/on> |
This option is used to limit the number of PMI to Geometry associations that exist for any single PMI node. The default value being 500. It has been found that in rare cases many 1000’s of associations exist and this has a significant effect on the translation time. If the limit is exceeded the log file reports the PMI entities names and reports an error, allowing the user to modify the limit, or review the PMI’s validity. |
set_perm <text option> |
Set the permissions for the PDF file, the options being “PRINT” or “LOCK”, if no options are set then the create PDF file is fully open, the “PRINT” setting allows the file ONLY to be printed, the “LOCK” setting ensure the document cannot be modified. (Be aware that with Adobe Writer it is possible to override any permission setting). |
set_perm_mask <int value> |
This allows the full control of all the permission settings when creating a PDF file, the in values need to be logically ORed together so 0x2 and 0x1 become 3. values are 0xHex (decimal) 0x01 (1) - DocumentPermOpen The user can open and decrypt the document. 0x02 (2) - DocumentPermSecure The user can change the document’s security settings. 0x04 (4) - DocumentPermPrint The user can print the document. Page Setup access is unaffected by this permission, since that affects Acrobat’s preferences - not the document’s. In the Document Security dialog, this corresponds to the Printing entry. 0x08 (8) - DocumentPermEdit The user can edit the document more than adding or modifying text notes (see also DocumentPermEditNotes). In the Document Security dialog, this corresponds to the Changing the Document entry. 0x10 (16) - DocumentPermCopy The user can copy information from the document to the clipboard. In the document restrictions, this corresponds to the Content Copying or Extraction entry. 0x20 (32) - DocumentPermEditNotes The user can add, modify, and delete text notes (see also DocumentPermEdit). In the document restrictions, this corresponds to the Authoring Comments and Form Fields entry. 0x40 (64) - DocumentPermSaveAs The user can perform a Save As…. If both DocumentPermEdit and DocumentPermEditNotes are disallowed, Save will be disabled but Save As… will be enabled. The Save As… menu item is not necessarily disabled even if the user is not permitted to perform a Save As… 0x100 (256) - DocumentPermFillandSign Overrides other DocumentPerm bits. It allows the user to fill in or sign existing form or signature fields. 0x200 (512) - DocumentPermAccessible Overrides DocumentPermCopy to enable the Accessibility API. If a document is saved in Rev2 format (Acrobat 4.0 compatible), only the DocumentPermCopy bit is checked to determine the Accessibility API state. 0x400 (1024) - DocumentPermDocAssembly Overrides various DocumentPermEdit bits and allows the following operations: page insert/delete/rotate and create bookmark and thumbnail. 0x800 (2048) - DocumentPermHighPrint This bit is a supplement to DocumentPermPrint. If it is clear (disabled) only low quality printing (Print As Image) is allowed. On UNIX platforms where Print As Image doesn’t exist, printing is disabled. 0x8000 (32768) - DocumentPermOwner The user is permitted to perform all operations, regardless of the permissions specified by the document. Unless this permission is set, the document’s permissions will be reset to those in the document after a full save. 0x10000 (65536) - DocumentPermFormSubmit This should be set if the user can submit forms outside of the browser. This bit is a supplement to DocumentPermFillandSign. 0x20000 (131072) - DocumentPermFormSpawnTempl This should be set if the user can spawn template pages. This bit will allow page template spawning even if DocumentPermEdit and DocumentPermEditNotes are clear. 0xFFFFFFFF - All permissions. |
expand_part |
This option creates a pseudo assembly structure below a part, such that each solid is modelled by a separate node. The default is to combine all solids that belong to the same part. Using this option can be useful when control over part with multiple solids is required, e.g. view/hide separate solids, however it should be noted that this option may compromise other functionality, such a PMI association. |
zoom_views_x <value> |
This option will magnify the view by the value provided, this is defaulted to 2.0 for all CAD systems. Values < 1.0 zoom out and values > 1.0 zoom in. The purpose of this option is to expose an adjustment factor that a given CAD system might need to best fit the VIEWS in PDF, this may be affected by the aspect ratio of the page size/template used in PDF write. Every effort has been made to set a good value by default. |
use_part_names <on/off> |
When ‘on’ the 3DGeom node names are replaced by the TAG name from the detail (part name). Default is off. |
pmi_flat_to_screen <on/all/off> |
This option enables the processing of flat to screen PMI data, the default is off. Please note fonts are not currently supported ‘on’ allows for FLAT TO TEXT types to be processed ‘all’ allows all FLAT TO SCREEN types to be process, however only the text and NOT the frames are processed |
attach_files_in_dir <dir> |
Attach ALL file found in specified directory |
add_meta_data <default or <file>> |
Option to append the attributes in PDF with useful data, like part count, which can be consumed by the templates. default - just add part count <file> - add the part count and process the file, such that 3 lines are processed: part_name // matches the detail (part name)
attr_name // name of attribute to be added
attr_value // value of the attribute to be added
|
move_subassy_pmi <on/off/all> |
Move the sub assy PMI to top level. “all” will reposition all PMI into global space which can be used for true assemblies |
PUBLISH Interactive
PUBLISH Interactive allows an active Creo Part or Assembly to be published directly into 3D PDF, directly from the Creo application.
In order to publish from within Creo, the Creo application must be started from within a Theorem environment, so that the appropriate Creo menus are loaded.
Creo can be started from a shortcut, if requested at installation time. Alternatively, it can be started via the script provided in the PUBLISH installation at:
<installation_directory>\bin\protk_start[version].cmd
(Where [version] should be substituted _cr5 for Creo 5.0 (e.g. protk_start_cr5.cmd), _cr6 for Creo 6.0, and _cr7 for Creo 7.0):

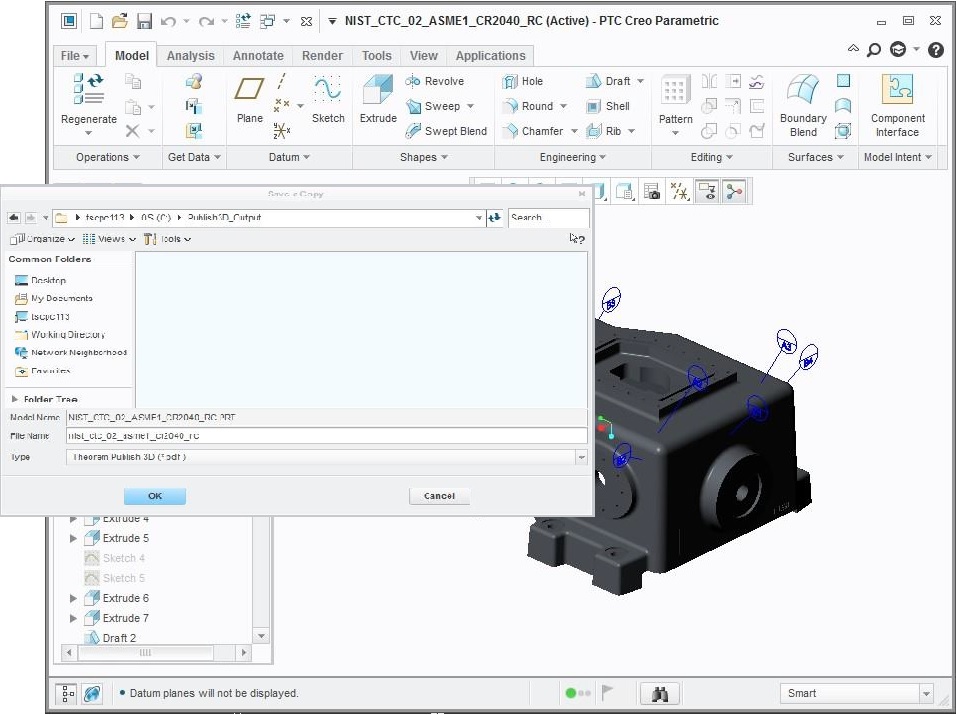

Having selected an output folder and a model loaded, the active Part or Assembly can be exported by selecting the File->Save As->Save a Copy menu:
The user will be able to specify:
A target output directory
A target file name
The log file (progress file) will be named the same as the target file name with a .log suffix

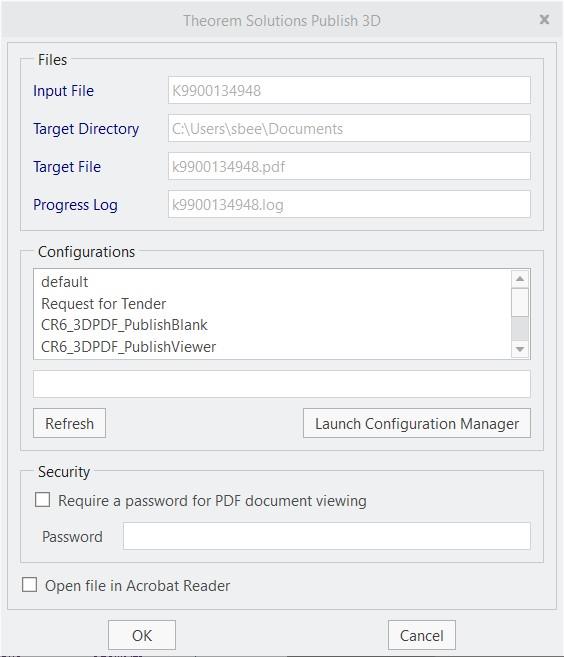

Having selected the output type as Theorem PUBLISH (*.pdf) from the pull-down menu the panel below will be presented to the user:
The Publish Interactive interface allows the user to specify:
A predefined Configuration (a custom set of translator options)
From Revision 23.0, a customer having an ‘On Demand’ License can launch the Configuration Manager to create or modify configurations.
When this has been done the new/modified configuration can be immediately displayed in the list when the ‘Refresh’ button is clicked.
3D PDF Output Options, such as:
Adding a password
Auto Open the PDF file using Adobe Acrobat Reader
A new option can be set using the configuration manager. If ‘process_simprep’ is specified in the ‘Advanced’ text box on the ‘General’ page, then in Interactive mode a menu is displayed showing a list of available Reps. Select one then press ‘Done’ when you wish the translation to continue.
On selecting ‘OK’ on the Publish Interactive interface the session will cycle through any 3D views and some flashing of pop-up windows may be seen as the translator processes PMI data. On completion the “Translation Complete” status message will be displayed in the bottom left hand corner:
Configuration Manager
The configurations listed under the Theorem Options panel are managed using the Configuration Manager from the Unified Interface for PUBLISH On Demand users (See ‘Configuration Manager’ on Page 12).
For PUBLISH Interactive only users, the configurations are managed using a standalone Configuration Manager that is launched by running the ConfigurationManager.cmd file from the \bin directory of your Theorem installation. The Configuration Manager is displayed below and is used in the same manner as the Configuration Manager used in the Unified Interface:
PDF Documents
Security Changes to Adobe Reader

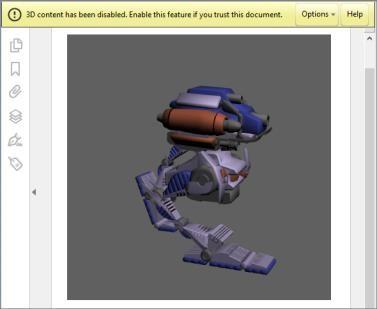

Adobe have implemented new security options to disable the autoplay of 3D content in PDF files. The following banner will be displayed upon opening a PDF file that contains 3D content:
To enable 3D content in the current document:
Click the Options button and then select an appropriate option:
Trust this document one time only
Trust this document always
To enable 3D content permanently in ALL documents:

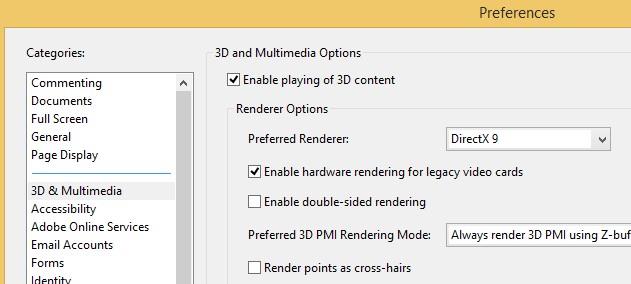

Go to Edit > Preferences > 3D & Multimedia and then select the Enable playing 3D content checkbox
