Product Release Notes: SpinFire XR

History

Product Distribution Media

Product Code Product Description Visualization Pipeline V2025.1 (20250321) VR Client V2025.1 - EXE V2025.1 - Installer Quest Untethered V2025.1 Focus 3 Untethered V2025.1 Desktop Client V2025.1 - EXE V2025.1 - Installer HL2 Client Coming Soon AR Android Client V2025.1 - APK Google Play Store AR Apple Client App Store Flex Version 11.19 is required for this release it can be found here. A new license will be required once flex 11.19 has been installed.

TheoremXR Online Documentation

Click to review the User Guide

Product Code

Product Description

Visualization Pipeline

V2025.1 (20250321)

    • V2025.1 - EXE

    • V2025.1 - Installer

    • V2025.1 - APK

    • Google Play Store

New Features / Enhancements

The following new features or enhancements have been introduced with this release. Ref ID New Feature / Enhancement Description Theorem Visualization Pipeline - TVP

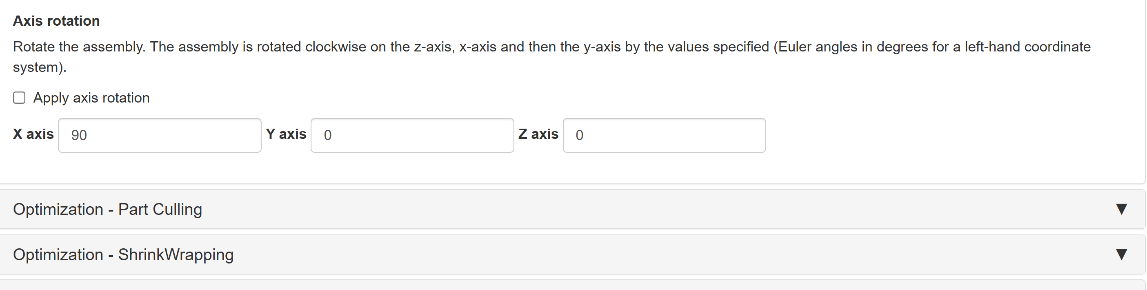

  • Thumbnail Generator Rotation support - Rotation values supplied in ‘Axis Rotation’ are sent through to the Thumbnail

Generator to provide correctly oriented model thumbnails.

  • Shrink-wrap Metadata support - Metadata is now supported for models that go through the shrink-wrapping

process.

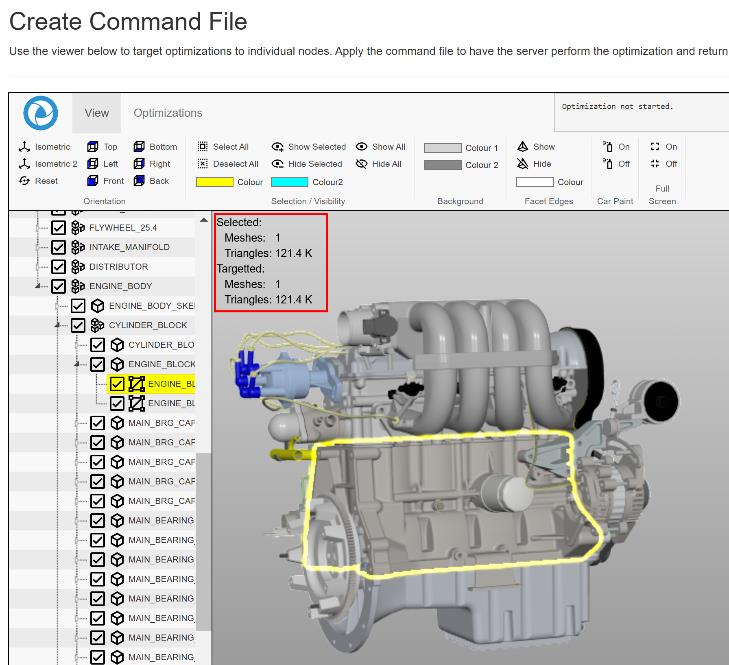

  • Multiple 3D Optimization Viewer improvements - Selection of multiple instances of parts - Instances of parts can now all be

optimized at the same time instead of individually.

  • Search bar for commands - Ability to find commands based on keyword

searches.

  • Statistics for Polygon count on selected model - Polygon count for selected

assemblies and parts.

New Features / Enhancements — figure 2
New Features / Enhancements — figure 3

  • Navisworks upload support - Navisworks files can now be uploaded and optimized.

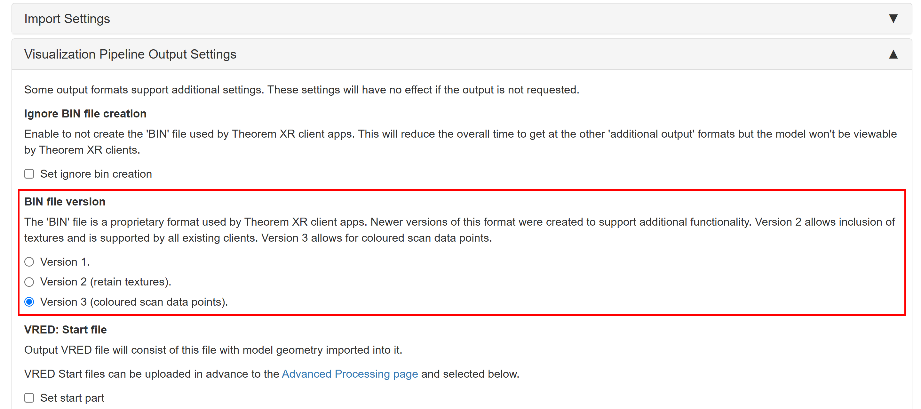

  • Binary File V3 - E57 Colour support - E57 data that contains colours is now retained when updated.

  • Deeplinks for Subfolders - QR codes can now be created for subfolders to launch the applications into a

specific subfolder.

  • Preservation of IIS bindings - IIS bindings are now retained when updating between TVP builds.

TheoremXR for VR and Desktop - Unity version update to 2022.3.39f1 - Improved Point Cloud data rendering

  • Improved point cloud rendering by converting points into billboarding squares,

enhancing visual density and creating a more cohesive, structured, and immersive representation of the data.

  • Manipulation Box for Point Cloud data - Data is now supported by the manipulation box allowing it to be sectioned,

rotated and transformed in any axis.

  • E57 Colour support - The new binary file allows for colours to be viewed from point cloud data in the

XR applications.

  • Improved Two Handed Gesture Controls

New Features / Enhancements — figure 2
New Features / Enhancements — figure 3

TheoremXR for AR - Rendered View Mode

  • Added an option to solely view the model without AR camera tools.

  • Product Structure View port - Product Structure View has been ported to AR adding review and outline tools

for model structures.

  • Linked Documents - Documents that are linked via the TVP can be viewed via the PSV panel.

  • Client Caching port - Caching controls have been ported to AR to manage data downloaded between

multiple servers.

Resolved Support Calls

The following list of Support Calls are resolved with this release. Support Call ID Brief Description TH-1103 Fixed an issue with large assembly data being uploaded to TVP. TH-1070 Fixed a script issue with the quadding script. TH-1078 TH-1072 TH-1016 Updated VRED executables.

USA and the America UK, Europe and Asia Pacific Regions .. figure:: ../_static/images/creo/nx/rn_p8_1.png

align:

center

alt:

Resolved Support Calls — figure 1

Resolved Support Calls — figure 5
