Color

Fields

float	`_r`
float	`_g`
float	`_b`
float	`_a`
const Color	`UNDEFINED`
const Color	`TRANSPARENCY`
const Color	`RED`
const Color	`GREEN`
const Color	`BLUE`
const Color	`CYAN`
const Color	`MAGENTA`
const Color	`YELLOW`
const Color	`DARK_RED`
const Color	`DARK_GREEN`
const Color	`DARK_BLUE`
const Color	`WHITE`
const Color	`GREY`
const Color	`DARK_GREY`
const Color	`LIGHT_GREY`
const Color	`BLACK`

Functions

CID	`GetClassID`
Color	`Random`
Color	`FromCharRGBA`

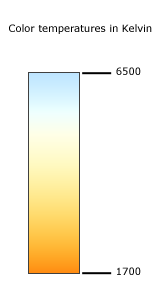

Color	`FromTemperature`
Color	`FromCIEXYZ`
Color	`FromCIExyY`
void	`DecodeRGBAAA`
void	`EncodeRGBAAA`
void	`GetRGBAAABackground`
void	`SetRGBAAABackground`
void *	`As`
const void *	`As`
class T_As	`As`
class T_As	`As`
	`Color`
	`Color`
	`Color`
	`Color`
	`Color`
	`Color`
	`Color`
	`Color`
	`Color`
void	`SetRGBA`
void	`SetRGBA`
	`~Color`
void	`ToCIEXYZ`
void	`ToCIExyY`
bool	`operator==`
bool	`operator!=`
Color	`operator+`
Color	`operator-`
void	`operator+=`
void	`operator-=`
void	`operator*=`
void	`operator*=`
Color	`operator*`
Color	`operator/`
void	`operator/=`
bool	`operator`
float	`GetIntensity`
float	`R`
float	`G`
float	`B`
float	`A`
void	`RGBClamp`
bool	`IsLower`
float	`GetMinComponent`
float	`GetMaxComponent`
float	`GetCIELuminance`
void	`Pack`
const Color &	`Unpack`
void	`ToHalfFloat`
void	`ToCharRGBA`

Detailed Description

class Color : public RED::Object

RGBA color using 1 float per component.

By default in REDsdk, colors are stored as RGBA quadruplets in the linear sRGB color space. The colors are not clamped and can therefore be of any value (negative as well as positive).

Several colors operations are implemented in that class to simplify colors conversion, edition and comparison.

There are also a few hard-coded default values for most common colors:

RED::Color::TRANSPARENCY	0, 0, 0, 0
RED::Color::RED	1, 0, 0, 1
RED::Color::GREEN	0, 1, 0, 1
RED::Color::BLUE	0, 0, 1, 1
RED::Color::CYAN	0, 1, 1, 1
RED::Color::MAGENTA	1, 0, 1, 1
RED::Color::YELLOW	1, 1, 0, 1
RED::Color::DARK_RED	0.25, 0, 0, 1
RED::Color::DARK_GREEN	0, 0.25, 0, 1
RED::Color::DARK_BLUE	0, 0, 0.25, 1
RED::Color::WHITE	1, 1, 1, 1
RED::Color::GREY	0.5, 0.5, 0.5, 1
RED::Color::DARK_GREY	0.25, 0.25, 0.25, 1
RED::Color::LIGHT_GREY	0.75, 0.75, 0.75, 1
RED::Color::BLACK	0, 0, 0, 1
RED::Color::UNDEFINED	-1, -1, -1, -1

Public Functions

virtual void *As(const RED::CID &iCID)

Converts the object to an instance of the given type.

Parameters: iCID – Requested class.
Returns: An object pointer of the given class on success, NULL otherwise.

virtual const void *As(const RED::CID &iCID) const

Converts the object to an instance of the given type.

Parameters: iCID – Requested class.
Returns: An object pointer of the given class on success, NULL otherwise.

template<class T_As> inline T_As *As()

template<class T_As> inline const T_As *As() const

Color()

Default constructor.

The color is initialized to RED::Color::TRANSPARENCY.

Color(float iR, float iG, float iB, float iA = 1.0f)

Component-based color construction method using floats. Color space used is linear sRGB.

Parameters

iR – Red component of the color.
iG – Green component of the color.
iB – Blue component of the color.
iA – Alpha component of the color (default is opaque).

Color(double iR, double iG, double iB, double iA = 1.0)

Component-based color construction method using doubles. Color space used is linear sRGB.

Parameters

iR – Red component of the color.
iG – Green component of the color.
iB – Blue component of the color.
iA – Alpha component of the color (default is opaque).

Color(unsigned char iR, unsigned char iG, unsigned char iB, unsigned char iA = 255)

Component-based color construction method using unsigned chars. Color space used is linear sRGB.

Creates a color object from unsigned char RGBA values. The created color is normalized.

Parameters

iR – Red component of the color in [0,255].
iG – Green component of the color in [0,255].
iB – Blue component of the color in [0,255].
iA – Alpha component of the color in [0,255].

Color(unsigned short iR, unsigned short iG, unsigned short iB, unsigned short iA = (0x3c00))

Component-based color construction using half floats. Color space used is linear sRGB.

Creates a color object from unsigned short color components encoding half floating point values.

Parameters

iR – Red component of the color.
iG – Green component of the color.
iB – Blue component of the color.
iA – Alpha component of the color (default is opaque).

Color(float iIntensity)

Grey color constructor from color intensity.

Parameters: iIntensity – Intensity replicated on the 4 color components.

Color(double iIntensity)

Grey color constructor from color intensity.

Parameters: iIntensity – Intensity replicated on the 4 color components.

Color(const RED::Vector3 &iVector)

Conversion between RED::Vector3 and RED::Color.

Parameters: iVector – The source vector to build from. Alpha is set to 1.0f.

Color(const RED::Vector4 &iVector)

Conversion between RED::Vector4 and RED::Color.

Parameters: iVector – The source vector to build from.

inline void SetRGBA(float iRed, float iGreen, float iBlue, float iAlpha = 1.f)

Sets a color from the four RGBA components.

Parameters

iRed – red component.
iGreen – green component.
iBlue – blue component.
iAlpha – alpha component (default is 1.f).

inline void SetRGBA(const double iValues[4])

Sets a color from an array of four values.

Parameters: iValues – r, g, b and a values of the color.

virtual ~Color(): Destructor.

void ToCIEXYZ(float &oX, float &oY, float &oZ) const

Converts a linear sRGB color to CIE XYZ color space.

Parameters

oX – reference to the X component of the returned CIE XYZ color.
oY – reference to the Y component of the returned CIE XYZ color.
oZ – reference to the Z component of the returned CIE XYZ color.

void ToCIExyY(float &ox, float &oy, float &oY) const

Converts a linear sRGB color to CIE xyY color space.

Parameters

ox – reference to the x component of the returned CIE xyY color.
oy – reference to the y component of the returned CIE xyY color.
oY – reference to the Y component of the returned CIE xyY color.

inline bool operator==(const RED::Color &iOther) const

Equality test operator.

Parameters: iOther – RED::Color to test with.

inline bool operator!=(const RED::Color &iOther) const

Inequality test operator.

Parameters: iOther – RED::Color to test with.

inline RED::Color operator+(const RED::Color &iSource) const

Addition operation.

Builds a new color by the addition of two others.

Parameters: iSource – The color to add to ‘this’.
Returns: The sum of the two input colors.

inline RED::Color operator-(const RED::Color &iSource) const

Subtraction operation.

Builds a new color by the subtraction of two others.

Parameters: iSource – The color to subtract from ‘this’.
Returns: The subtraction of the two input colors.

inline void operator+=(const RED::Color &iSource)

Increment operation.

Adds the iSource color to ‘this’.

Parameters: iSource – The color to add to ‘this’.

inline void operator-=(const RED::Color &iSource)

Decrement operation.

Subtracts the iSource color to ‘this’.

Parameters: iSource – The color to subtract from ‘this’.

inline void operator*=(const RED::Color &iSource)

Color modulation operation.

Multiply each component of ‘this’ by those of iSource.

Parameters: iSource – Color to multiply by.

inline void operator*=(float iScalar)

Scalar product.

Multiply each component of ‘this’ by the given float.

Parameters: iScalar – The number to multiply ‘this’ components by.

inline RED::Color operator*(const RED::Color &iSource) const

Color modulation operation.

Multiply each component of ‘this’ by those of iSource.

Parameters: iSource – Color to multiply by.
Returns: The resulting color.

inline RED::Color operator/(float iScalar) const

Scalar division.

Divide each component of ‘this’ by the given float.

Parameters: iScalar – The number to divide ‘this’ components by.
Returns: The resulting color.

inline void operator/=(float iScalar)

In-place scalar division.

Divide each component of ‘this’ by the given float.

Parameters: iScalar – The number to divide ‘this’ components by.

inline bool operator<(const RED::Color &iColor) const

Color comparison operator.

Compares the two colors. The comparison occurs for each component of the compared colors. This operator is suitable for a RED::Map key lookup using colors.

Parameters: iColor – Color to compare to.
Returns: true if this is < to iColor.

inline float GetIntensity() const

Gets the intensity of the color.

We define the color intensity by dot((RGB),(AAA))/3.0f.

Returns: the intensity of the color.

inline float R() const

Gets the red component of the color.

Returns: The red component of the color.

inline float G() const

Gets the green component of the color.

Returns: The green component of the color.

inline float B() const

Gets the blue component of the color.

Returns: The blue component of the color.

inline float A() const

Gets the alpha component of the color.

Returns: The alpha component of the color.

inline void RGBClamp(const RED::Color &iColor)

Clamps each channel between 0 and a given value.

The clamping follows those rules:

‘this’->_r/_g/_b = min( ‘this’->_r/_g/_b, iColor._r/_g/_b )
‘this’->_r/_g/_b = max( ‘this’->_r/_g/_b, 0.0 )

After the call, the callee will have its components in the [0, iColor._r], [0, iColor._g] and [0, iColor._b] ranges.

Parameters: iColor – The clamping value for each color channel.

inline bool IsLower(const RED::Color &iColor) const

Checks if all the components of ‘this’ are lower than (or equal to) those of a given color.

Parameters: iColor – The color to test with.
Returns: true if all the components of ‘this’ are lower than (or equal to) those of iColor, false otherwise.

inline float GetMinComponent() const

Gets the smallest component of the color.

Returns: The smallest component of the color.

inline float GetMaxComponent() const

Gets the biggest component of the color.

Returns: The biggest component of the color.

inline float GetCIELuminance() const

Gets the luminance value of the color as defined by the CIE.

The luminance is the Y component from the CIE XYZ or xyY color space as converted from the linear sRGB color space.

Returns: the luminance value of the color as defined by the CIE.

void Pack(unsigned char *iOutput) const

Packs the floating point color on 4 bytes.

The alpha term is discarded and not packed.

Parameters: iOutput – pointer to the packed color (must be allocated for at least 4 bytes).

const RED::Color &Unpack(const unsigned char *iInput)

Unpacks a floating point color from 4 packed bytes.

The alpha term of the returned color is set to 1.

Parameters: iInput – pointer to the input 4 bytes.
Returns: the unpacked color.

inline void ToHalfFloat(unsigned short oHalf[4]) const

Converts the color components to half float values.

Parameters: oHalf – An array of 4 half float values.

inline void ToCharRGBA(unsigned char oCharRGBA[4]) const

Converts the color components to unsigned char values.

Colors components are clamped to [0,1] and then converted to unsigned char.

Parameters: oCharRGBA – An array of 4 unsigned char values.

Public Members

float _r: Red component of the color.

float _g: Green component of the color.

float _b: Blue component of the color.

float _a: Alpha component of the color.

Public Static Functions

static inline RED::CID GetClassID()

static Color Random()

Returns: a random color.

static Color FromCharRGBA(unsigned char iR, unsigned char iG, unsigned char iB, unsigned char iA = 255)

Constructs a RED::Color instance based upon four (at least three) user defined values (between 0 and 255). Color space used is linear sRGB.

Parameters

iR – Red component of the color.
iG – Green component of the color.
iB – Blue component of the color.
iA – Alpha component of the color (default is opaque/255).

Returns

the corresponding color.

static Color FromTemperature(float iTemperature)

Constructs a RED::Color instance from a color temperature expressed in Kelvin.

../build/doxygen/RED/xml/API_Color_temperature.png

Note that contrary to one can expect, colors are getting more blue as the temperature increases.

The returned color has its alpha component set to 1.

Parameters: iTemperature – the color temperature in Kelvin.
Returns: the corresponding color.

static Color FromCIEXYZ(float iX, float iY, float iZ)

Constructs a RED::Color instance from a color in the CIE XYZ color space.

The resulting color is in the linear sRGB color space. The alpha component of the returned color is set to 1.

Parameters

iX – first stimulus value.
iY – second stimulus value.
iZ – third stimulus value.

Returns

the corresponding RGB color in linear sRGB color space.

static Color FromCIExyY(float ix, float iy, float iY)

Constructs a RED::Color instance from a color in the CIE xyY color space.

The resulting color is in the linear sRGB color space. The alpha component of the returned color is set to 1.

Parameters

ix – first stimulus value.
iy – second stimulus value.
iY – third stimulus value.

Returns

the corresponding RGB color in linear sRGB color space.

static void DecodeRGBAAA(float oColor[4], double iColor[4])

Decodes a pixel encoded in RED::FMT_FLOAT_RGBA_AA format to RED::FMT_FLOAT_RGBA.

Parameters

oColor – Decoded pixel color (4 floats).
iColor – Source pixel color (4 doubles).

static void EncodeRGBAAA(double oColor[4], float iColor[4])

Encodes a pixel color in the RED::FMT_FLOAT_RGBA_AA format.

Parameters

oColor – Encoded pixel color (4 doubles).
iColor – Source pixel color to encode (4 floats).

static void GetRGBAAABackground(float oBackColor[4], double iColor[4])

Extracts the background component encoded in a RED::FMT_FLOAT_RGBA_AA format.

This method retrieves the background color encoded in the source iColor.

Parameters

oBackColor – Retrieved background component (4 floats).
iColor – Source color (4 doubles, RGBA_AA format).

static void SetRGBAAABackground(double oColor[4], double iColor[4], float iBackColor[4])

Replaces the background component encoded in a RED::FMT_FLOAT_RGBA_AA format.

oColor and iColor may point to the same memory address.

Parameters

oColor – Color after replacement (4 doubles, RGBA_AA format).
iColor – Source color before replacement (4 doubles, RGBA_AA format).
iBackColor – Background color to replace in the RGBA_AA (4 floats).

Public Static Attributes

static const RED::Color UNDEFINED: ( -1.f, -1.f, -1.f, -1.f ).

static const RED::Color TRANSPARENCY: ( 0.f, 0.f, 0.f, 0.f ).

static const RED::Color RED: ( 1.f, 0.f, 0.f, 1.f ).

static const RED::Color GREEN: ( 0.f, 1.f, 0.f, 1.f ).

static const RED::Color BLUE: ( 0.f, 0.f, 1.f, 1.f ).

static const RED::Color CYAN: ( 0.f, 1.f, 1.0f, 1.f ).

static const RED::Color MAGENTA: ( 1.f, 0.f, 1.0f, 1.f ).

static const RED::Color YELLOW: ( 1.f, 1.f, 0.0f, 1.f ).

static const RED::Color DARK_RED: ( 0.25f, 0.f, 0.f, 1.f ).

static const RED::Color DARK_GREEN: ( 0.f, 0.25f, 0.f, 1.f ).

static const RED::Color DARK_BLUE: ( 0.f, 0.f, 0.25f, 1.f ).

static const RED::Color WHITE: ( 1.f, 1.f, 1.f, 1.f ).

static const RED::Color GREY: ( 0.5f, 0.5f, 0.5f, 1.f ).

static const RED::Color DARK_GREY: ( 0.25f, 0.25f, 0.25f, 1.f ).

static const RED::Color LIGHT_GREY: ( 0.75f, 0.75f, 0.75f, 1.f ).

static const RED::Color BLACK: ( 0.f, 0.f, 0.f, 1.f ).
